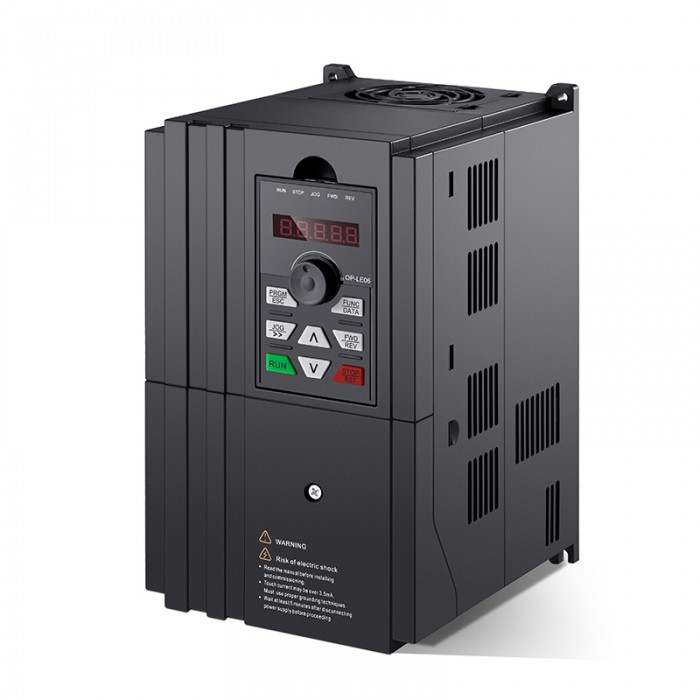

BD600 Series VFD Variable Frequency Drive 10HP/15HP 7.5/11KW 18/24A Three Phase 380V

BD600 Series VFD  Variable Frequency Drive 10HP/15HP 7.5/11KW 18/24A Three Phase 380V
NO.:BD600-7R5G-011P-4
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$426.33
Buy It Now:$284.22
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $275.05 3%
10 $265.88 6%
50 $256.71 10%
100 $247.54 13%
Add To Cart

BD600 Series VFD 10HP/15HP 7.5/11KW 18/24A Three Phase 380V Variable Frequency Drive



This VFD with two types of power G: 10HP(7.5Kw)/P: 15HP(11Kw), and three phase 380V input voltage. The BD600 series is a high performance Vector Control Variable Frequency Drive(VFD), they are widely used in application of: Metal processing, CNC machine tools, Wire drawing machines, Boiler blower, Induced draft fan, Coal mine underground exhaust fan, Municipal engineering, Counter-cyclone, Centrifugal fan, Circulating water pump, Make-up water pump, Oil field injection water pump, Oil transfer pump, music fountain, Papermaking equipment, Chemical industry, Pharmaceutical industry, Textile industry, etc.



Key Specification

Input Voltage: 3-Phase 380VAC±15%

Input Frequency: 47~63Hz

Input Current: G: 20.5A/P: 26A

Input Power factor: ≥95%

Power: G: 10HP(7.5Kw)/P: 15HP(11Kw)

Output Current: G: 18A/P: 24A



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: BD600 Series VFD Variable Frequency Drive 7.5HP/10HP 5.5/7.5KW 13/18A Three Phase 380V
Next: 10m (393.7") 4-PIN Motor Extenstion Cable with IP65 Aviation Connector Fit T6 Series Servo Motor
Variable Frequency Drive Specification
Input Voltage 3PH 380VAC
Input Frequency 47 - 63Hz
Input Current 20.5A(3PH)
Power 10HP / 7.5KW
Output Current 18A
Control Modes V/F control, non-PG vector control(SVC), PG vector control(FVC)
Start Torque G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC); P type: 0.5Hz/100%
Frequency Resolution 0.01Hz(Digital setting); maximum frequency x 0.025%(Anolog setting)
Vibration Under 20Hz 9.8m/s(1G), Over 20Hz5.88m/s(0.6G)
Store Environment ≤1000M, indoor(no corrosive gas and liquid)
Store Temperature -20℃~60℃
Input Power factor ≥95%
V/F Control Line, Multiple point, square V/F curve, V/F separation
Operation Command Mode Keypad control, Terminal control, Serial communication control
Frequency Reference Source Digital, analog, pulse frequency, serial communication, multi-step speed, simple PLC and PID The combination of multi-modes and the different modes can be switched
Overload Capacity G type: 150% rated current 60s, 180% rated current 3s; P type: 120% rated current 60s, 150% rated current 3s
Speed Adjusting Range 1:100(SVC), 1:1000(FVC)
Speed Control Accuracy ±0.5%(SVC), ±0.02%(FVC)
Carrier Frequency 0.5 to 16.0kHz; automatically adjust carrier frequency according to the load characteristics
Torque Boost Automatic torque boost; manual torque boost 0.1~30%
Acceleration and Deceleration Mode Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0s
DC Brake Supports starting and stopping DC brake
Jogging Control 0.0Hz~50.00Hz(Jog frequency range); 0~6500.0s(Jog Acc/Dec time)
Simple PLC & Multi-step Speed Operation Built-in PLC or control terminal, 16 steps speed can be set
Built-in PID Built-in PID control to easily realize the closed loop control for the process parameters (such as a pressure, temperature, flow, etc.)
Automatic Voltage Regulation(AVR) Automatically maintain a constant output voltage when the voltage of electricity grid changes
Common DC Bus Multiple inverters can use a common DC bus(Common DC bus function)
Traverse Control Multiple triangular pulse frequency control(Traverse control function)
Fixed Length Control Setting length control
Timing Control 0~6500min(Setting time range)
Input Terminals a. Supports high speed pulse input, b. 1 Analog voltage input 0~10VDC, c. 2 Voltage input 0~10VDC or current input 0~20mA
Output Terminals a. 1 Open collector output, it can be extended to 1 high speed pulse output, b. 2 Relay outputs, c. 2 Analog output: voltage output 0~10VDC or current output 0~20mA
Protection Class IP20
Humidity & Temperature 90%RH or less (no-condensation), -10℃~40℃.Inverter will be derated if ambient temperature exceeds 40℃
Cooling Mode Forced air-cooling
