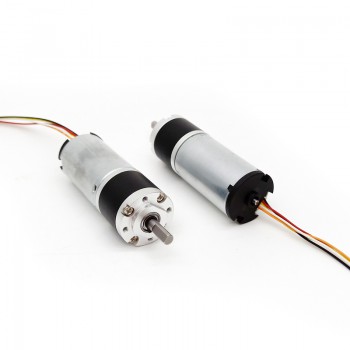

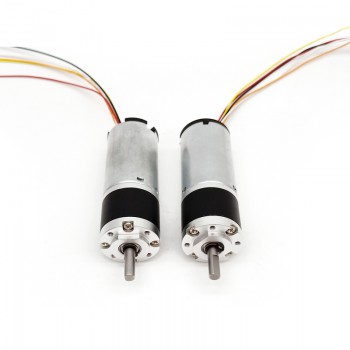

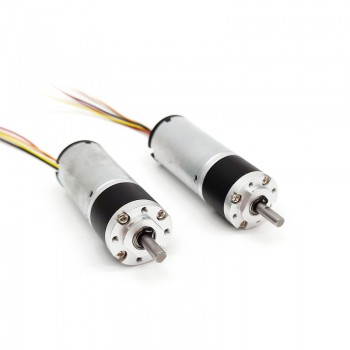

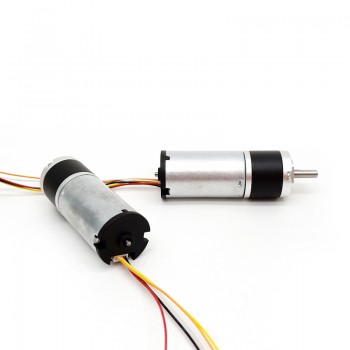

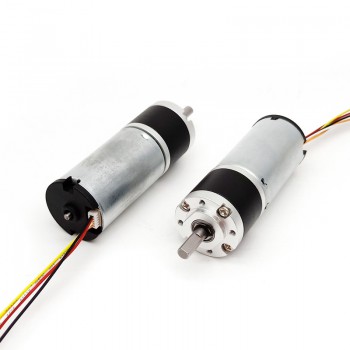

2Pcs Φ22mm 12V/24V BLDC Gearmotor MP22-TEC2238 3.0kg.cm 3W CW/CCW With Planetary Gearbox

2Pcs Φ22mm 12V/24V BLDC Gearmotor MP22-TEC2238 3.0kg.cm 3W CW/CCW With Planetary Gearbox
NO.:GMP22-TEC2238
Post a review
Our Price:$125.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $119.68 5%
10 $117.16 7%
50 $113.38 10%
100 $107.08 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.22mm gear motor provide 0.8Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio: 4、4.75、16、19、22.6、64、76、90、107、172、224、256、304、361、428.7、509、1024;

Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Robot DIY.

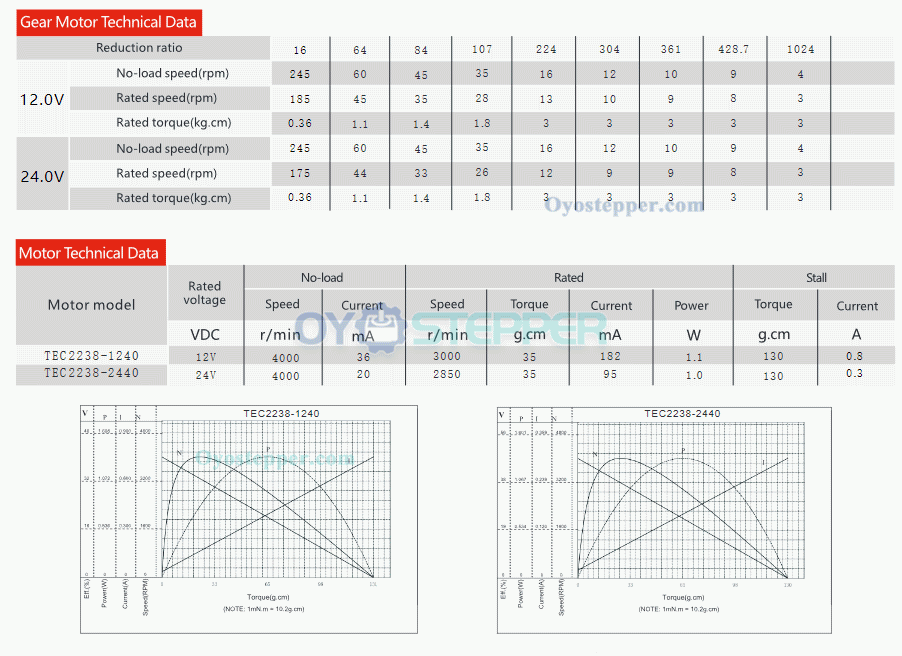

Electrical Specification:
Part Number:GMP22-TEC2238
Rated Voltage:12 / 24VDC
Rated Torque:3.0kg.cm
Max momentary tolerance torque:5.0kg.cm
Rated current:182mA(12V) / 95mA (24V)
Motor Rated Speed w/o Gearbox:3000RPM(12V) / 2850RPM(24V)
Rated Speed w/ Gearbox: 3-185RPM
No load speed w/ Gearbox:4-245RPM
No-load current:36mA(12V) / 20mA(24V)
Output Power:1.1W(12V) / 1.0W(24)
Gear type:Plantary Gearbox
Direction of rotation:CW/CCW
Control:PWM
Driver:Internal/external
Motor type:Brushless
Encoder:1-1024ppr
Efficiency:65%
Noise:30cm.40-50DB;

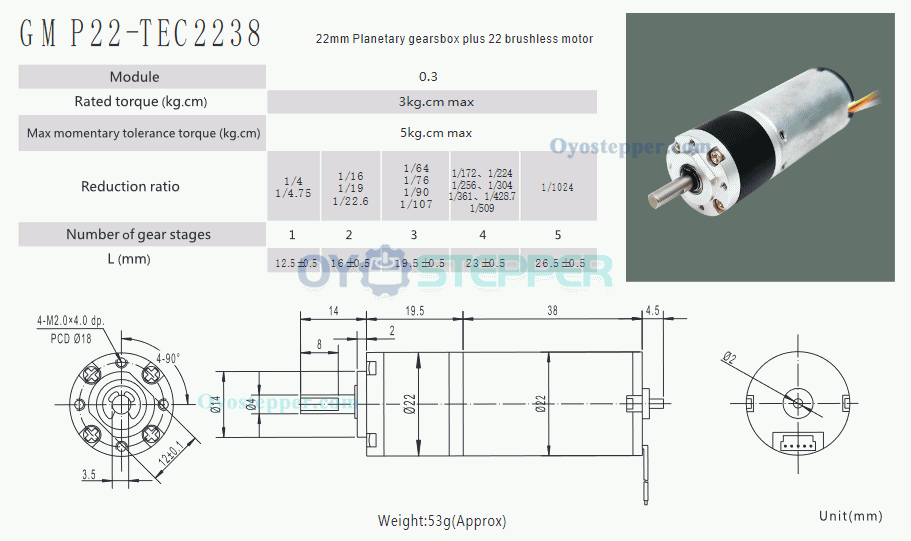

Physical Specification:
Motor Size:22*38mm
Motor Diameter:22mm
Gearbox size:22*12.5mm/ 22*16mm/ 22*19.5mm / 22*23mm / 22*26.5mm
Body Length: 38mm + Gearbox
Shaft Length:12mm
D-cut Length: 8mm
Shaft Diameter:4mm
Weight:53g;

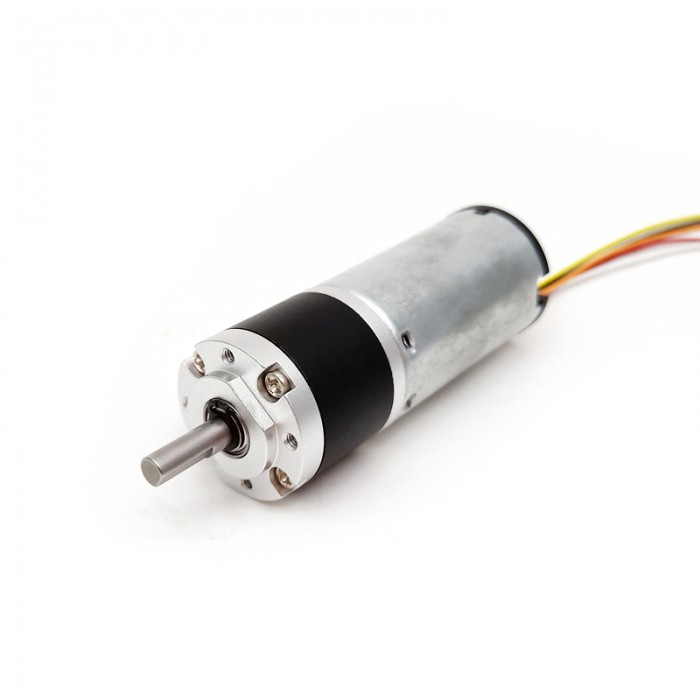

12V 24V Brushless DC Motor BLDC Gear Motor with Reduction Gearbox 3kg.cm 22*30mm

12V 24V Brushless DC Motor BLDC Gear Motor with Reduction Gearbox 3kg.cm 22*30mm

Resources

GMP22-TEC2238.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs Φ20mm 12V/24V Brushless DC Gearmotor GMP20-TEC2047 3.0kg.cm With Planetary Gearbox
Next: 2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox
Physical Specification
Body Length(mm) 0.095
Frame Size(mm) Φ20
Shaft Diameter(mm) 4
Shaft Length(mm) 14
Gearbox Length(mm) 19.5 / 23 / 26.5 / 12.5 / 16
Gear Ratio 4:1 / 4.75:1 / 16:1 / 19:1 / 22.6:1 / 64:1 / 76:1 / 90:1 / 107:1 / 172:1 / 224:1 / 256:1 / 304:1 / 361:1 / 428.7:1 / 1024:1 / 509:1
Weight(g) 53
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Planetary Gearbox
Electrical Specification
Rated Power(W) 1.1 / 1
Rated Voltage(V) 12 / 24
Current(A) 182 / 95
Rated Torque(kg.cm) 3
Rated Speed(rpm) 3-185
Rated Current (A) 0.182 / 0.095
