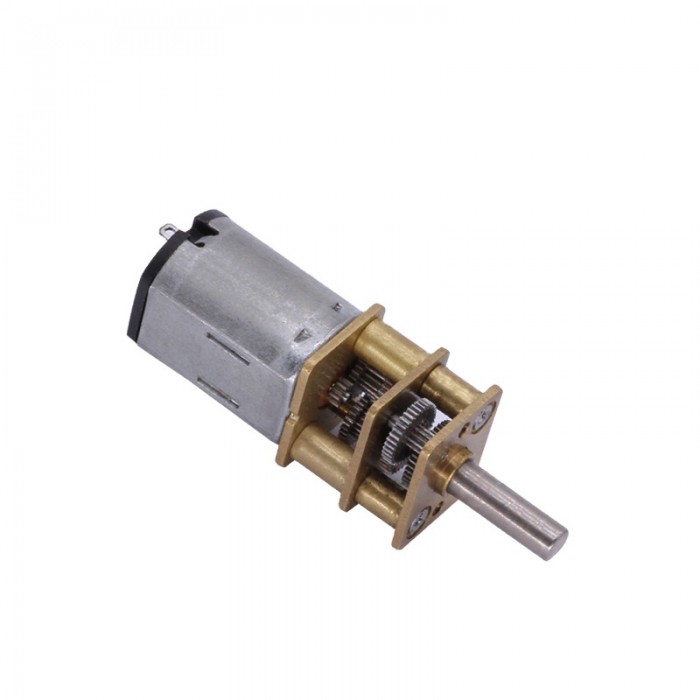

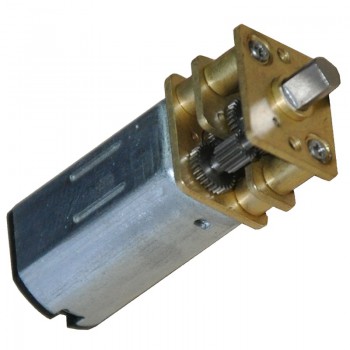

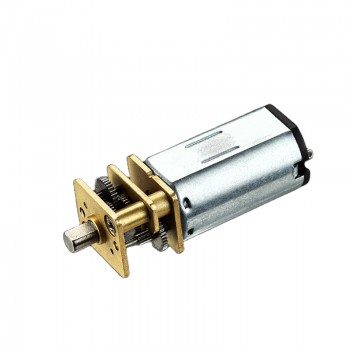

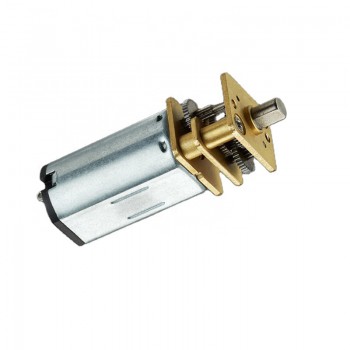

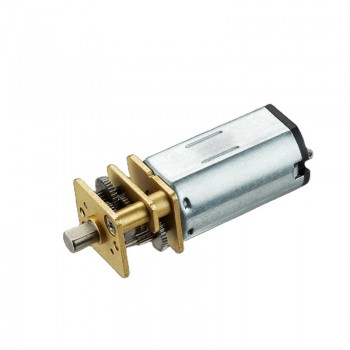

20Pcs 6V 12V PMDC Brushed Motor Brush DC Gear Motor Spur Gearbox 0.5kg.cm
Features:
12mm DC gear motor
0.1Nm rated torque
Spur gearbox
Encoder compatible: 3ppr
Reduction ratios: 10:1, 30:1, 50:1, 63:1, 100:1, 150:1, 210:1, 250:1, 298:1, 380:1, 1000:1.
Reduction ratio stages:
2 stages: 10:1
4 stages: 20:1 / 30:1 / 50:1 / 63:1 / 100:1
5 stages: 110:1 / 150:1 / 210:1 / 250:1 / 298:1 / 380:1
7 stages: 1000:1
Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, smart home.

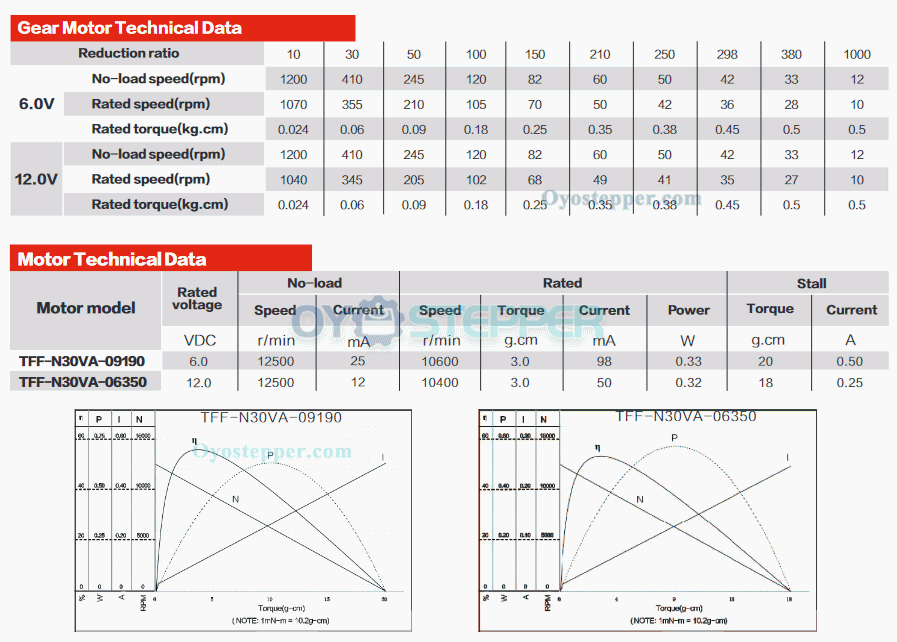

Electrical Specification:
Part Number:GM12-N30VA
Rated Voltage:6/12VDC
Rated Torque:0.5kg.cm
Max momentary tolerance torque: 1.0kg.cm
Rated current:98mA(6V)/50mA(12V)
No Load Speed without Gearbox: 12500RPM
Rated Speed without Gearbox: 10600RPM(6V)/10400RPM(12V)
No Load Speed with Gearbox: 12-1200 RPM
Rated Speed with Gearbox:10-1070 RPM
Rated Power:0.33W(6V) / 0.32W(12V)
Gear type:Spur gearbox
Motor type:Brushed
Efficiency:IE 1
Noise:30cm.40-50db;

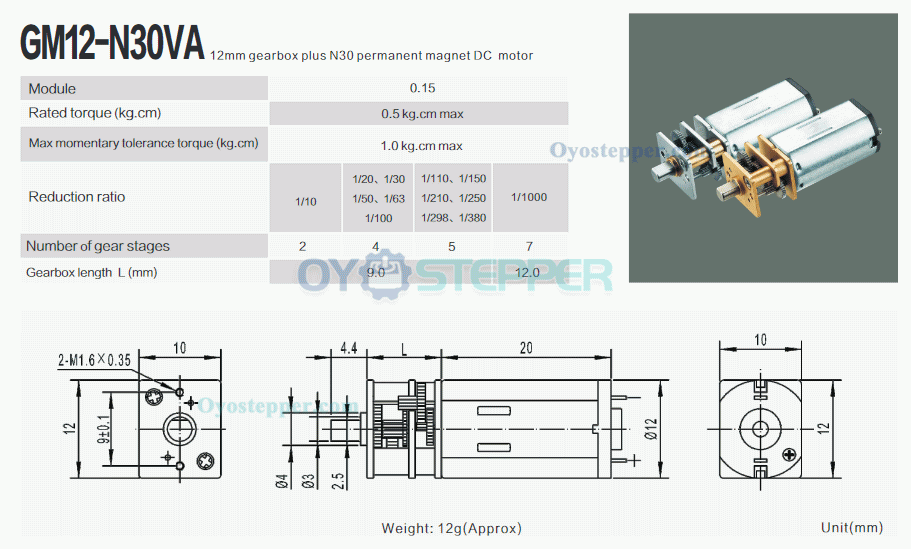

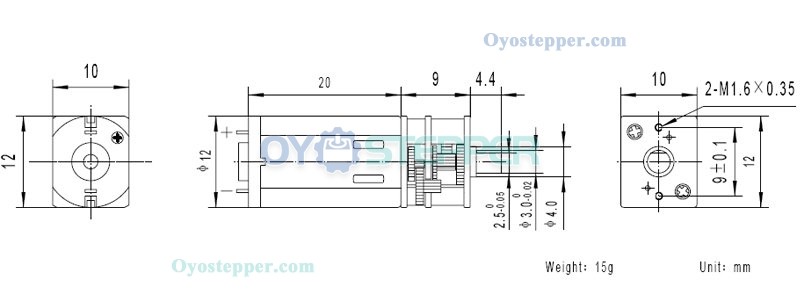

Physical Specification:
Motor Size:12x10x20mm
Gearbox Length:9mm (2/4/5 stages) / 12mm (7 stages)
Shaft Type:D-cut
D-cut Diameter:2.5mm
Shaft Length:4.4mm
Shaft Diameter:3mm
Weight:12g;
| Electrical Specification | |
|---|---|
| Rated Voltage(V) | 12 / 6 |
| Rated Power(W) | 0.32 / 0.33 |
| Rated Speed(rpm) | 10-1070 |
| Rated Current (A) | 0.098 / 0.05 |
| Rated Torque(kg.cm) | 0.5 |
| Physical Specification | |
| Shaft Diameter(mm) | 3 |
| Weight(g) | 15 |
| Gearbox Length(mm) | 9 / 1.8 |
| Gear Ratio | 10:1 / 50:1 / 63:1 / 150:1 / 380:1 / 250:1 / 30:1 / 100:1 / 210:1 / 298:1 / 1000:1 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Length(mm) | 4.4 |
| Frame Size(mm) | 12*10 |
| Body Length(mm) | 29+gearbox |
| Gearbox Type | Spur Gearbox |
| Shaft Type | D-Cut |
