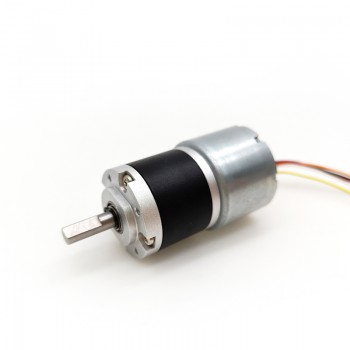

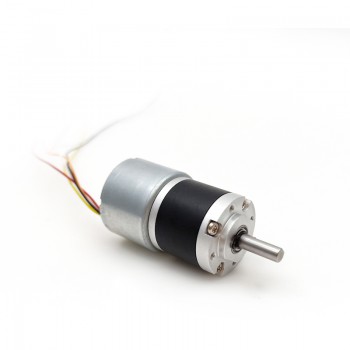

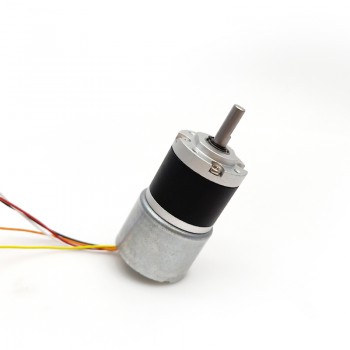

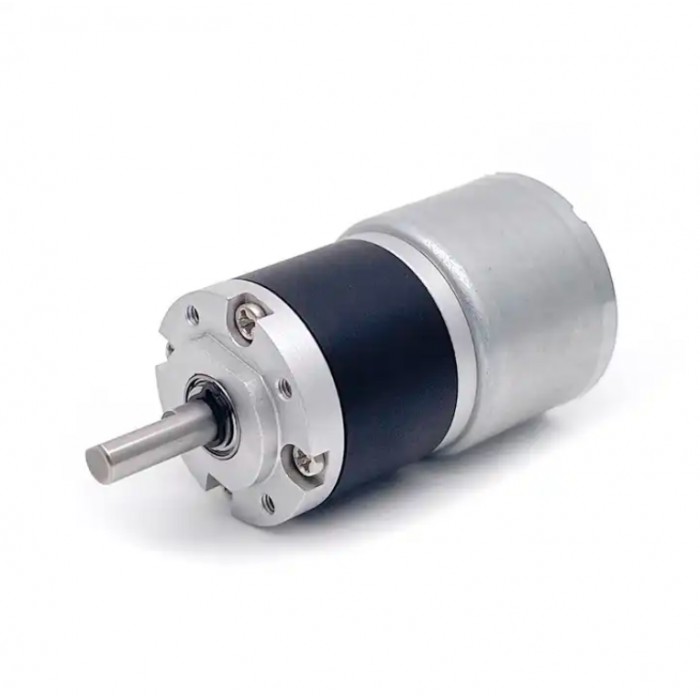

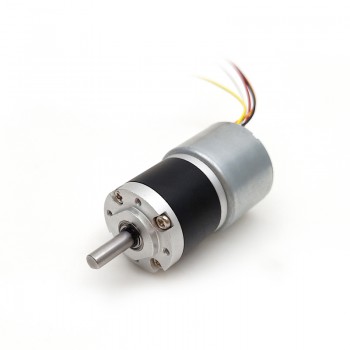

2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox

2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox
NO.:GMP22-TEC2418
Post a review
Our Price:$51.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $49.38 5%
10 $48.34 7%
50 $46.78 10%
100 $44.18 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.22mm gear motor provide 0.8Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio: 4、4.75、16、19、22.6、64、76、90、107、172、224、256、304、361、428.7、509、1024;

Application:
Robot,lock,Auto shutter, USB fan,Slot machine,Money detector
Coin refund devices,Currency count machine,Towel dispensers
Automatic doors,Peritoneal machine,Automatic TV rack,
Office equipment ,Household appliances,etc.

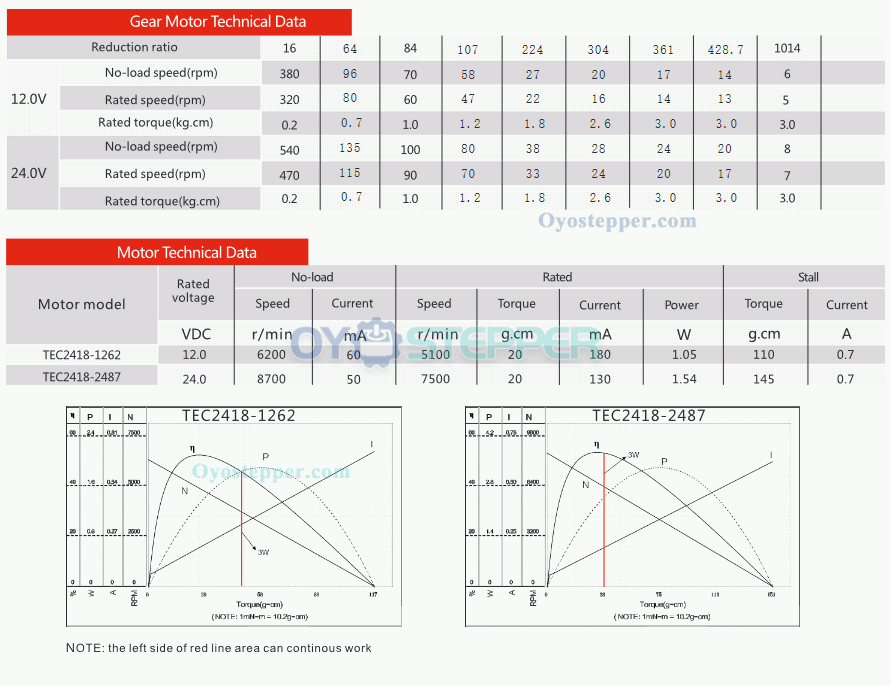

Electrical Specification:
Part Number:GMP22-TEC2418
Rated Voltage:12VDC / 24VDC
Max momentary tolerance torque:6.0kg.cm
Rated Torque:3.0kg.cm
Rated current:180mA(12V) / 130mA(24V)
No Load Speed W/O Gearbox: 6200RPM(12V) / 8700RPM(24V)
Rated Speed W/O Gearbox: 5100RPM(12V) / 7500RPM (24V)
No Load Speed W Gearbox: 6-540 RPM
Rated Speed W/ Gearbox:5-470 RPM
Rated Power:1.05W(12V) / 1.54W(24V)
Gear type:Plantary Gearbox
Direction of rotation:CW/CCW
Control:PWM
Driver:Internal/external
Motor type:Brushless
Encoder:1-1024ppr
Efficiency:    65%
Noise:30cm.40-50DB

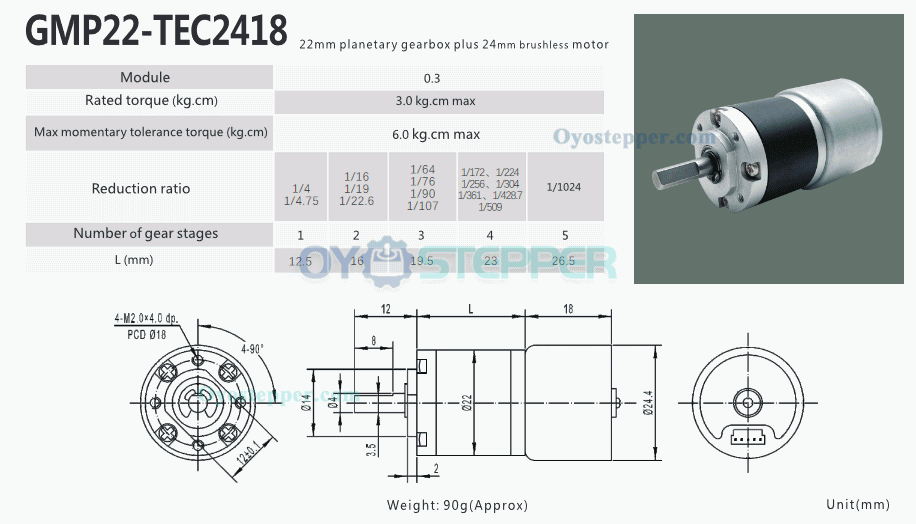

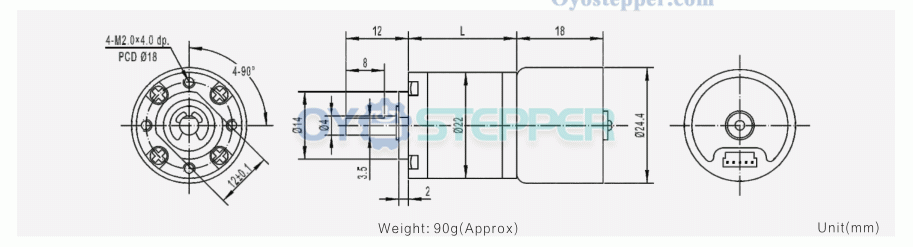

Physical Specification:
Motor Size:24.4*18mm
Motor Diameter:24.4mm
Gearbox Diameter:22mm
Length:18mm+Planetary gearbox
Shaft Length:10mm
D-cut Length: 8mm
Shaft Diameter:4mm
Weight:90g;

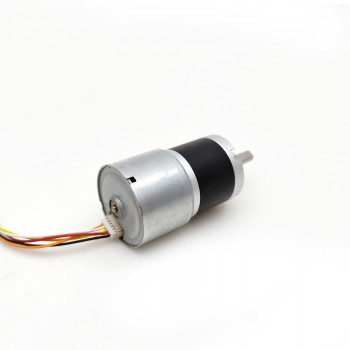

2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox

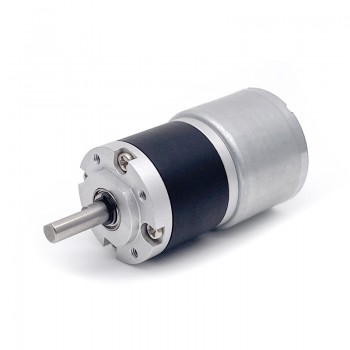

2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox

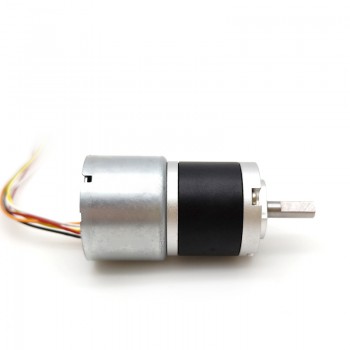

2Pcs Φ22mm 12V/24V Brushless DC Gearmotor GMP22-TEC2418 3.0kg.cm 1.54w With Planetary Gearbox

Resources

GMP22-TEC2418.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs Φ22mm 12V/24V BLDC Gearmotor MP22-TEC2238 3.0kg.cm 3W CW/CCW With Planetary Gearbox
Next: 2Pcs Φ24mm 12V/24V BLDC Gearmotor GMP24-TEC2430 5.0kg.cm 2.3W With Planetary Gearbox
Physical Specification
Body Length(mm) 42+Planetary gearbox
Shaft Diameter(mm) 4
Shaft Length(mm) 10
Weight(g) 90
Frame Size(mm) Φ42
Gearbox Length(mm) 12.5 / 16 / 19.5 / 23 / 35g
Gear Ratio 4:1 / 16:1 / 76:1 / 107:1 / 224:1 / 304:1 / 428.7:1 / 1024:1 / 4.75:1 / 22.6:1 / 64:1 / 90:1 / 172:1 / 256:1 / 361:1 / 509:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Planetary Gearbox
Electrical Specification
Rated Power(W) 1.05 / 1.54
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 3
Rated Current (A) 0.13 / 0.18
Rated Speed(rpm) 5-470
