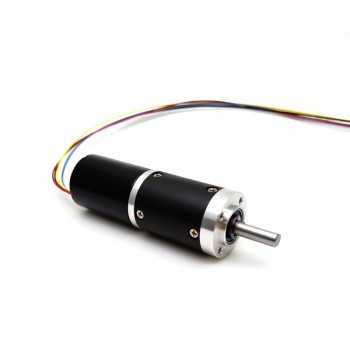

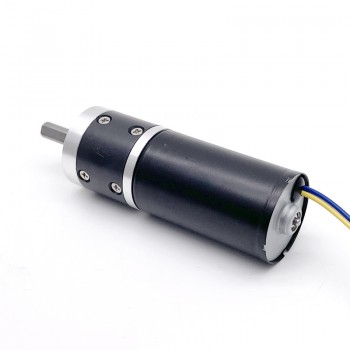

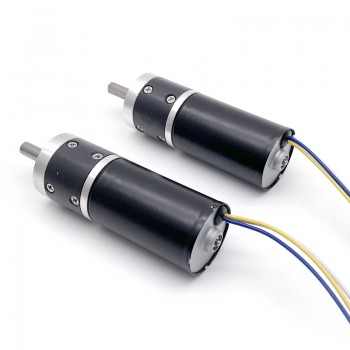

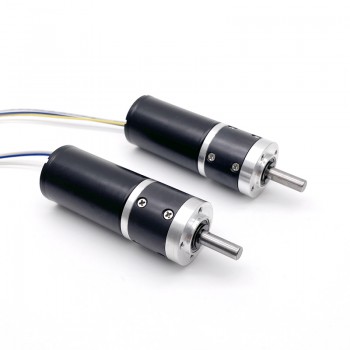

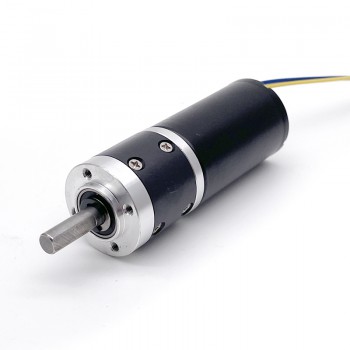

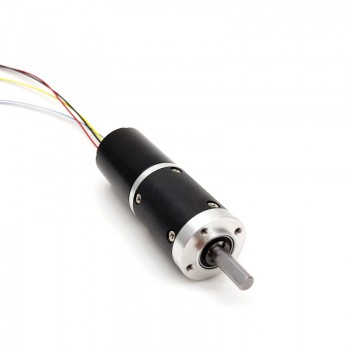

2Pcs Φ28mm 12V/24V Brushless DC Gearmotor GMP28-TEC2838 20kg.cm 6.6-11.5w With Planetary Gearbox

2Pcs Φ28mm 12V/24V Brushless DC Gearmotor GMP28-TEC2838 20kg.cm 6.6-11.5w With Planetary Gearbox
NO.:GMP28-TEC2838
Review: Post a review
Our Price:$115.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $110.18 5%
10 $107.86 7%
50 $104.38 10%
100 $98.58 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.28mm gear motor provide 4Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio:4/19/27/51/100/264/369/516/720;
1 stages: 4:1
2 stages: 14:1 / 19:1 / 27:1
3 stages: 51:1 / 71:1 / 100:1 / 139:1
4 stages: 189:1 / 264:1 / 369:1 / 516:1 / 720:1

Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Instrument.

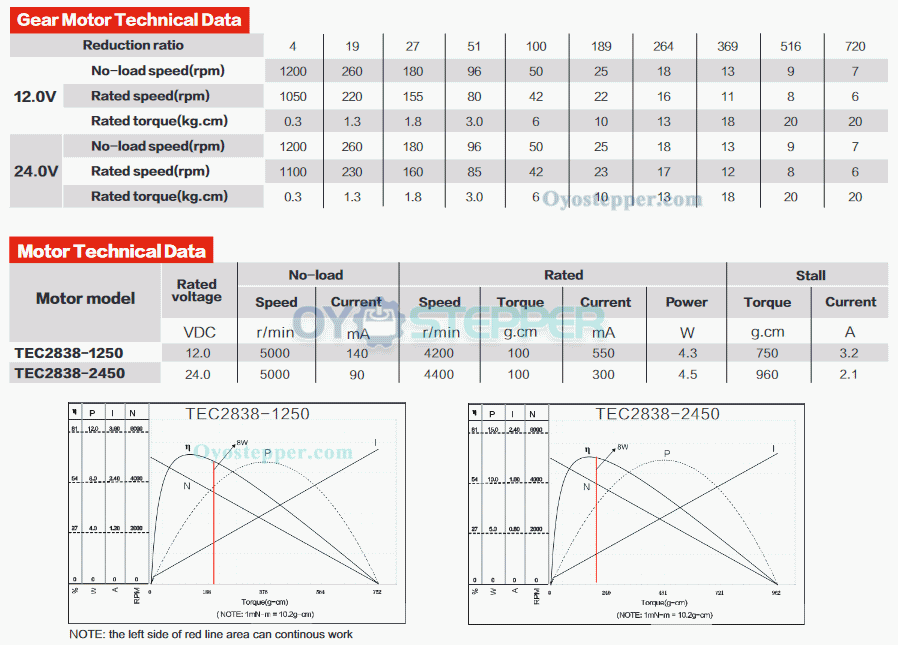

Electrical Specification:
Part Number:GMP28-TEC2838
Rated Voltage:12-24VDC
Rated Torque:20.0kg.cm
Max momentary tolerance torque: 40.0kg.cm
Rated current:550mA(12V)/300mA(24V)
No Load Speed W/O Gearbox: 5000RPM
Rated Speed W/O Gearbox: 4200RPM(12V) / 4400RPM (24V)
No Load Speed W Gearbox: 7-1200 RPM
Rated Speed W/ Gearbox:6-1100 RPM
Rated Power:4.3W(12V) / 4.5W(24V)
Gear type:Plantary Gearbox
Motor type:Brushless
Axial Play:0.05-0.5mm
Direction of rotation:CW CCW
Average Backlash no load:<3°
Reduction ratio:3-1996
Efficiency: 83%-92%
Noise:30cm.40-50DB

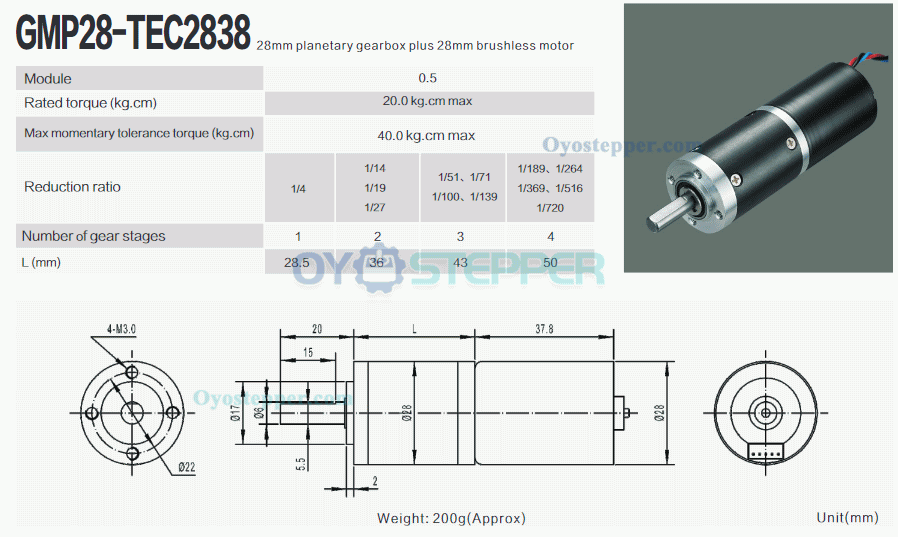

Physical Specification:
Motor Size:Φ28*37.8mm
Motor Diameter:28mm
Gearbox Diameter:28mm
Gearbox Length:28.5mm (1 stages) / 36mm (2 stages) / 43mm (3 stages) / 50mm (4 stages)
Length:37.5mm+Planetary gearbox
Shaft Length:18mm
Shaft Diameter:6mm
D-cut Length: 15mm
D-cut Diameter:5.5mm
Weight:200g;

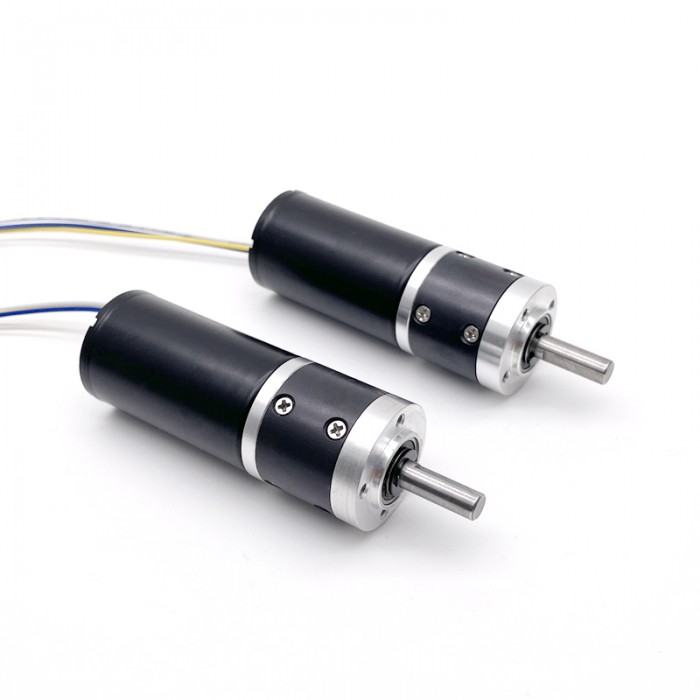

2Pcs Φ28mm 12V/24V Brushless DC Gearmotor GMP28-TEC2838 20kg.cm 6.6-11.5w With Planetary Gearbox

2Pcs Φ28mm 12V/24V Brushless DC Gearmotor GMP28-TEC2838 20kg.cm 6.6-11.5w With Planetary Gearbox

Resources

GMP28-TEC2838.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs Φ24mm 12V/24V BLDC Gearmotor GMP24-TEC2430 5.0kg.cm 2.3W With Planetary Gearbox
Next: 2Pcs Φ36mm 12V/24V Brushless DC Gearmotor GMP36-TEC3650 30kg.cm 18w With Planetary Gearbox
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Weight(g) 200
Frame Size(mm) Φ28
Gearbox Length(mm) 28.5 / 36 / 43 / 50
Gear Ratio 4:1 / 19:1 / 27:1 / 100:1 / 189:1 / 264:1 / 369:1 / 516:1 / 720:1 / 51:1
Body Length(mm) 37.8+Planetary gearbox
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Planetary Gearbox
Electrical Specification
Rated Power(W) 4.3 / 4.5
Rated Voltage(V) 12 / 24
Current(A) 0.55 / 0.3
Rated Torque(kg.cm) 20
Rated Speed(rpm) 6-1100
