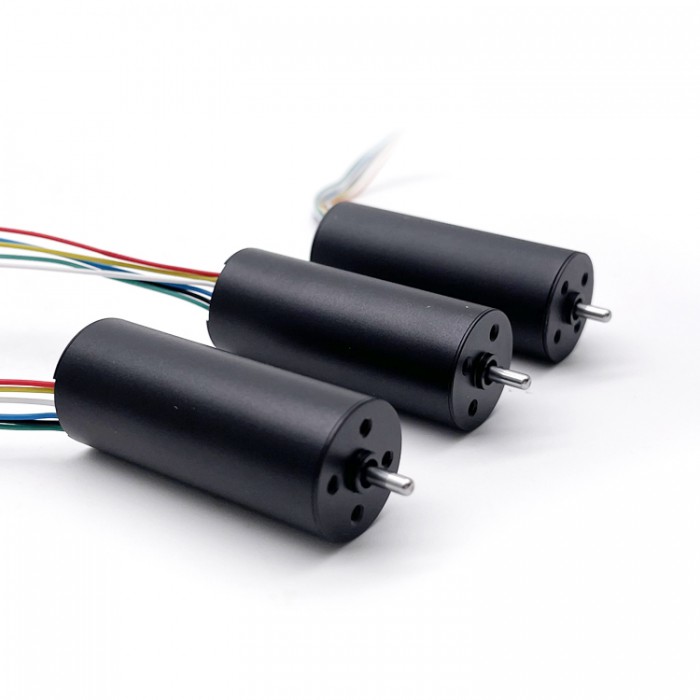

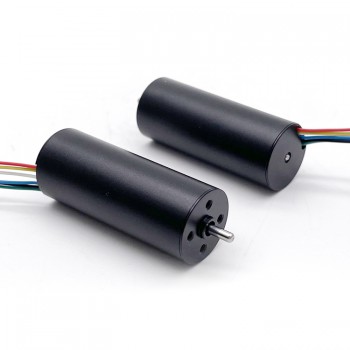

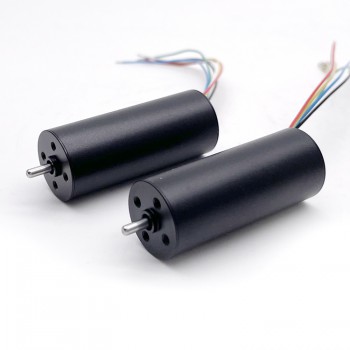

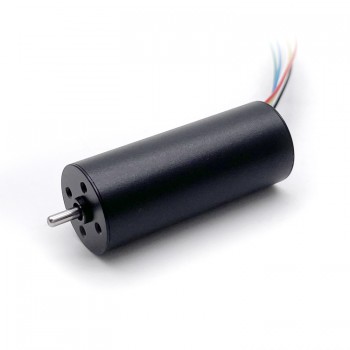

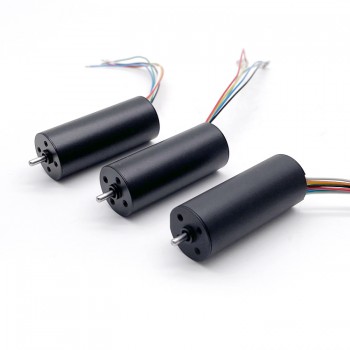

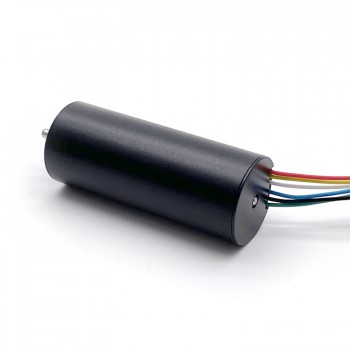

12V 24V Micro Brushless DC Motor Brushless Permanent Magnet DC Motor 50g.cm 16*40mm

Videos

12V 24V Micro Brushless DC Motor Brushless Permanent Magnet DC Motor 50g.cm 16*40mm

Features:
1) Better reliability using Hall sensor instead of motor brush to change the motor rotation, low noise.
2) Low electromagnetic interference, long service life, up to 20000 hours.
3) NdFeb magnet rotor.
4) Small size, light weight, PWM control.
5) Optional: lead length, shaft length, special coil, gear box, bearing type, Hall Sensor, encoder, driver;

Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.


Electrical Specification：
Part Number:TBC2260
Rated Voltage:12-24V
Speed:3500-20000rpm
Continuous Current(A):400-500mA
Rated Torque:50g.cm
Rated Power:30W
Motor type:Brushless
Efficiency:  IE 1
Noise:30cm.40-50DB

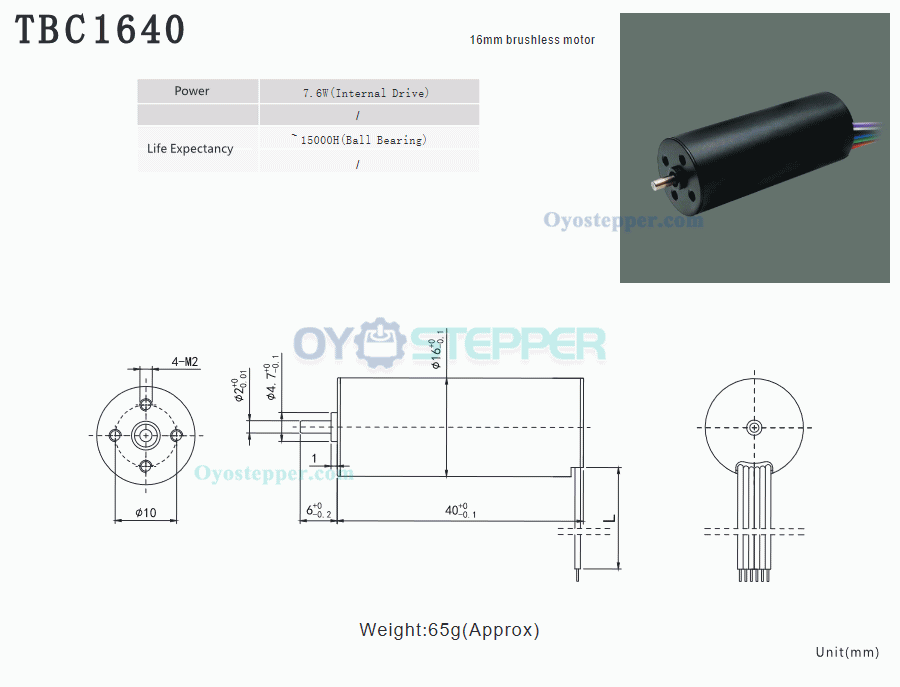

Physical Specification:
Motor Size:16*40mm
Motor Diameter:16mm
Length:40mm
Shaft Length:6mm
Shaft Diameter:2mm
Weight:65g;

Resources

• TBC1640Q.pdf
