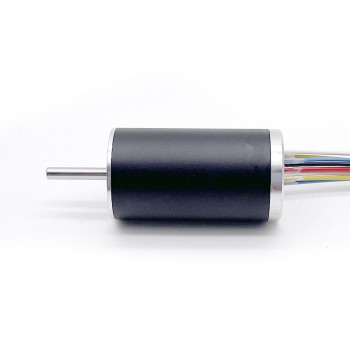

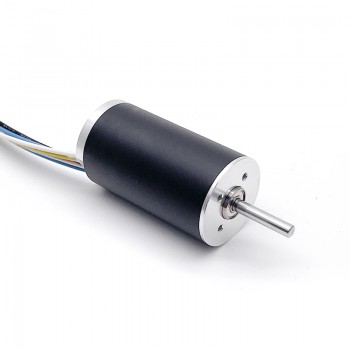

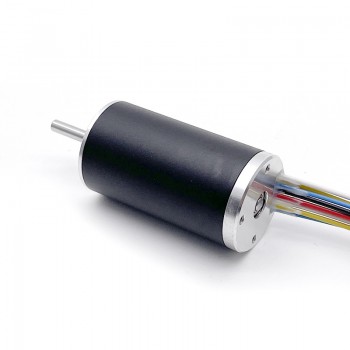

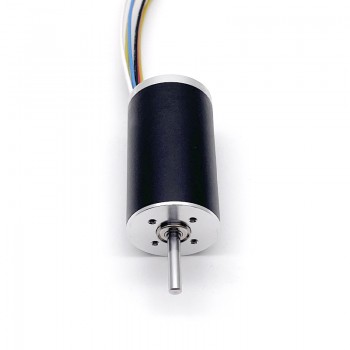

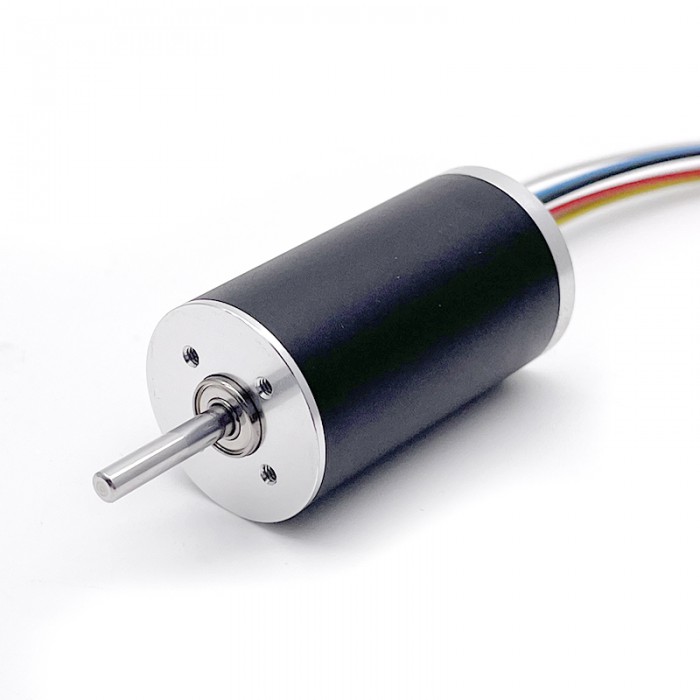

24V DC Coreless Brushless Motor Brushless DC lanetary Gear Motor 150g.cm 22*40mm

24V DC Coreless Brushless Motor Brushless DC lanetary Gear Motor 150g.cm 22*40mm
NO.:TBC2240
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$84.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $80.74 5%
10 $79.04 7%
50 $76.49 10%
100 $73.94 13%
Add To Cart

Videos

24V DC Coreless Brushless Motor Brushless DC lanetary Gear Motor 150g.cm 22*40mm

Features:
1) Using Hall sensor instead of motor brush to change the motor rotation, low noise.
2) Low electromagnetic interference, long service life, up to 20000 hours.
3) NdFeb magnet rotor.
4) Small size, light weight, PWM control.
5) Optional: lead length, shaft length, special coil, gear box, bearing type, Hall Sensor, encoder, driver;

Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

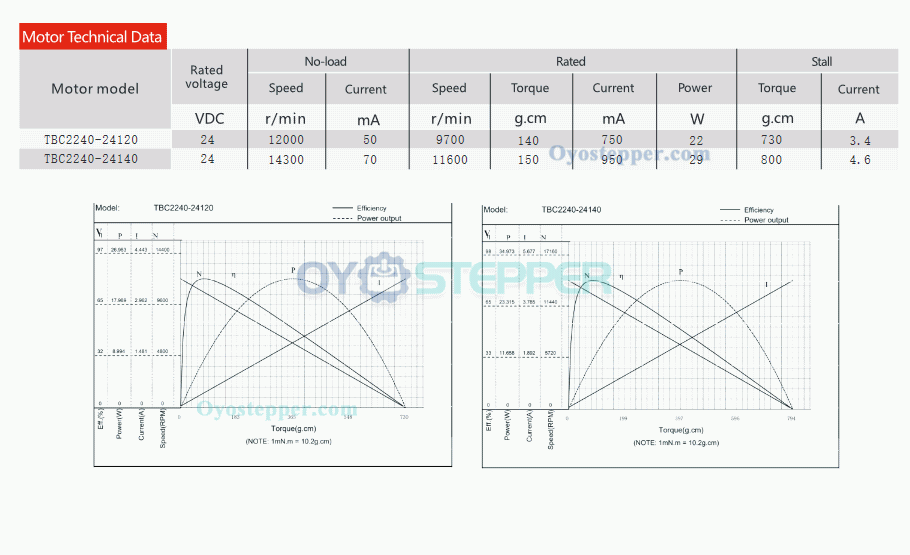

Electrical Specification:
Part Number:TBC2260
Rated Voltage:12-24V
Speed:11600RPM
Continuous Current(A):750-950mA
Rated Torque:150g.cm
Rated Power:30W
Motor type:Brushless
Efficiency:    65%
Noise:30cm.40-50DB;

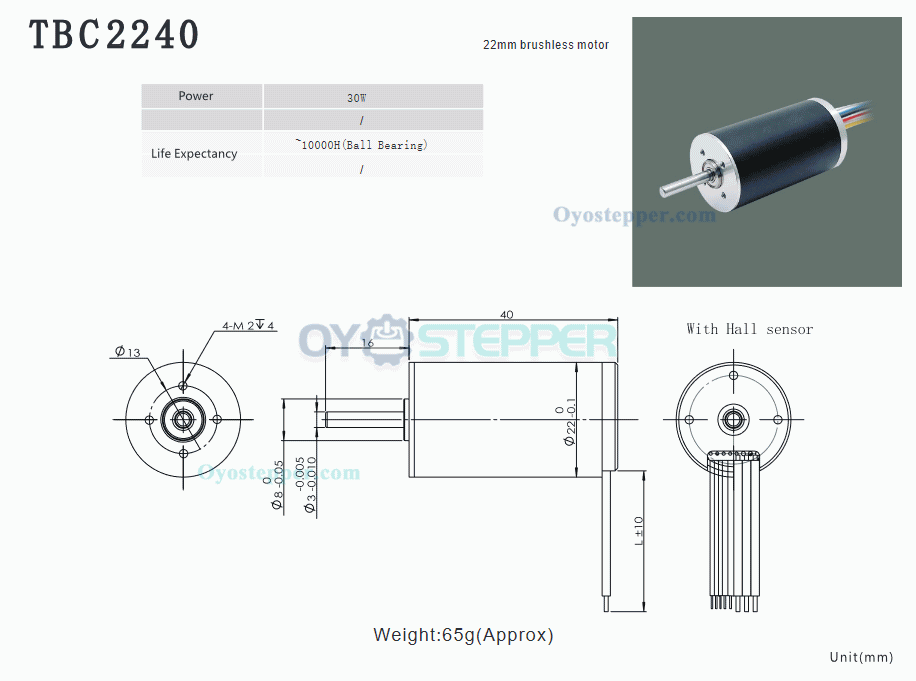

Physical Specification:
Motor Size:22*40mm
Motor Diameter:22mm
Length:40mm
Shaft Length:16mm
Shaft Diameter:3mm
Weight:65g;

 24V DC Coreless Brushless Motor Brushless DC lanetary Gear Motor 150g.cm 22*40mm

24V DC Coreless Brushless Motor Brushless DC lanetary Gear Motor 150g.cm 22*40mm

Resources

TBC2240.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 12V 24V Micro Brushless DC Motor Brushless Permanent Magnet DC Motor 50g.cm 16*40mm
Next: 12V 24V DC Coreless Brushless Motor Brushless Planetary Gear Motor 800g.cm 22*60mm
Physical Specification
Body Length(mm) 40mm
Frame Size(mm) 22*40mm
Shaft Diameter(mm) 3mm
Shaft Length(mm) 16mm
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
Weight(g) 56mm
Electrical Specification
Rated Power(W) 30W
Rated Voltage(V) 12-24V
Current(A) 750-950mA
Rated Speed(rpm) 11600RPM
