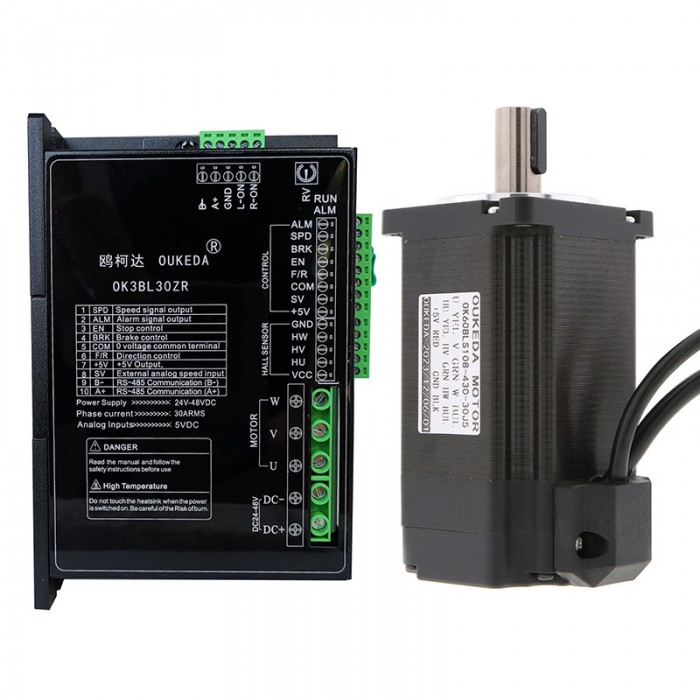

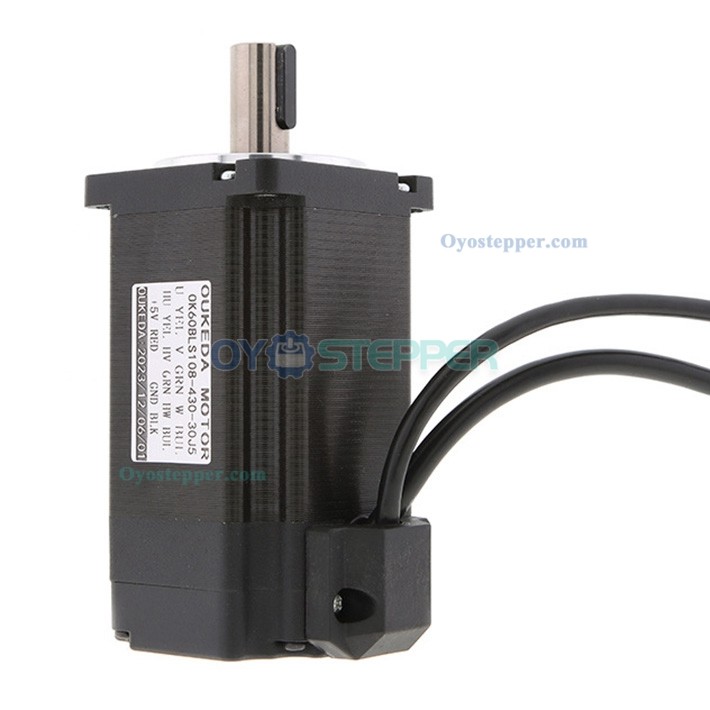

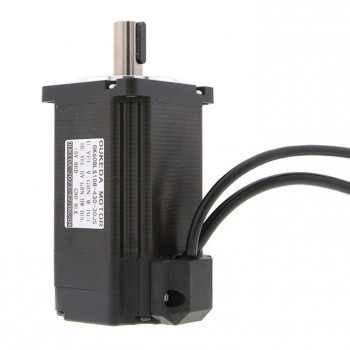

Oukeda Brushless DC Motor & BLDC Driver Kit 95.55Ncm 300W 24V/48V 3000RPM 3 Phase

Oukeda Brushless DC Motor & BLDC Driver Kit 95.55Ncm 300W 24V/48V 3000RPM 3 Phase

Available model:
DC48V 95.55Ncm 300W 3000RPM + Driver Kit
DC24V 95.55Ncm 300W 3000RPM  + Driver Kit

Electrical Specification:

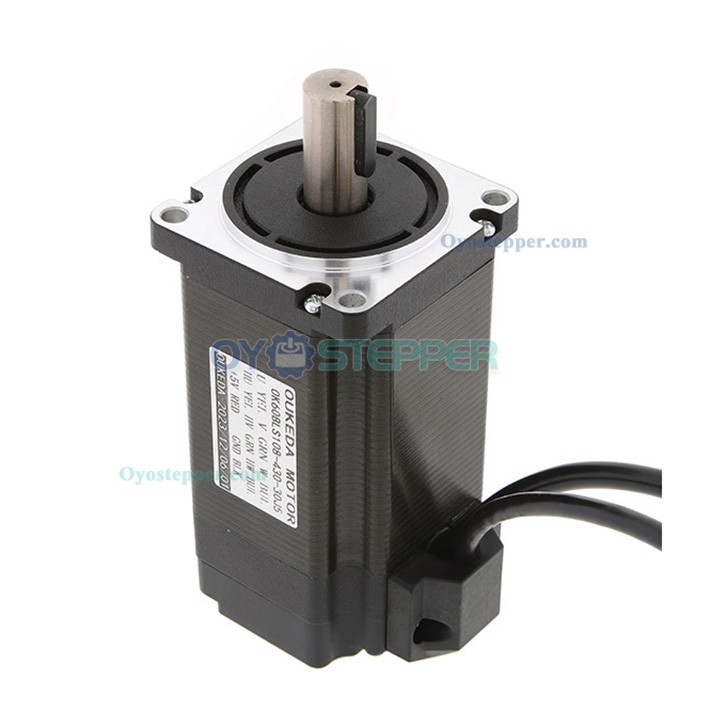

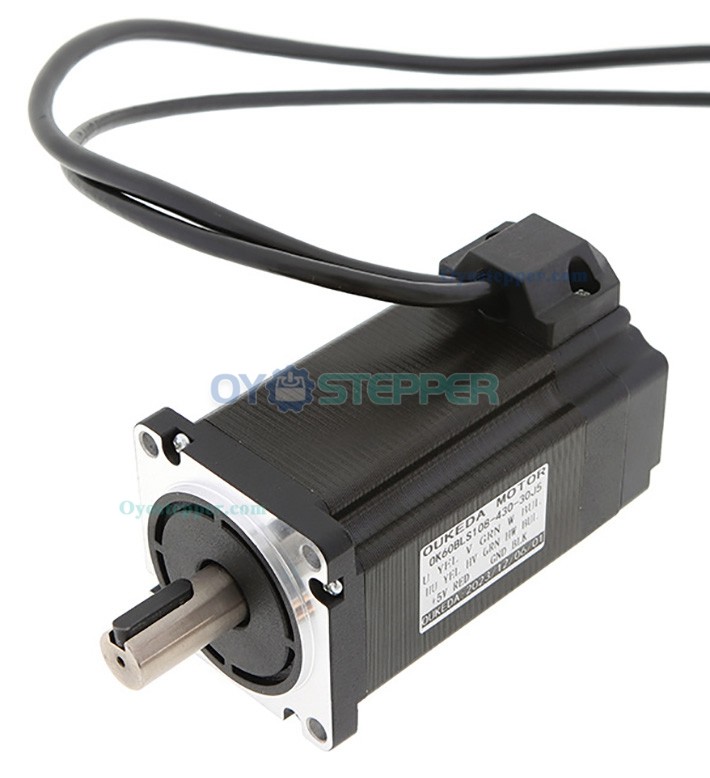

Manufacturer Part Number:OK60BLS108-430-30J5
Motor Type: BLDC Motor
Number of Phase:3
Rated Voltage:48VDC
Rated Speed:3600士10%RPM
No Load Speed:3000士10%RPM
Rated Current:8A
Rated Power:300W
Rated Torque:95.55Ncm
Phase Resistance: 100 ohms

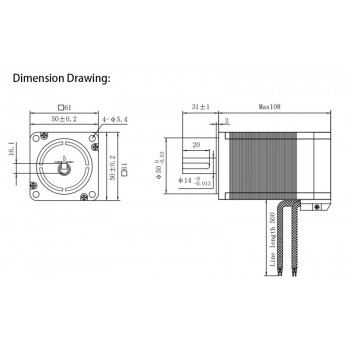

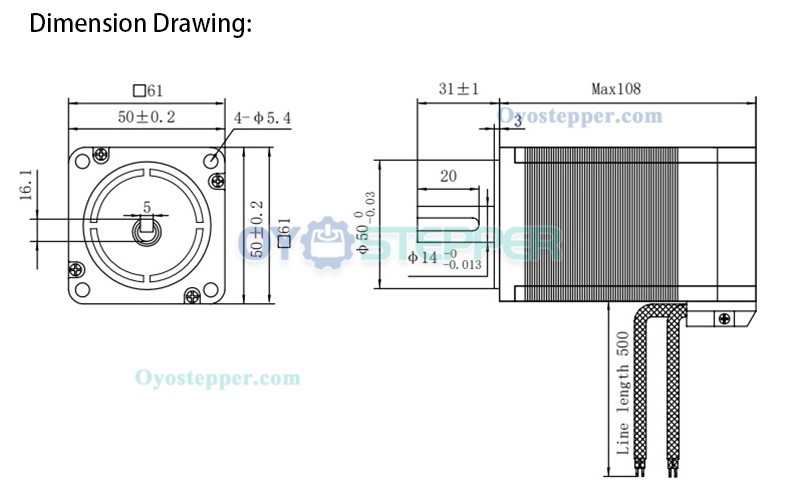

Physical Specification:
Frame Size: Φ60mm
Body Length: 108mm
Shaft Diameter: Φ14mm
Shaft Length: 31mm
Keyway Length: 20mm
Number of Leads: 8
Lead Length: 500mm
Weight:1.6kg;

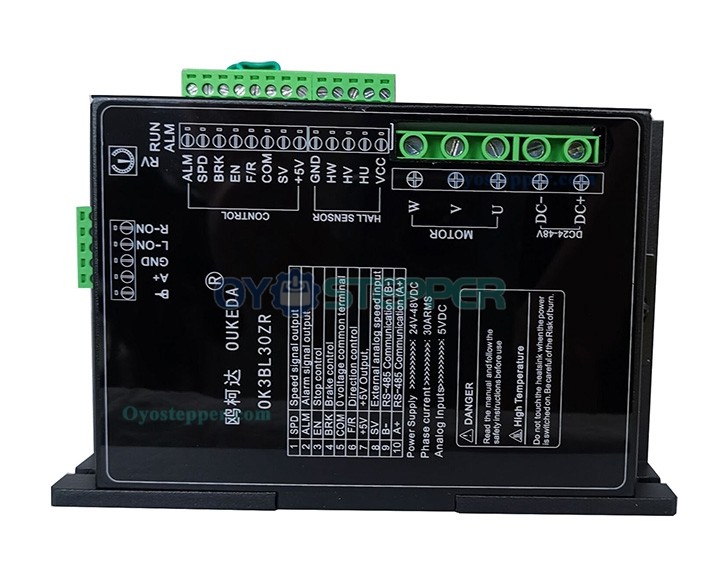

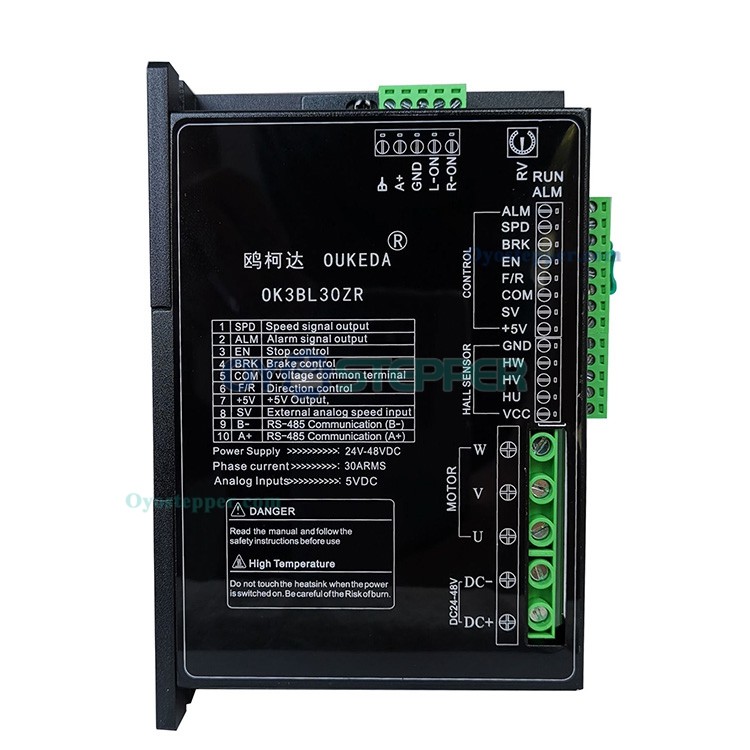

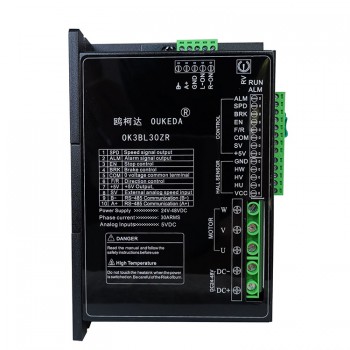

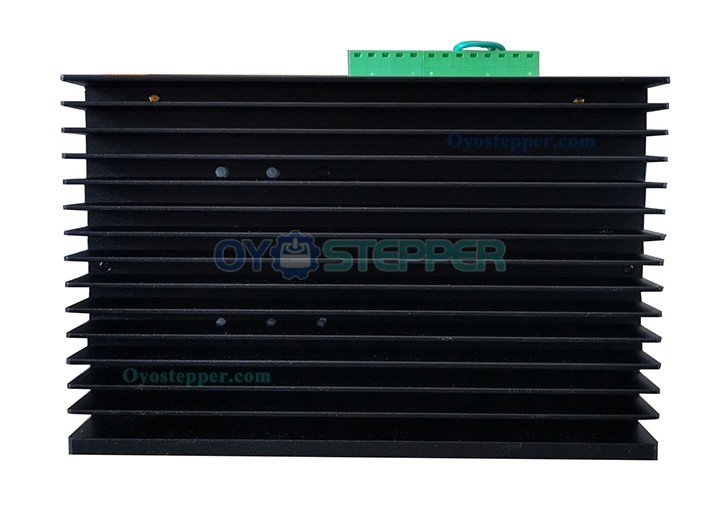

Oukeda OK3BL30ZR Brushless DC Motor Driver Controller DC24-48V 30A 800W Support RS-485 Communication

This brushless DC driver with stable -performance DSP as the computing core and multi-function control mode. The fully digital design enables it to have flexible and diverse input control methods and complete software and hardware protection functions. The driver can be connected to the computer through the RS-485 communication interface to achieve parameter adjustment, protection parameters, motor parameters, acceleration and deceleration time and other parameter settings.

Speed ​​regulation mode:
1: 0-5VDC analog input;
2: 0-100% PWM input (PWM frequency range: [1Kz-2OKHz);
3: External potentiometer speed control;
4: Setting via RS-485 communication.


Electrical Specifications:
Electrical Parameters(Tj=25ºC);
Related Voltage:24-48V
Related Current:30A
Input voltage:14~60VDC, (Typical 24V);
Current output:3A-30A; (Typical 30A);
Applicable motor speed:100-30000rpm (Typical 3000rpm)
Over-voltage and over-current protections;
CE certified and RoHS compliant;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 65℃
Humidity: 40%RH－90%RH
Operating Temperature: 0℃ － 50℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 65℃

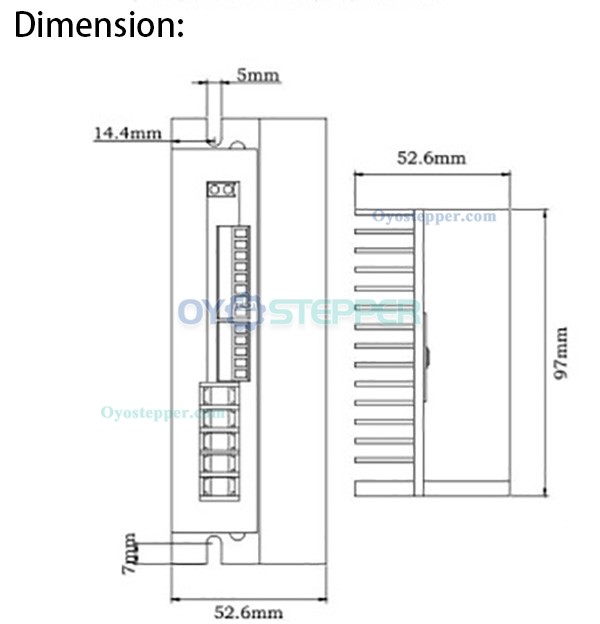

Demension:151*97.5*52.6mm
Weight: Approx.160g;
