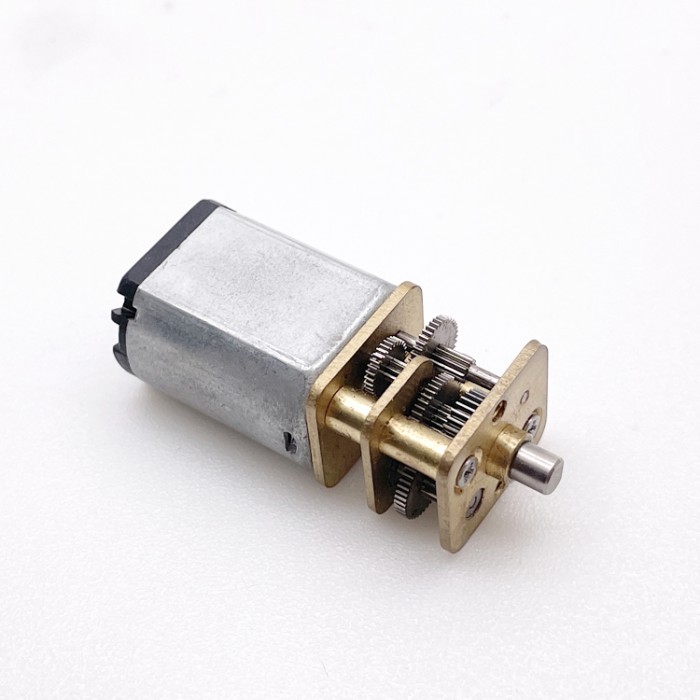

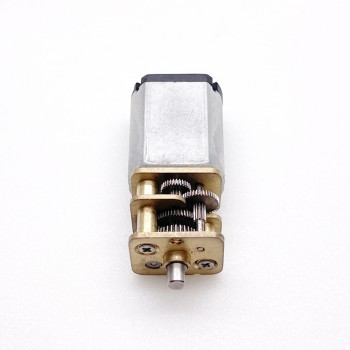

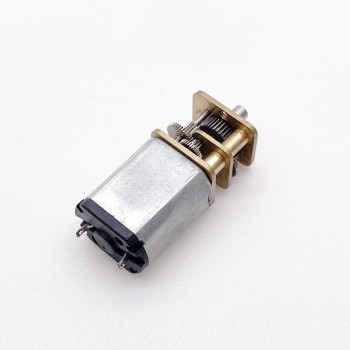

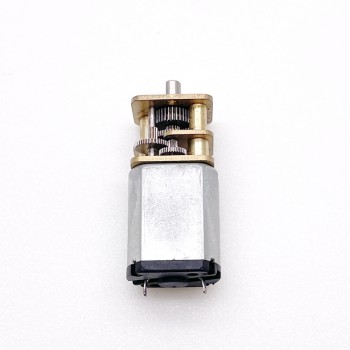

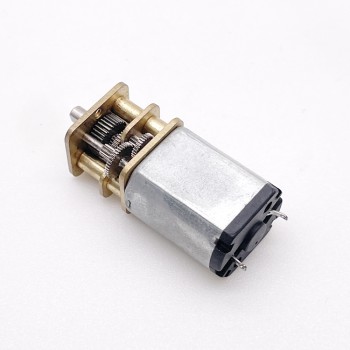

2Pcs 6V 12V Brushed DC Gear Motor Brush PMDC Motor 0.5kg.cm 12mm*29.6mm

2Pcs 6V 12V Brushed DC Gear Motor Brush PMDC Motor 0.5kg.cm 12mm*29.6mm
NO.:GM13-030PA
Post a review
Our Price:$15.10

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $14.34 5%
30 $14.04 7%
50 $13.60 10%
100 $12.84 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.13mm gear motor provide 0.05Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Reduction Ratio: 3、10、17、20、35、63、86、115、150、250、360;
2 stages: 10:1
4 stages: 20:1 / 35:1 / 63:1 / 86:1
5 stages: 115:1 / 150:1 / 250:1 / 360:1

Application:
Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Robot.

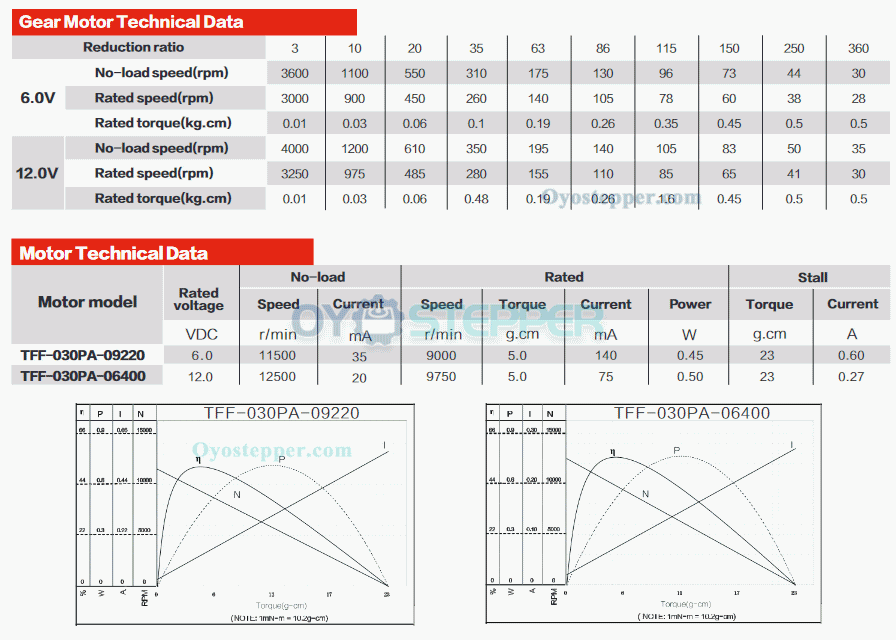

Electrical Specification:
Part Number:GM13-030PA
Rated Voltage:6/12VDC
Rated Torque:0.5kg.cm
Max momentary tolerance torque: 1.0kg.cm
Rated current:140mA(6V)/75mA(12V)
No Load Speed W/O Gearbox: 11500RPM(6V)/12500RPM(6V)
Rated Speed W/O Gearbox: 9000RPM(6V)/9750RPM(12V)
No Load Speed W Gearbox: 30-3600 RPM
Rated Speed W/ Gearbox:30-3000 RPM
Rated Power:0.45W(6V) / 0.5W(12V)
Efficiency:70%
Noise:30cm.40-50db;

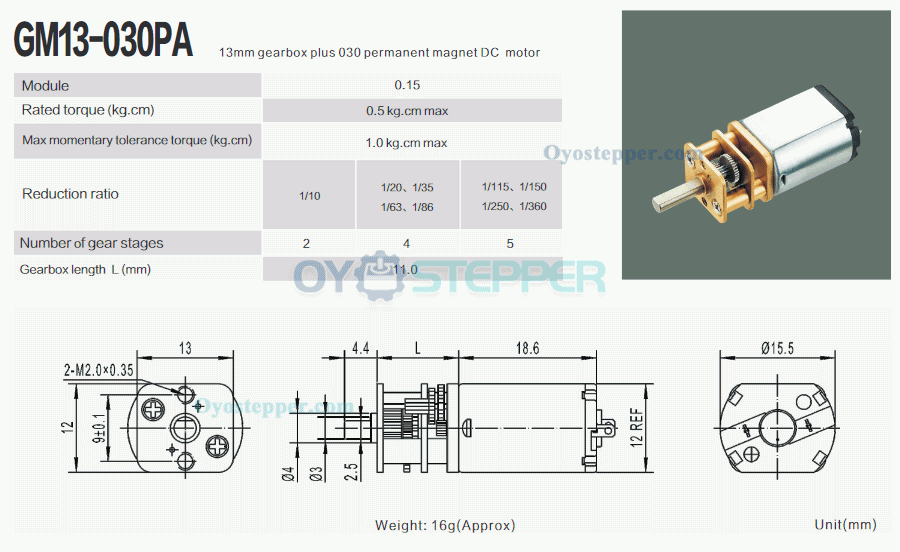

Physical Specification:
Motor Size:15x13x18.6mm
Gearbox Length:11mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
Shaft Length:4.4mm
Shaft Diameter:3mm
Weight:16g;

2Pcs 6V 12V Brushed DC Gear Motor Brush PMDC Motor 0.5kg.cm 12mm*29.6mm

2Pcs 6V 12V Brushed DC Gear Motor Brush PMDC Motor 0.5kg.cm 12mm*29.6mm



Resources

GM13-030PA.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 6V 12V PMDC Brushed Motor Brush DC Gear Motor Spur Gearbox 0.5kg.cm
Next: 2Pcs 6V 12V Brushed DC Gear Motor High Torque Brush PMDC Motor 14mm Diameter
Physical Specification
Shaft Diameter(mm) 3
Gearbox Length(mm) 11
Gear Ratio 3:1 / 10:1 / 20:1 / 63:1 / 86:1 / 115:1 / 150:1 / 360:1 / 35:1 / 250:1
Weight(g) 16
Frame Size(mm) 12x13
Body Length(mm) 29.5+gearbox
Shaft Length(mm) 4.4
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Gearbox Type Spur gearbox
Electrical Specification
Rated Voltage(V) 6 / 12
Rated Torque(kg.cm) 0.5
Rated Speed(rpm) 30-3000
Rated Power(W) 0.5 / 0.45
Rated Current (A) 0.14 / 0.075
