12V 24V High Torque DC Planetary Gear Motor 60kg.cm 36*93mm 8mm Shaft
Features:
1.Small size dc gear motor with low speed and big torque
2.36mm gear motor provide 6.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、19、51、100、139、189、264、369、516、720;
Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

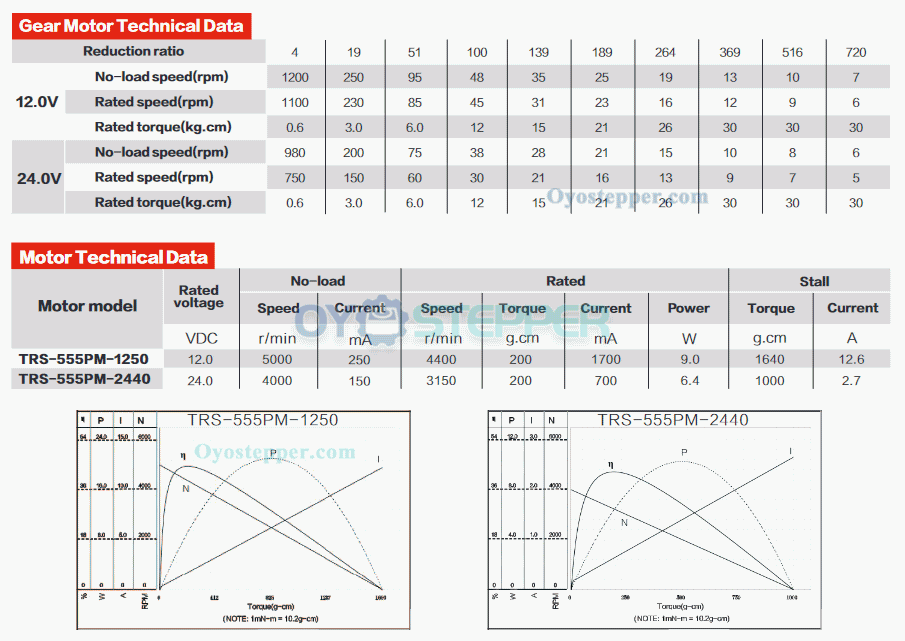

Electrical Specification
Part Number: GMP36-555PM
Power:5.7-16w
Rated Voltage:12/24V
Continuous Current(A):0.5A
Rated Torque:0.64-30 kg.cm
Type:DC planetary gear motor
Efficiency:65%
Construction:Permanent Magnet
Noise:30cm.<40db

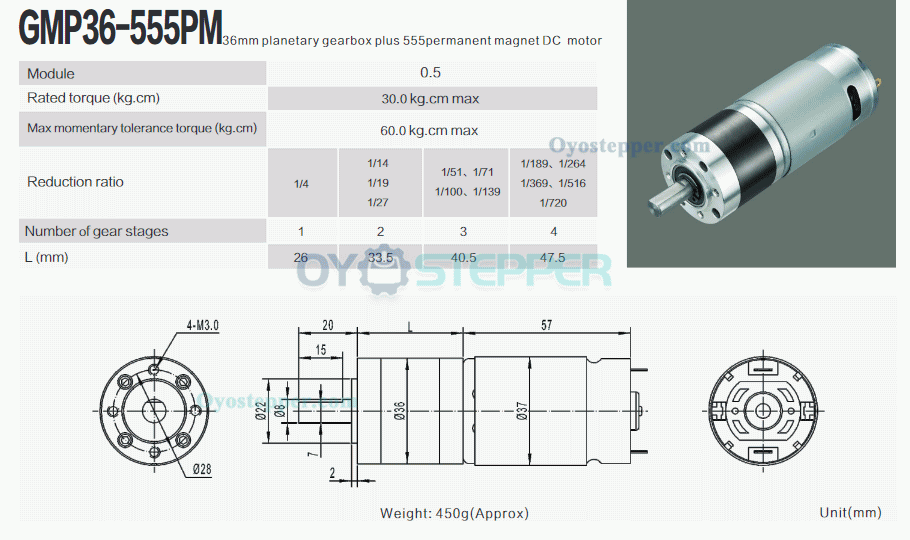

Physical Specification:
Motor Size:37*57mm
Motor Diameter:36mm
Motor Length:57mm+Planetary gearbox
Shaft diameter:8mm
Shaft Length: 20mm
D-cut Length:15mm
Weight:450g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Physical Specification | |
---|---|
Body Length(mm) | 57mm+Planetary gearbox |
Frame Size(mm) | 37*57mm |
Shaft Type | D-Cut |
Single Shaft/Dual Shaft | Single Shaft |
Output Shaft Diameter(mm) | 8mm |
Output Shaft Length(mm) | 20mm |
Gearbox Type | DC gear motor |
Electrical Specification | |
Rated Power(W) | 5.7-16w |
Rated Voltage(V) | 12/24V |
Current(A) | 0.5A |
Rated Torque(kg.cm) | 0.64-30kg.cm |
