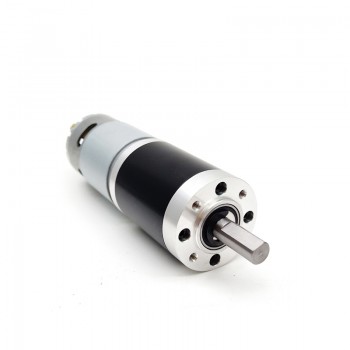

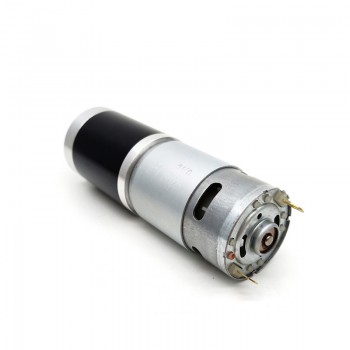

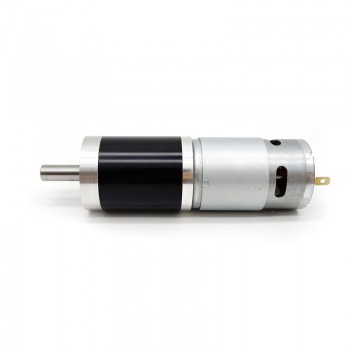

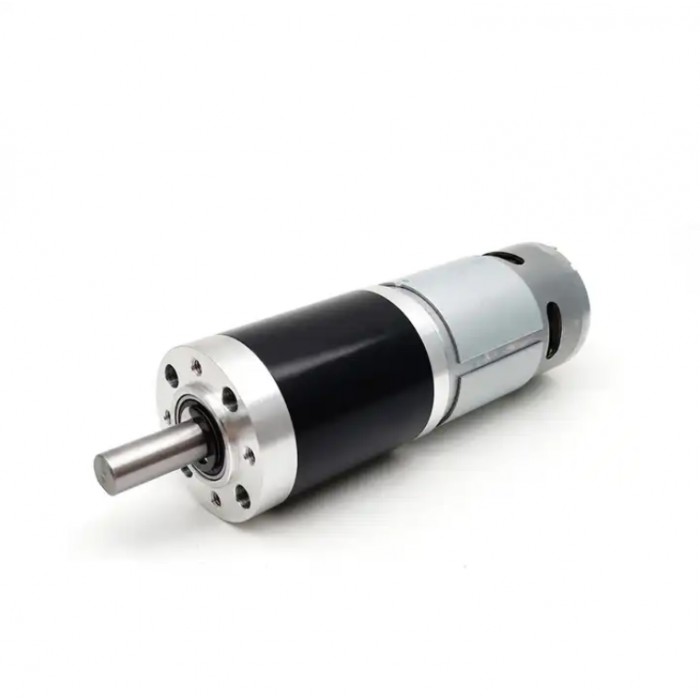

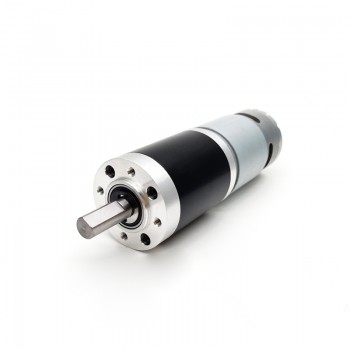

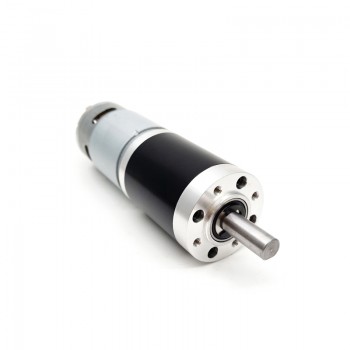

2Pcs 12V 24V Brushed DC Geared Motor with Planetary Gearbox 60kg.cm
Features:
1.Small size dc gear motor with low speed and big torque
2.42mm gear motor provide 12.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、19、51、100、139、189、264、369、516、720;
1 stages: 4:1
2 stages: 19:1
3 stages: 51:1 /100:1/139:1
4 stages: 189:1 / 264:1/369:1/516:1/720:1
Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

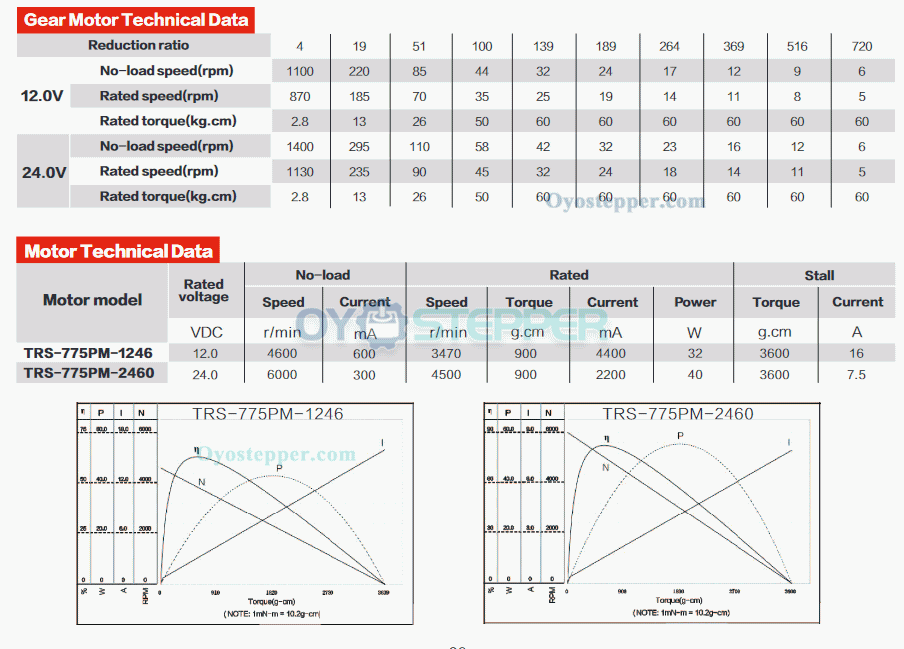

Electrical Specification

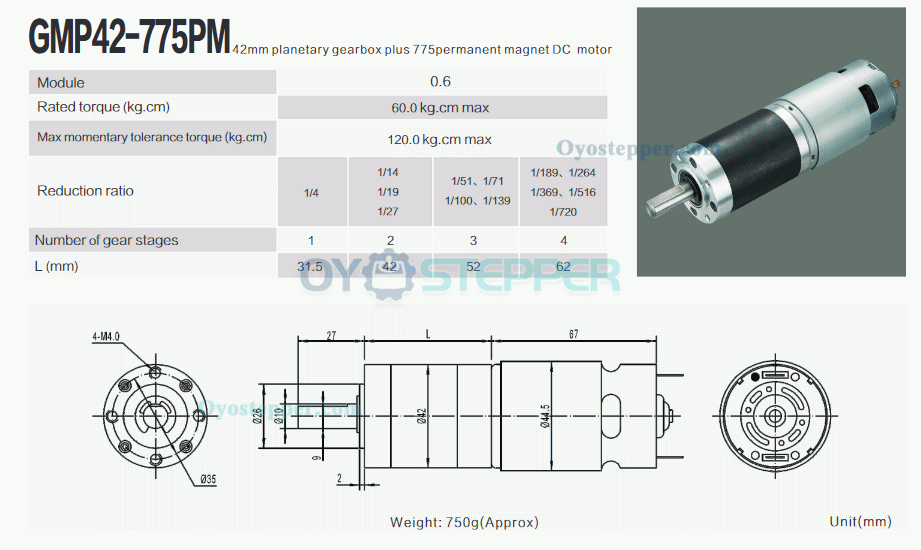

Part Number:GMP42-775PM
Rated Voltage:12V/24VDC
Rated Torque:60.0Kg.cm max
Max momentary tolerance torque: 120.0kg.cm
Rated current:4.4A(12V)/2.2A(24V)
No Load Speed W/O Gearbox: 4600RPM(12V)/6000RPM(24V)
Rated Speed W/O Gearbox: 3470RPM(12V)/4500RPM(24V)
No Load Speed W Gearbox: 6-1400 RPM
Rated Speed W/ Gearbox:5-1130 RPM
Rated Power:32.0W(12V) /40.0W(24V)
Gear type:Planetary gearbox
Type:Brush PMDC Motor
Efficiency: 75%
Construction:Permanent Magnet Noise:30cm.<40db

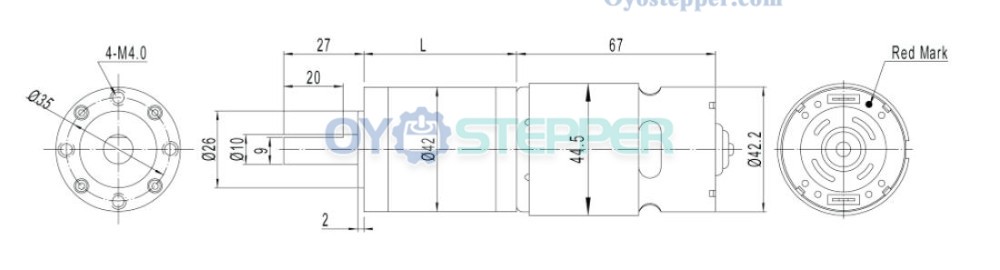

Physical Specification:
Motor Size:Φ44.5x67.0mm
Flange size:Φ42mm
Gearbox Length:31.5mm/42mm/52mm/62mm
Shaft Type:D-cut
D-cut Diameter:9mm
D-cut Length:20mm
Shaft Diameter:10mm
Shaft Length:25mm
Weight:750g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Weight(g) | 750 |
| Shaft Diameter(mm) | 10 |
| Frame Size(mm) | Φ42 |
| Shaft Length(mm) | 25 |
| Gearbox Length(mm) | 31.5 / 42 / 52 / 62 |
| Gear Ratio | 4:1 / 19:1 / 51:1 / 100:1 / 139:1 / 189:1 / 264:1 / 369:1 / 516:1 / 720:1 |
| Body Length(mm) | 67+gearbox |
| Gearbox Type | Planetary gearbox |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Current (A) | 4.4 / 2.2 |
| Rated Power(W) | 32 / 40 |
| Rated Voltage(V) | 12 / 24 |
| Rated Torque(kg.cm) | 60 |
| Rated Speed(rpm) | 5-1130 |
