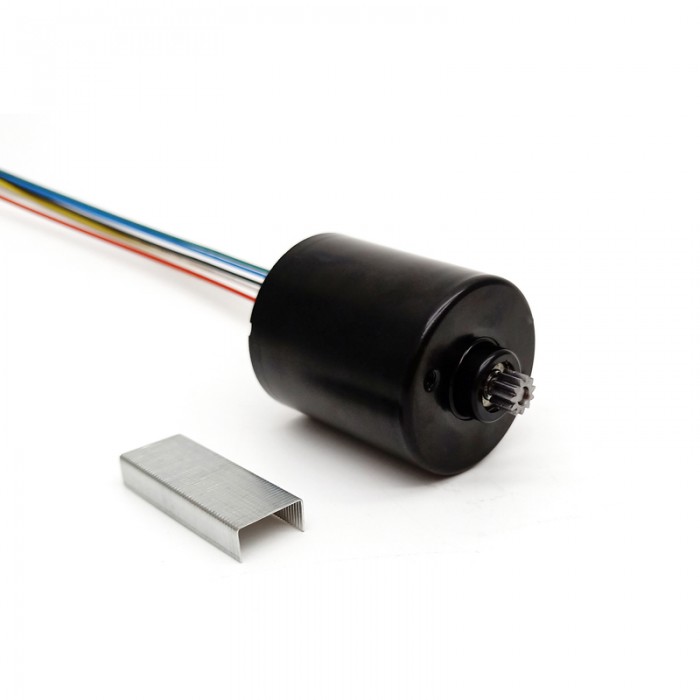

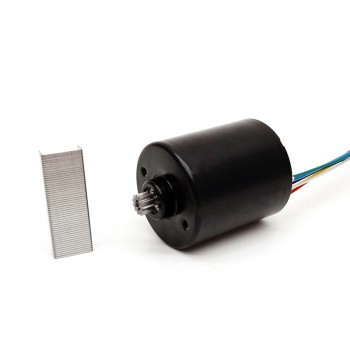

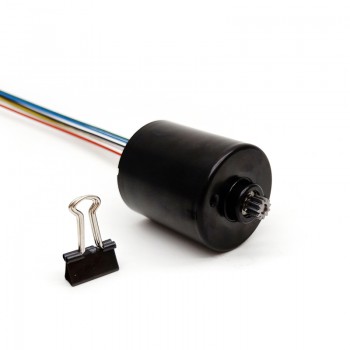

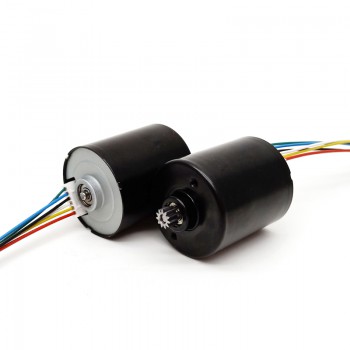

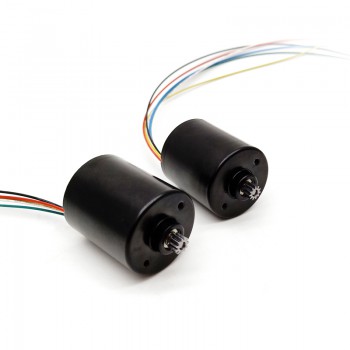

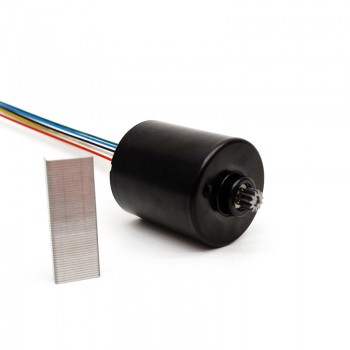

2Pcs 12V 24V Small Brushless DC Motor BLDC Motor 36*40 mm 6000RPM 550g.cm

2Pcs 12V 24V Small Brushless DC Motor BLDC Motor 36*40 mm 6000RPM 550g.cm
NO.:TEC3640
Post a review
Our Price:$33.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $32.28 5%
30 $31.60 7%
50 $30.58 10%
100 $28.88 15%
Add To Cart



Features:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
Brushless dc motors (BLDC motors) are now a common product due to their characteristics of low interference, low noise, and long life. Based on its stable performance, it is coupled with a highly accurate planetary gearbox, which significantly increases the motor's torque and decreases its speed, making it suitable for a variety of application fields.


Application:
Boat, Industrial automation fields.
Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver.

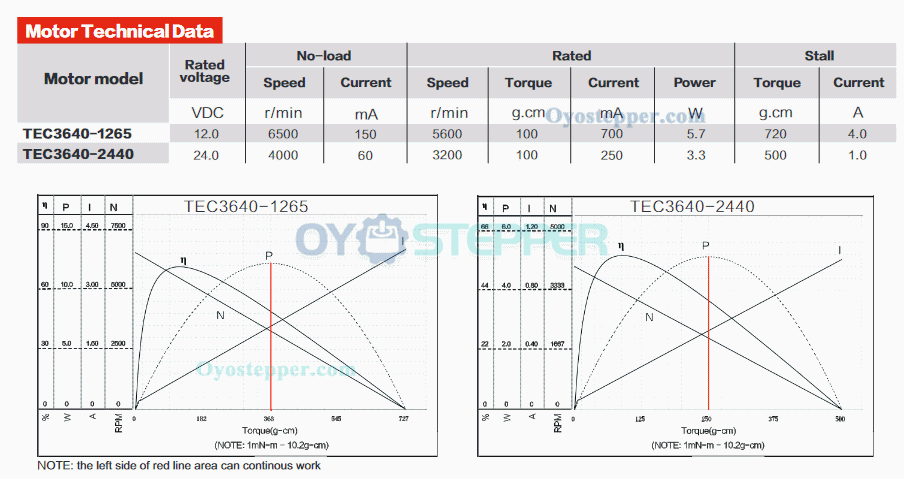

Electrical Specification:
Part Number: TEC3640
Rated Power:5.7W(12V)/5.3W(24V)
Rated Voltage:12V/24V
Rated Current(A):700mA(12V) / 250mA(24V)
Rated Torque:100g.cm
Rated Speed:5600rpm(12V)/3200rpm(24V)
No Load Speed : 6500RPM(12V)/4000RPM(24V)
Stall Torque:720g.cm(12V)/500g.cm(24V)
Stall Current:4.0A(12V)/1.0A(24V)
Efficiency:IE 4
Torque:550 g.cm
Efficiency: 65%
Noise:30cm.40-50db

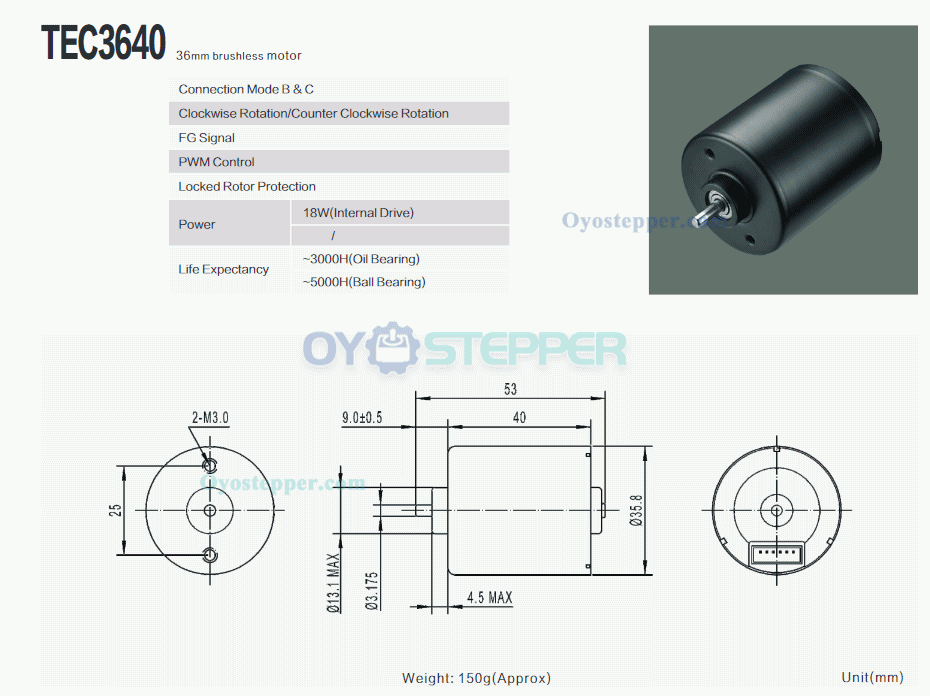

Physical Specification:
Motor Size:Φ35.8mm*40mm
Motor Diameter:35.8mm
Motor Length:40mm
Shaft Type:O
Shaft Diameter:3.175mm
Shaft Length:4.5mm
Weight:150g



2Pcs 12V 24V Small Brushless DC Motor BLDC Motor 36*40 mm 6000RPM 550g.cm

2Pcs 12V 24V Small Brushless DC Motor BLDC Motor 36*40 mm 6000RPM 550g.cm



Resources

TEC3640.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushless DC Motor High Torque 36mm*25mm 550g.cm 6000RPM
Next: 2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor 36mm 1000-1800g.cm
Electrical Specification
Rated Power(W) 5.7 / 5.3
Rated Voltage(V) 12 / 24
Peak Speed(rpm) 5600 / 3200
Rated Torque(kg.cm) 0.1
Rated Current (A) 0.7 / 0.25
Physical Specification
Body Length(mm) 40
Frame Size(mm) Φ35.8
Shaft Diameter(mm) 3.175
Weight(g) 150
Shaft Length(mm) 4.5
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
