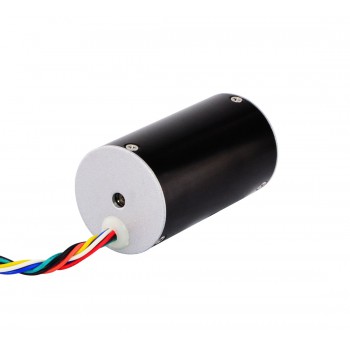

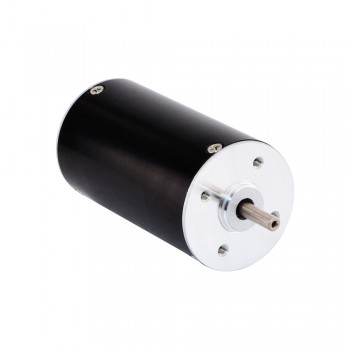

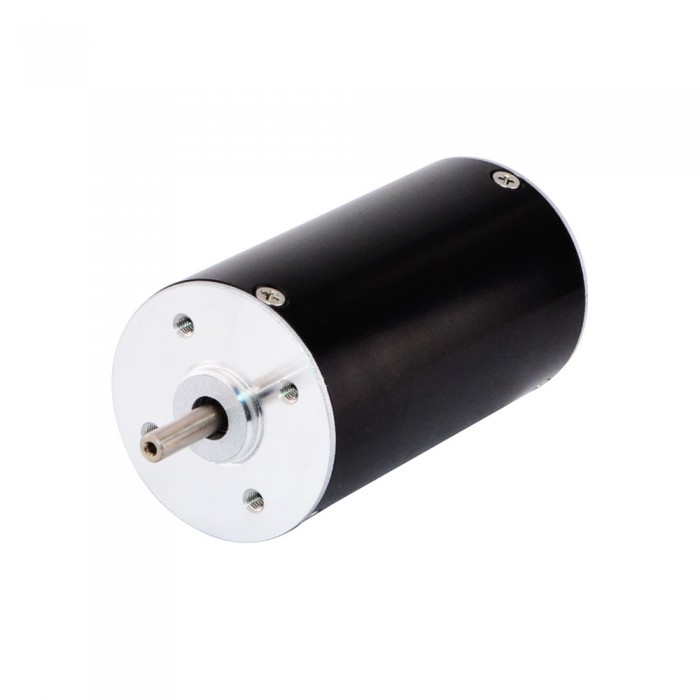

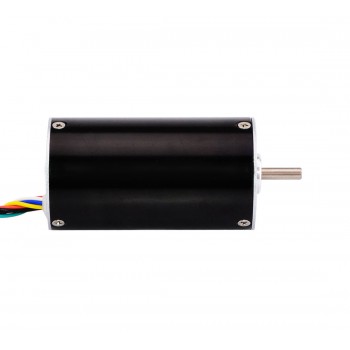

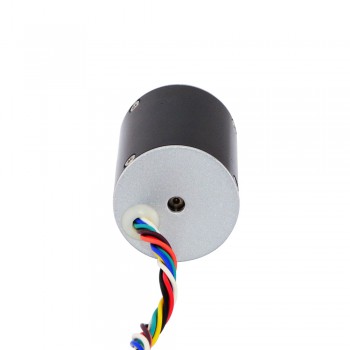

Brushless DC Motor 24V 3000RPM 0.064Nm 20W 1.09A Round Ф36x65mm 36BLR

NO.:SKU:36BLR65-24-01
Review: Post a review
Latest price:$36.61
Buy It Now:$28.17
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$27.00 $25.82 $24.65 $23.47
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 36BLR65-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 3000± 10%RPM
  • Noload Speed: 4200RPM
  • Rated Torque: 0.064Nm(9.1oz.in)
  • Rated Current: 1.09± 10%A
  • Noload Current: 0.1A
  • Rated Power: 20W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ36mm
  • Body Length: 65.2mm
  • Shaft Diameter: Φ4mm
  • Shaft Length: 15mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Sensor: Hall Sensor
  • Weight: 0.3kg

Connection

U
V
W
+5V
GND
A
B
C
ORG
GRN
BRW
RED
BLK
YEL
WHT
BLU

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 24V 4000RPM 0.048Nm 20W 1.3A Round Ф36x55mm 36BLR Brushless DC Motor
Next: 24V 2000RPM 0.062Nm 13W 0.91A Round Ф42x43mm 42BLR Brushless DC Motor
BLDC Motor Specification
Bearing Type NMB Ball Bearing, C3
Insulation Class Class B
No. of Lead 8
No. of Phases 3
No. of Poles 4
Rated Current(A) 1.09
Rated Power(W) 20
Rated Speed(rpm) 3000±10%
Rated Torque(Nm) 0.064
Rated Torque(oz.in) 9.06
Rated Voltage(V) 24
Sensor Type Hall Sensor
Shaft Diameter(mm) 4
Shaft Length(mm) 15
Flange Size(mm) Ф36
Body Length(mm) 65.2
Physical Specification
Weight(g) 300
