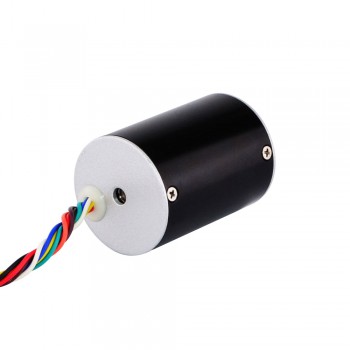

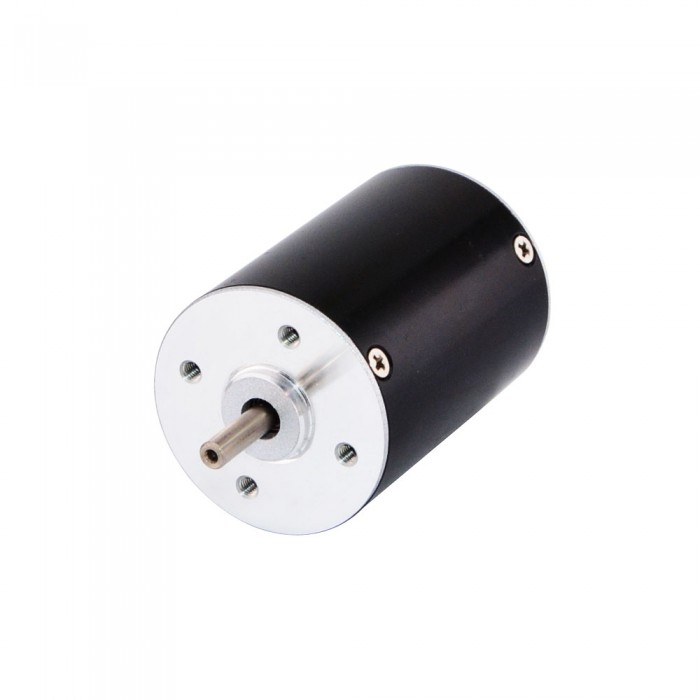

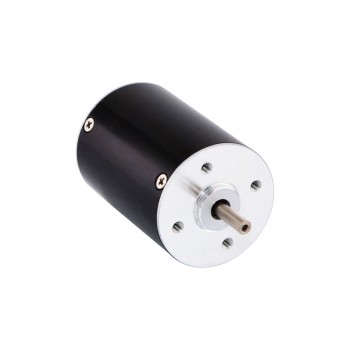

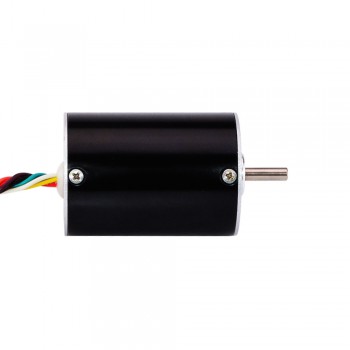

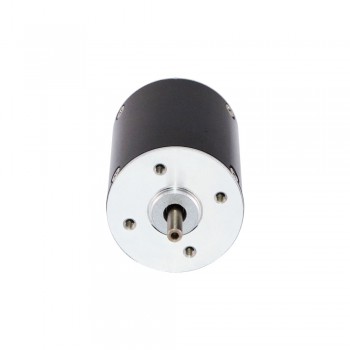

24V BLDC Motor 5000RPM 0.019Nm 10W 0.75A Round Ф36x40mm Brushless DC Motor

NO.:36BLR40-24-01
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$31.01

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$29.46	5%
10	$28.84	7%
50	$27.91	10%
100	$26.98	13%

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 36BLR40-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 5000±10%RPM
Noload Speed: 7500RPM
Rated Torque: 0.019Nm(2.69oz.in)
Rated Current: 0.75±10%A
Noload Current: 0.17A
Rated Power: 10W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ36mm
Body Length: 40.2mm
Shaft Diameter: Φ4mm
Shaft Length: 15mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.2kg

Connection

U	V	W	+5V	GND	A	B	C
ORG	GRN	BRW	RED	BLK	YEL	WHT	BLU

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 24V BLDC Motor 6000RPM 0.011Nm 7W 0.54A Round Ф22x50mm 22BLR Brushless DC Motor
Next: 12V BLDC Motor 1800RPM 0.021Nm 4W 0.75A Round Ф36x45mm 36BLR Brushless DC Motor

BLDC Motor Specification
Bearing Type	NMB Ball Bearing, C3
Insulation Class	Class B
No. of Lead	8
No. of Phases	3
No. of Poles	4
Rated Current(A)	0.75
Rated Power(W)	10
Rated Speed(rpm)	5000±10%
Rated Torque(Nm)	0.019
Rated Torque(oz.in)	2.69
Rated Voltage(V)	24
Sensor Type	Hall Sensor
Shaft Diameter(mm)	4
Shaft Length(mm)	15
Flange Size(mm)	Ф36
Body Length(mm)	40.2
Physical Specification
Weight(g)	200
