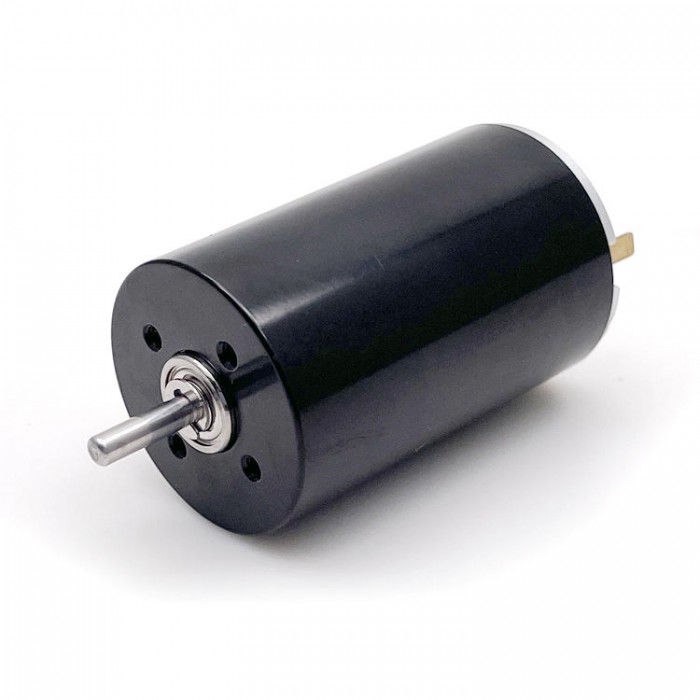

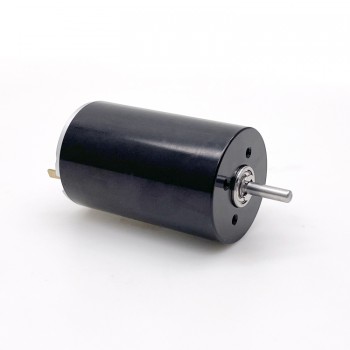

2Pcs 12V / 24V Brush DC Coreless Motor 1300-1500mA 1150g.cm 5500-6900r/min 45W 28 x45mm
2Pcs Φ28mm 12V/24V Brush DC Coreless Motor TDC2845 530/1150g.cm 4692-6673r/min Shaft 3mm
This motor is a powerful and efficient DC 12V 24V 8000RPM Brush Coreless Motor. The compact design of this versatile motor is suitable for use in tight spaces without sacrificing performance. With its coreless design, the motor provides smooth and quiet operation while minimizing power loss for long-lasting durability and reliability.
Feature
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant
Application
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

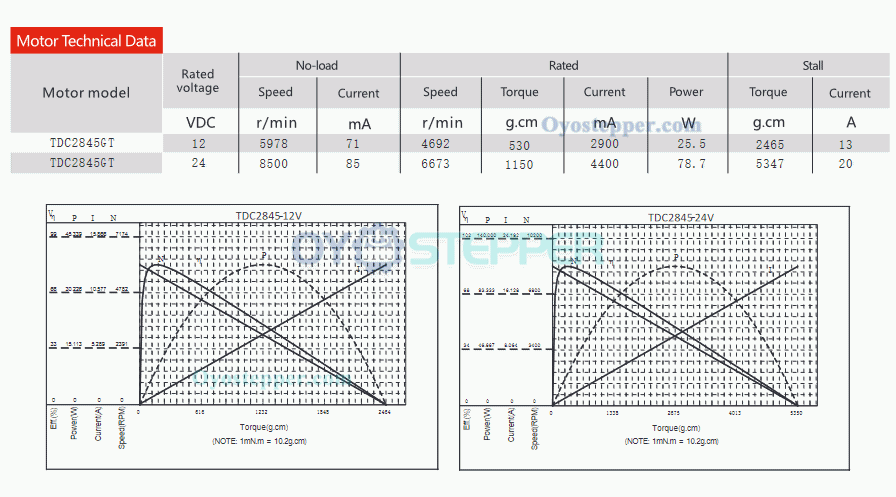

Electrical Specification
Part Number: TDC2845
Rated Power:25.5W(12V) /78.7W(24V)
Rated Voltage:12V/24V
Rated Current(A):2900mA(12V) / 4400mA(24V)
Rated Torque:530g.cm(12V) / 1150g.cm(24V)
Rated Speed:4700RPM(12V)/ 6670(24V)
No Load Speed : 5900RPM(12V)/ 8500(24V)
Stall Torque:2465g.cm(12V) /5347g.cm(24V)
Stall Current:13A(9V) /20A(12V)
Type:Brush Motor
Efficiency: IE 4
Protect Feature:Drip-proof
Construction:Permanent Magnet
Encoder:1-1024ppr

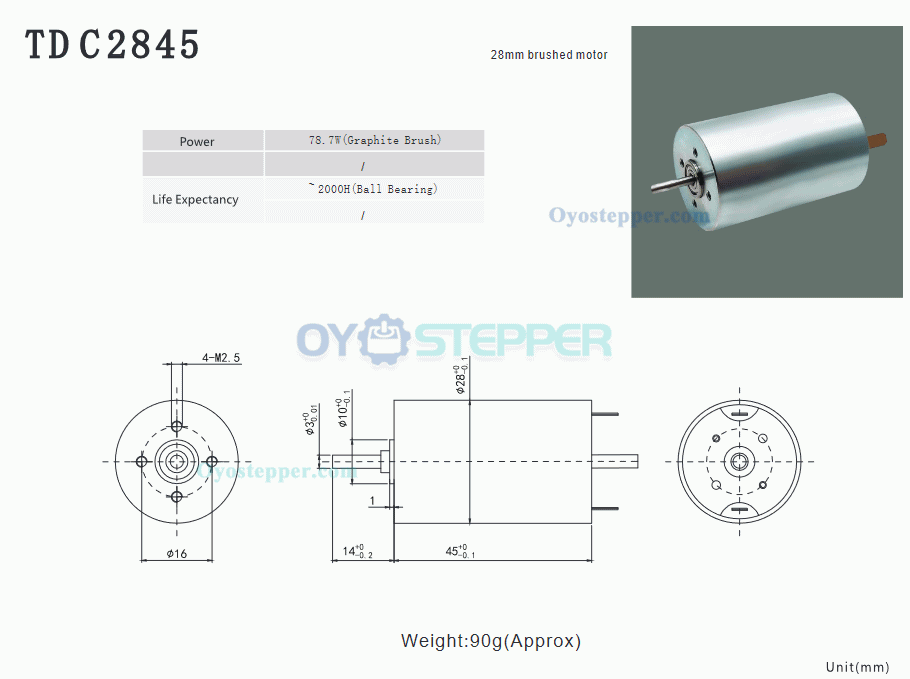

Physical Specification:
Motor Size:Φ28mm*45mm
Motor Diameter:28mm
Motor Length:45mm
Shaft Type:O
Shaft Diameter:3mm
Shaft Length:9mm
Weight:90g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Voltage(V) | 12 / 24 |
| Rated Power(W) | 25.5 / 78.7 |
| Rated Torque(kg.cm) | 1.15 / 0.53 |
| Rated Speed(rpm) | 4700 / 6670 |
| Rated Current (A) | 2.9 / 4.4 |
| Physical Specification | |
| Frame Size(mm) | Φ28 |
| Shaft Diameter(mm) | 3 |
| Weight(g) | 90 |
| Shaft Length(mm) | 9 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft/ |
| Body Length(mm) | 45mm |
