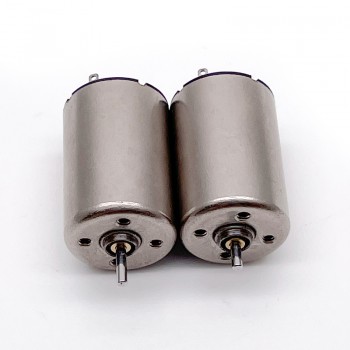

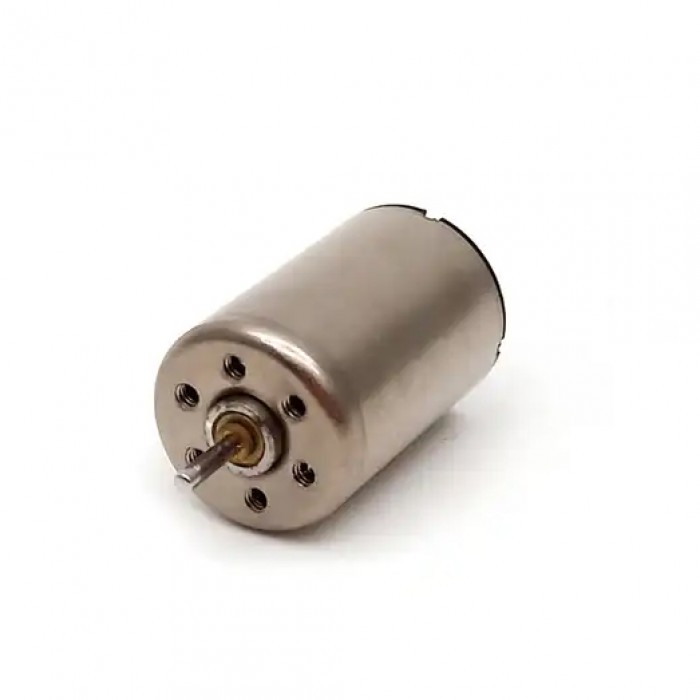

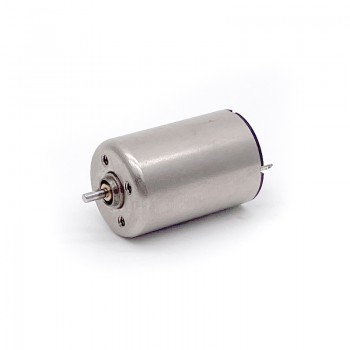

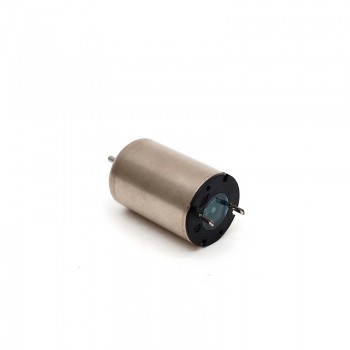

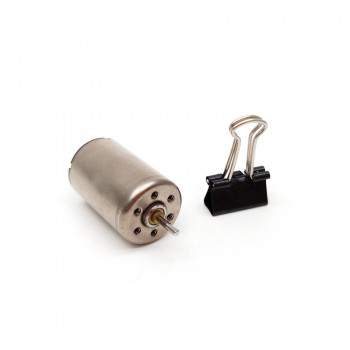

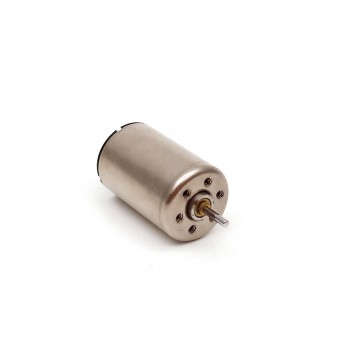

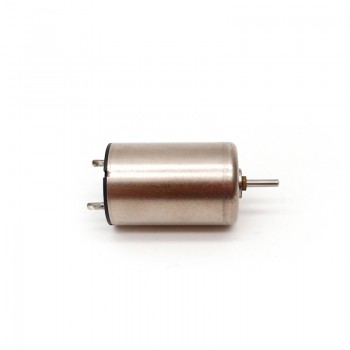

2Pcs 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm

2Pcs 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm
NO.:TDC1625
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$41.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $39.88 5%
10 $39.04 7%
50 $37.78 10%
100 $35.68 15%
Add To Cart



TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a variety of rated voltage versions to meet the needs of the user, including gear box, encoder, high and low speed, and other application environment modification possibilities.



Features:
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant;

Application
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

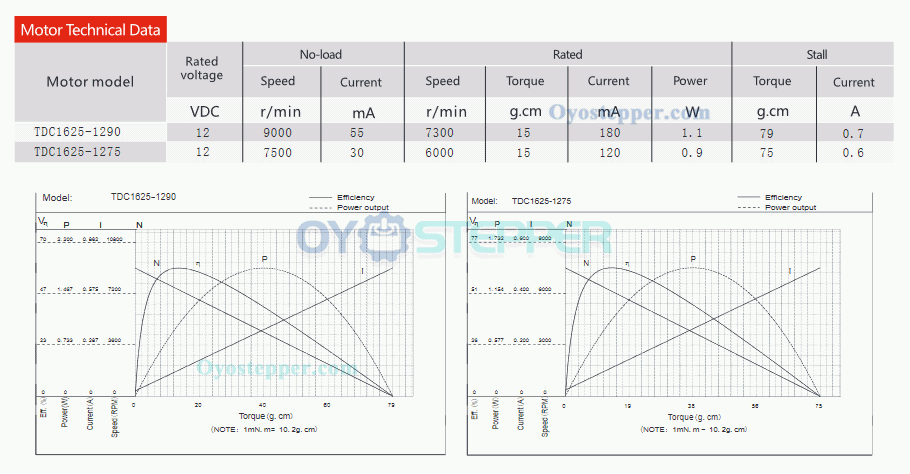

Electrical Specification
Part Number: TDC1625-1290/TDC1625-1275
Rated Power:1.1W(TDC1625-1290)/0.9W(TDC1625-1275)
Rated Voltage:12V
Rated Current(A):180mA(TDC1625-1290) / 120mA(TDC1625-1275)
Rated Torque:15g.cm
Rated Speed:7300RPM(TDC1625-1290)/6000RPM(TDC1625-1275)
No Load Speed : 9000RPM(TDC1625-1290)/7500RPM(TDC1625-1275)
Stall Torque:79g.cm(TDC1625-1290)/95g.cm(TDC1625-1275)
Stall Current:0.7A(TDC1625-1290)/0.6A(TDC1625-1275)
Type:PMDC Brushed Motor
Efficiency: IE 3
Protect Feature:Drip-proof
Encoder:1-1024ppr
Construction:Permanent Magnet
Noise:Low Noise Level;

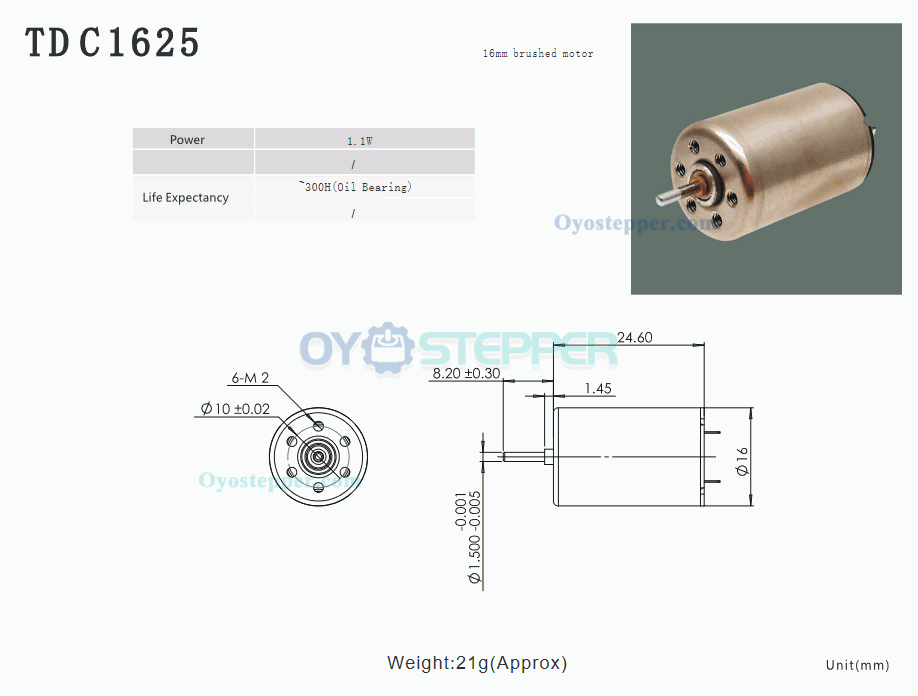

Physical Specification:
Motor Size:Φ16mm*24.6mm
Motor Diameter:Φ16mm
Motor Length:24.6mm
Shaft Type:O
Shaft Diameter:1.5mm
Shaft Length:6.75mm
Weight:21g



2Pcs 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm

2Pcs 12V Brushed DC Motor Permanent Magnet PMDC Brushed Motor 16*25mm

Resources

TDC1625.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 4 Phase Stepper Gear Motor 7.5° 120mA 0.5kg.cm with Spur Gearbox 3mm-D shaft
Next: 2Pcs 24V DC Coreless Brushed Motor High Speed Low Noise 1.96m.Nm 16mm*36mm
Physical Specification
Frame Size(mm) Φ16
Shaft Diameter(mm) 1.5
Weight(g) 21
Body Length(mm) 24.6
Shaft Length(mm) 6.75
Shaft Type O
Single Shaft/Dual Shaft Single Shaft/
Electrical Specification
Rated Speed(rpm) 6000 / 7300
Rated Torque(kg.cm) 0.015
Rated Current (A) 0.18 / 0.12
Rated Power(W) 1.1 / 0.9
Rated Voltage(V) 12V
