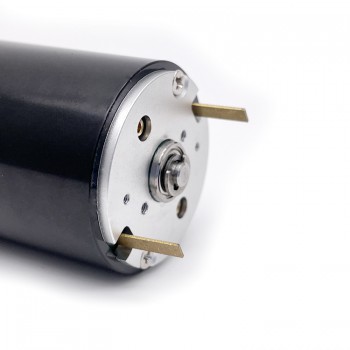

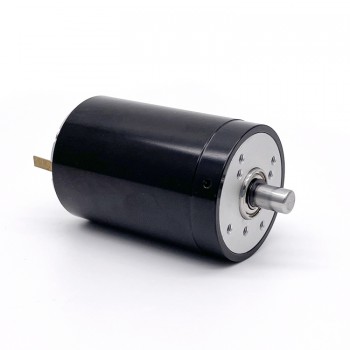

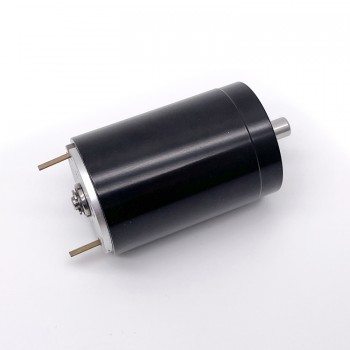

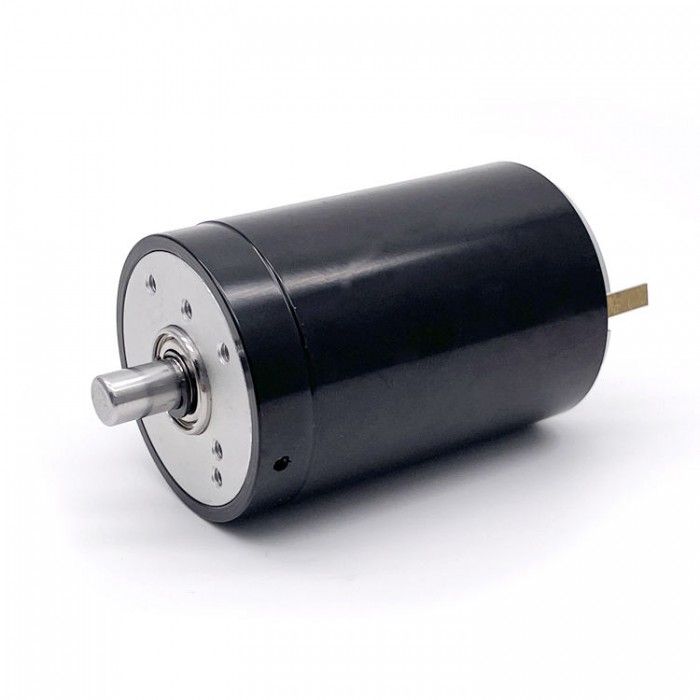

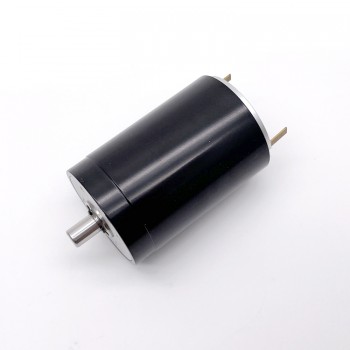

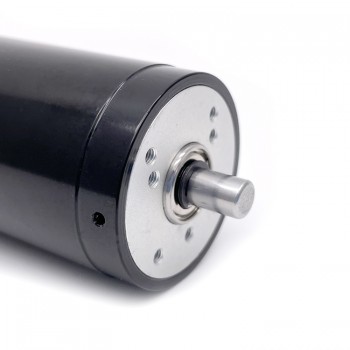

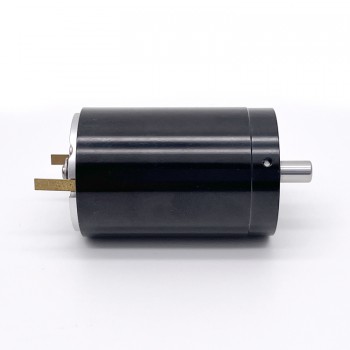

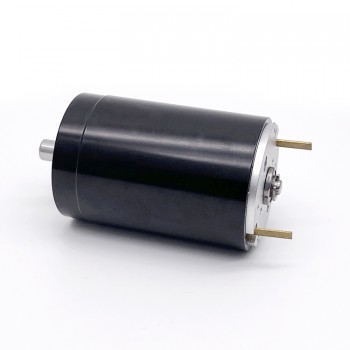

2Pcs Φ35mm 24V DC Coreless Brushed Motor TDC3553 400g.cm 5500r/min / 6900r/min Shaft 4.75mm
TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a choice of rated voltage versions to meet the needs of the user, as well as gear box, encoder, high and low speed, and other application environment customization possibilities.
Application
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Features
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant

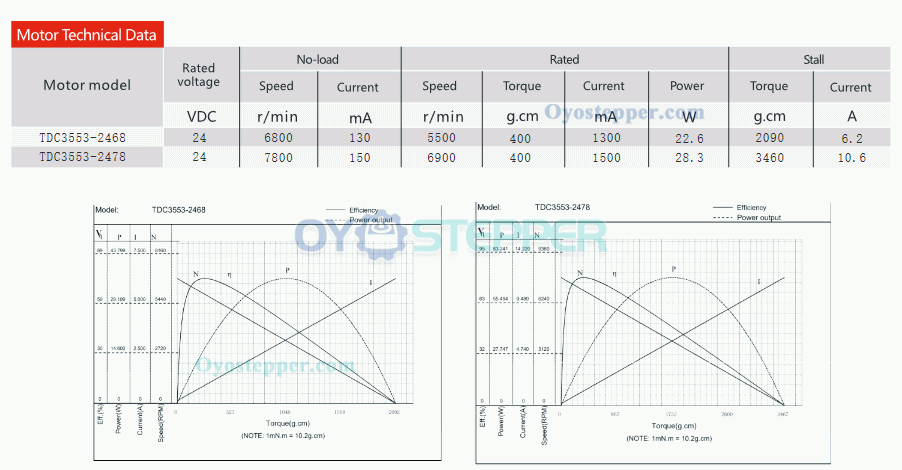

Electrical Specification
Part Number: TDC3553-2468/ TDC3553-2478
Rated Power:22.6W(TDC3553-2468) /28.3W(TDC3553-2478)
Rated Voltage:24V
Rated Current(A):1300mA(TDC3553-2468) / 1500mA(TDC3553-2478)
Rated Torque:400g.cm
Rated Speed:5500RPM(TDC3553-2468)/ 6900(TDC3553-2478)
No Load Speed : 6800RPM(TDC3553-2468)/ 7800(TDC3553-2478)
Stall Torque:2090g.cm(TDC3553-2468) /3460g.cm(TDC3553-2478)
Stall Current:6.2A(TDC3553-2468) /10.6A(TDC3553-2478)
Type:Brush Motor
Efficiency:IE 3
No load speed:7800r/min
Construction:Permanent Magnet
Encoder:1-1024ppr

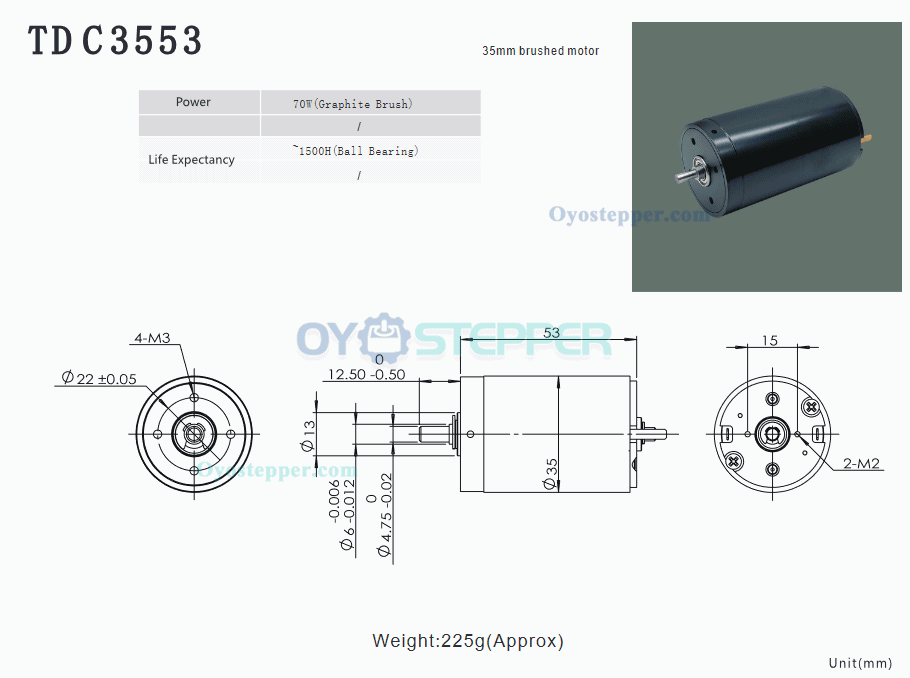

Physical Specification:
Motor Size:Φ35mm*53mm
Motor Diameter:35mm
Motor Length:53mm
Shaft Type:O
Shaft Diameter:4.75mm
Shaft Length:12.5mm
Weight:225g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 35 |
| Shaft Diameter(mm) | 4.75 |
| Shaft Length(mm) | 12.5 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
| Body Length(mm) | 53 |
| Weight(g) | 225 |
| Electrical Specification | |
| Rated Power(W) | 22.6 / 28.3 |
| Rated Speed(rpm) | 6900 / 5500 |
| Rated Current (A) | 1.3 / 1.5 |
| Rated Voltage(V) | 24 |
| Rated Torque(kg.cm) | 0.4 |
