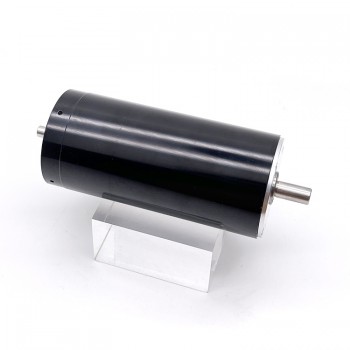

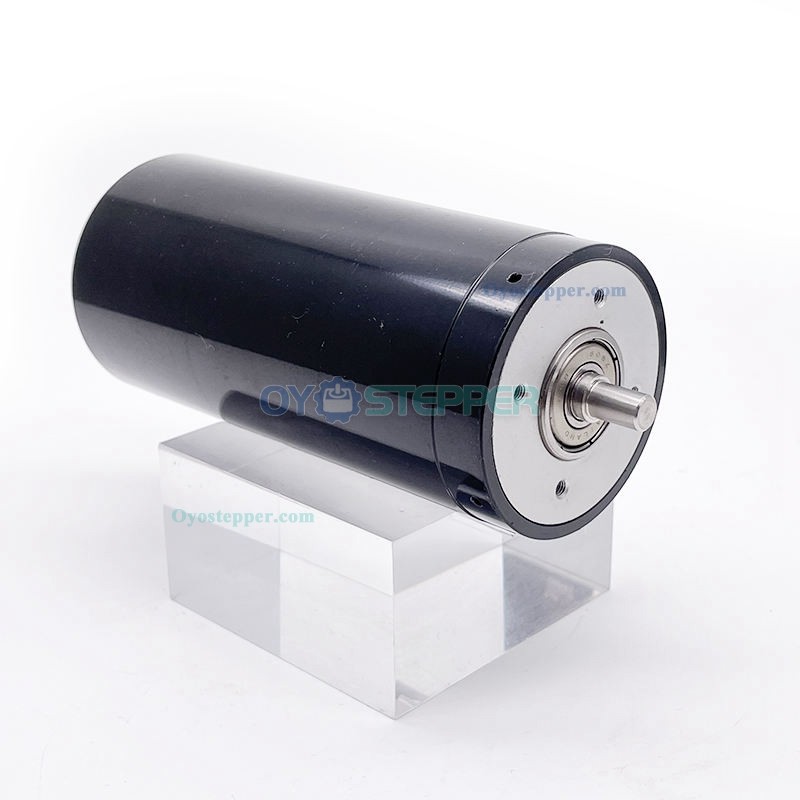

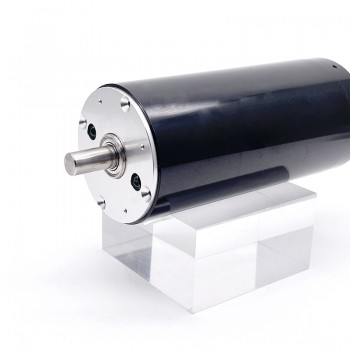

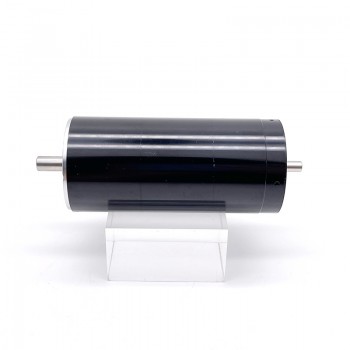

24V 36V Coreless Brushed Motor High Torque Dual Shaft DC Motor 4000g.cm 50mm*108mm

24V 36V Coreless Brushed Motor High Torque Dual Shaft DC Motor 4000g.cm 50mm*108mm

TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a choice of rated voltage versions to meet the needs of the user, as well as gear box, encoder, high and low speed, and other application environment customization possibilities.

Features:
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant;

Application
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

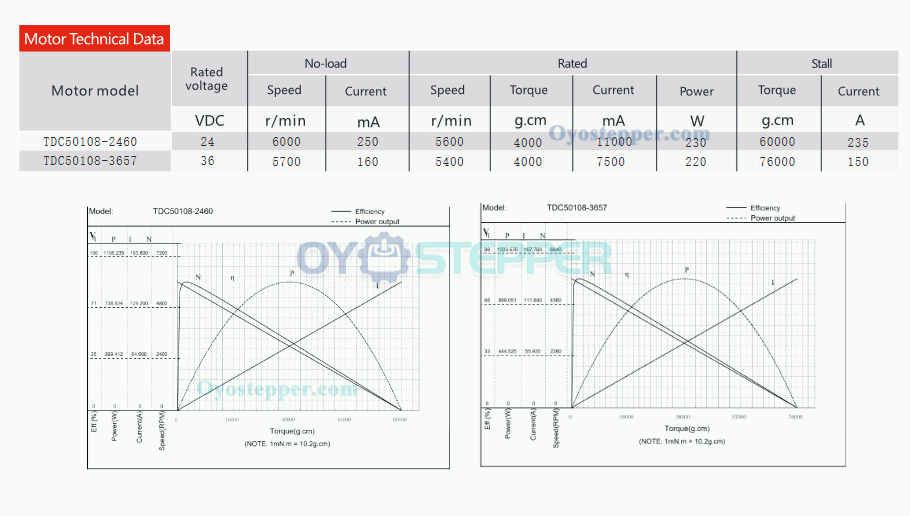

Electrical Specification
Part Number: TDC50108
Rated current:0.16-11A
Rated Voltage: 24V/36V
Power:200W
Rated Speed(RPM):5600r/min
No load speed:6000r/min
Rated Torque:4000g.cm
Construction:Permanent Magnet
Encoder:1-1024ppr;

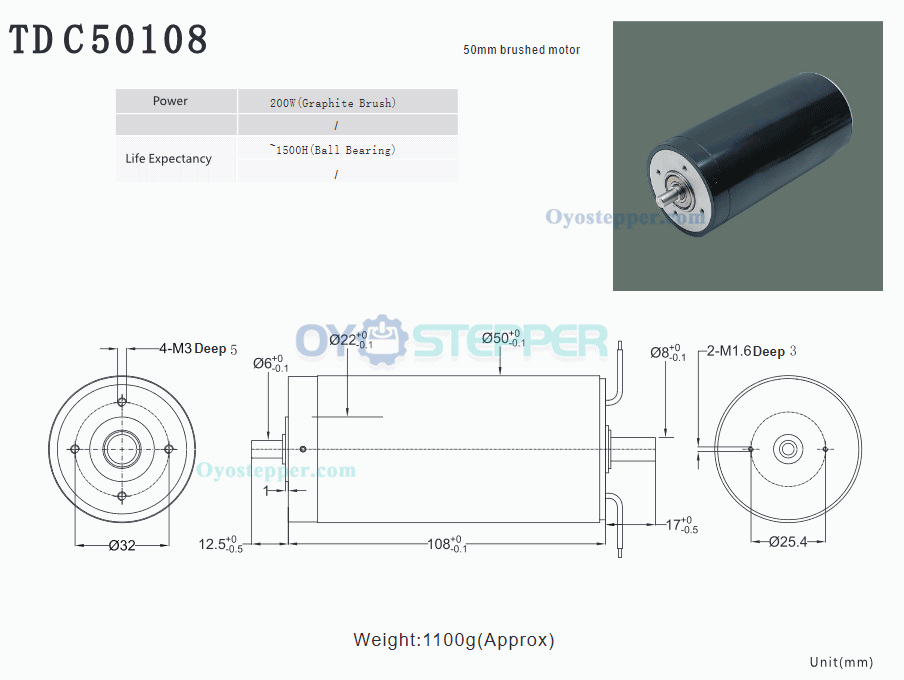

Physical Specification:
Motor Size:50*108mm
Motor Diameter:50mm
Length: 108mm
Front Shaft Length: 12.5mm
Rear Shaft Length: 34mm
Front Shaft Diameter:6mm
Front Shaft Diameter:8mm
Weight:1100g;

Resources

• TDC50108.pdf
