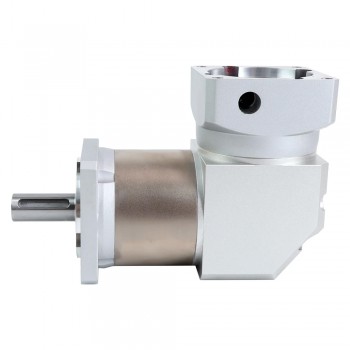

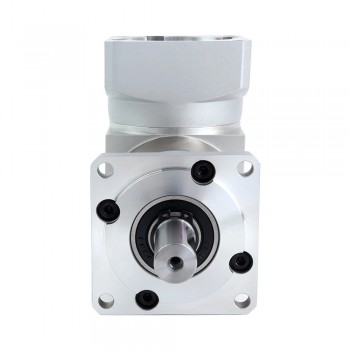

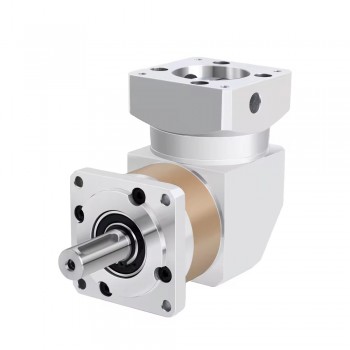

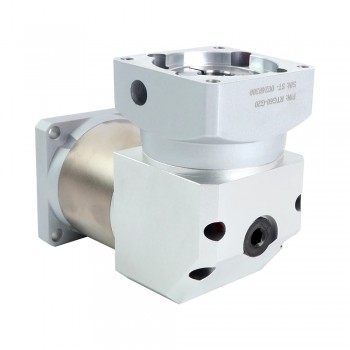

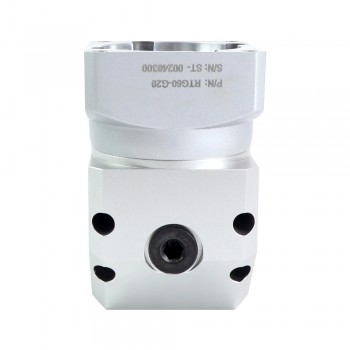

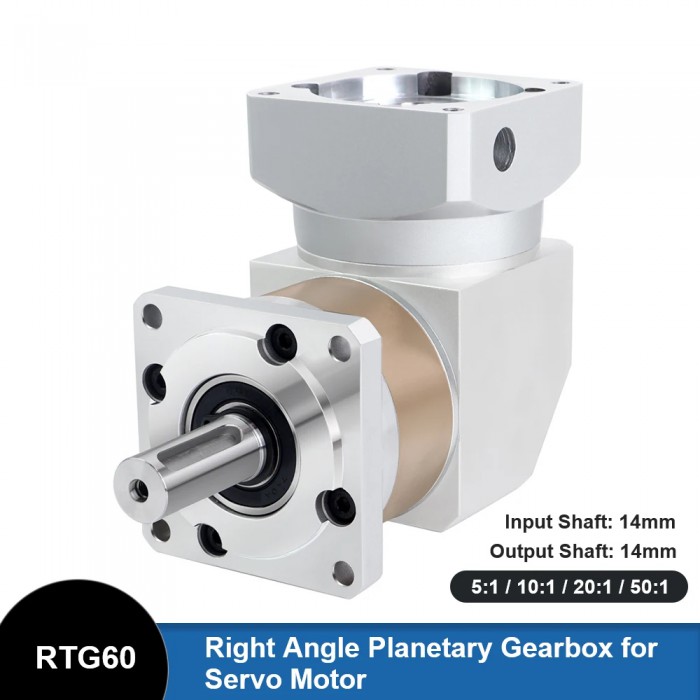

Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors

Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors
NO.:RTG60-G5/10/20/50
Review: Post a review
Our Price:$145.99

Quantity:- +

Add To Cart

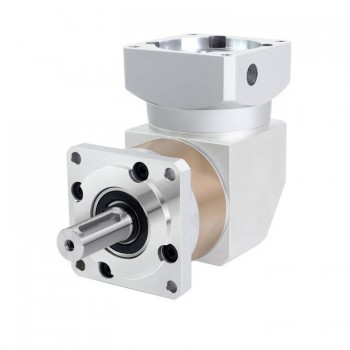

RTG60 Series Nema 24 Right Angle Planetary Gearbox Ratio 5:1/10:1/20:1/50:1 for 60mm Servo Motors



This right angle gearbox is designed for servo motor and the high speed and low speed shaft have a 90-degree orright angle relationship. One of the main advantages of this right angle gearbox is its compact size and ability to fit into tight spaces, making it suitable for applications where the driving equipment needs to be close to the driven equipment, such as on conveyors or other machinery.



Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors



Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors



Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors



Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor with 10:1/20:1/50:1 Planetary Gearbox 2.9A Φ14mm 57 x 57mm Key-way Shaft CNC
Next: NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

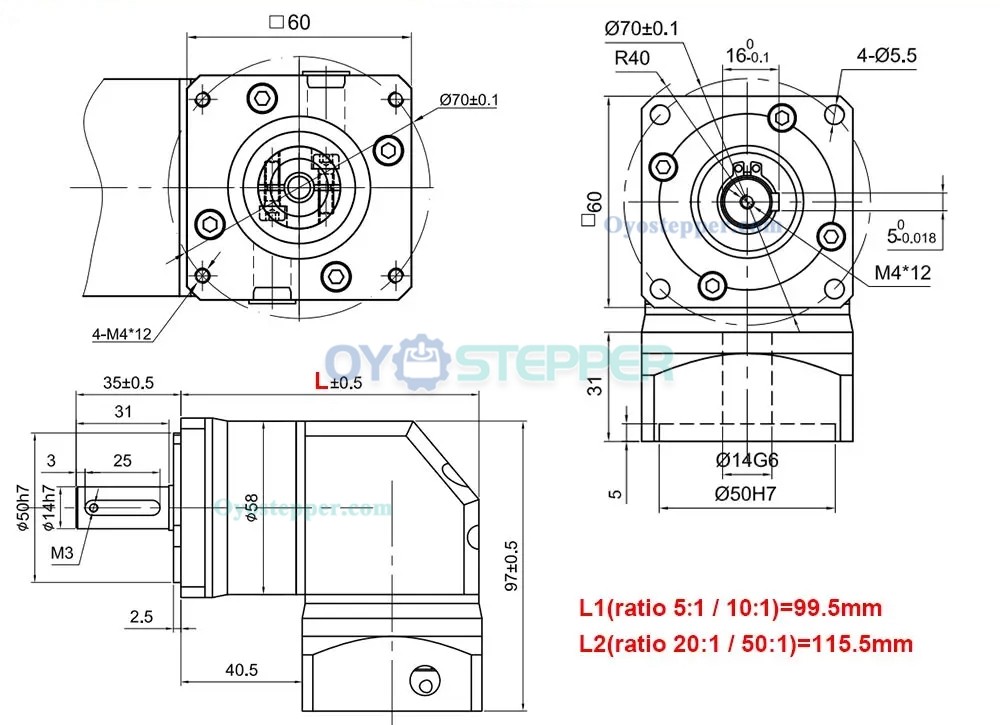

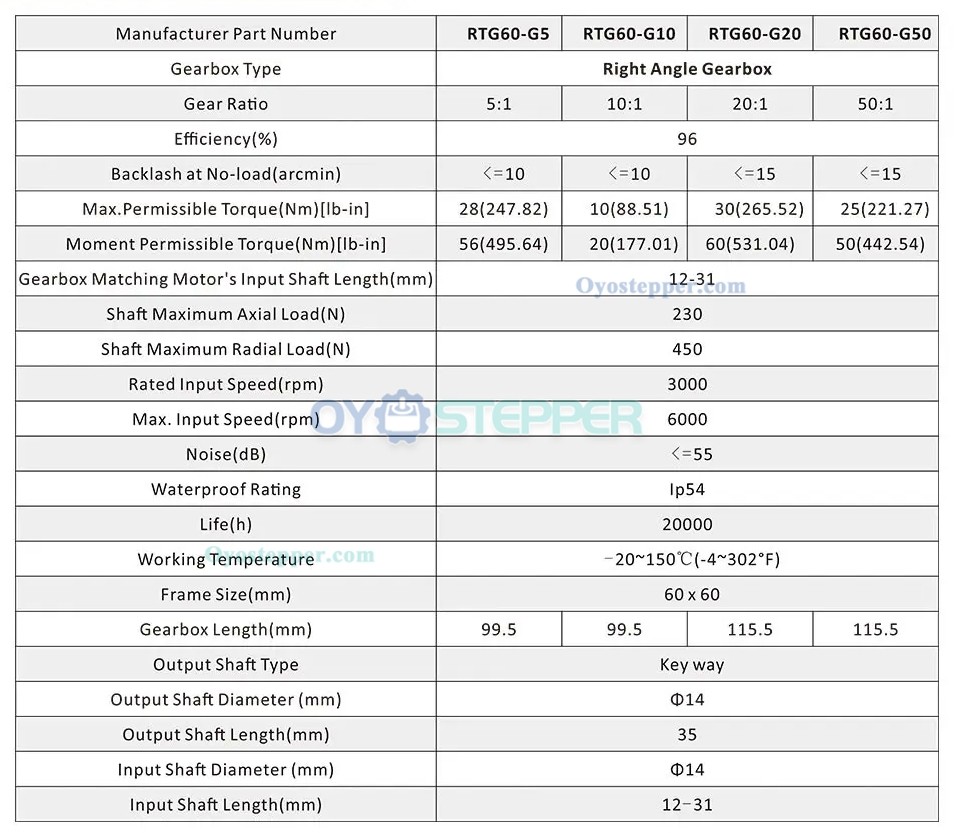

Physical Specification
Frame Size(mm) 60 x 60
Shaft Type Keyway Shaft
Input Shaft Diameter(mm) 14
Input Shaft Length(mm) 12-31
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 35
Suit for Motor Nema 24
Gearbox Type Right Angle Planetary Gearbox
Gear Ratio 5:1 / 10:1 / 20:1 / 50:1
Backlash at No-load <=10 arcmin / <=15 arcmin
Input Shaft Max. Length 31

Webster – 09 Aug 2024

I bought other products from this store before, and the effect was pretty good. I happened to be preparing a new project this time and needed this product, so I chose to continue to repurchase, hoping that the effect would be as good as the last time.

Jennifer – 23 Apr 2024

Express delivery, I receive the item in 5 working days. Good products and services. I will buy more item again soon.
