Nema 17 Right Angle Planetary Gearbox Gear Ratio 5:1/10:1/20:1/50:1/100:1 90 Degree 42mm Gearbox Reducer

Nema 17 Right Angle Planetary Gearbox Gear Ratio 5:1/10:1/20:1/50:1/100:1 90 Degree 42mm Gearbox Reducer
NO.:RYG 17Series
Post a review
Our Price:$169.99

Quantity:- +

Add To Cart

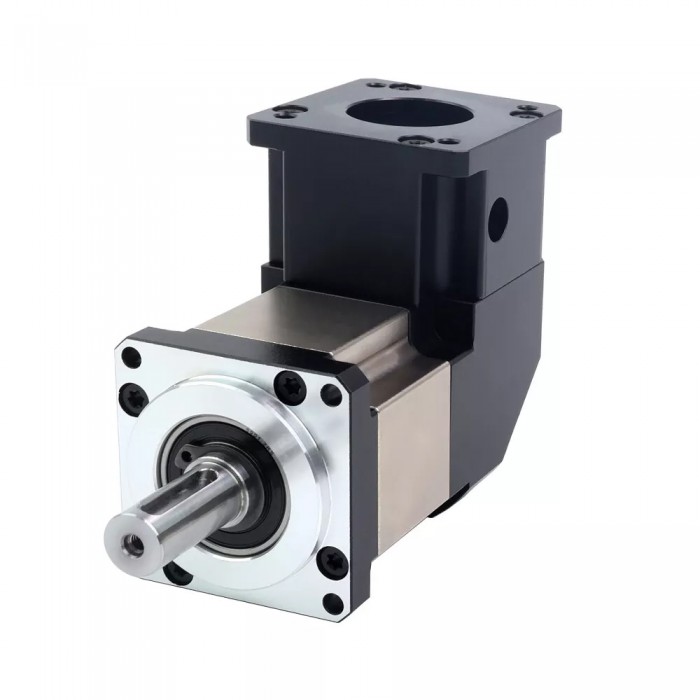

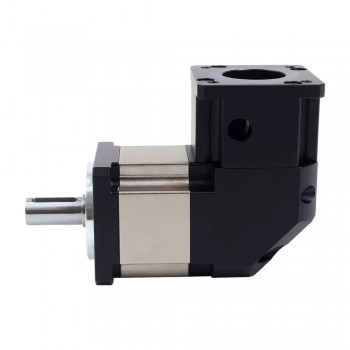

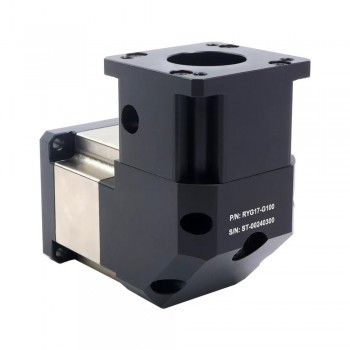

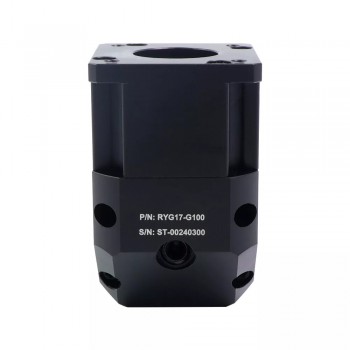

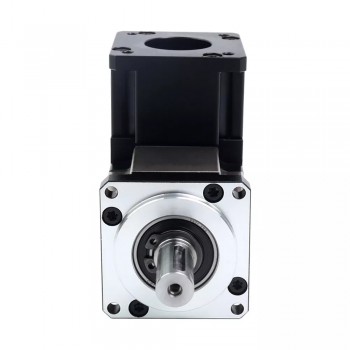

RYG17 Series Nema 17 Right Angle Planetary Gearbox Gear Ratio 5:1/10:1/20:1/50:1/100:1 Input Shaft 5mm



This right angle gearbox is designed for Nema 17 Stepper Motor and the high speed and low speed shaft have a 90-degree or right angle relationship. One of the main advantages of this right angle gearbox is its compact size and ability to fit into tight spaces, making it suitable for applications where the driving equipment needs to be close to the driven equipment, such as on conveyors or other machinery.

Note: When the rated input speed of the gearbox is 1000RPM, the noise value is

Motor RYG17-G05 RYG17-G10 RYG17-G20 RYG17-G50 RYG17-G100
Gear Ratio 5:1 10:1 20:1 50:1 100:1
Frame Size(mm) 42 x 42
Input Shaft Diameter(mm) 5
Output Shaft Diameter(mm) 10
Input Shaft Length(mm) 31.5
Output Shaft Length(mm) 25
Gearbox Length(mm) 65.5 65.5 76.5 76.5 76.5
Gerbox Matching Motor's Input Shaft Length(mm) 15-30 15-30 15-30 15-30 15-30
Max.Permissible Torque 9Nm(79.66 lb-in) 5Nm(44.2 lb-in) 12Nm(106.21 lb-in) 10Nm(88.5 lb-in) 10Nm(88.5 lb-in)
Moment Permissible Torque 18Nm(159.31 lb-in) 10Nm(88.5 lb-in) 24Nm(212.42 lb-in) 20Nm(177.1 lb-in) 20Nm(177.1 lb-in)
Shaft Maximum Axial Load 80N
Shaft Maximum Radial Load 260N
Rated Input Speed 3000RPM
Max. Input Speed 6000RPM
Waterproof Rating IP54
Backlash at No-load <=15arcmin <=15arcmin <=20arcmin <=20arcmin <=20arcmin
Efficiency 94%
Working Temperature -20~150oC
Life 20000h

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 5-Phase Variable Reluctance Stepper Motor 3.2Nm(453.16oz.in) 3A Φ9mm 6 Wires 90 x 90 x 67mm
Next: Nema 23 Stepper Motor with 10:1/20:1/50:1 Planetary Gearbox 2.9A Φ14mm 57 x 57mm Key-way Shaft CNC
Physical Specification
Frame Size(mm) 42 x 42
Input Shaft Diameter(mm) 5
Output Shaft Diameter(mm) 10
Output Shaft Length(mm) 25
Shaft Type Keyway Shaft
Gearbox Length(mm) 65.5 / 76.5
Suit for Motor Nema 17
Gearbox Type Right Angle Planetary Gearbox
Gear Ratio 5:1 / 10:1 / 20:1 / 50:1 / 100:1
Backlash at No-load <=15 arcmin / <=20 arcmin
Input Shaft Max. Length 31.5
