Right Angle Speed Reducer Gearbox 90 Degree 5:1/10:1/20:1/50:1 for Nema 23 Stepper Motor
Halloween Special Offer 2026:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$139.00

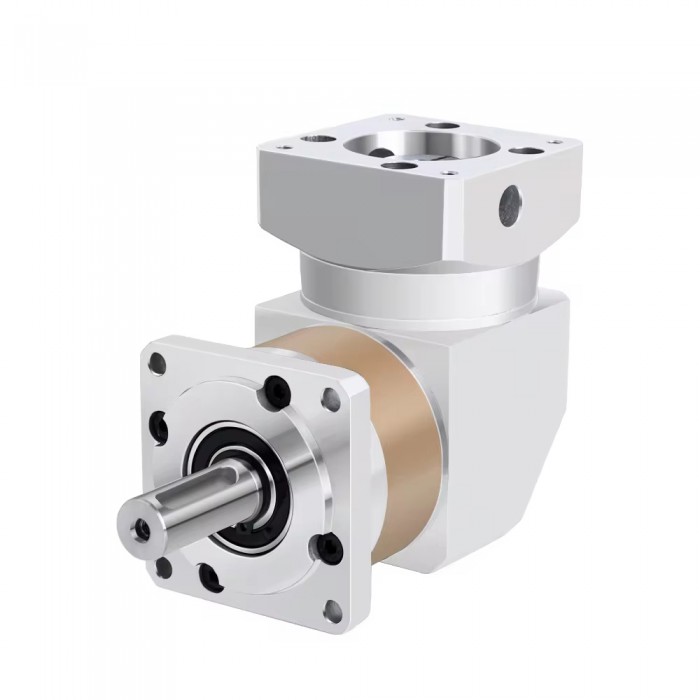

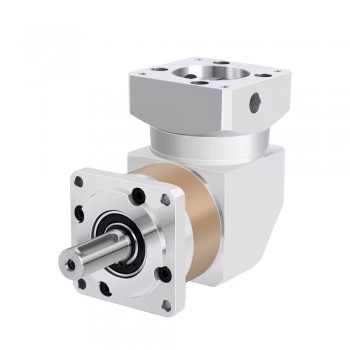

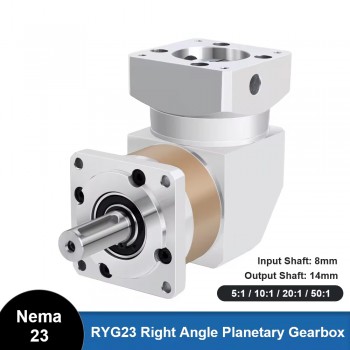

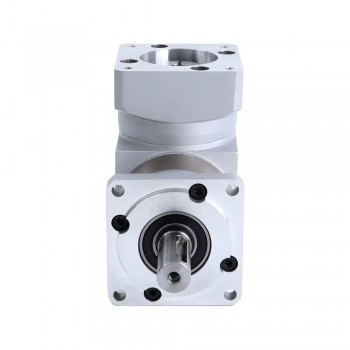

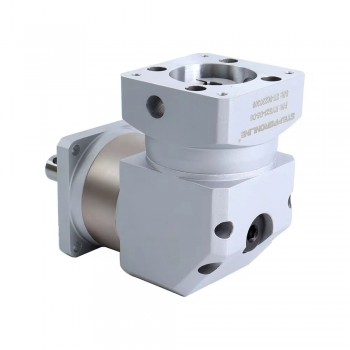

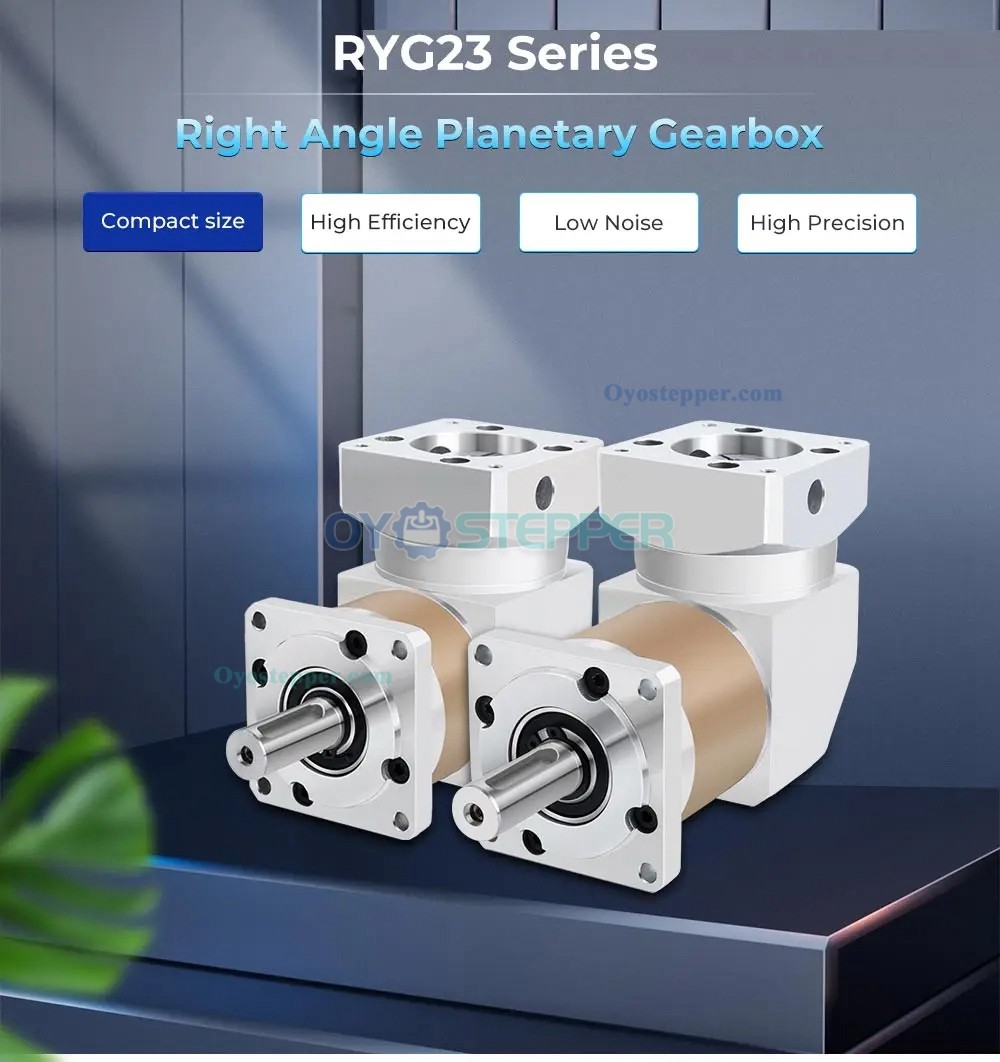

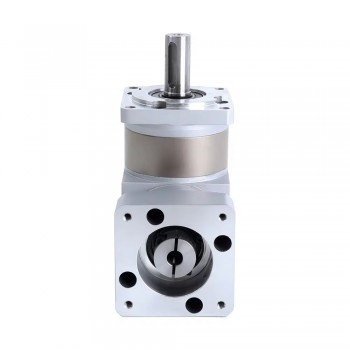

RYG23 Series Nema 23 Right Angle Planetary Gearbox Gear Ratio 5:1/10:1/20:1/50:1 for Nema 23 Stepper Motor
Note:
When the rated input speed of the gearbox is 1000RPM, the noise value is <=55dB; when the rated input speed is 3000RPM, the noise value is <=65dB.

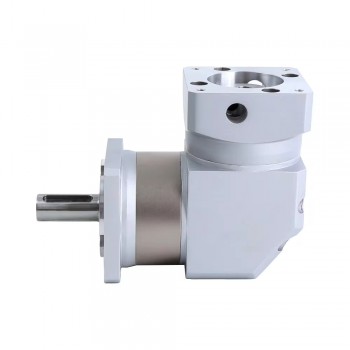

This right-angle gearbox is compatible with NEMA 23 stepper motors and features a 90° shaft orientation.
Its compact design allows for installation in confined spaces where the driving and driven components must be positioned close together, such as in conveyors and similar machinery.

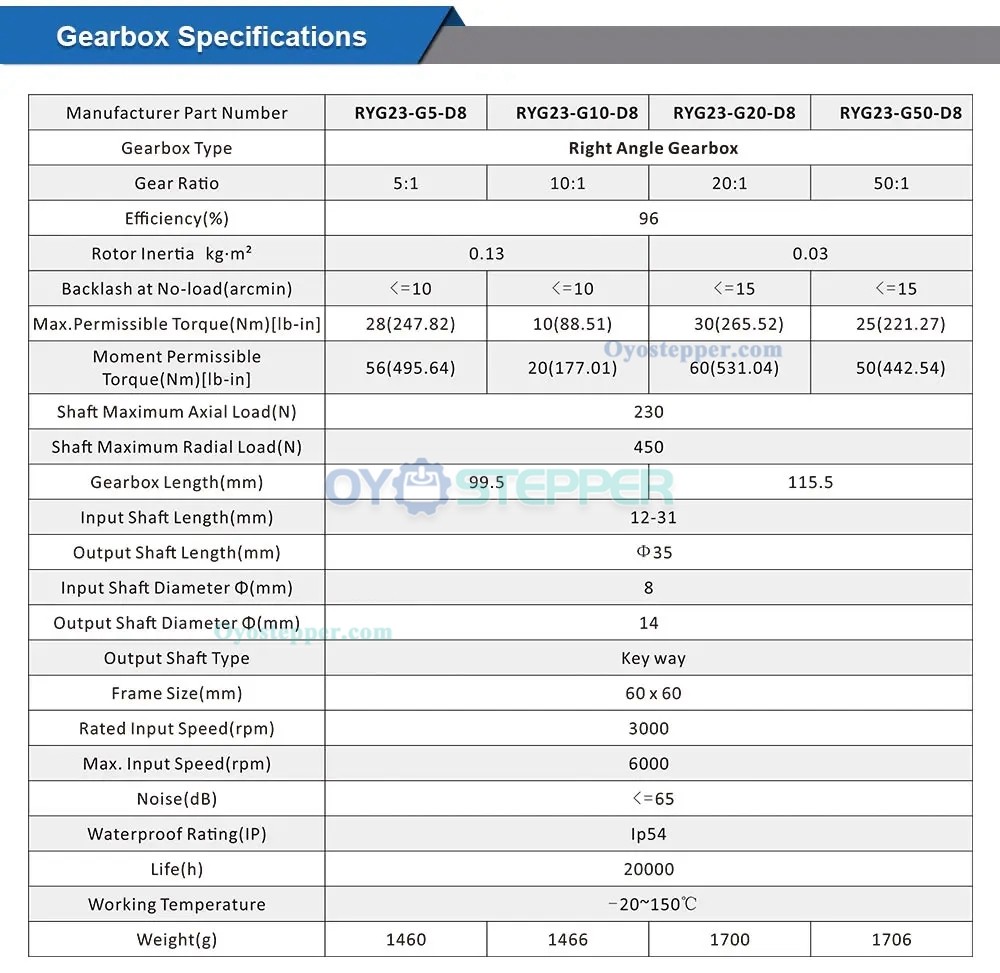

| Gearbox Specification | |
|---|---|
| Output Shaft Length(mm) | 35mm |
| Output Shaft Diameter(mm) | 14mm |
| Matching Motor Size | Nema 23 Stepper Motor |
| Input Shaft Diameter(mm) | 8mm |
| Output Shaft Type | Keyway |
| Gear Ratio | 5:1 / 10:1 / 20:1 / 50:1 |
| Gearbox Type | Right Angle Planetary Gearbox |
| Backlash at No-load(Max.°) | ≤10arcmin / ≤15arcmin |
