NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor
NO.:NMRV030
Post a review
Our Price:$41.99

Quantity:- +

Add To Cart

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

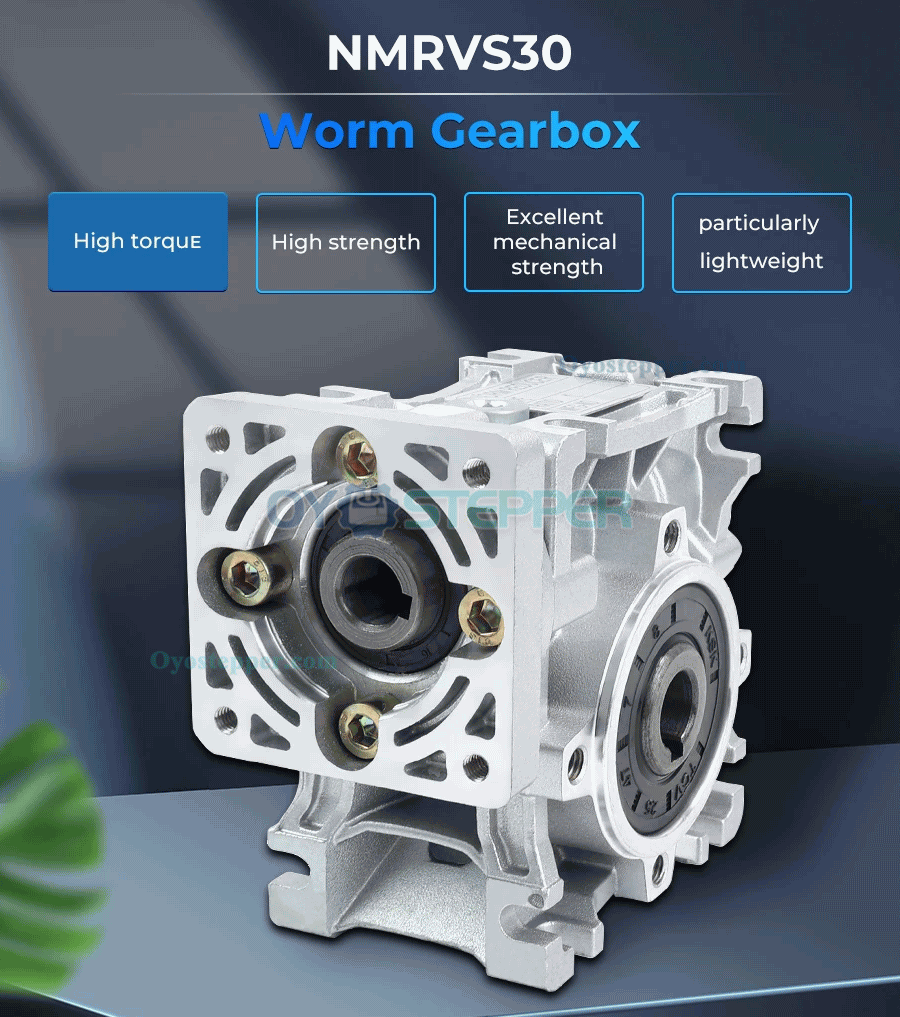

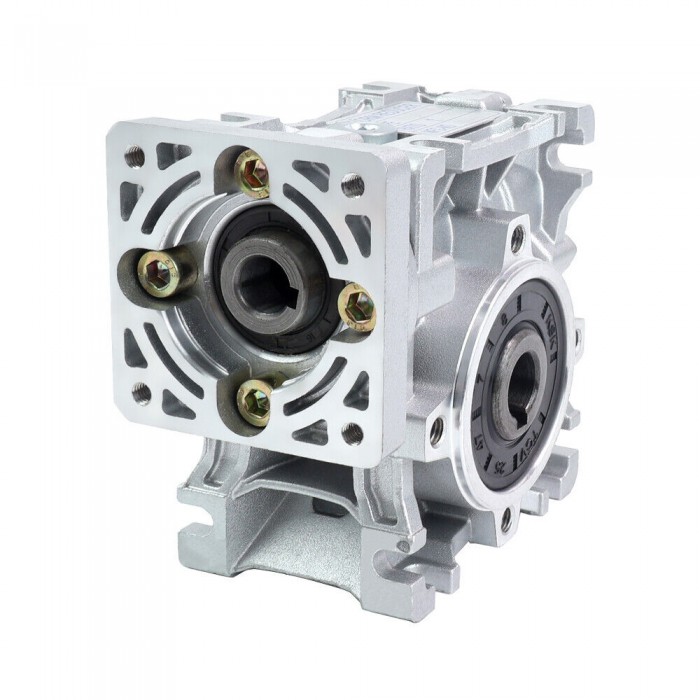

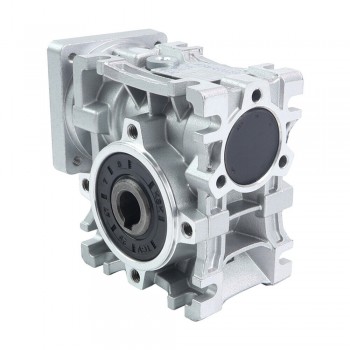

This worm gearbox is designed for Nema 23 Stepper Motors or other motors sized 57mm x 57mm. The output shaft is offset by 90 degrees from the drive shaft. Apart from its large casing, the box features a gapless structure, making it maintenance-free and hermetically sealed. This design prevents easy loss or degradation of lubricants, ensuring long-lasting performance without the need for frequent exchanges.



Feature:

High torque and high strength

Worm wheel: Bronze Cu Sn12 Ni2 (UNI7013-10)

Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity

Type:Worm-Gear Reducer

Speed Ratio: 5:1 7.5:1 10:1 15:1 20:1 30:1 50:1

Input Shaft Type: Key way

Input Shaft Diameter:11mm

Output Type: Hollow Bore

Output Bore Diameter: 14mm

Input Flange Model:NEMA23

Application:Matched with Servo/Stepper Motor



Package include:

1 x NMRVS030 reducer worm gear(5:1, 10:1, 20:1, 30:1,50:1)

1 x Gearbox Data sheet



NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor

NMRV030 Worm Gearbox 5:1 10:1 20:1 30:1 50:1 Gear Speed Reducer Fit Nema 23 Stepper / Servo Motor



Note

Recommend Input Speed <=1500rpm.

Due to high backlash, worm gearboxes are not suitable for positioning applications.

Worm gearboxes are generally recommended to use B3 installation type, if you use other installation types, please contact us for customization.

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Right Angle Planetary Gearbox 5:1/10:1/20:1/50:1 Speed Reducer 90 Degree RTG60 for 60mm Servo Motors
Next: NMRV040 Worm Gearbox Speed Reducer 5:1 10:1 20:1 30:1 50:1 for Nema 34 Motor

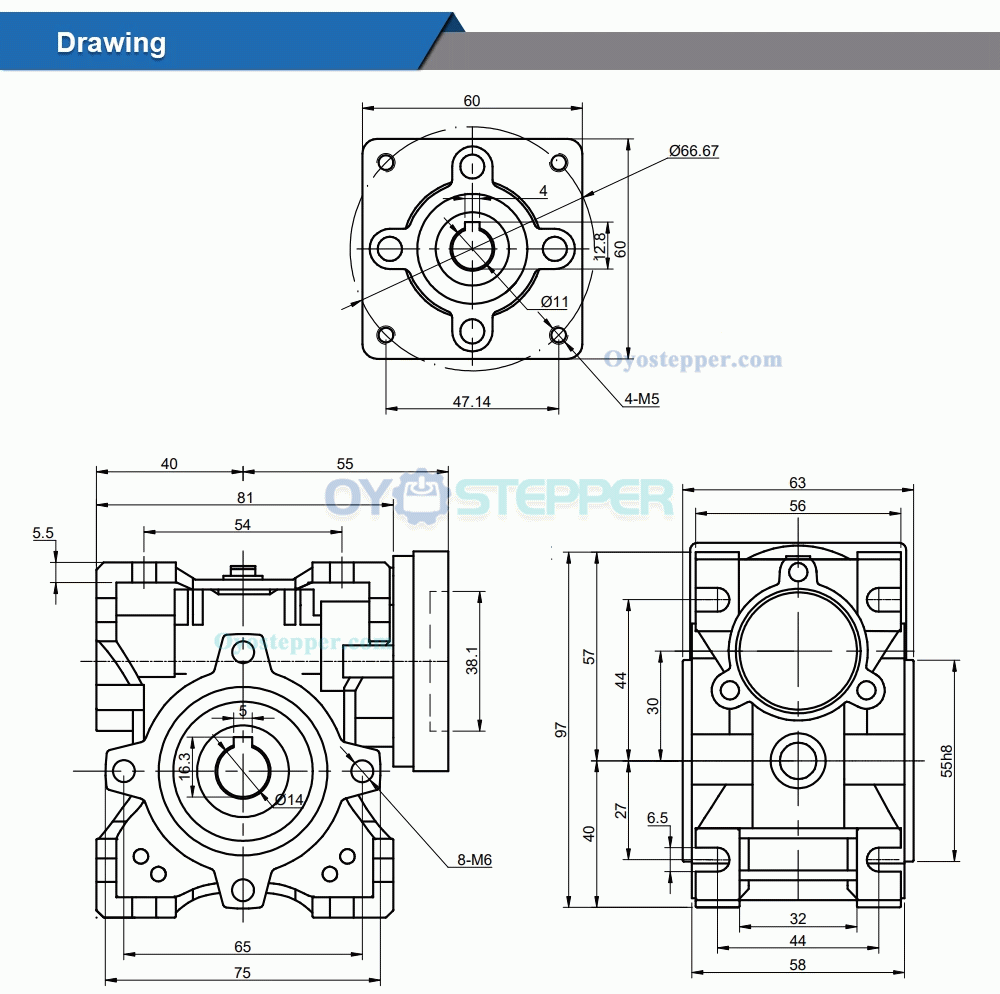

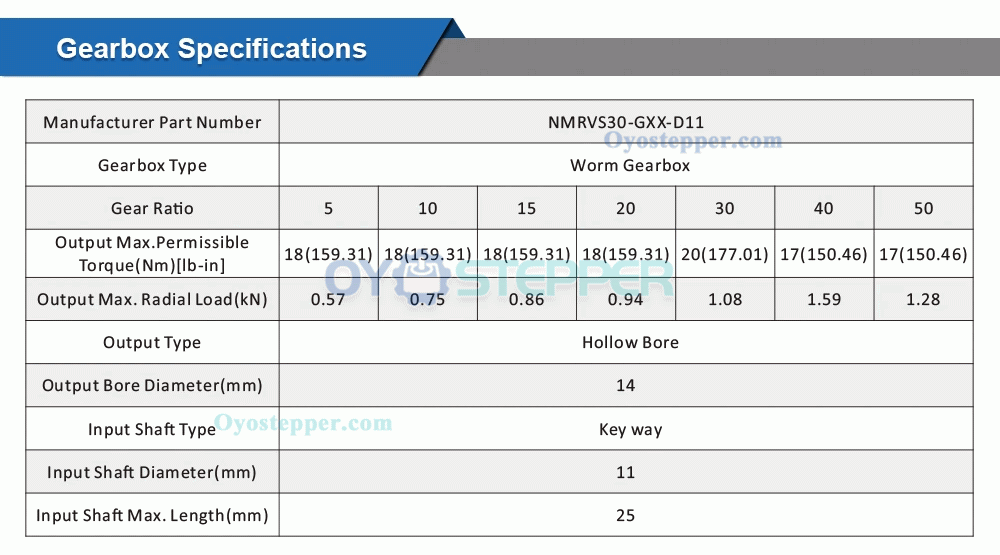

Physical Specification
Frame Size(mm) 60x60
Weight(g) 1150
Input Shaft Diameter(mm) 11
Suit for Motor Nema 23
Gearbox Type Worm Gearbox
Gear Ratio 5:1 / 10:1 / 15:1 / 20:1 / 30:1 / 40:1 / 50:1
Output Shaft Type Hollow Bore
Input Shaft Max. Length 15
Output Bore Diameter(mm) 14
