Meanwell LRS-150-12 CNC Power Supply 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply

Meanwell LRS-150-12 CNC Power Supply 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-150-12
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$18.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $17.30 5%
30 $16.94 7%
50 $16.39 10%
100 $15.84 13%
Add To Cart

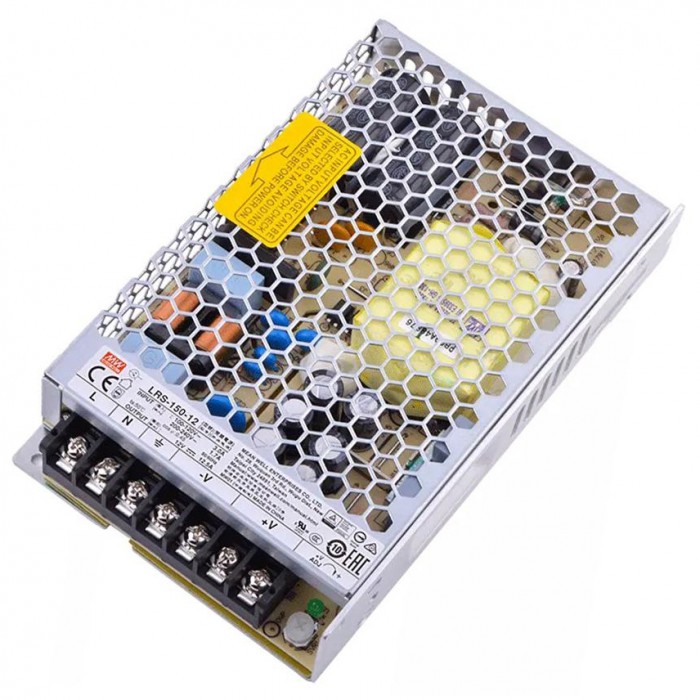

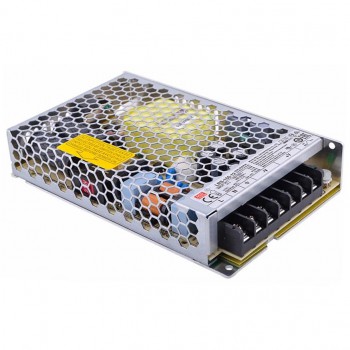

LRS-150-12 MEAN WELL 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design.

LRS-150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1, BS EN / EN60335-1,BS EN / EN61558-1 / -2-16, UL62368-1 and GB4943.



Features

Brand MEANWELL

12V DC 12.5A output

AC input voltage range: 85 ~ 132VAC

Rated power: 150W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

No load power consumption < 0.5W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-150-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well LRS-100-5 CNC Power Supply 100W 5VDC 18A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-150-24 CNC Power Supply 150W 24VDC 6.5A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 12.5
Power(W) 150
Brand MEANWELL
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 85 - 132 / 170 - 264
PFC Function No
Dim.(LxWxH)(mm/in.) 159 x 97 x 30 / 6.26 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 87.5%
Physical Specification
Product Type POWER SUPPLY
