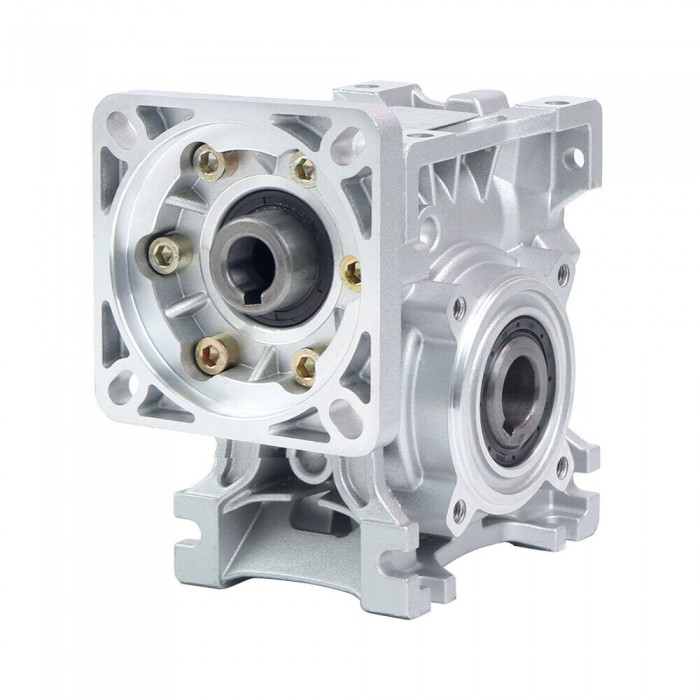

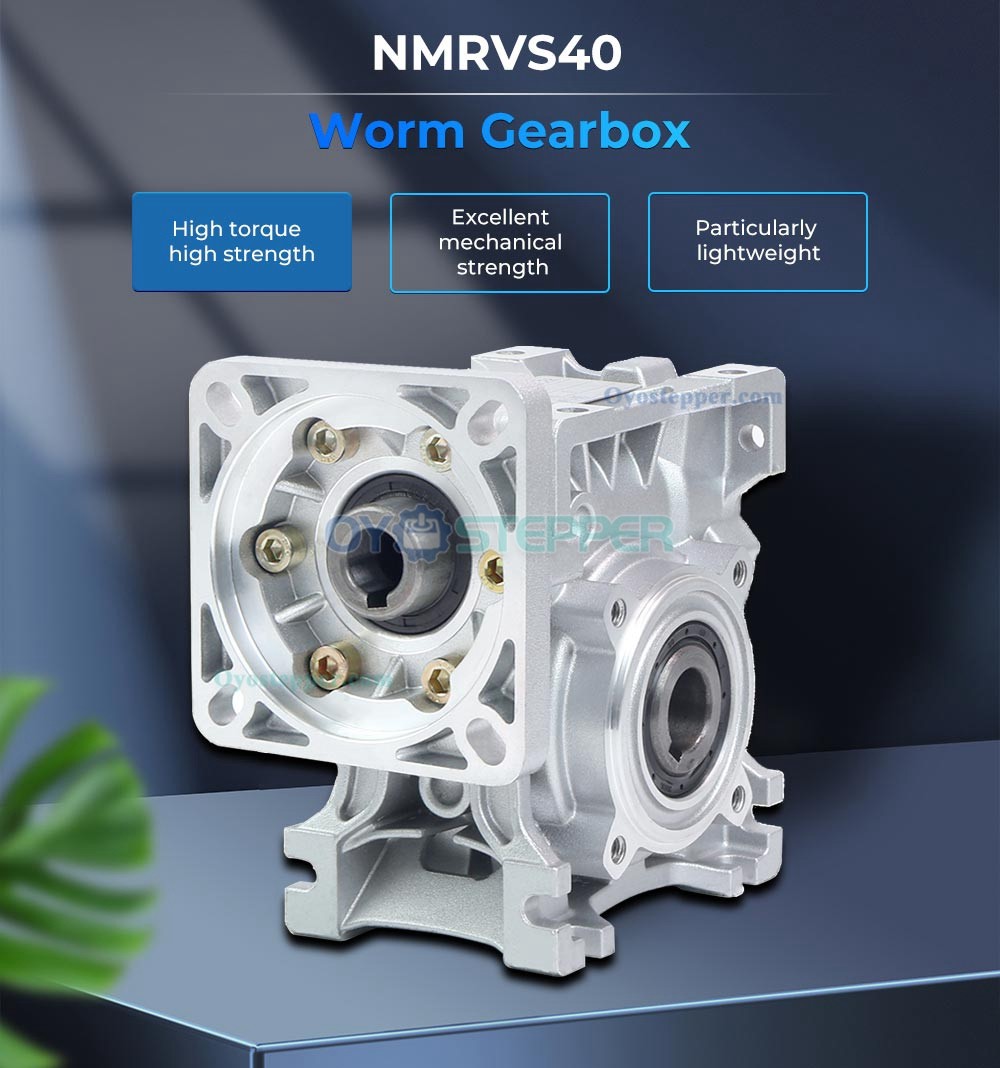

NMRV040 Worm Gearbox Speed Reducer 5:1 10:1 20:1 30:1 50:1 for Nema 34 Motor
NMRV040 Worm Gearbox Speed Reducer 5:1 10:1 20:1 30:1 50:1 for Nema 34 Motor
Specifications:
Compatible motor: NEMA 34 stepper motor or other 86mm×86mm motors
Output shaft offset: 90° relative to input shaft
Worm wheel material: Bronze Cu Sn12 Ni2 (UNI7013‑10)
Housing: Sealed aluminum housing, pre‑filled with synthetic oil
Mounting: Supports multiple orientations without lubricant adjustment
Self‑locking function: Integrated

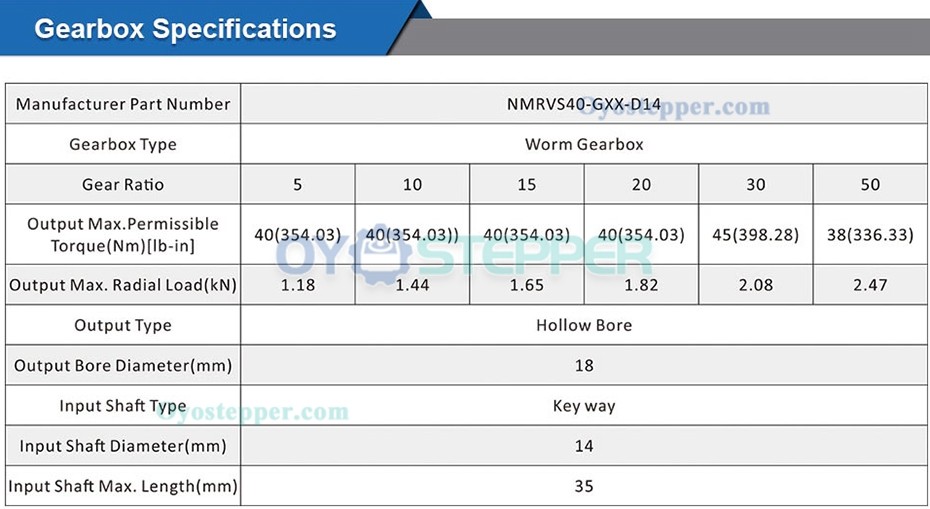

Gearbox Specifications:
Type: Worm‑gear reducer
Speed ratios available: 5:1, 7.5:1, 10:1, 15:1, 20:1, 30:1, 50:1
Input shaft type: Keyed
Input shaft diameter: 14 mm
Output type: Hollow bore
Output bore diameter: 18 mm
Input flange: NEMA 34
Application: Matched with servo/stepper motors
Package Includes:
1 × NMRVS040 worm gear reducer (ratio as selected)
1 × Gearbox data sheet
.jpg "NMRV040 Worm Gearbox Speed Reducer 5:1 10:1 20:1 30:1 50:1 for Nema 34 Motor")
| Physical Specification | |
|---|---|
| Frame Size(mm) | 85x85 |
| Weight(g) | 2140 |
| Input Shaft Diameter(mm) | 14 |
| Gearbox Type | Worm Gearbox |
| Gear Ratio | 5:1 / 10:1 / 15:1 / 20:1 / 30:1 / 40:1 / 50:1 |
| Output Shaft Type | Hollow Bore |
| Input Shaft Max. Length | 35 |
| Output Bore Diameter(mm) | 18 |
| Suit for Motor | Nema 34 |
