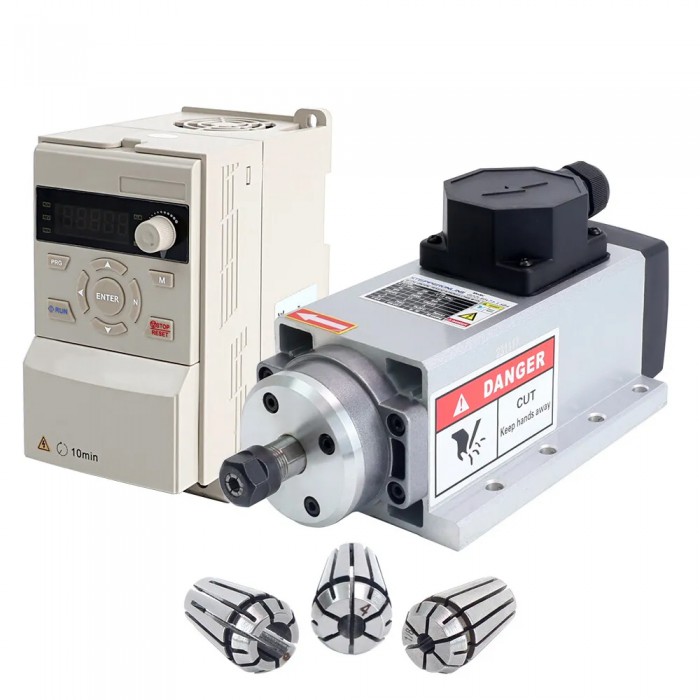

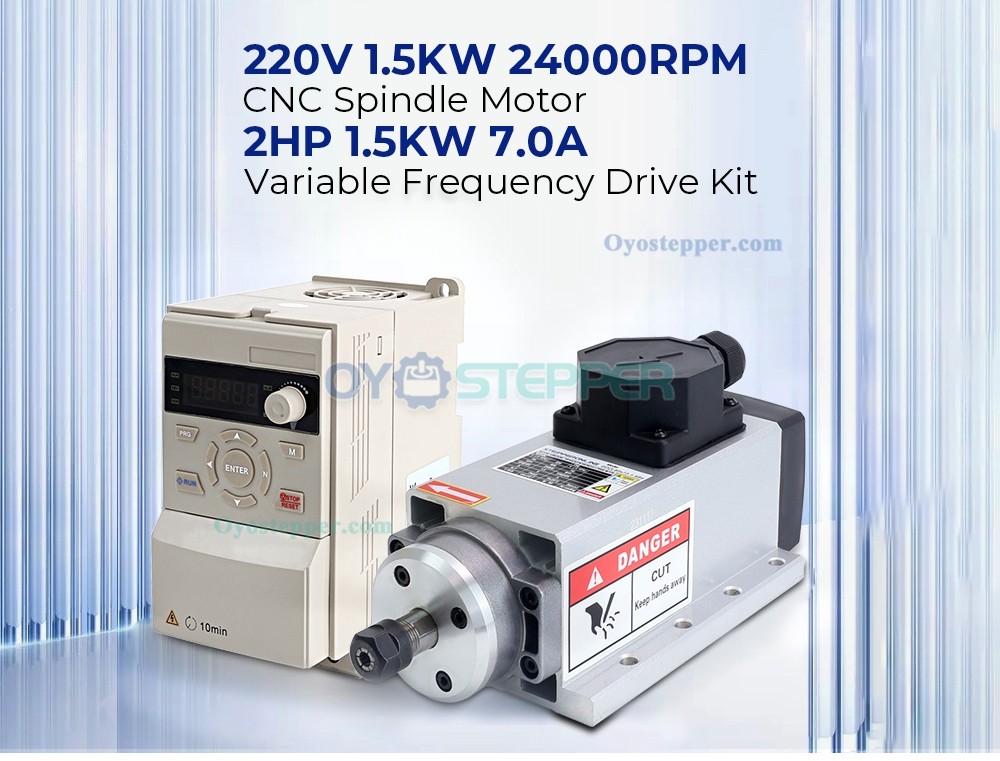

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit
NO.:VSK-ASL1.5B
Post a review
Our Price:$189.99
Quantity:- +

Add To Cart

1.5KW CNC Air Cooled Spindle Motor 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit VSK-ASL1.5B

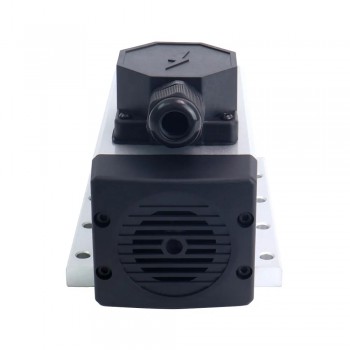

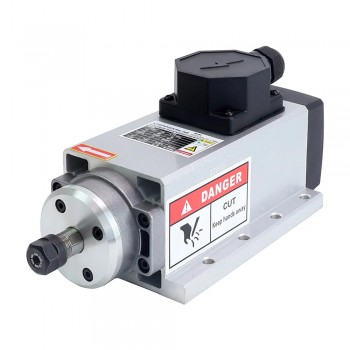

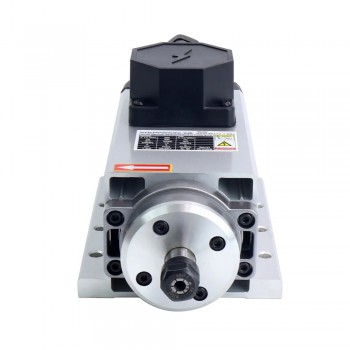

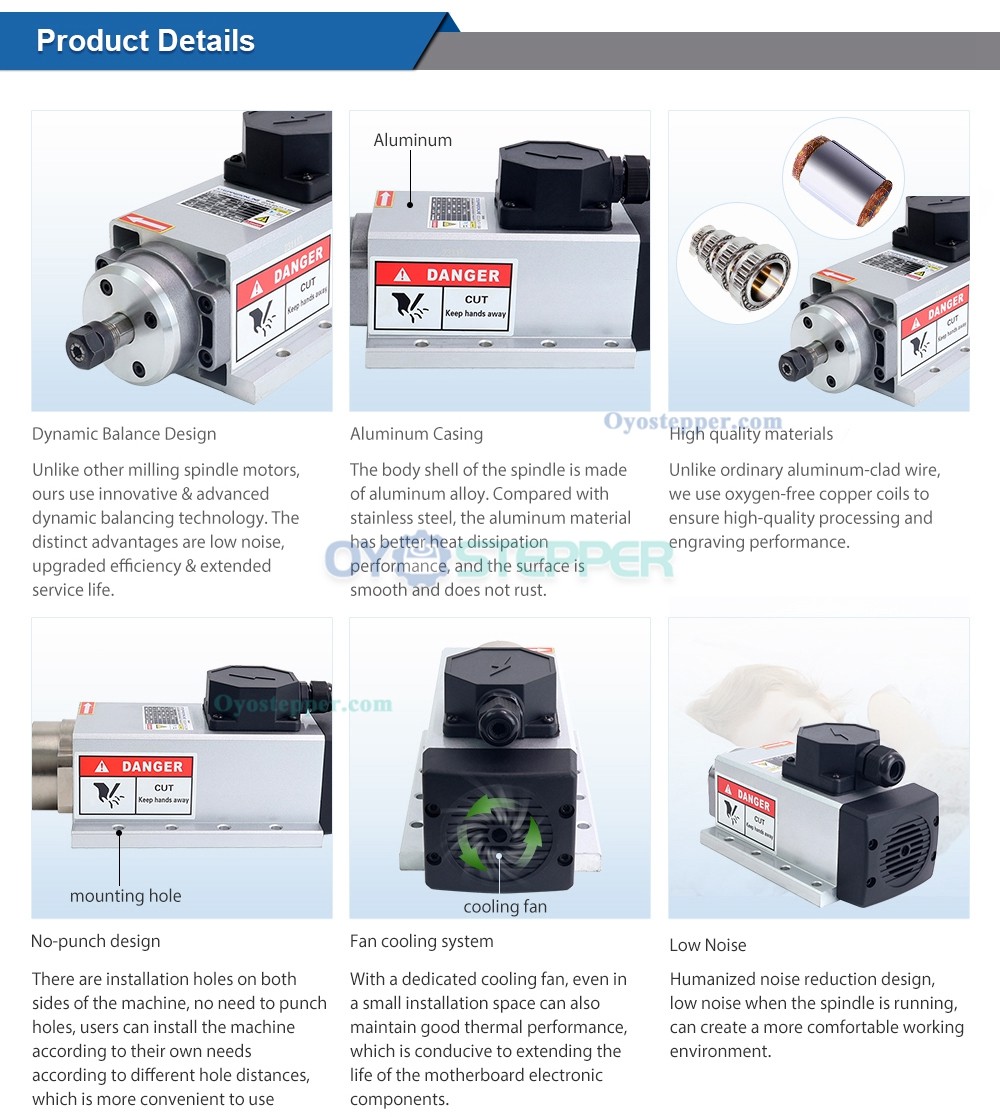

Spindle Motor Specification:
Manufacturer Part Number: GDZL80x73-1.5B4
Material: Stainless steel
Power: 1.5KW
Voltage: 220VAC
Current: 5.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet
Weight: 5kg
Size: 175.5 x 80 x 73mm(Length: 175.5mm, Width: 80mm, Height: 73mm);

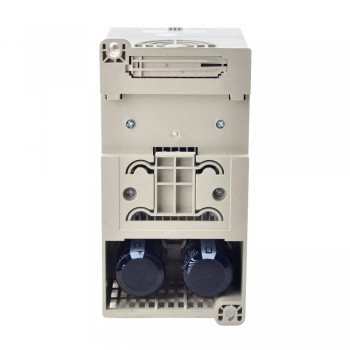

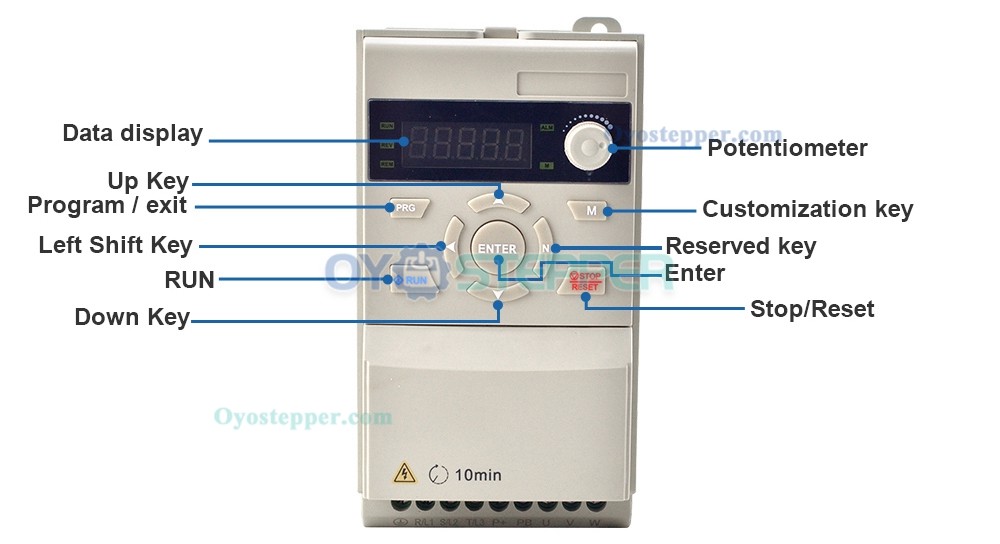

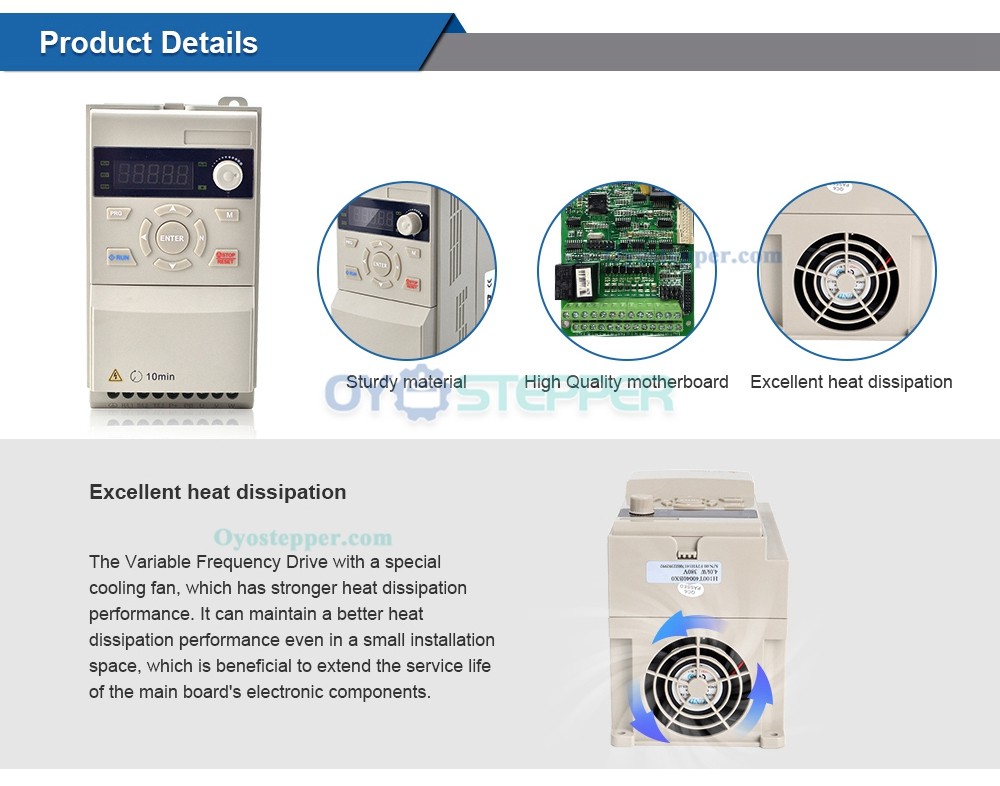

Variable Frequency Drive Specification:
Manufacturer Part Number: EV51S20015BX0
Rated Input Voltage: 1 Phase 220V
Allowed Input Voltage: 180 - 260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 8.2A
Power: 2HP(1.5KW)
Output Current: 7.0A
Output Voltage: 0 - Rated Input Voltage
Output Frequency: 0 - 1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s;

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

1.5KW CNC Air Cooled Spindle Motor 24000RPM 400Hz ER11+ 2HP VFD Variable Frequency Drive Inverter Kit

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Right Angle Speed Reducer Gearbox 90 Degree 5:1/10:1/20:1/50:1 for Nema 23 Stepper Motor
Next: HIWIN Linear Guide Blocks HGH15CA HGH20CA HGH25CA HGH35CA Slider Linear Rail Block Carriage CNC

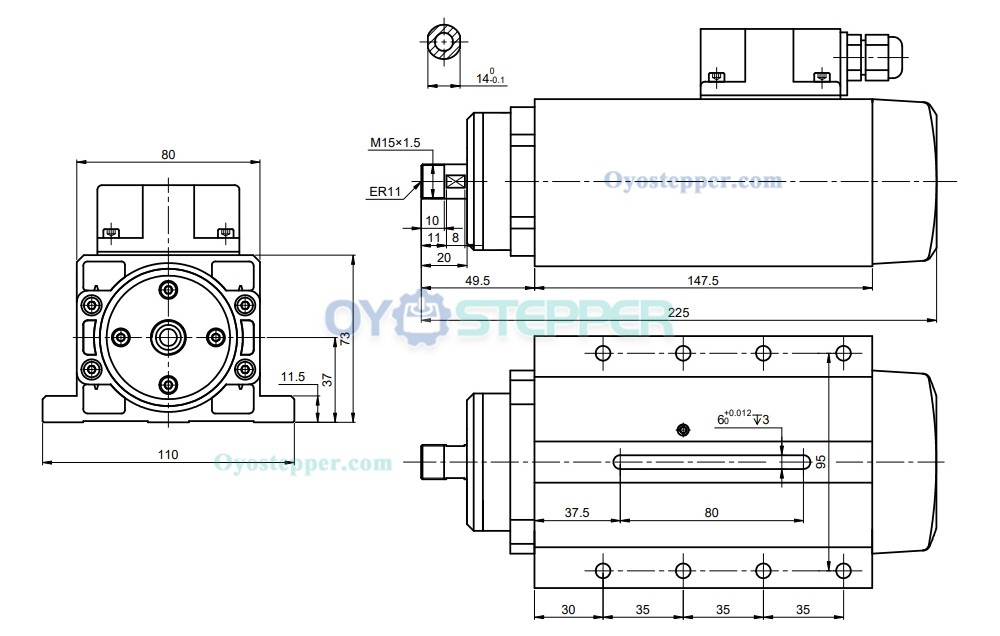

Spindle Motor Specification
Bearing Lubrication Grease
Body Length(mm) 147.5
Collet Size ER11
Cooling Air cooled
Current(A) 5
Frequency(Hz) 0 - 400
Material Stainless steel
Shape Square
Speed(RPM) 0 - 24000
Voltage(VAC) 220
Weight(Kg) 5
Power(Kw) 1.5
Body Height(mm) 73
Body Width(mm) 110
Variable Frequency Drive Specification
Input Voltage 220VAC
Allowed Input Voltage 180 - 260VAC
Input Frequency 50 - 60Hz
Input Current 8.2A
Power 2HP / 1.5Kw
Output Current 7A
Output Voltage 0 - Rated Input Voltage
Output Frequency 0 - 1000Hz
Output Capacity 150% Rated Current 60s, 180% Rated Current 2s
