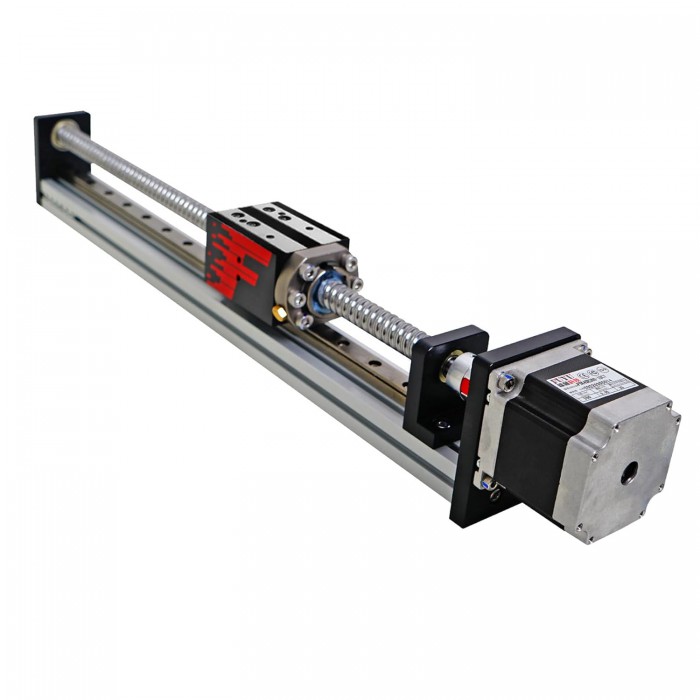

FSL40 Table Ball Screw Linear Motion Guide Stage Actuator with Nema 23 Stepper Motor
Linear Slide Rail Linear Ball Screw Actuator FSL40 50-1000mm with Nema 23 Stepper Motor
Features:

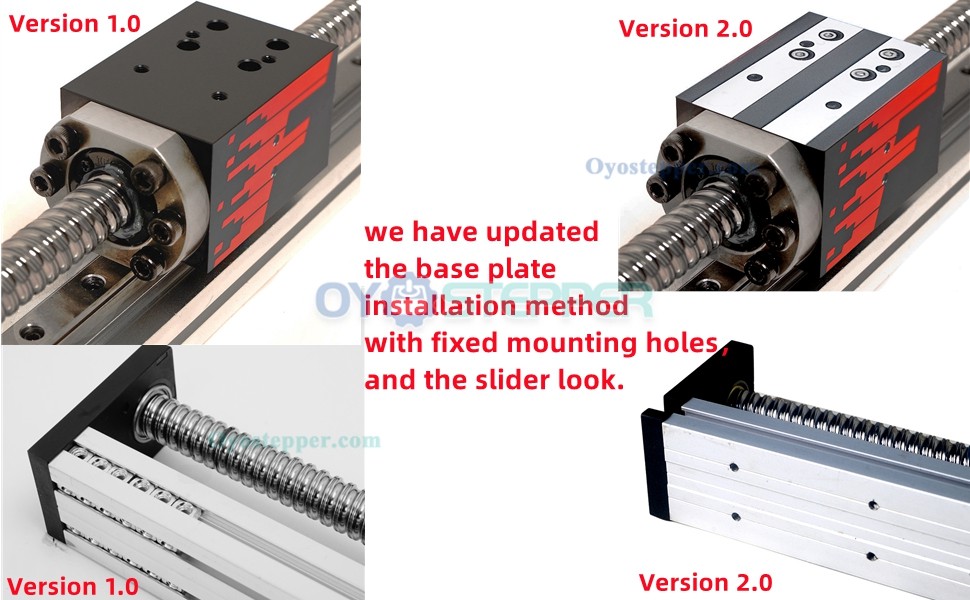

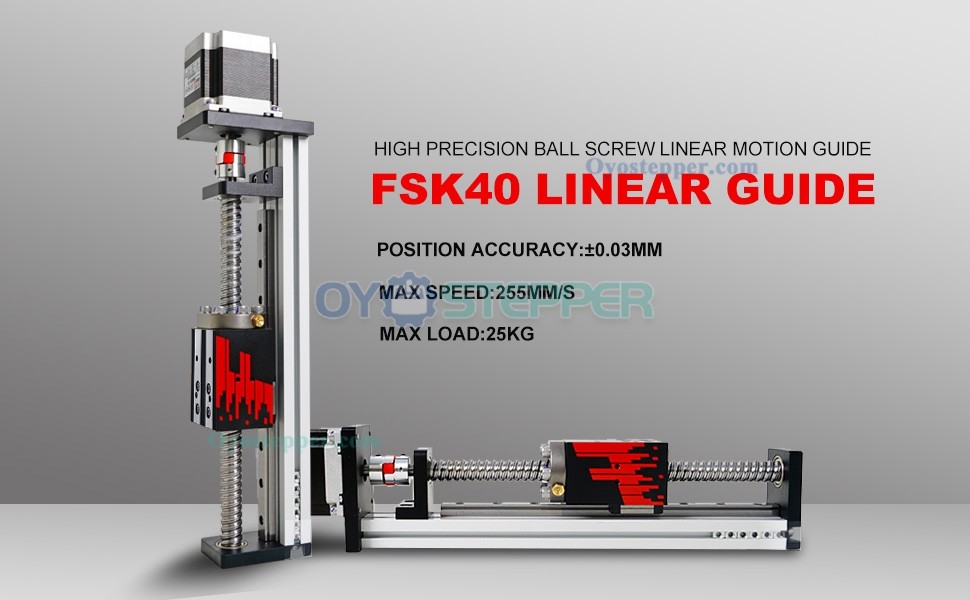

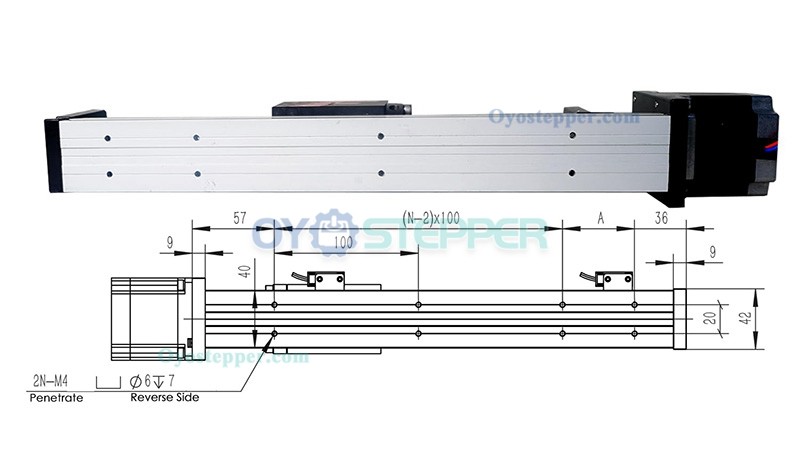

FSL40 and FSK40 linear modules with updated base plate mounting holes
Fixed mounting hole positions
Compatible with NEMA 23 stepper motor

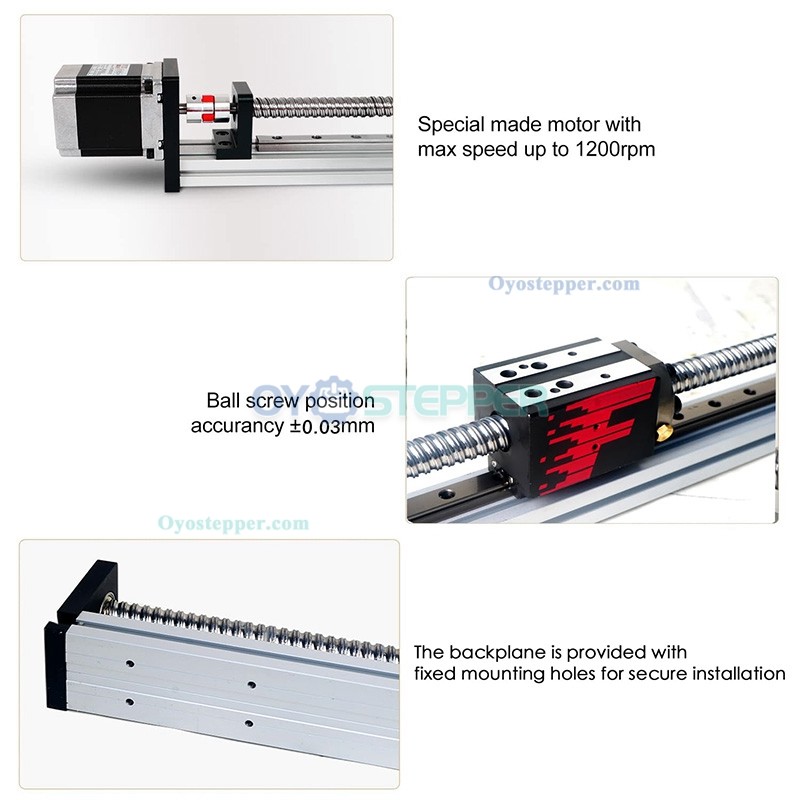

Maximum motor speed: 1200 rpm
Ball screw accuracy: ±0.03mm
Anodized aluminum housing
Stroke length options: 50mm to 1000mm
Version 1.0 and 2.0 available during transition period;
Specifications:
Defalut Stepper Motor
Ball Screw Model: C7 G1610
Effective Stroke: 50-1000mm

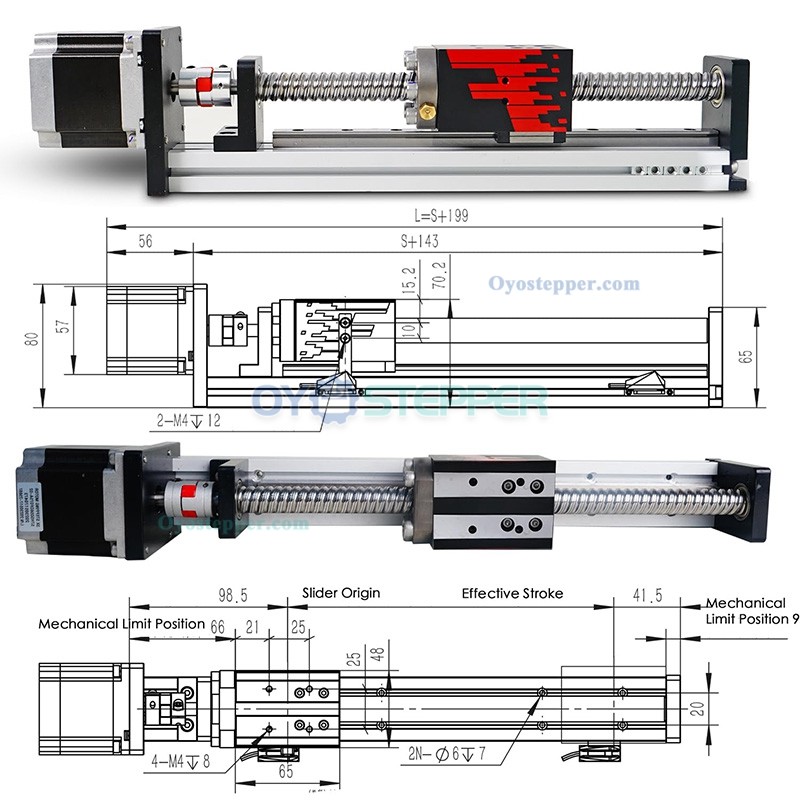

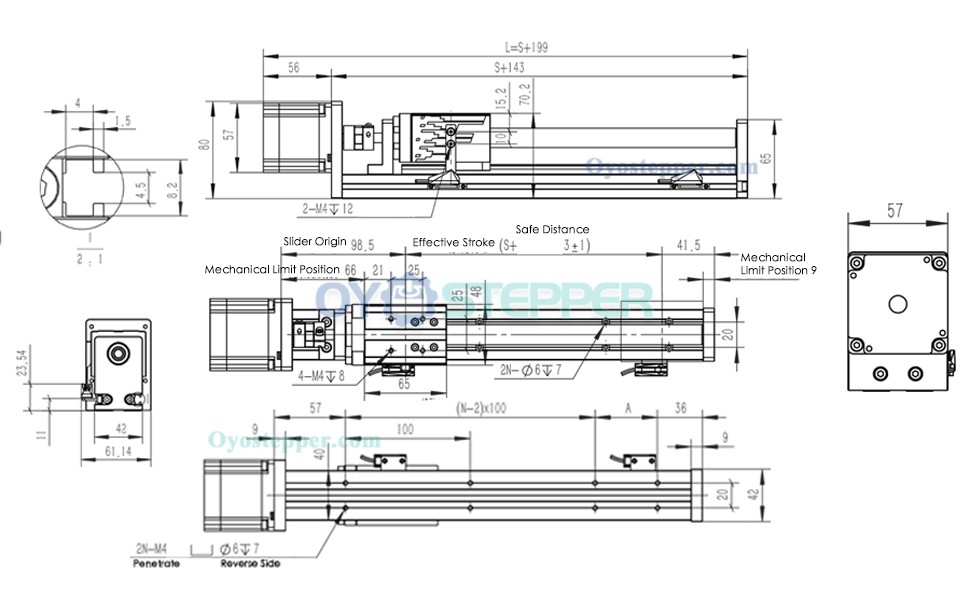

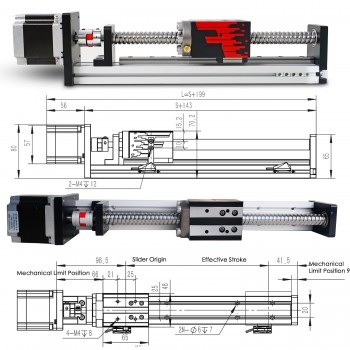

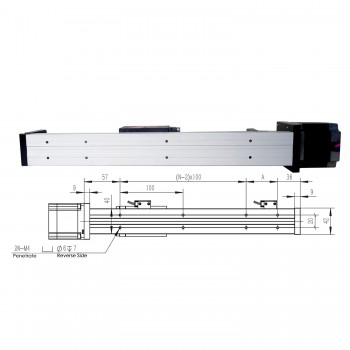

Linear Guide Total Length:Stroke+143mm
Total Height: 80mm. Slide Width: 40mm
Nema 23 Motor Parameter
Step angle:1.8°
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 0.95 N.m
Current: 2.0A
Position Accuracy: ±0.03mm
Maximum thrust[N]: 188
Maximum Horizontal Load: 25kg
Maximum Vertical Load: 20kg
Max Side Mounted Load Capacity:15kg
Max Inversion Mounted Load Capacity:15kg
Without Loading Speed:255mm/s
Max Horizontal Speed: 200mm/s[max loading]
Max Vertical Speed: 80mm/s[max loading]
Max Side Mounted Speed:150mm/s
Max Inversion Mounted Speed:150mm/s

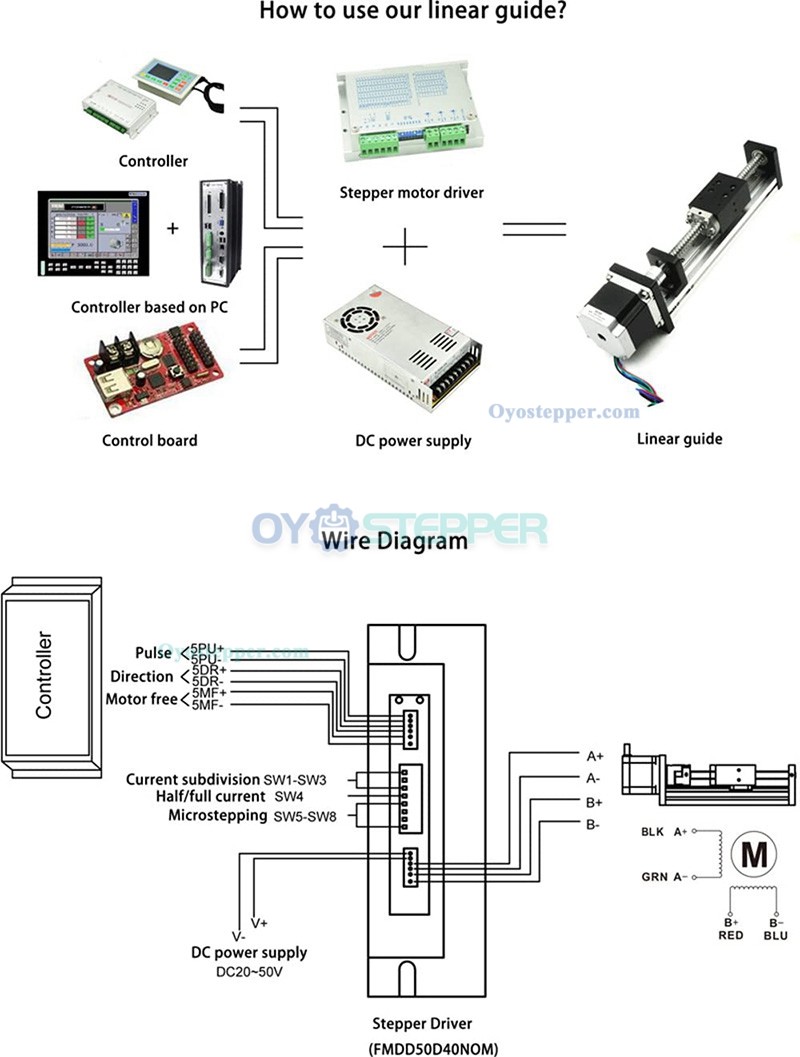

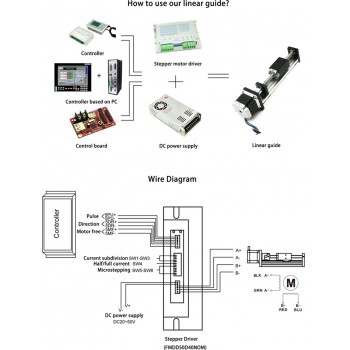

.jpg "FSL40 Table Ball Screw Linear Motion Guide Stage Actuator with Nema 23 Stepper Motor")
.jpg "FSL40 Table Ball Screw Linear Motion Guide Stage Actuator with Nema 23 Stepper Motor")
.jpg "FSL40 Table Ball Screw Linear Motion Guide Stage Actuator with Nema 23 Stepper Motor")
TECHNICAL PARAMETER:
