Helical Gear Planetary Gearbox Speed Reducer for Nema 42 Stepper Motor & 110mm/130mm Servo Motor

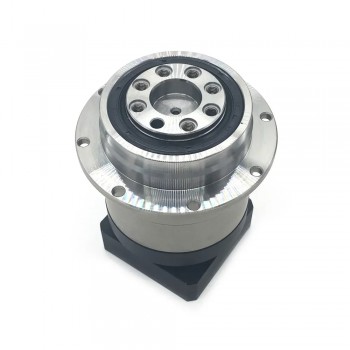

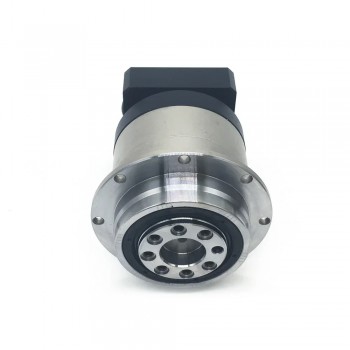

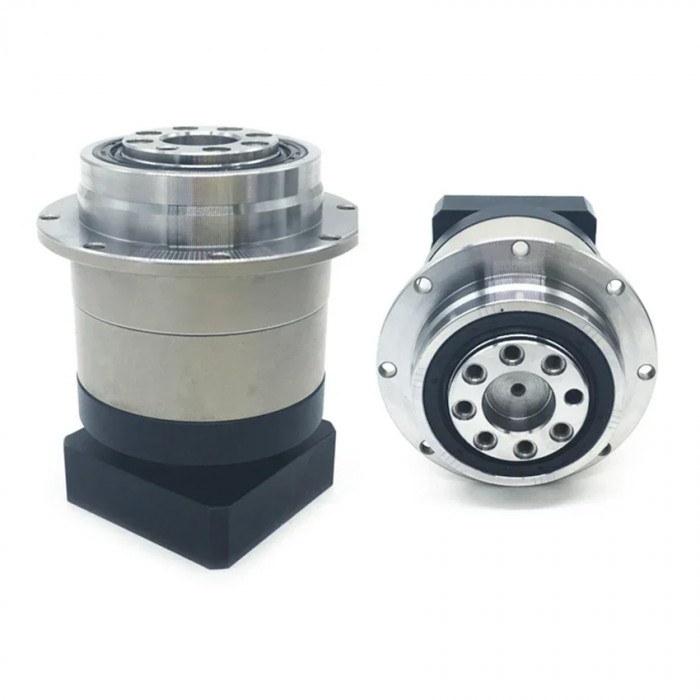

PLX120 Series Helical Flange Plate Output Planetary Gearbox for Nema 42 Stepper Motor & 110mm/130mm Servo Motor

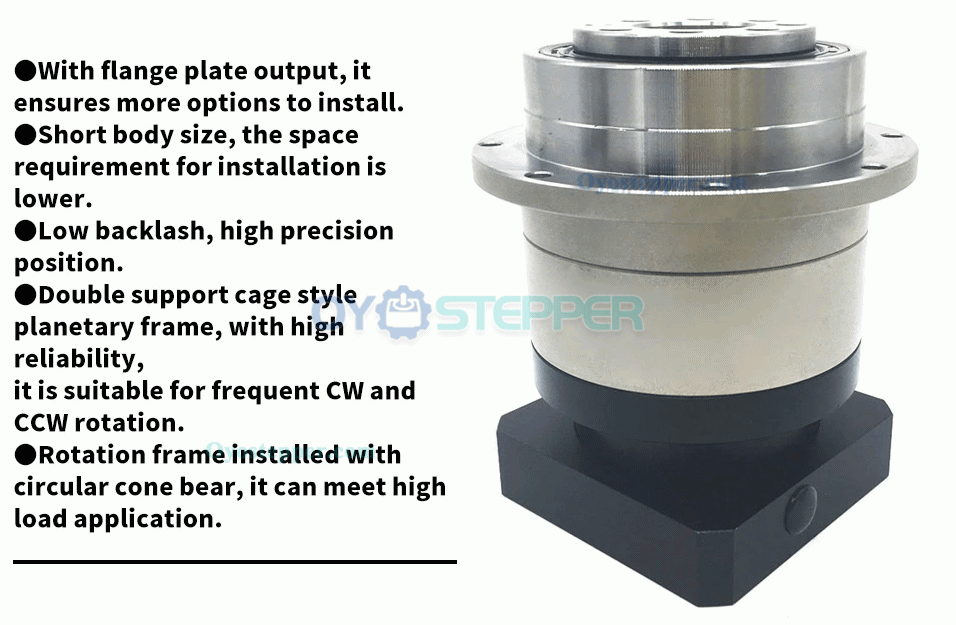

Features:

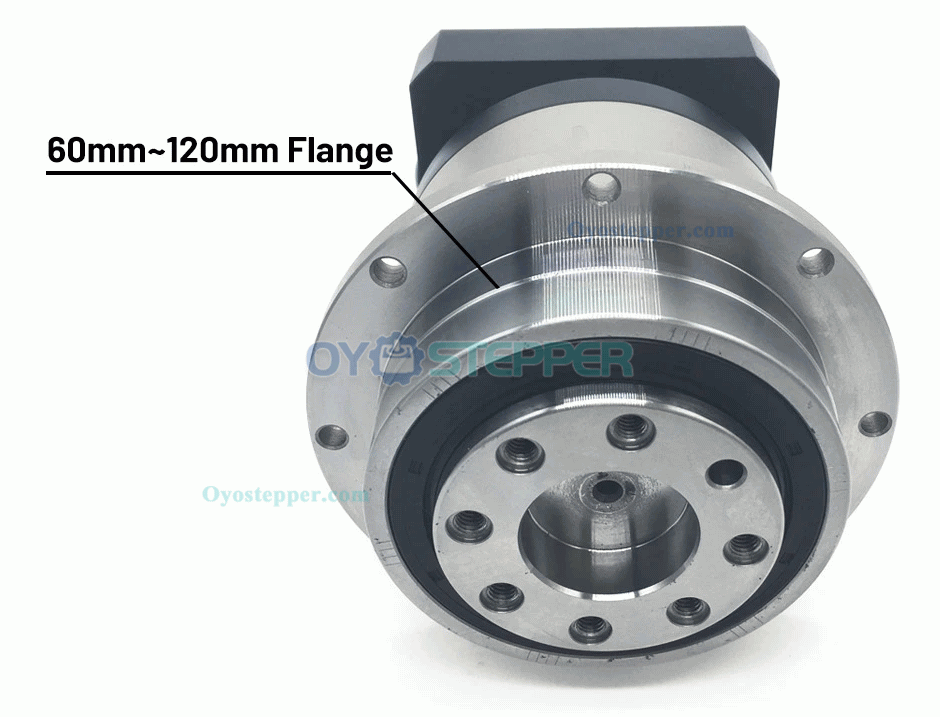

Flange plate output design supports flexible installation options.
Compact body structure helps reduce space requirements during integration.

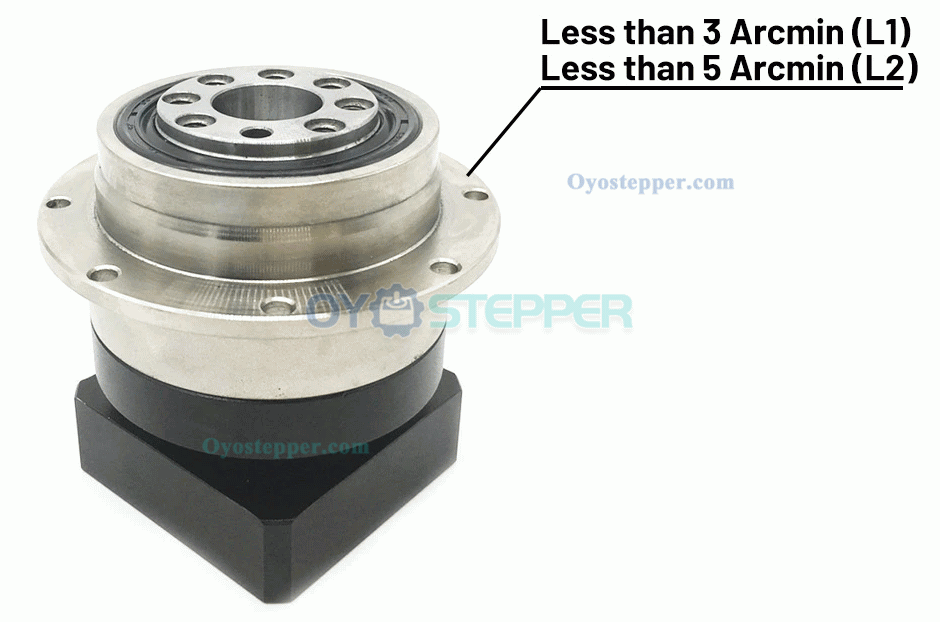

Designed to support low backlash and consistent positioning accuracy.
Double-support cage planetary frame allows operation under frequent clockwise and counterclockwise rotation.
Rotation frame includes conical bearing, suitable for applications requiring radial and axial load handling.
Specifications:
Color: Gold
Torque: 210Nm
Usage: CAR
Model Number: PLX120
Construction: Gearbox
Type: Gear Motor
Protect Feature: Drip-proof
Commutation: Brush
Efficiency: IE 1
Certification: CCC

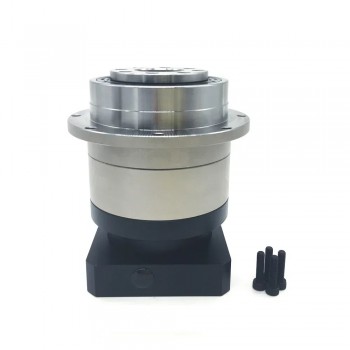

Package List:
1* Planetary Reducer
4* Install Screws
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

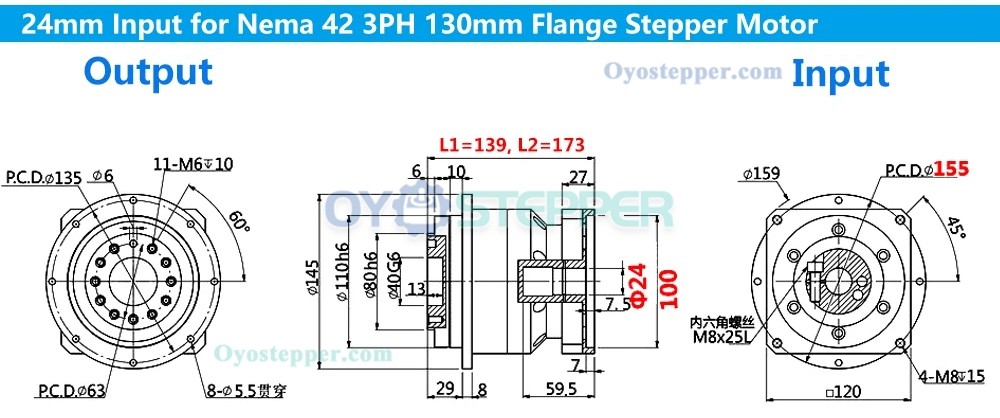

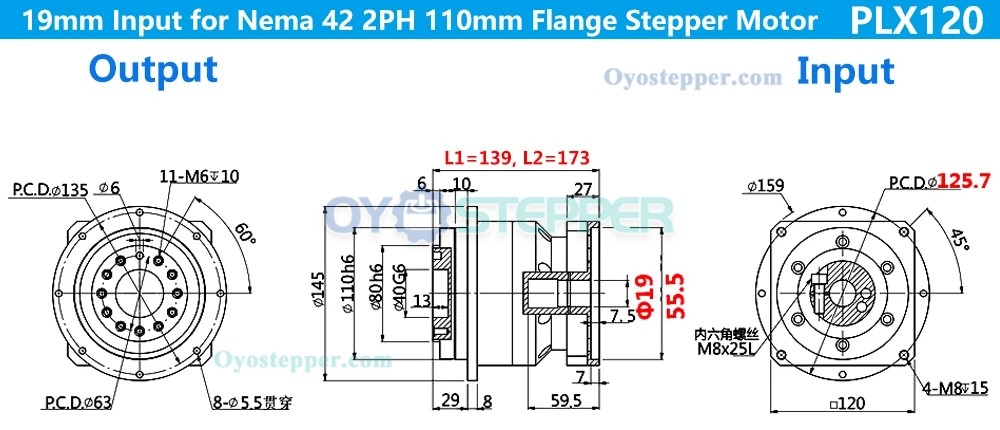

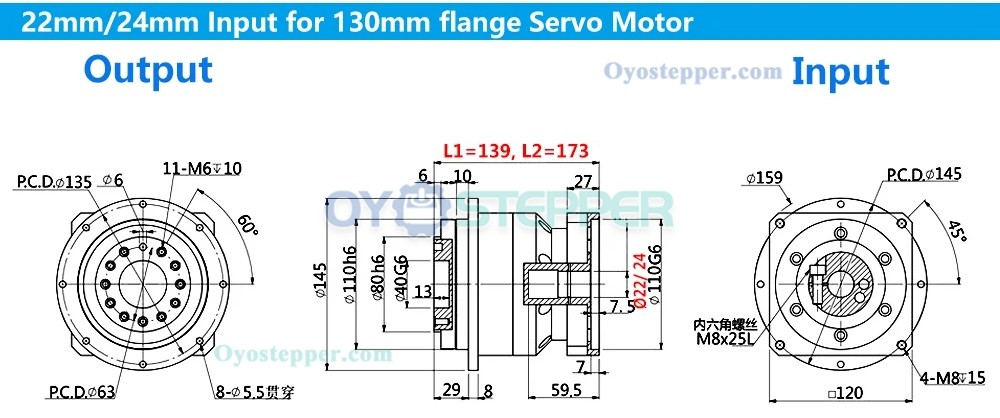

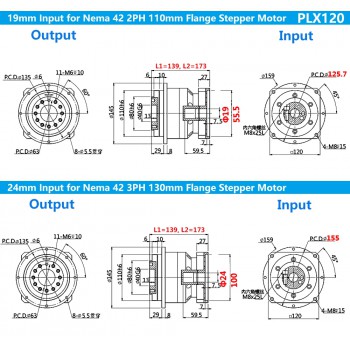

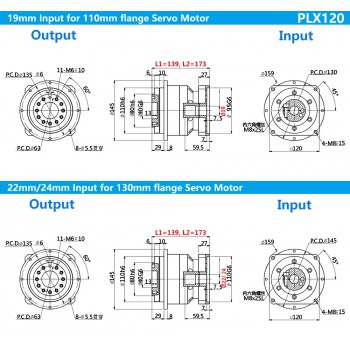

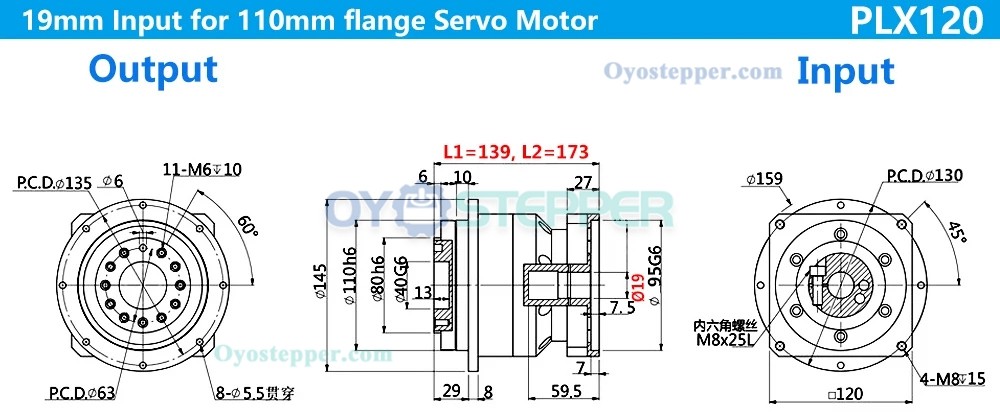

| Physical Specification | |
|---|---|
| Frame Size(mm) | 120 x 120 |
| Gearbox Length(mm) | 139 / 173 |

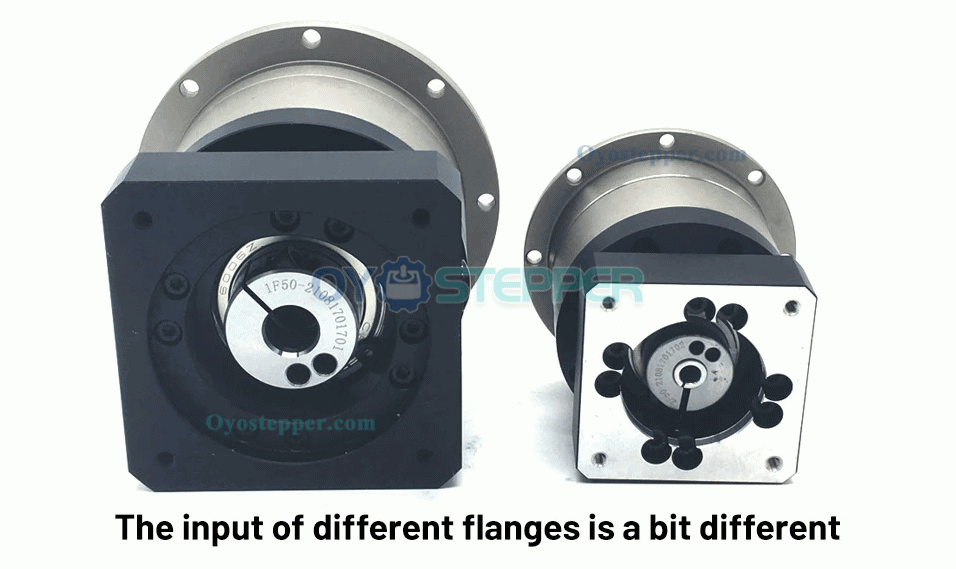

| Input Shaft Diameter(mm) | 19 / 22 / 24 |
| Input Shaft Length(mm) | 27 |
| Suit for Motor | Nema 42 Stepper Motor / 110mm Flange Servo Motor / 130mm Flange Servo Motor |
| Gearbox Type | Helical Planetary Gearbox |
| Gear Ratio | 4:1 / 5:1 / 7:1 / 10:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Output Shaft Type | Output Bore |
| Product Series | PLX120 |
| Output Bore Diameter(mm) | 40 |
