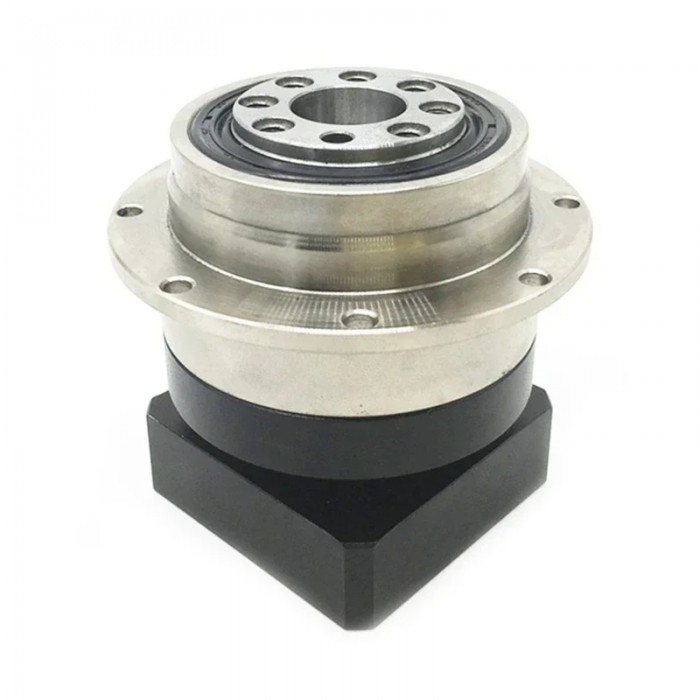

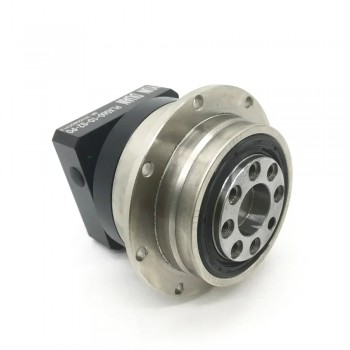

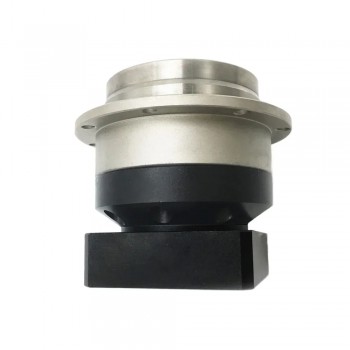

Helical Gear Reducer Planetary Gearbox for Nema23 Stepper Motor / 60mm Servo Motor

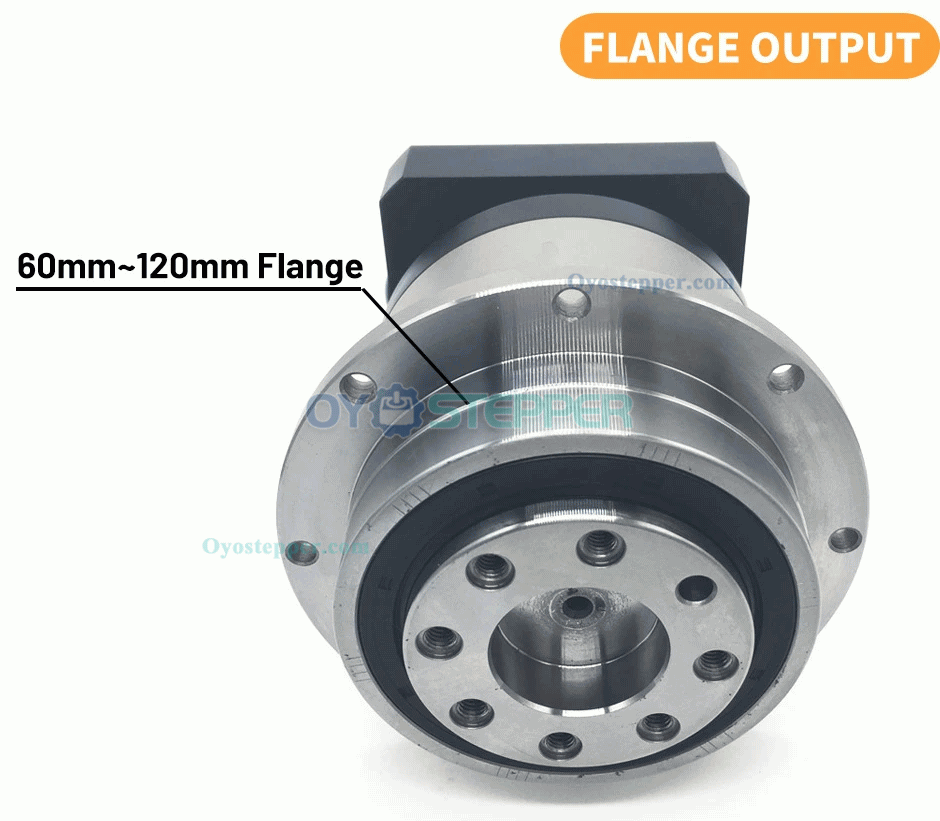

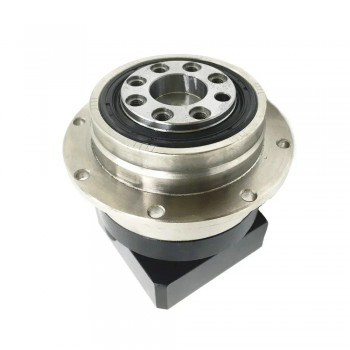

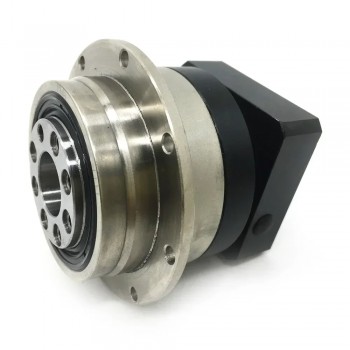

PLX060 Series Helical Planetary Gearbox Flange Plate Output for Nema23 Stepper Motor / Nema24 Servo Motor

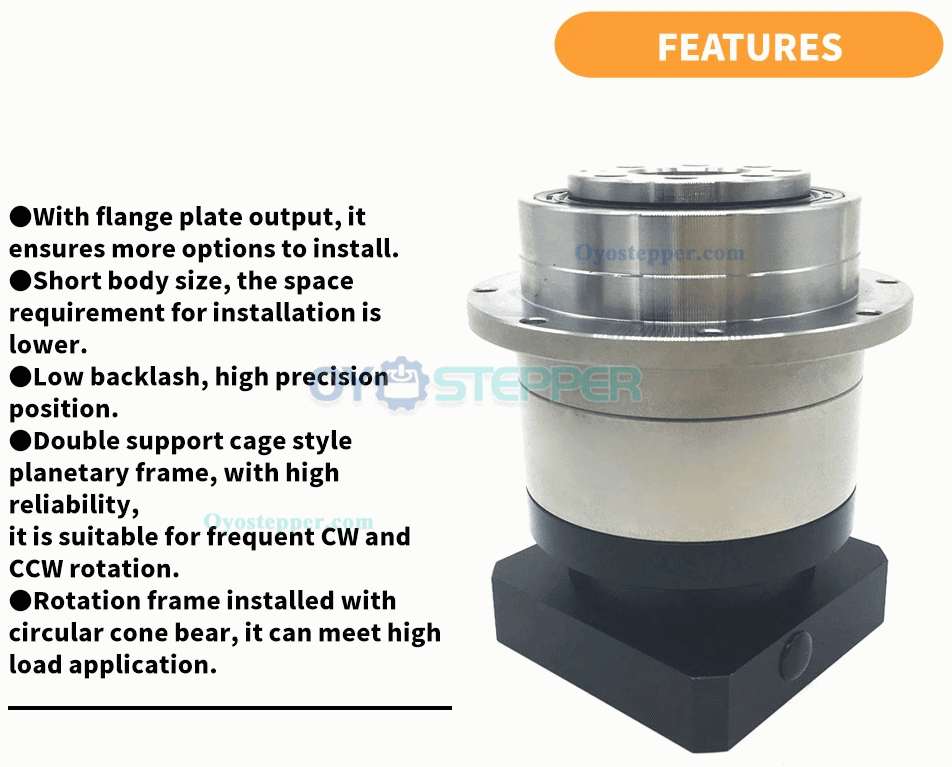

Features:
Compact body design
Planetary gear configuration
Double-support cage planetary frame
Supports bidirectional rotation
Conical bearing integrated into rotation frame
Model:

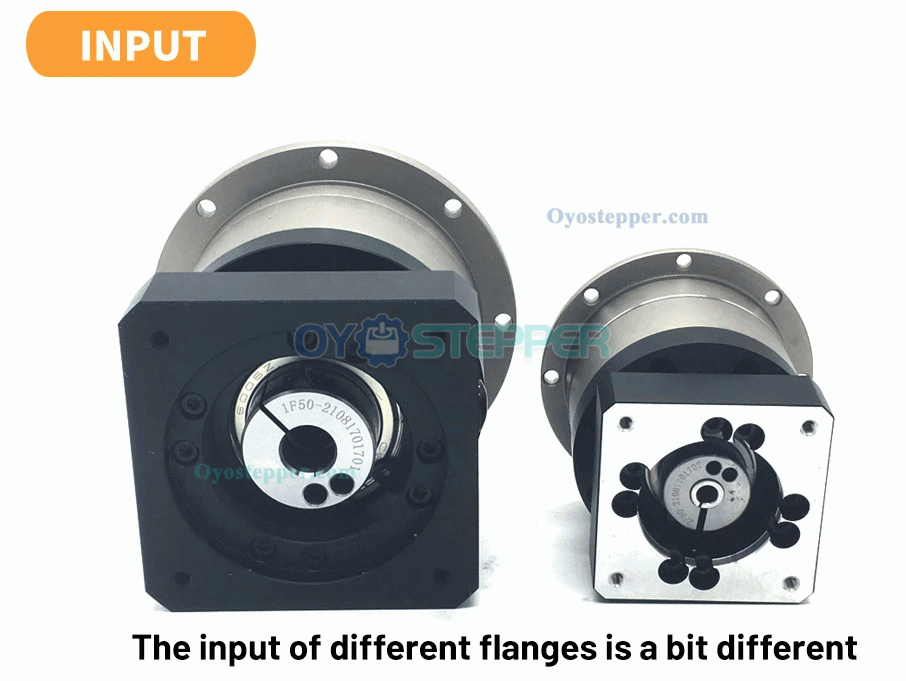

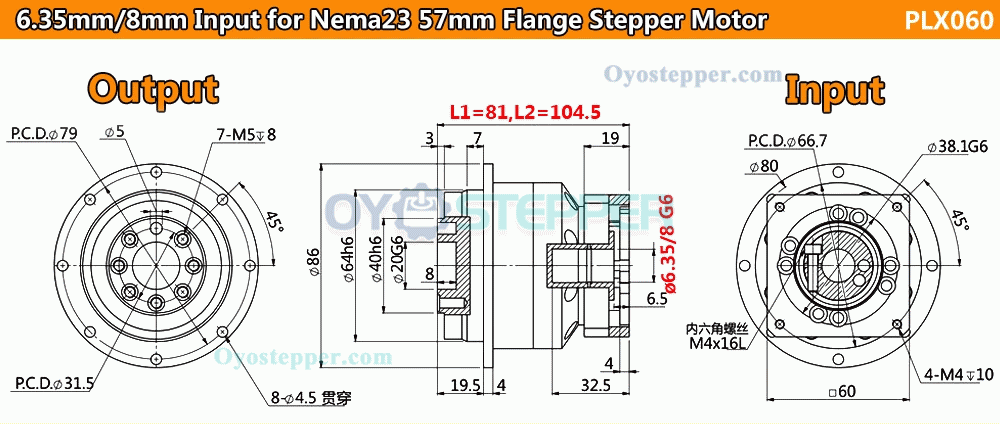

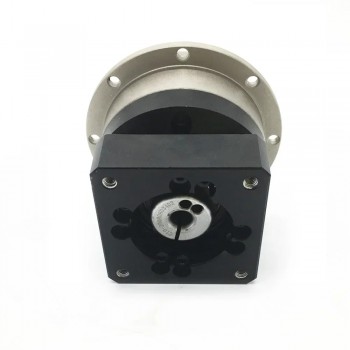

PLX060 6.35mm Input Shaft for Nema 23 Stepper Motor
PLX060 8mm Input Shaft for Nema 23 Stepper Motor

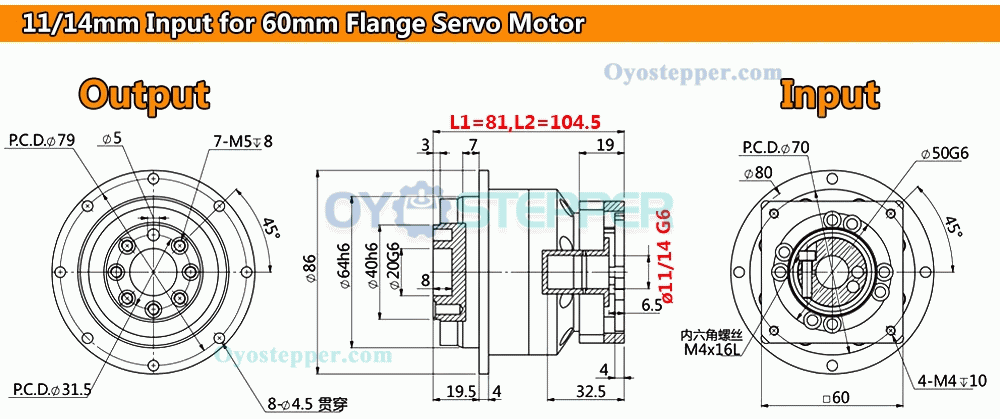

PLX060 11mm Input Shaft for 90 Frame Servo Motor
PLX060 14mm Input Shaft for 90 Frame Servo Motor
Specifications:
Color: Gold
Torque: 40Nm
Model Number: PLX060
Construction: Gearbox
Type: Planetary Gearbox
Protect Feature: Drip-proof
Commutation: Brush
Efficiency: IE 1
Certification: CCC
Input: 6.35mm/ 8mm/ 11mm/ 14mm
Output: 20mm

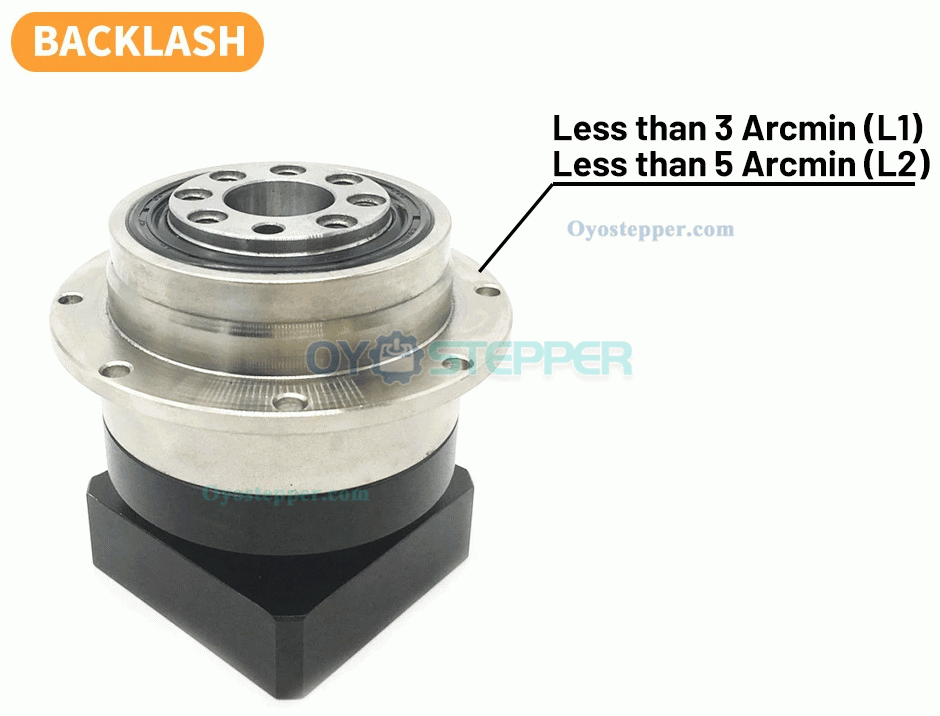

Backlash: Less than 3 Arcmin
Gear type: Helical Gear
Max radial force: 680N
Max axial force: 340N
Torque rigidity: 13Nm/ arcmin
Max input speed: 6000rpm
Rated input speed: 3300rpm
Lifetime: 20000h
Noise: Less than 58dB
Protection level: IP65
Package List:
1* Planetary Reducer
4* Install Screws
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Gearbox Length(mm) | 84 / 104.5 |
| Input Shaft Diameter(mm) | 6.35 / 8 / 11 / 14 |
| Input Shaft Length(mm) | 32.5 |
| Suit for Motor | Nema23 Stepper Motor / Nema24 Stepper Motor |
| Gearbox Type | Helical Planetary Gearbox |

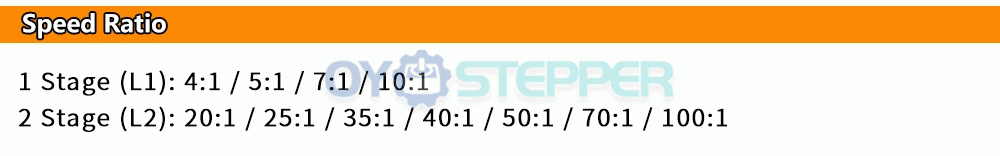

| Gear Ratio | 4:1 / 5:1 / 7:1 / 10:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Output Shaft Type | Output Bore |
| Output Bore Diameter(mm) | 20 |
