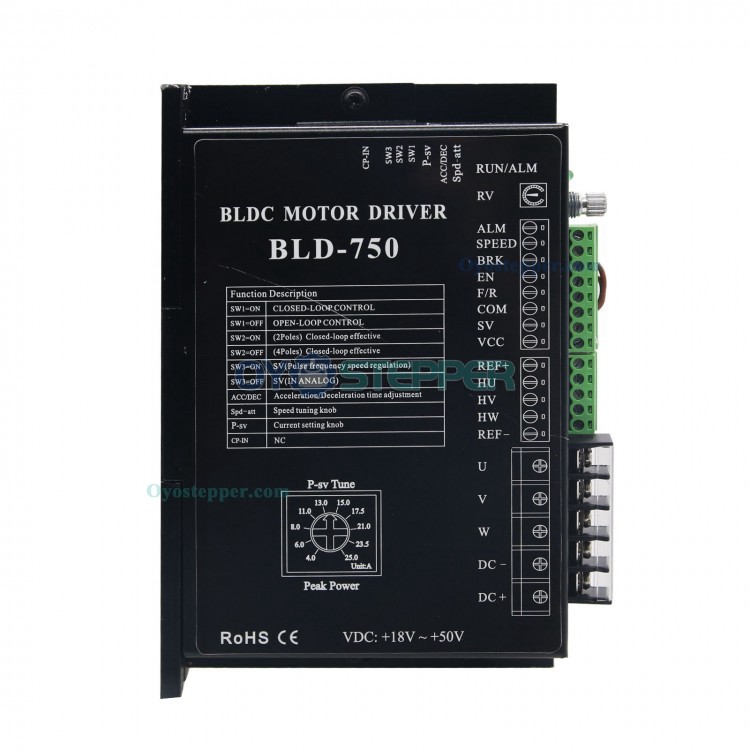

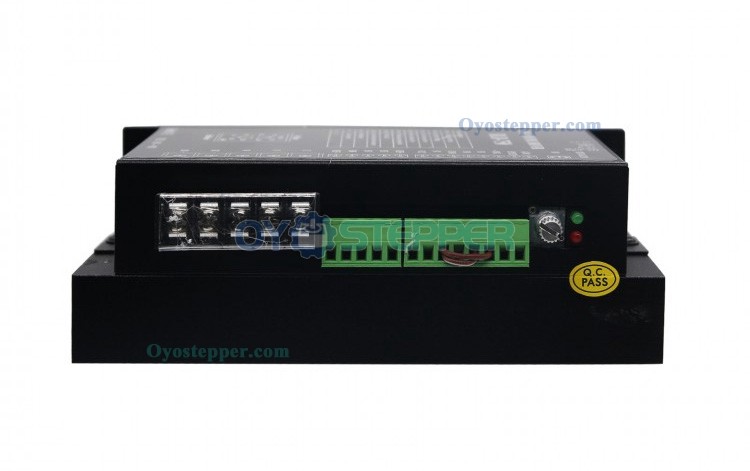

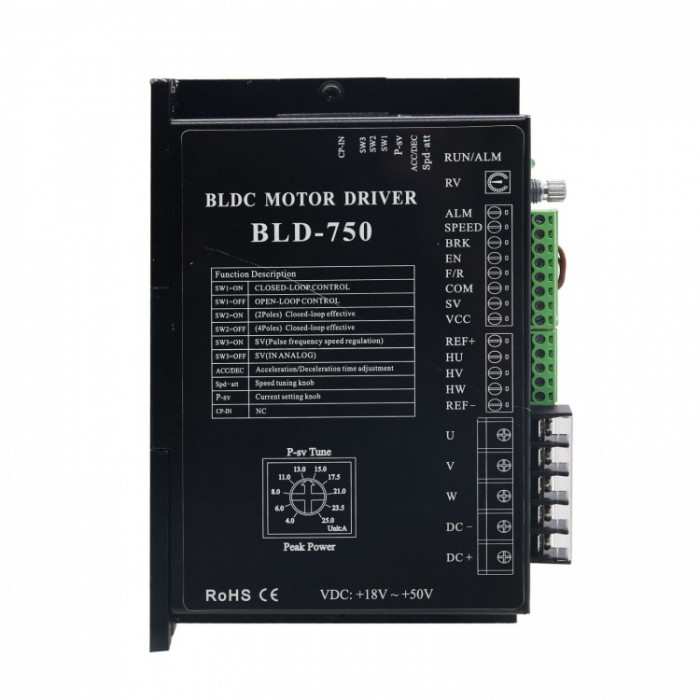

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor
NO.:BLD-750
Post a review
Our Price:$69.00
Quantity:- +

Add To Cart

Brushless DC Motor Driver Controller BLD-750 18~50VDC for 3 Phase 24V/48V 600W/750W BLDC DC Motor



Description:

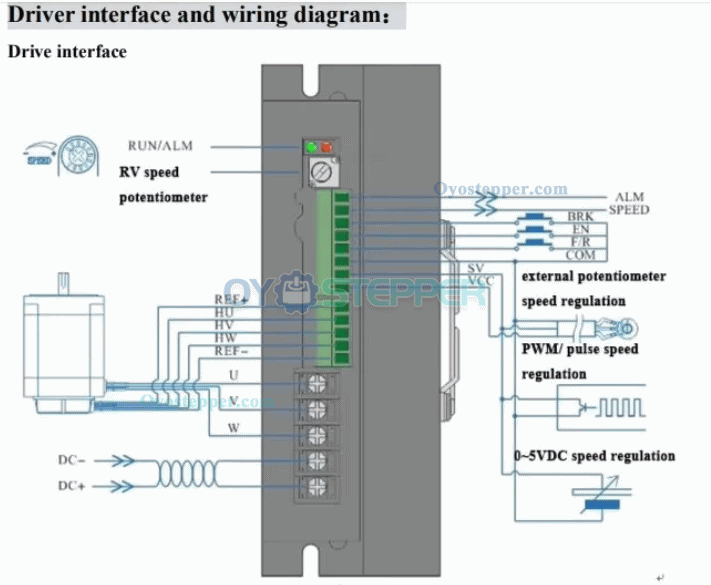

BLD-750 brushless motor drive is developed for low-power, low-voltage brushless motor . The brushless DC motor drives is suitable for power 48V, 750W, or 24V, 600W three-phase brushless DC motor speed regulation. BLD750 provides built-in speed potentiometer, external potentiometer speed control, external analog voltage speed control, PC (PLC, SCM, etc.) PWM pulse width control and other functions.


Application of BLDC motor driver:
Widely used in engraving machines, CNC machine tools, packaging machinery, transmission equipment and other devices that require a higher resolution.



Specification:

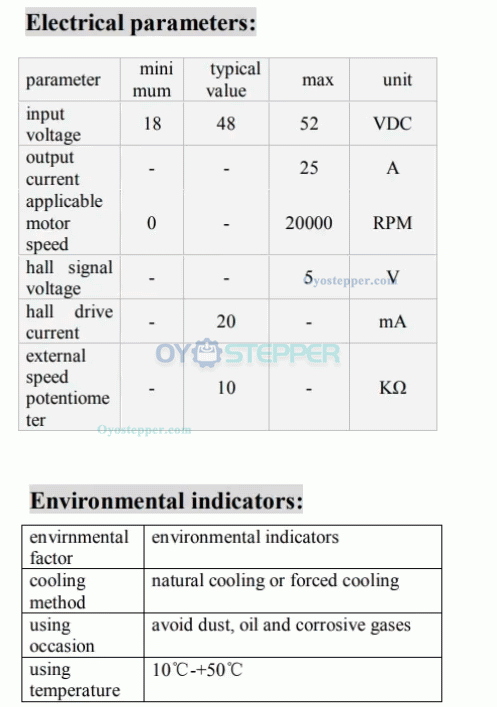

Electrical Parameters(Tj=25ºC);
Input voltage:18~50VDC, Rated 48V;
Current output:Rated 25A, 1A-45A;
Applicable motor speed:0-20000rpm;
Hall voltage signal: 4.5v-5.5v, Rated: 5V;
Hall drive current:Rated :20mA;
External speed potentiometer:Rated: 10KΩ;


Ambient requirement:

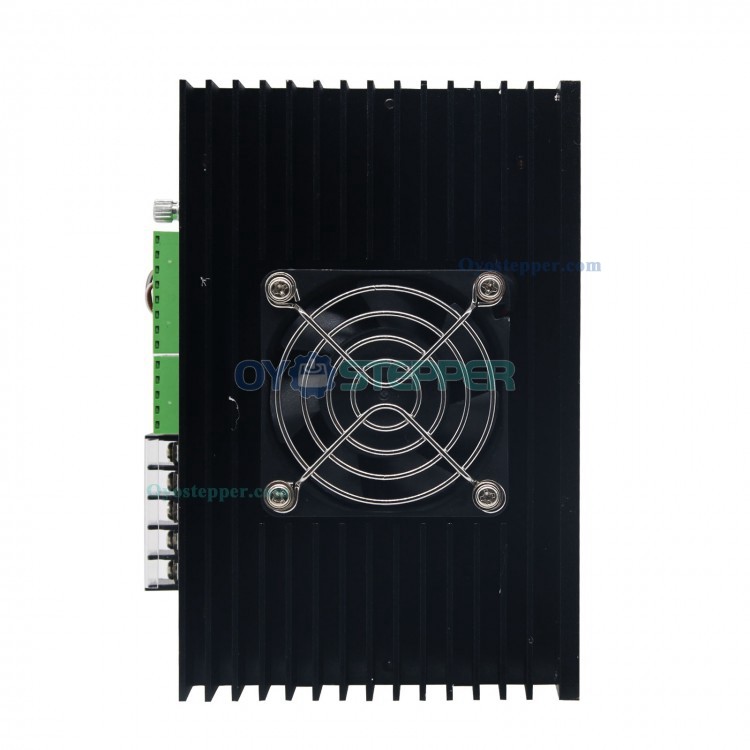

Cooling:Self cool
Environment:Keep away from oil, dust, and acid gas
Temperature:-20ºC~+40ºC
Humidity:40-90%RH
Vibration:5.9m/s2Max.
Storage temp:-20ºC~+125ºC;

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor



BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor





BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor

BLD-750 Brushless DC Motor Driver Controller 18~50VDC for 3 Phase 24V 600W / 48V 750W BLDC DC Motor

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: WS55-220 3 Phase Brushless DC Motor Driver DC20-50V 12A BLDC Motor Controller
Next: Oukeda 17HS4401 NEMA 17 Stepper Motor 1.8 Deg 45Ncm 2 Phase for 3D Printer Robotics 42X42mm
BLDC Driver Specification
Input Voltage DC18-50V
Operating Current(A) <=45
Protection Class IP21
Range of speed regulation(RPM) 20000
Work mode Hall speed closed loop
