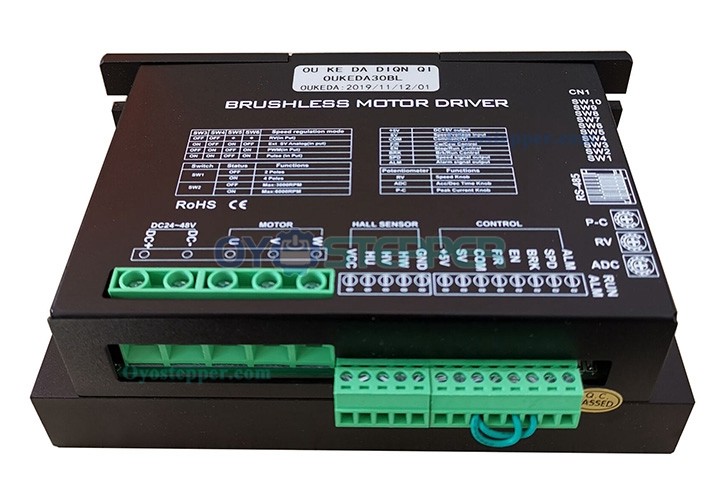

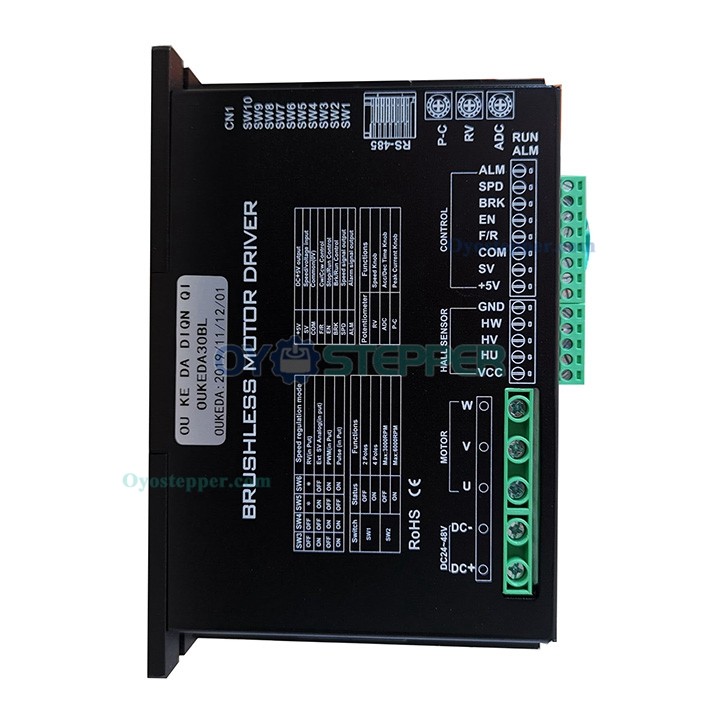

Oukeda Brushless DC Motor Driver Controller 24-48V 30A 850W for Φ60mm/80mm/86mm BLDC Motor

Oukeda Brushless DC Motor Driver Controller 24-48V 30A 850W for Φ60mm/80mm/86mm BLDC Motor

Features:
Adopt ARM high-speed chip control.

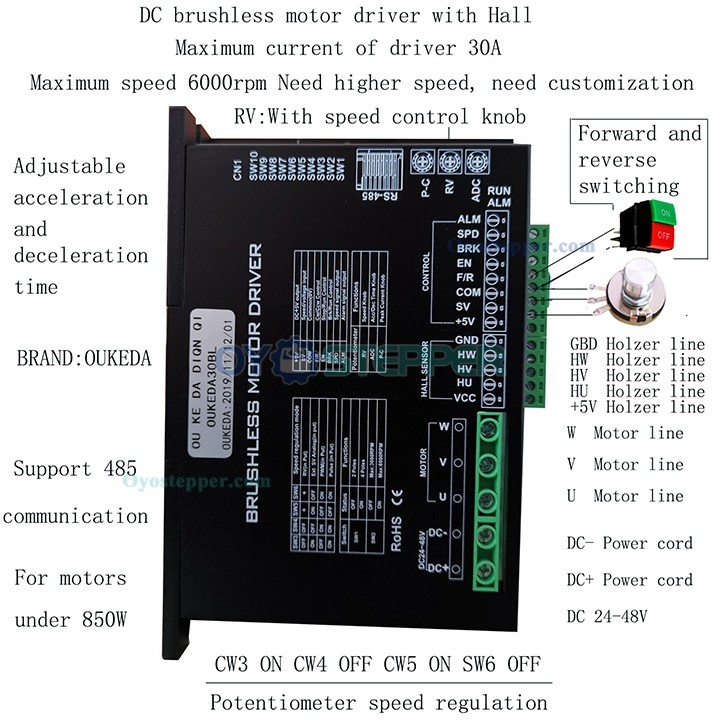

Can be applied to upper computer (PLC or single-chip microcomputer, etc.) FWM, frequency, or analog speed regulation. Can use manual speed regulation (built-in potentiometer, or external potentiometer for manual speed regulation). Overcurrent, overvoltage, undervoltage, stall, illegal Hall signal,
speed signal output.
Optimize control performance, simple and convenient debugging. Abnormal signal alarm output.
High-speed torque output is stable, and the speed is stable.

Electrical Specifications:
Electrical Parameters(Tj=25ºC);
Voltage:24-48V  (Typical 36V)
Current:4-60A  (Typical 30A);
Input Current Logic:10-50A  (Typical 20A);
Applicable speed:150-50000rpm (Typical 3000rpm)
Power:850W
Hall voltage signal:5V;
Hall drive current:Rated :20mA;
External speed potentiometer:Rated: 10KΩ;
Over-voltage and over-current protections;
CE certified and RoHS compliant;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 65℃
Humidity: 40%RH－90%RH
Operating Temperature: 0℃ － 50℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 65℃

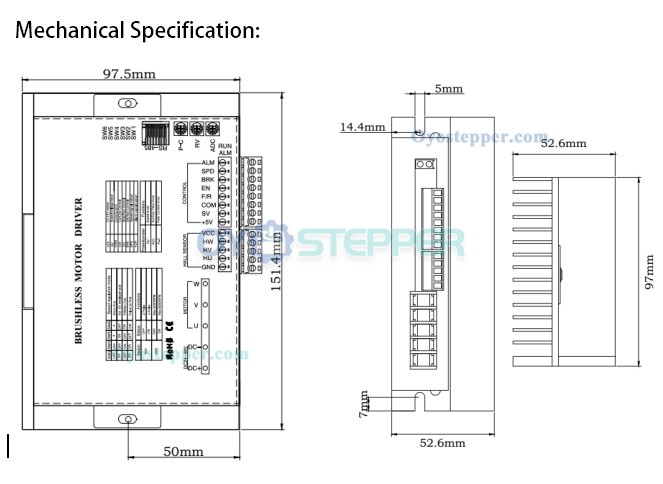

Demension:151.4*97.5*52.6mm
Weight: Approx.160g;
