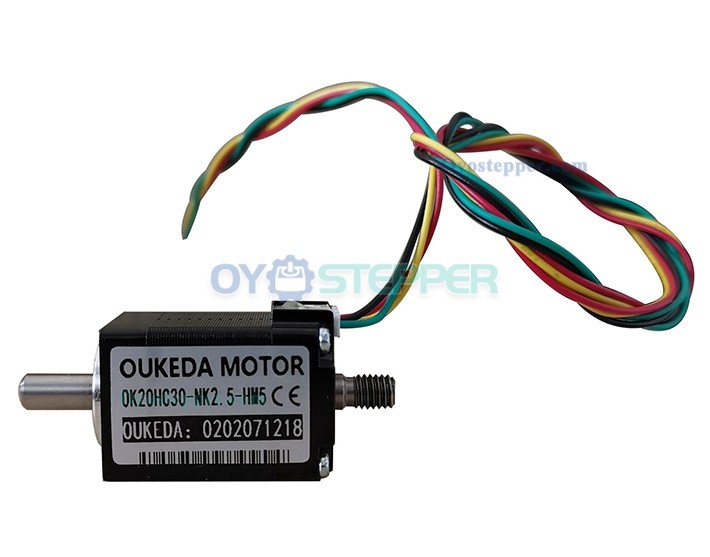

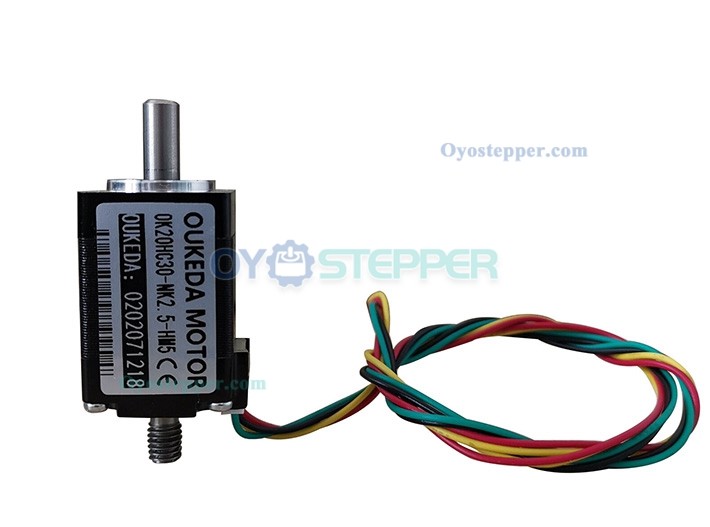

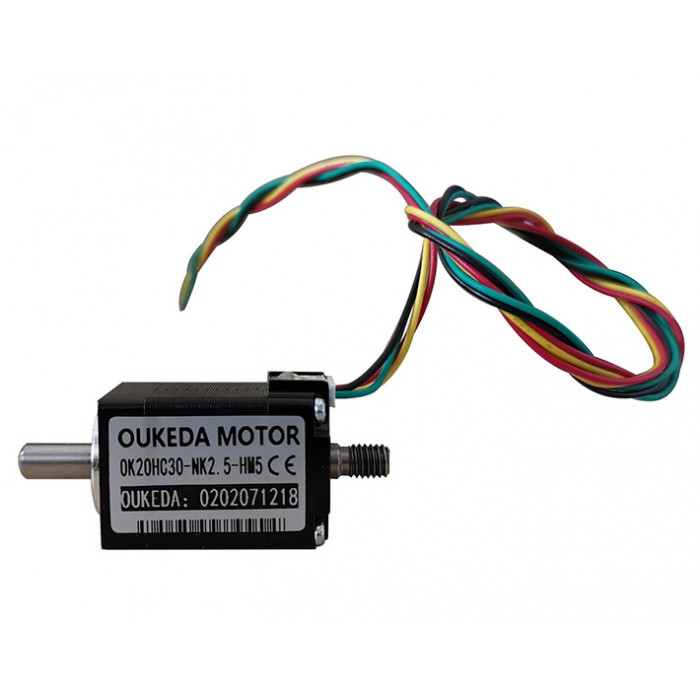

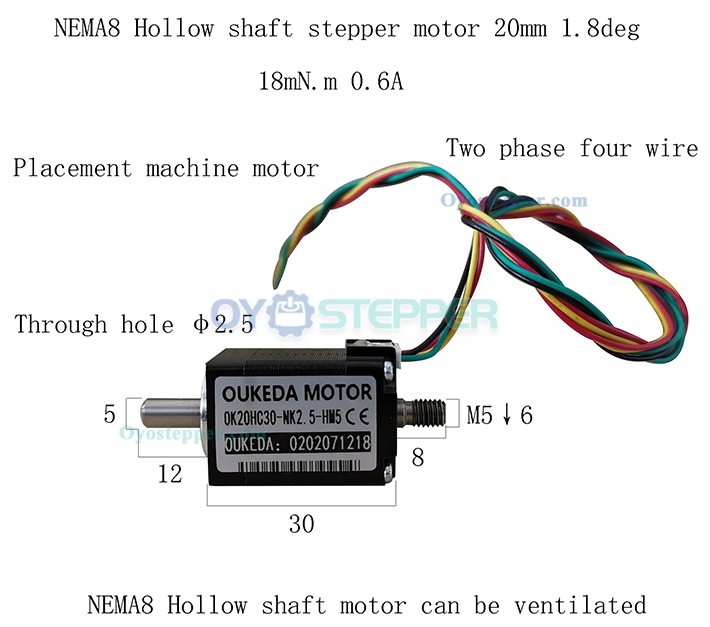

Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine
Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine
Electrical Specification:
Manufacturer Part Number:OK20HC30-NK2.5-HM5
Number of Phase:2
Step Angle: 1.8 deg
Rated Voltage:3.9VDC
Rated Current:0.6A
Rated Torque:1.8Ncm(2.55oz.in)
Phase Resistance: 6.5 ohms± 10%
Inductance: 1.7mH ± 20%(1KHz)

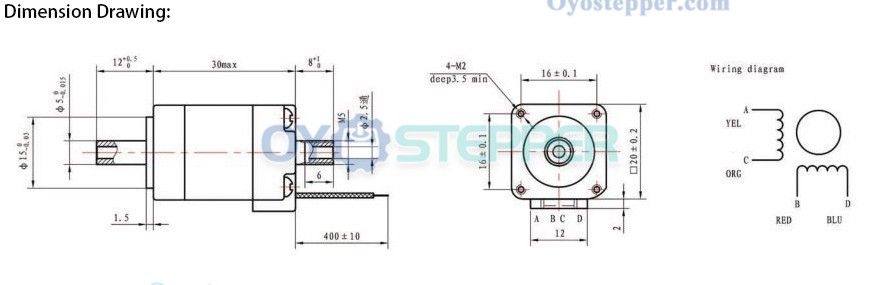

Physical Specification:
Frame Size: 20x 20 mm
Body Length:30mm
Outer Shaft Diameter: Φ5 mm
Inner Shaft Diameter: Φ2.5 mm
Front Shaft Length: 12 mm
Rear Shaft Length: 5 mm
Number of Leads: 4
Lead Length: 300 mm
Weight:60g;
.jpg "Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine")
.jpg "Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine")
.jpg "Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine")
.jpg "Oukeda Hollow Shaft NEMA8 Stepper Motor 1.8 Deg 1.8Ncm(2.55oz.in) for Placement Machine")
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 1.8 |
| Holding Torque (oz.in) | 2.55 |
| Rated Current (A) | 0.6 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Rated Voltage(V) | 3.9 |
| Physical Specification | |
| Body Length(mm) | 30 |
| No. of Lead | 4 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Input Shaft Diameter(mm) | 2.5 |
| Input Shaft Length(mm) | 5 |
| Output Shaft Diameter(mm) | 5 |
| Output Shaft Length(mm) | 12 |
| Frame Size(mm) | 20x20 |
