Micro Nema 8 Stepper Motor Bipolar 12V 1.8 Deg 3Ncm (4.25oz.in) 0.3A 20x20x38mm 4 Wires
Micro Nema 8 Stepper Motor Bipolar 12V 1.8 deg 3Ncm (4.25oz.in) 0.3A 20x20x38mm 4 Wires

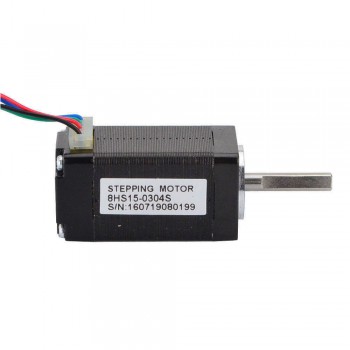

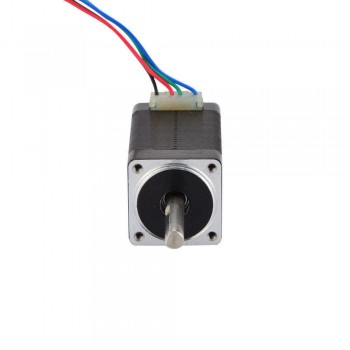

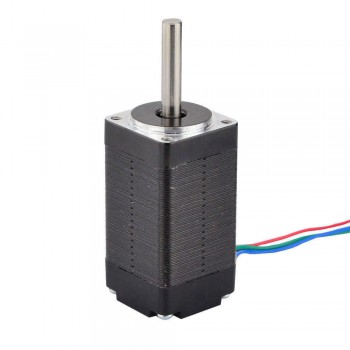

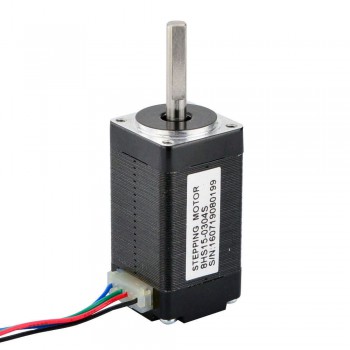

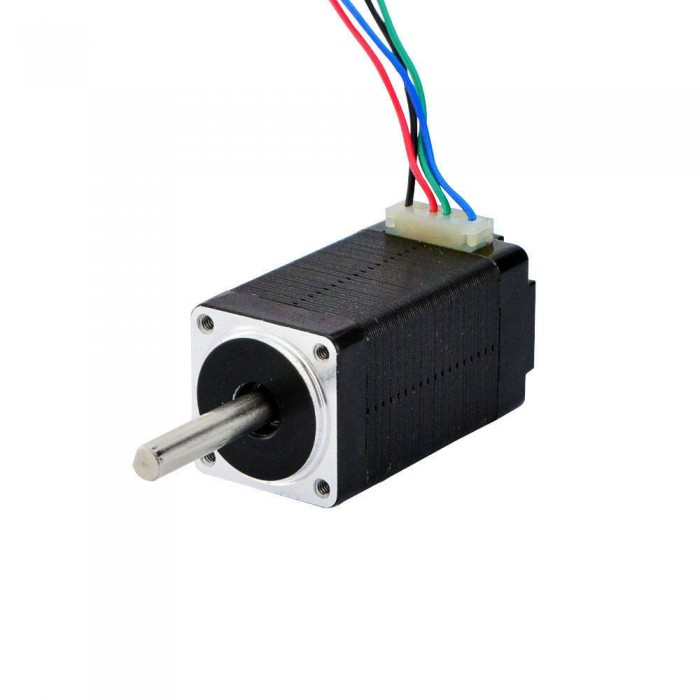

This nema 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.3A at 12.0V, with holding torque 3Ncm (4.25oz.in)
Electrical Specification
Manufacturer Part Number: 8HS15-0304S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 3Ncm(4.25oz.in)
Rated Current/phase: 0.3A
Voltage: 12V
Phase Resistance: 40ohms
Inductance : 18mH ± 20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 38mm
Shaft Diameter: Φ4mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 80g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
Full Datasheet: 8HS15-0304S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 3 |
| Holding Torque (oz.in) | 4.25 |
| Inductance(mH) | 18 |
| Phase Resistance(ohm) | 40 |
| Rated Current (A) | 0.3 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 38 |
| Frame Size(mm) | 20x20 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 80 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
