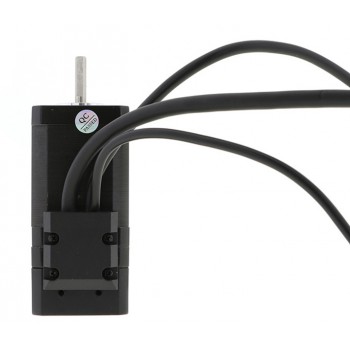

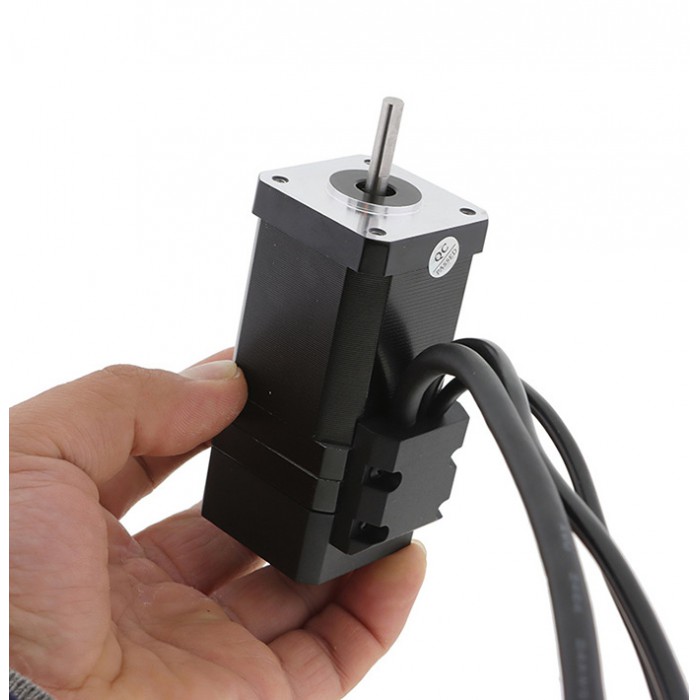

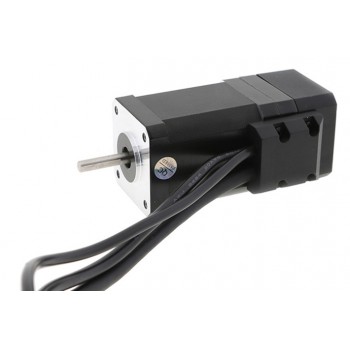

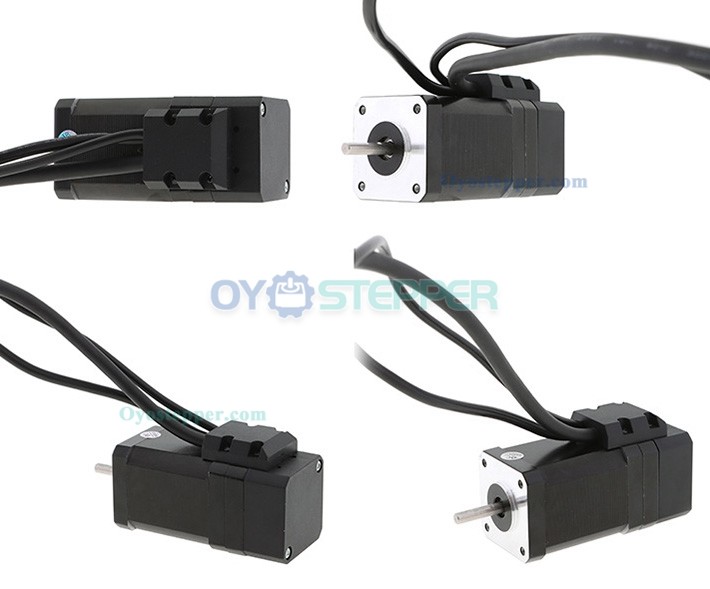

Oukeda Nema 17 Brushless Closed Loop Servo Motor with Optical Encoder 3 Phase 20Ncm 4V 64W 3000RPM
Oukeda Nema 17 Brushless Closed Loop Servo Motor with Optical Encoder 3 Phase 20Ncm 4V 64W 3000RPM 42x42 mm
Electrical Specification:
Manufacturer Part Number:OK57BLS75-230
Motor Type: BLDC Motor
Number of Phase:3
Number of Poles:8
Rated Voltage:24VDC
Rated Speed:3000士10%RPM
No Load Speed:4000士10%RPM
Rated Current:3.5A
Rated Power:64W
Rated Torque:20Ncm(28.32 oz.in);

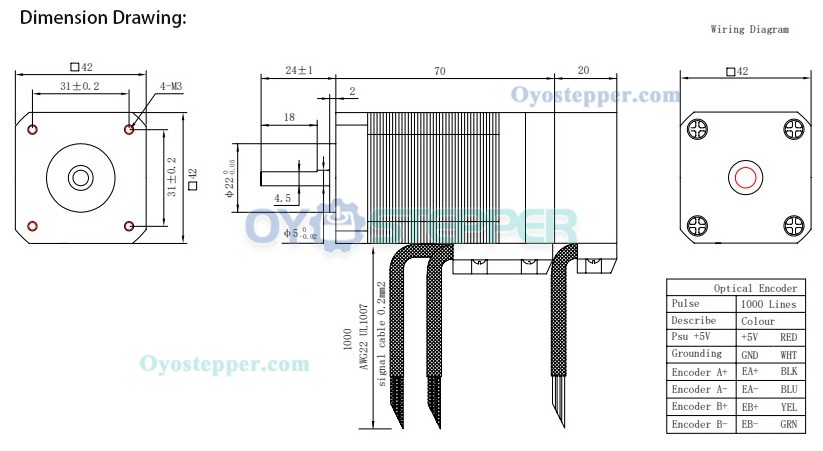

Physical Specification:
Frame Size: 42 x 42 mm
Body Length: 70mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 18mm
Number of Leads: 8
Lead Length: 500mm
Weight:0.6kg;
.jpg "Oukeda Nema 17 Brushless Closed Loop Servo Motor with Optical Encoder 3 Phase 20Ncm 4V 64W 3000RPM")
| Physical Specification | |
|---|---|
| D-cut Length | 18 |
| Body Length(mm) | 70 |
| Frame Size(mm) | 42 x 42 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaf |
| Electrical Specification | |
| Holding Torque (Ncm) | 20 |
| Holding Torque (oz.in) | 28.32 |
| Rated Current (A) | 3.5 |
| No. of Phase | 3 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 3000 |
