Nema 23 Stepper Motor 1.8 Deg 1.2Nm/2Nm/3Nm 57 x 57mm for 3D Print/CNC Router Mill
Nema 23 Stepper Motor 1.8°1.2Nm/2Nm/3Nm 57 x 57mm for 3D Print/CNC Router Mill

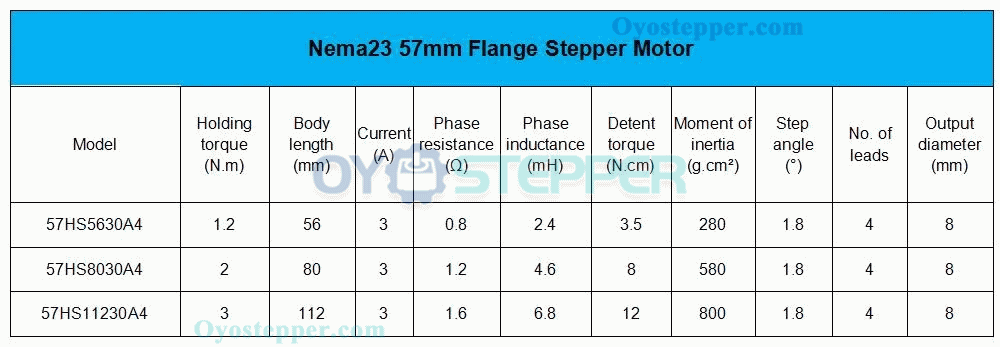

Specifications:
Model: 57HS5630A4
Number of Phases: 2
Step Angle:1.8°
Holding Torque: 1.2 N.m/2Nm/3Nm
Frame Size: 57 x 57mm

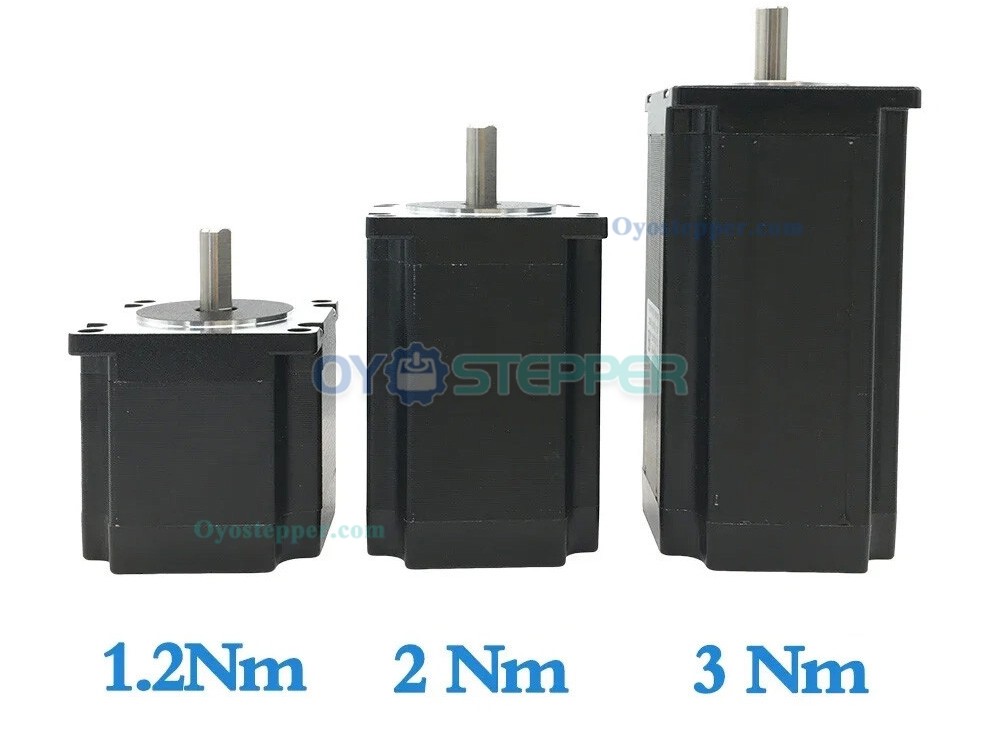

Body Length: 56mm/80mm/112mm
Shaft Diameter: Φ8mm
Shaft Length: 22mm
D-cut Length: 19mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.2kg;
.jpg "Nema 23 Stepper Motor 1.8 Deg 1.2Nm/2Nm/3Nm 57 x 57mm for 3D Print/CNC Router Mill")

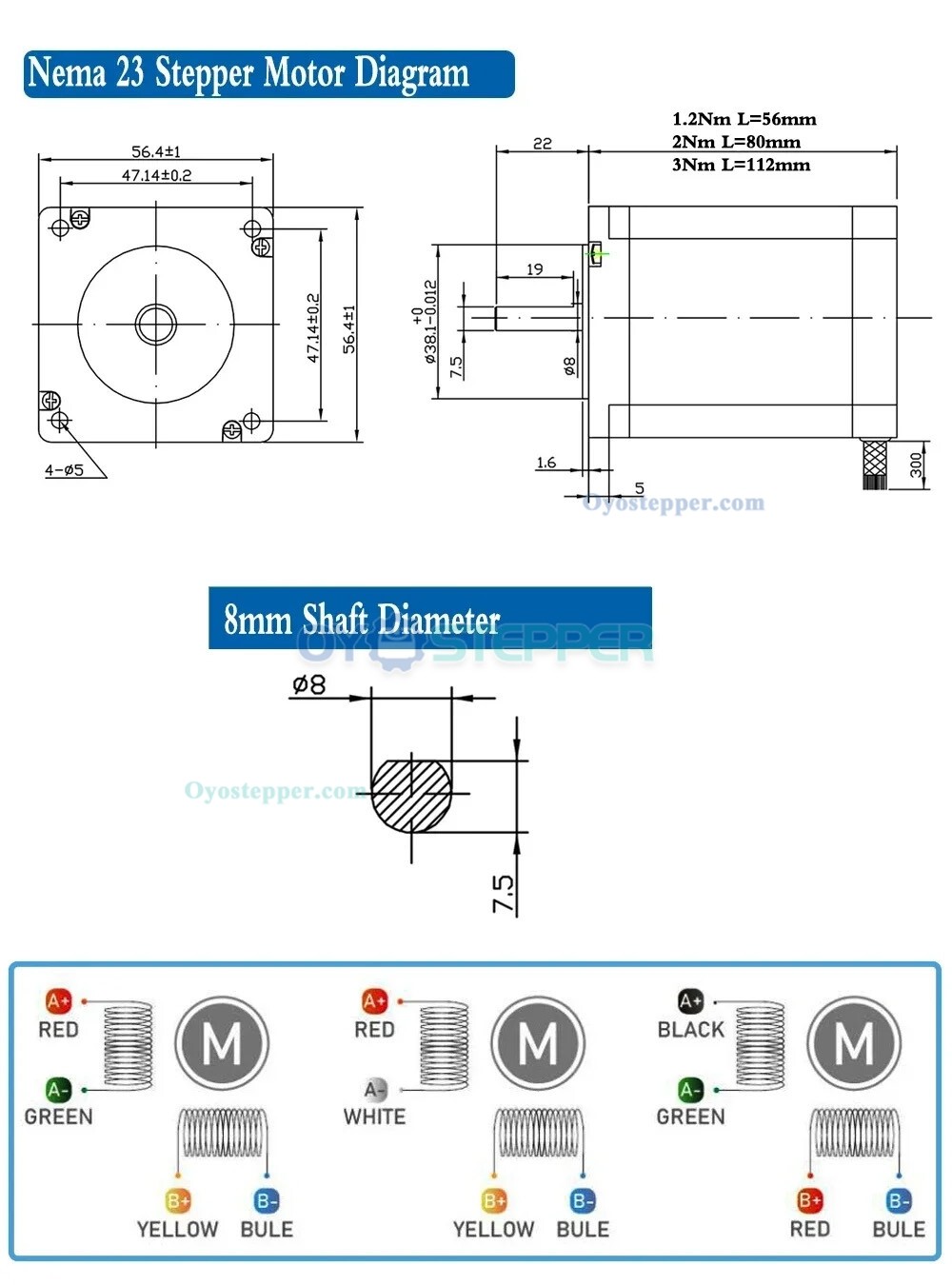

| Physical Specification | |
|---|---|
| D-cut Length | 19 |
| Body Length(mm) | 56 / 80 / 112 |
| Matching Motor | NEMA 23 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 22 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Current (A) | 3 |
| Step Angle(°) | 1.8 |
| No. of Phase | 2 |
| Open-loop/Closed-loop | Open-loop |
