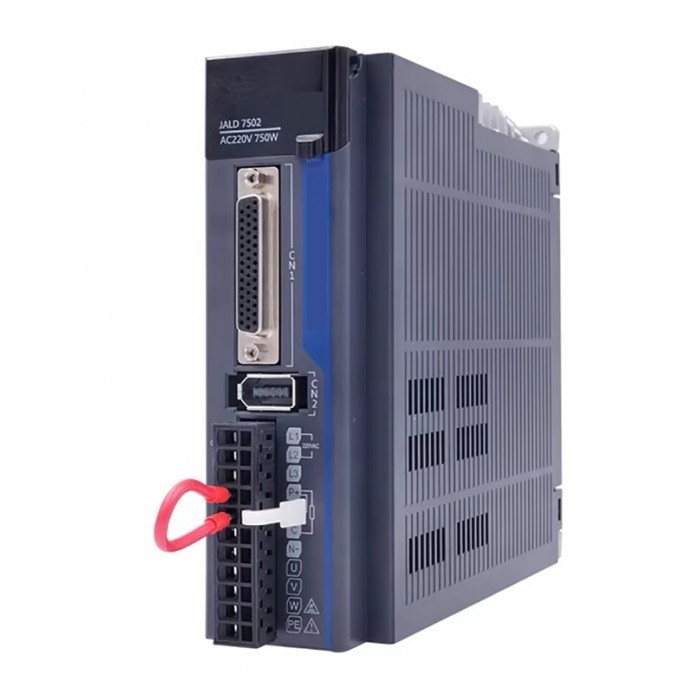

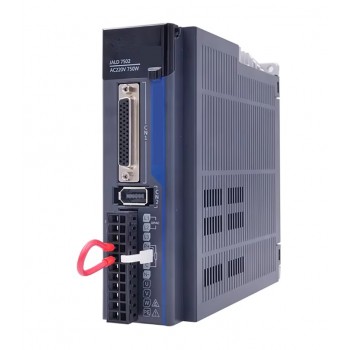

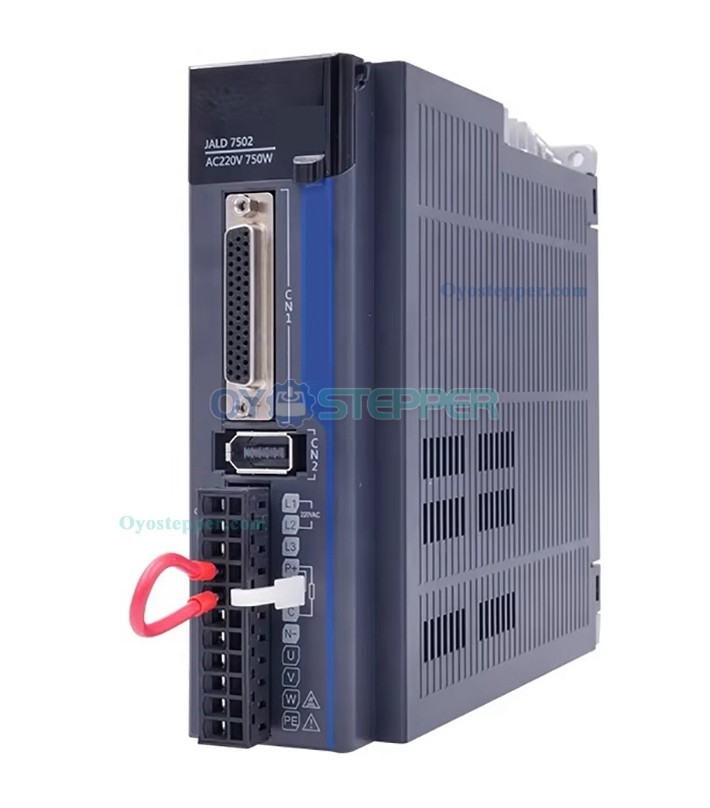

JAND7502-20B-20B Servo Motor Driver 750W 180V-240V Single phase Built-in Braking Resistor

JAND7502-20B-20B Servo Motor Driver 750W 180V-240V Single phase Built-in Braking Resistor


 This servo drive utilizes DSP and FPGA architecture, supports multiple control modes including automatic gain adjustment, a built‑in disturbance torque observer, filter functions, and RS485 Modbus communication.

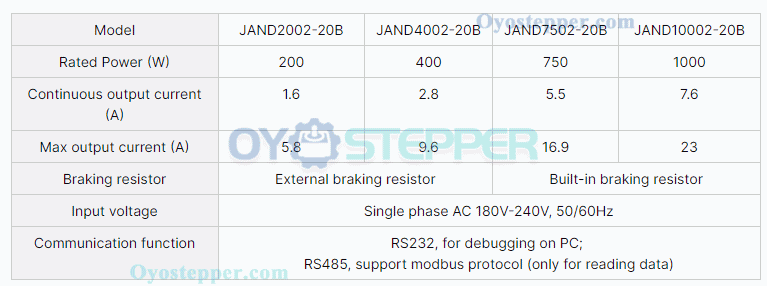

Specifications:

Model: JAND7502‑20B

Rated power: 750 W

Phase: Single‑phase

Continuous output current: 5.5 A

Peak output current: 16.9 A

Input voltage: Single‑phase 180‑240 VAC, 50/60 Hz

Braking resistor: Built‑in

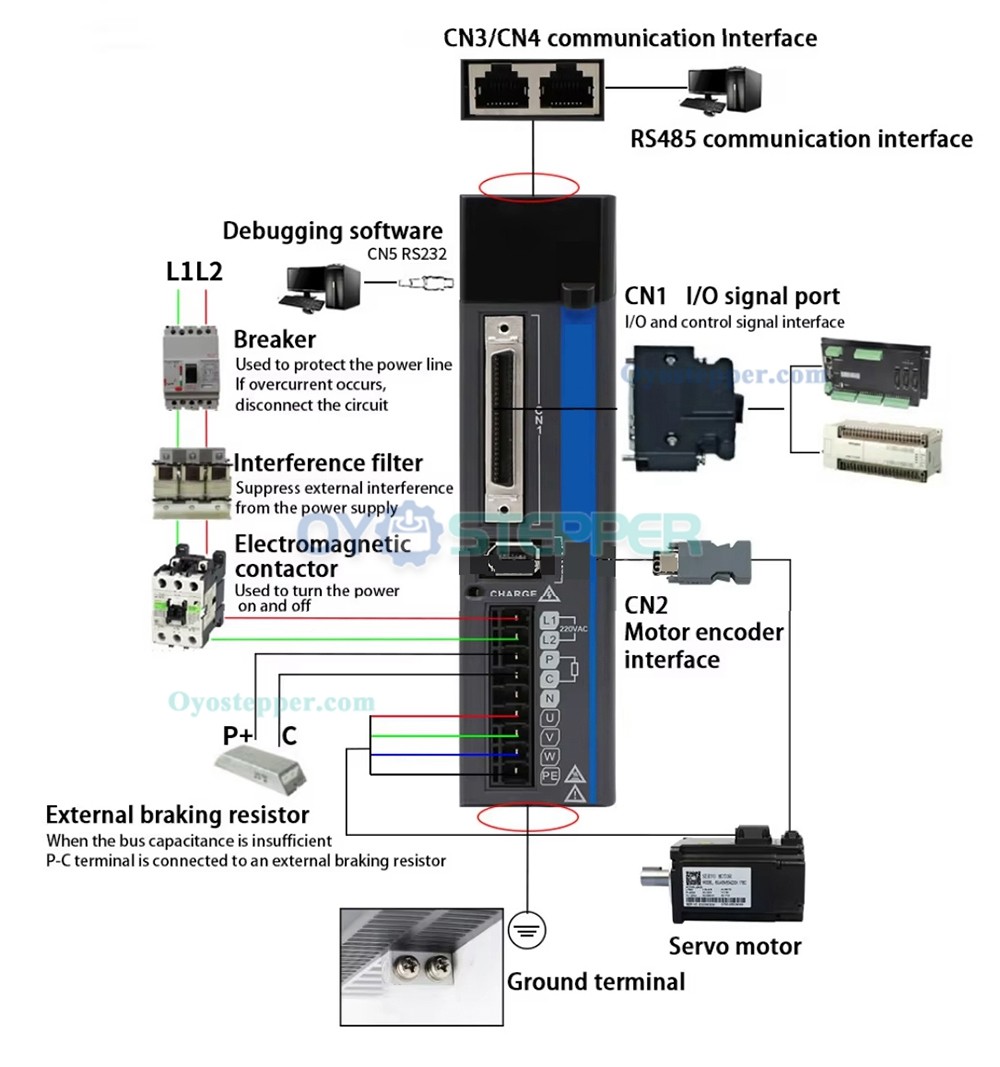

Communication: RS232 (debugging), RS485 (Modbus protocol, read‑only)

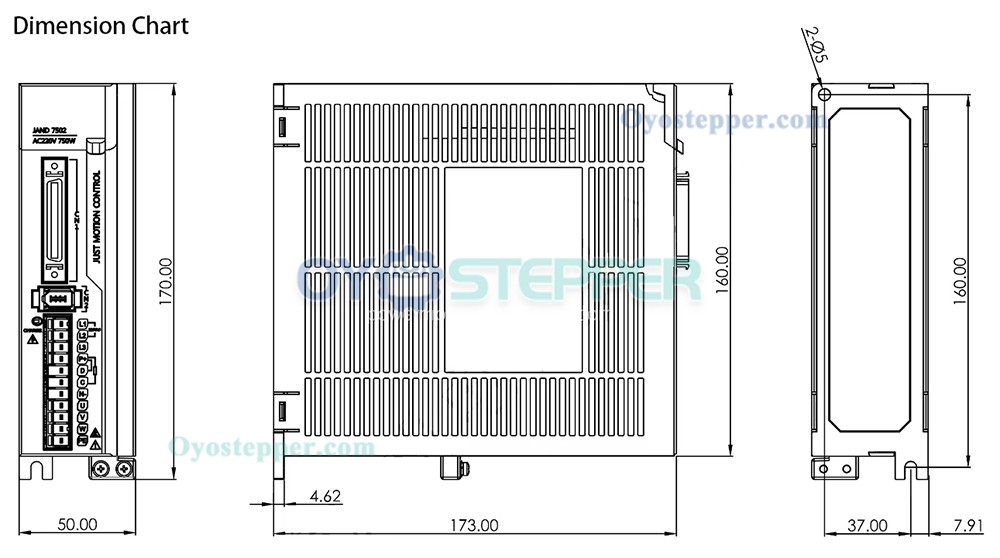

Dimensions: 173 × 160 × 50 mm

Weight: 3 kg
