12V 24V DC Coreless Brushless Motor PMDC Brushless Motor 800g.cm 22*66 mm

Features:
1) Stable performance, change motor rotation by hall sensor insteading of motor brush, with low noise.
2) Smaller electromagnetic interference, long lifespan, up to 20000 hours.
3) NdFeB magnet rotor.
4) Small size, and less weight, PWM control.
5) Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver;

Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.


Electrical Specification：
Part Number:TBC3242
Rated Voltage:12-24V
Speed:13000RPM
Continuous Current(A):250-6500mA
Rated Torque:800g.cm
Rated Power:118.5W
Direction:CW/CCW
Motor type:Brushless
Efficiency:IE 4
Noise:30cm.40-50DB

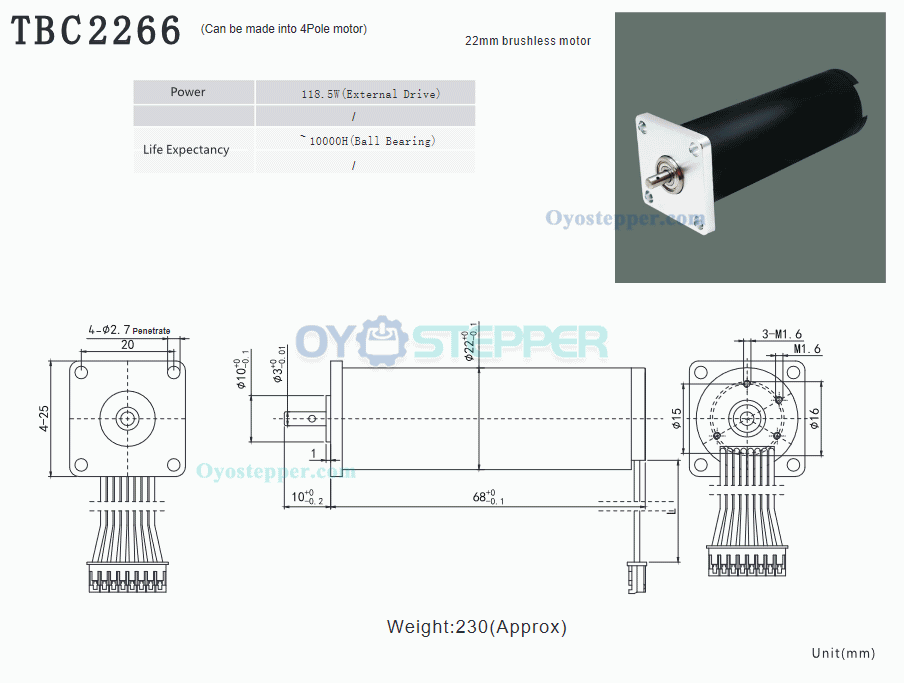

Physical Specification:
Motor Size:22*66 mm
Motor Diameter:22mm
Length:66mm
Shaft Length:10mm
Shaft Diameter:3mm
Weight:230g;

Resources

• TBC2266.pdf
