4 Axis TB6560 CNC Stepper Motor Driver Board for Nema 17, Nema23 Stepper Motor

4 Axis TB6560 CNC Stepper Motor Driver Board for Nema 17, Nema23 Stepper Motor
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$53.67
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $50.99 5%
10 $49.91 7%
50 $48.30 10%
100 $46.69 13%
Add To Cart

This new version 4 axis TB6560 stepper driver board is professional driver board for CNC industry.


Key Features

  • Toshiba TB6560AHQ chip - High power, maximum current 3.5A
  • Resolution 1, 1/2, 1/8, 1/16 micro stepping output
  • Working voltage DC12-DC30V, rated voltage 24V
  • Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
  • Half current function when no signal to prevent motor heating.
  • Build with a 227V 10A Relay.
  • Manual Control circuit included.
  • Overload, over-current and over-temperature safety.
  • Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
  • Supports most parallel software MACH3, KCAM4, EMC2 etc.

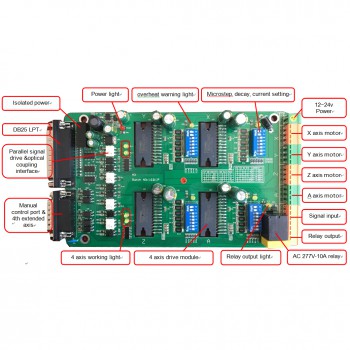

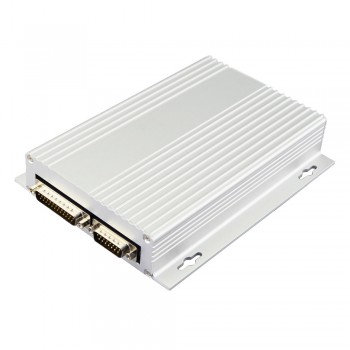

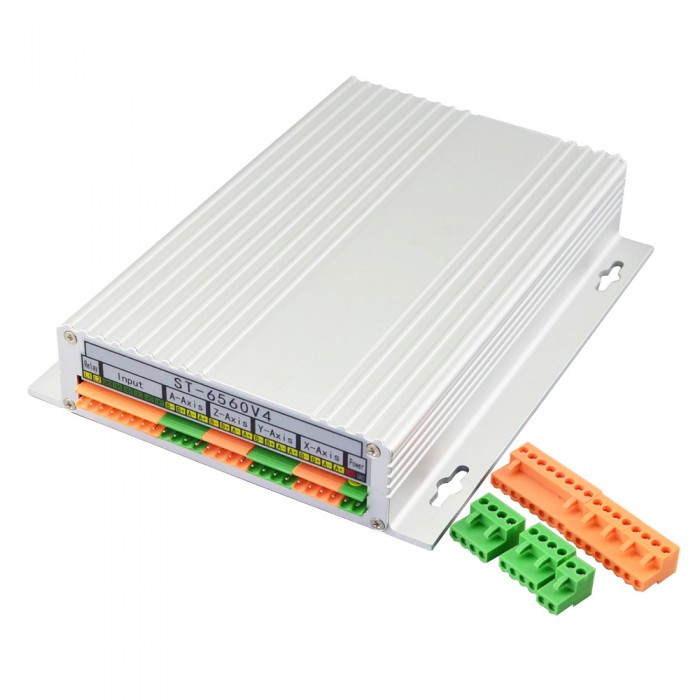

  • Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.


  • Make sure the power supply voltage dose not exceed the drive's input range. Double check the connections and make sure the power lead polarity is correct.
  • Do not set high current to small stepper motor. It is possible that the motor will be damaged.
  • Disconnect the motor from the load if you are not sure the move direction. Adjust the axis in the middle before trying to run the motor.
  • Never disconnect the motor lead when the power source is energized.

Packing List

  • 1 x ST-6560V4

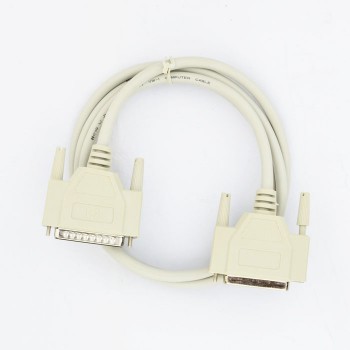

  • 1 x DB25 Cable
  • 1 x Manual CD
