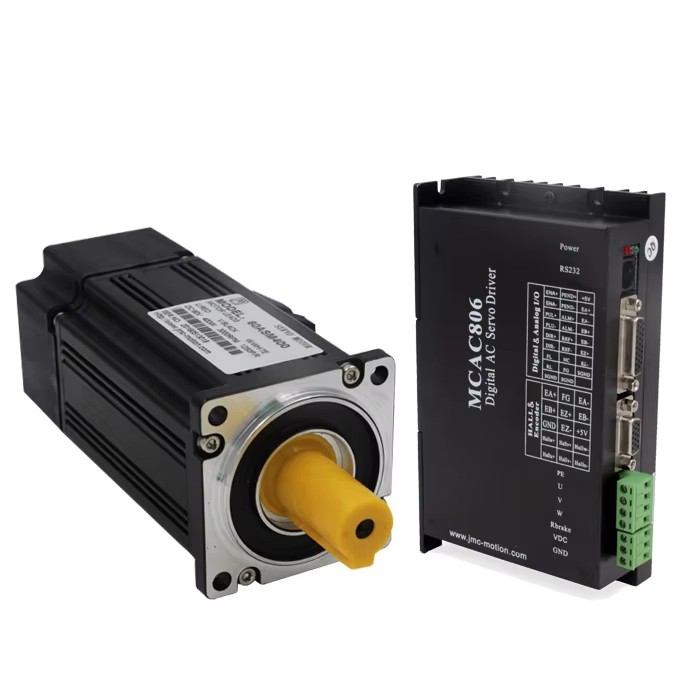

400W AC Servo Motor & Driver Kit 60V 8.4A 1.27N.m 3000RPM with 2500 Lines Encoder 60 x 60mm

400W AC Servo Motor & Driver Kit 60V 8.4A 1.27N.m 3000RPM with 2500 Lines Encoder 60 x 60mm
NO.:MCAC806+ 60ASM400
Post a review
Our Price:$276.99
Quantity:- +

Add To Cart

400W AC Servo Motor & Driver Kit 60V 8.4A 1.27N.m 3000RPM with 2500 Lines Encoder 60 x 60mm

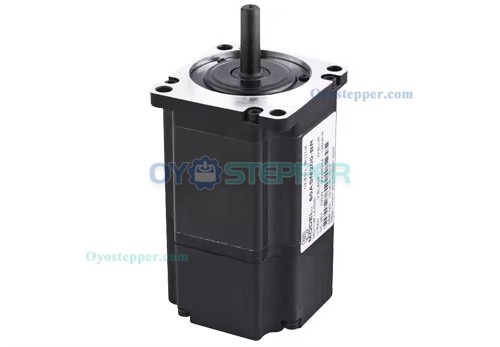

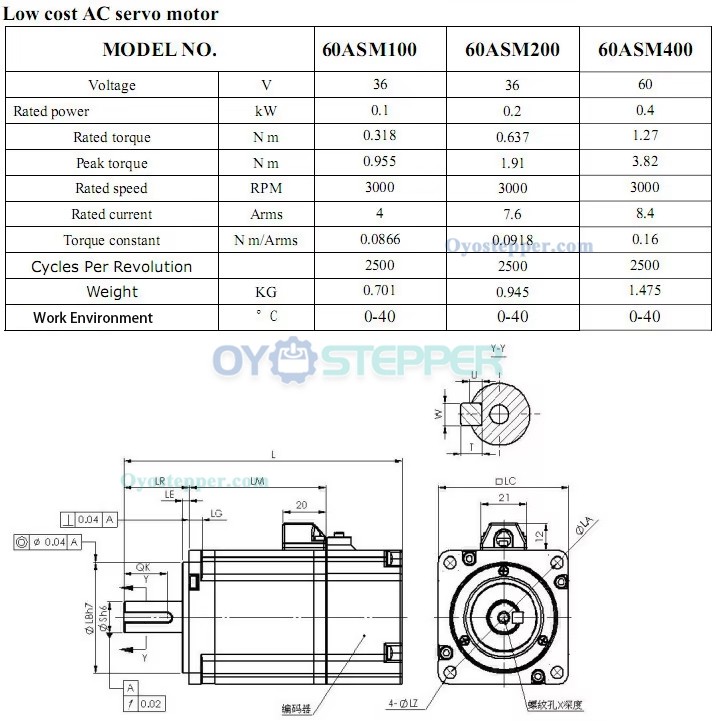

Servo Motor Specification
Part Number:60ASM400
Phase:3 Phase
Power Supply Voltage:60V
Rated Power:400W
Rated Torque:1.27N.m(179.84 oz.in)
Peak Torque:3.82N.m
Rated Speed: 3000 RPM
Rated Current:8.4A
Frequency:200HZ
Poles:8
Resistance:3.03*10-3 V/RPM
Torque coefficient:0.0866 N.M/A
Rotor inertia(10^-4kg*cm²):0.58
Encoder:1250 Line


Physical Specifications:
Frame Size:60 x 60mm
Body Length:157mm
Shaft Diameter:14mm
Shaft Length:30mm
Weight:1.5kg;

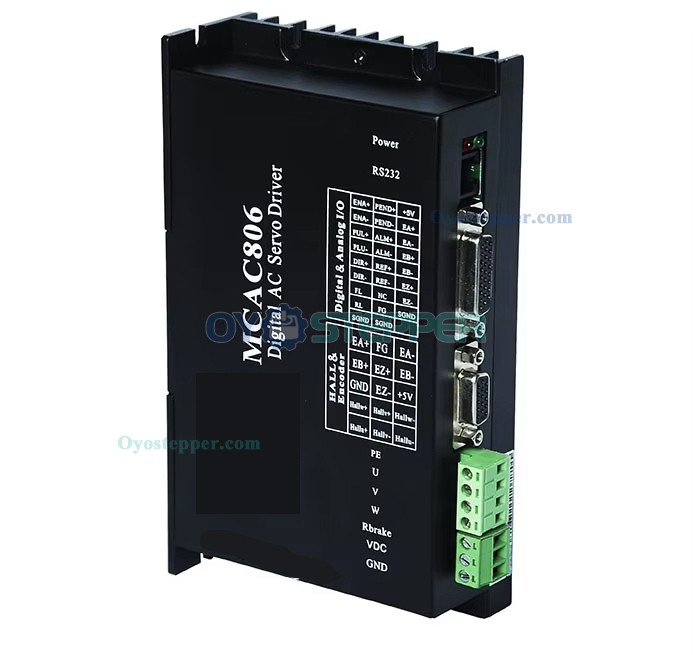

MCAC806 400W 36V-80V 8A AC Servo Motor Driver Controller


MCAC806 is designed and manufactured using DSP vector control, closed loop servo drives with low-cost and all-digital AC. It includes three adjustable feedback loop control which are position loop, speed loop and current loop.  It has stable performance which suitable for driving voltages between 48V and 80V, and the power below 400W AC servo motor.


Characteristics:
More than one kinds of pulse input mode
Pulse + direction
CW / CCW double pulse
A / B phase pulse
Servo reset input interface optocoupler isolation ERC
Current loop bandwidth: (-3dB) 2KHz (the typical value)
Speed loop bandwidth:  500Hz (the typical value)
Position loop bandwidth: 200Hz (the typical value)
Motor encoder inputs upright post :differential input (26LS32)
RS232C interface parameters available to download via PC or text display
Overcurrent, I2T, overvoltage, undervoltage,Overtempera-ture, speeding, over-differential protection
The green light indicates running and the red light indicates that the protection or offline


Technical indicators
 DC input voltage range 36 ~ 80V (48V typical)
600W continuous output power
Continuous output current 8A 32KHz PWM
Overload output current 20A (3 seconds)


Protection:
Action value over current peak 30A ± 10%
Overload I2t current action value 300% 5S
Overheating action value 80 ℃
85V overvoltage voltage action value
Action value 18V voltage undervoltage
Maximum pulse input frequency 300K
Default communication speed 9.6Kbps (requires additional interface converter)


Use of the environment:
Occasions: Avoid dust, oil mist and corrosive gases
Working temperature: 0 ~ +50 ℃
Storage temperature: -20 ℃ ~ +80 ℃
Humidity: 40 ~ 90% RH
Cooling: Natural cooling or forced air cooling

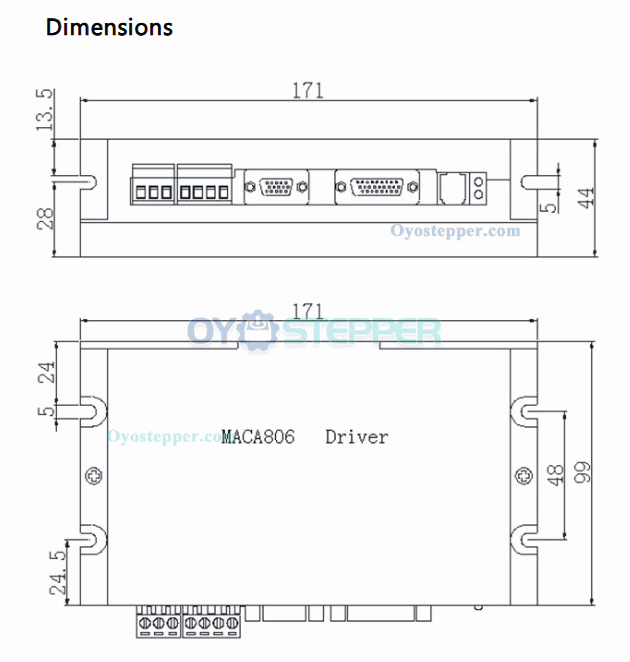

Overall dimensions 171 × 99 × 44mm
Weight about 550g;

MCAC806 400W 36V-80V 8A AC Servo Motor Driver Controller



MCAC806 400W 36V-80V 8A AC Servo Motor Driver Controller



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: MCAC806 400W 36V-80V 8A AC Servo Motor Driver Controller
Next: Nema 17 Brushless DC Servo Motor & Driver Kit 64W 24V 3.13A 0.2N.m 3000 RPM with1000 Lines Encoder 42 x 42mm
Servo Motor Specification
Rated Current 8.4
Number of Phase 3 Phase
Power supply voltage 60
Encoder 1250 Line
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
Peak Torque(Nm) 3.82
With Brake Without brake
