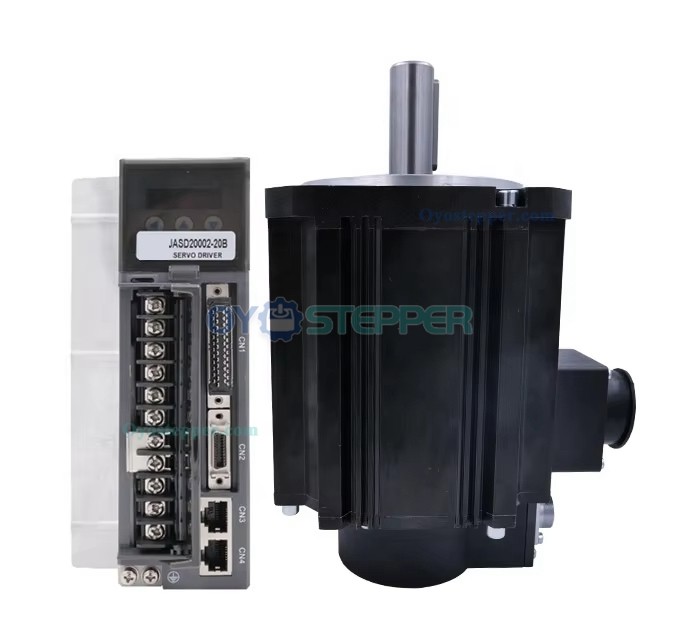

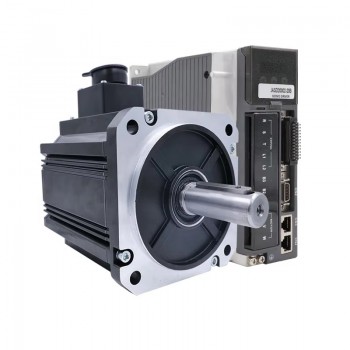

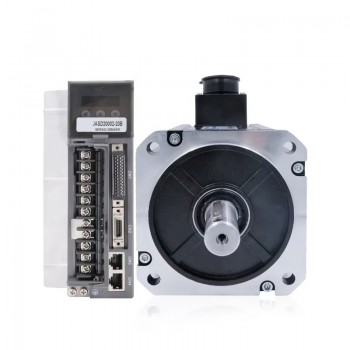

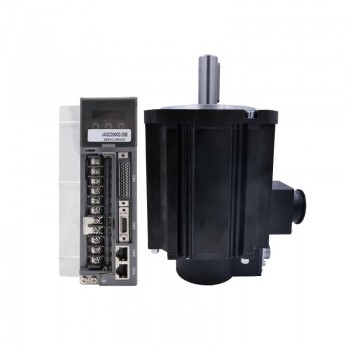

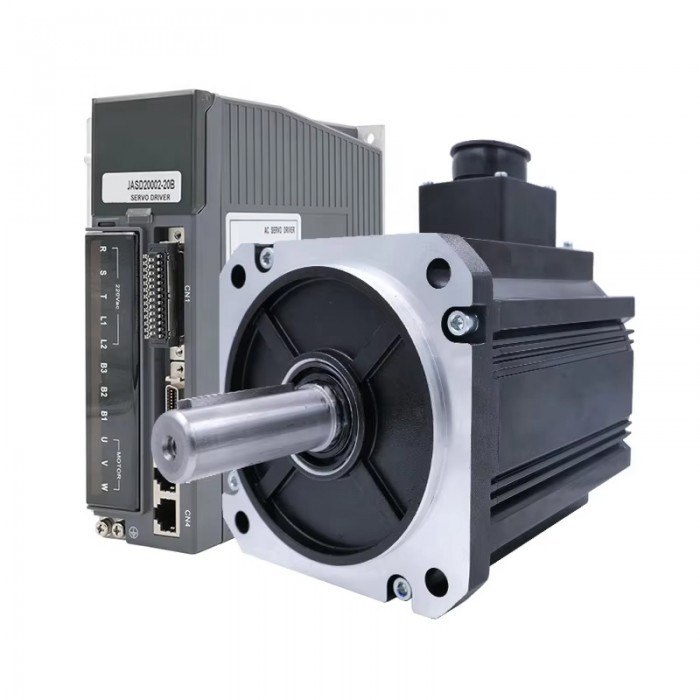

2000W AC Servo Motor & Servo Drive Kit 9.55N.m 2000RPM 10.2A with 17 bit Absolute Encoder
2000W AC Servo Motor & Servo Drive Kit 9.55N.m 2000RPM 10.2A with 17 bit Absolute Encoder

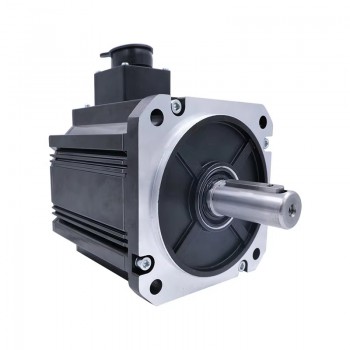

Servo Motor Specification:
Part Number:130JASM520220K-17B
Phase:Single-phase
Rated Power:2000W
Rated Torque:9.55N.m
Peak Torque:19.1N.m
Rated Speed: 2000RPM
No Load Speed:3000RPM
Power Supply:220V
Rated Current:10.2A
Control Type:Pulse type
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:11.1gcm²
Encoder:with 17 bit absolute magnetic encoder;

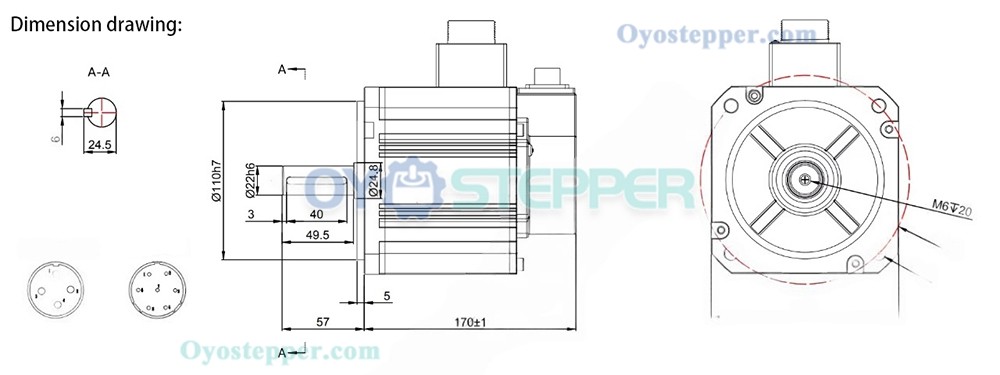

Physical Specifications:
Frame Size:130x130mm
Body Length:227mm
Shaft Diameter:22mm
Shaft Length:59mm
Keyway Length:40mm
Weight:8kg;

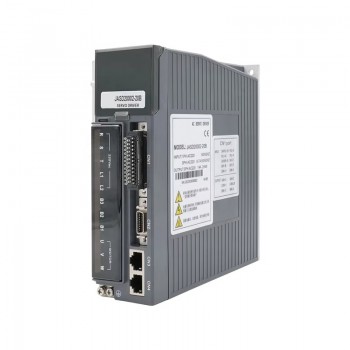

Servo motor driver specification:
Model:JASD20002-20B
Rated power:2KW
Single/3 phase 220V servo drive;
Single phase continuous input current:8.7A
Continuous output current:14A
Max output Current:33A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).
Dimension:180x169.5x75mm
Weight:4kg;
.jpg "2000W AC Servo Motor & Servo Drive Kit 9.55N.m 2000RPM 10.2A with 17 bit Absolute Encoder")
.png "2000W AC Servo Motor & Servo Drive Kit 9.55N.m 2000RPM 10.2A with 17 bit Absolute Encoder")
Servo Driver Dimension Drawing:
| Servo Motor Specification | |
|---|---|
| Rated Current | 10.2 |
| Number of Phase | Single-phase |
| Encoder | With 17 bit absolute magnetic encoder |
| Motor Base | 130x130 |
| Servo Motor Type | AC Servo Motor |
| No-load Speed | 3000 |
| Power supply voltage | 220 |
| Control Modes | Pulse type |
| Rated Power(W) | 2000 |
| Rated Speed(rpm) | 2000 |
| Rated Torque(Nm) | 9.55 |
| Peak Torque(Nm) | 19.1 |
| With Brake | Without brake |
