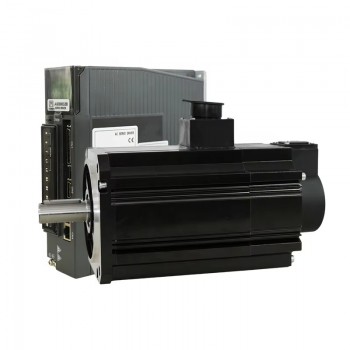

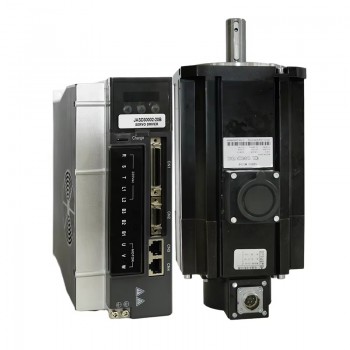

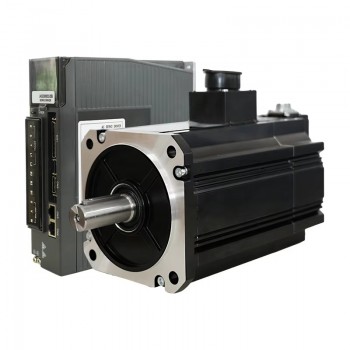

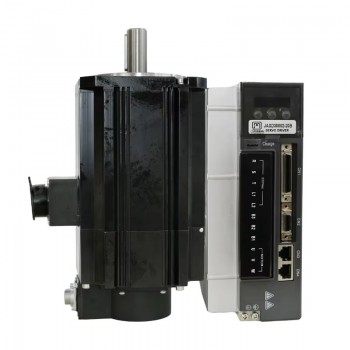

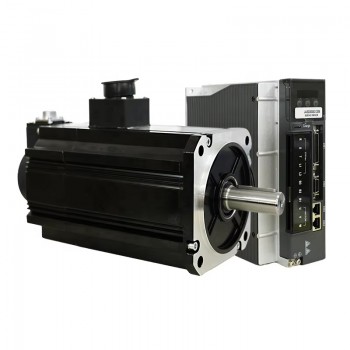

3000W AC Servo Motor & Driver Kit with Brake 14.32N.m 2000RPM 13.6A with 17 bit Encoder 130x130mm

3000W AC Servo Motor & Driver Kit with Brake 14.32N.m 2000RPM 13.6A with 17 bit Encoder 130x130mm

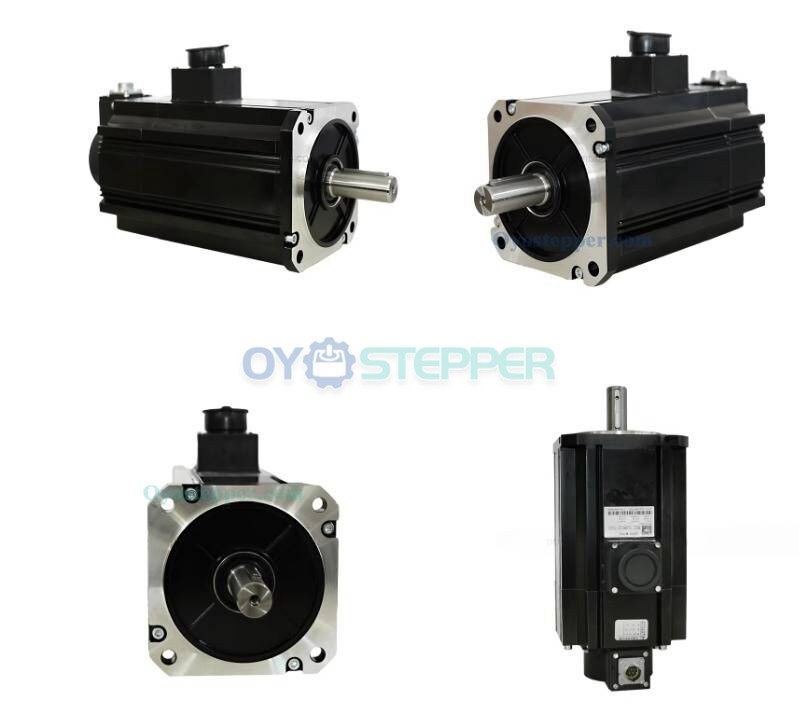

Servo Motor Specification:
Part Number:130JASM530220K-17B-SC
Phase:Single-phase
Rated Power:3000W
Rated Torque:14.32N.m
Peak Torque:28.6N.m
Rated Speed: 2000RPM
Peak Speed:3000RPM
Power Supply:220V
Rated Current:13.6A
Control Type:Pulse type
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:13.6gcm²
Encoder:with 17 bit absolute magnetic encoder;
Brake:With Brake;

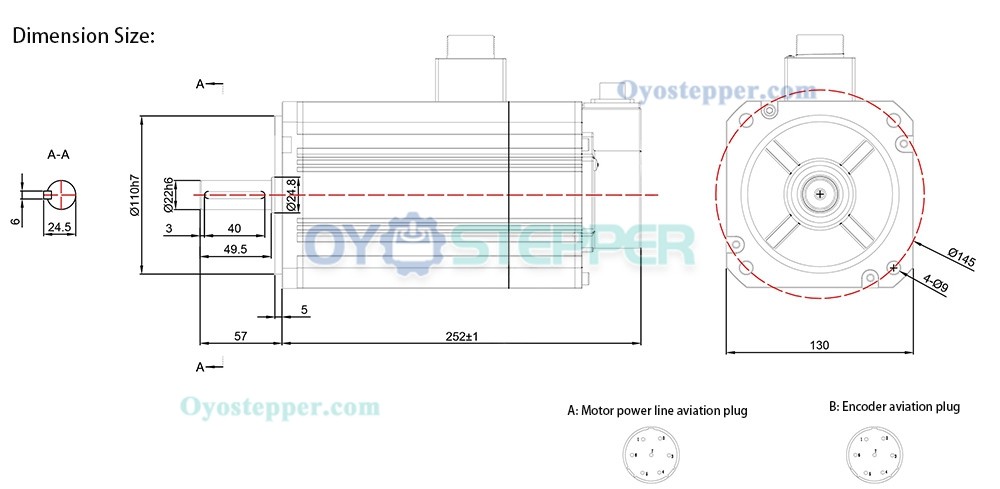

Physical Specifications:
Frame Size:130x130mm
Body Length with Brake:309mm
Shaft Diameter:22mm
Shaft Length:57mm
Keyway Length:40mm
Weight:16kg;

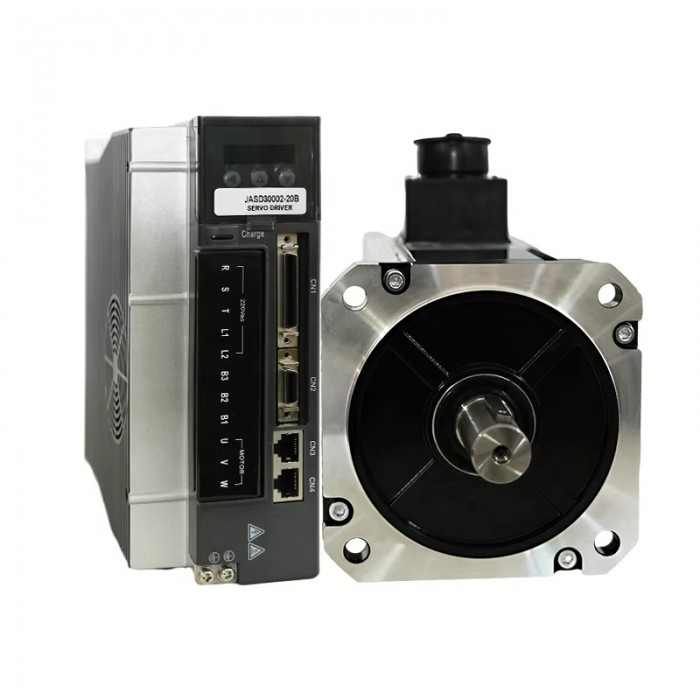

Servo Driver Specification:
Model:JASD30002-20B
Rated power:3KW
3 phase 220V servo drive;
Single phase continuous input current:11A
Continuous output current:20A
Max output Current:50A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).
Dimension:180x169.5x75mm
Weight:4kg;
