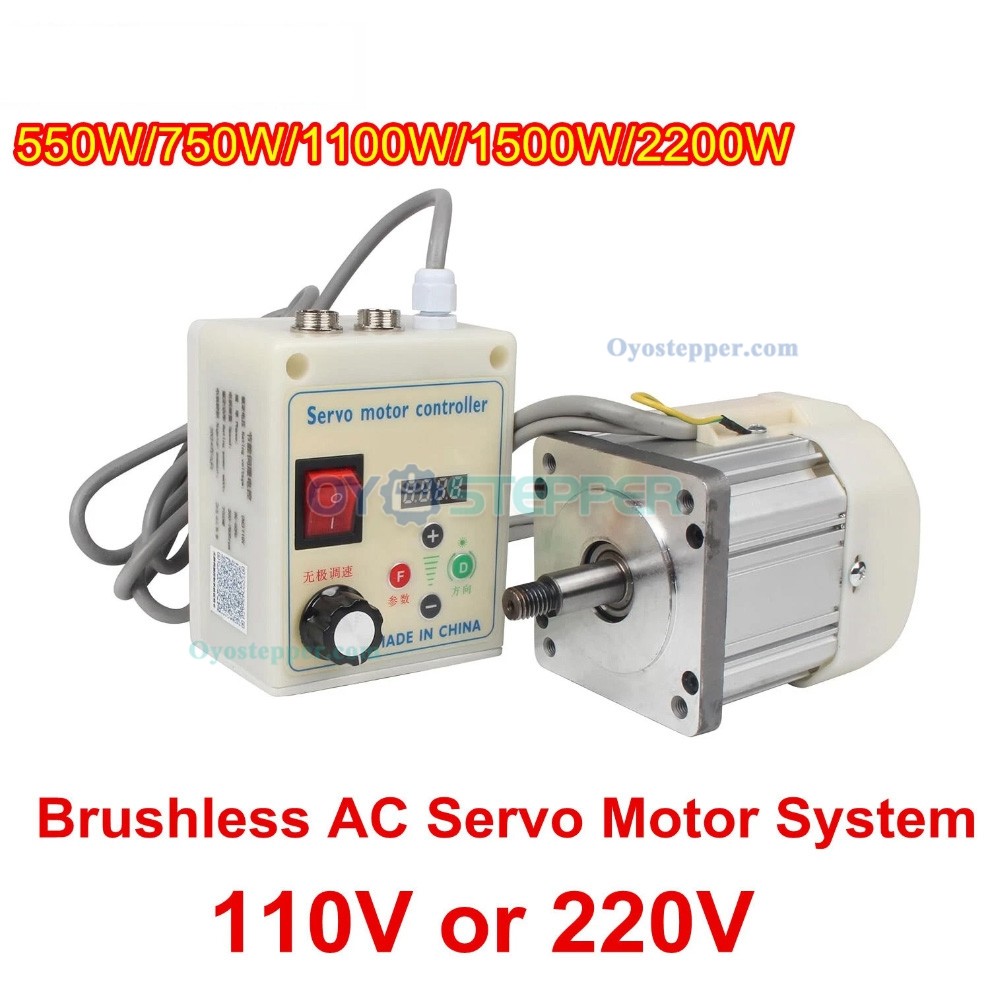

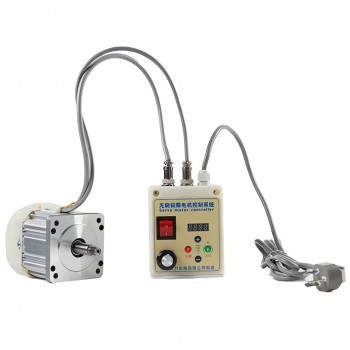

550W / 750W / 1.1KW / 1.5KW / 2.2KW 1.85 Nm-6.85 Nm Brushless AC Servo Motor with Speed Controller CNC Kit

550W / 750W / 1.1KW / 1.5KW / 2.2KW 1.85 Nm-6.85 Nm Brushless AC Servo Motor with Speed Controller CNC Kit

Features:

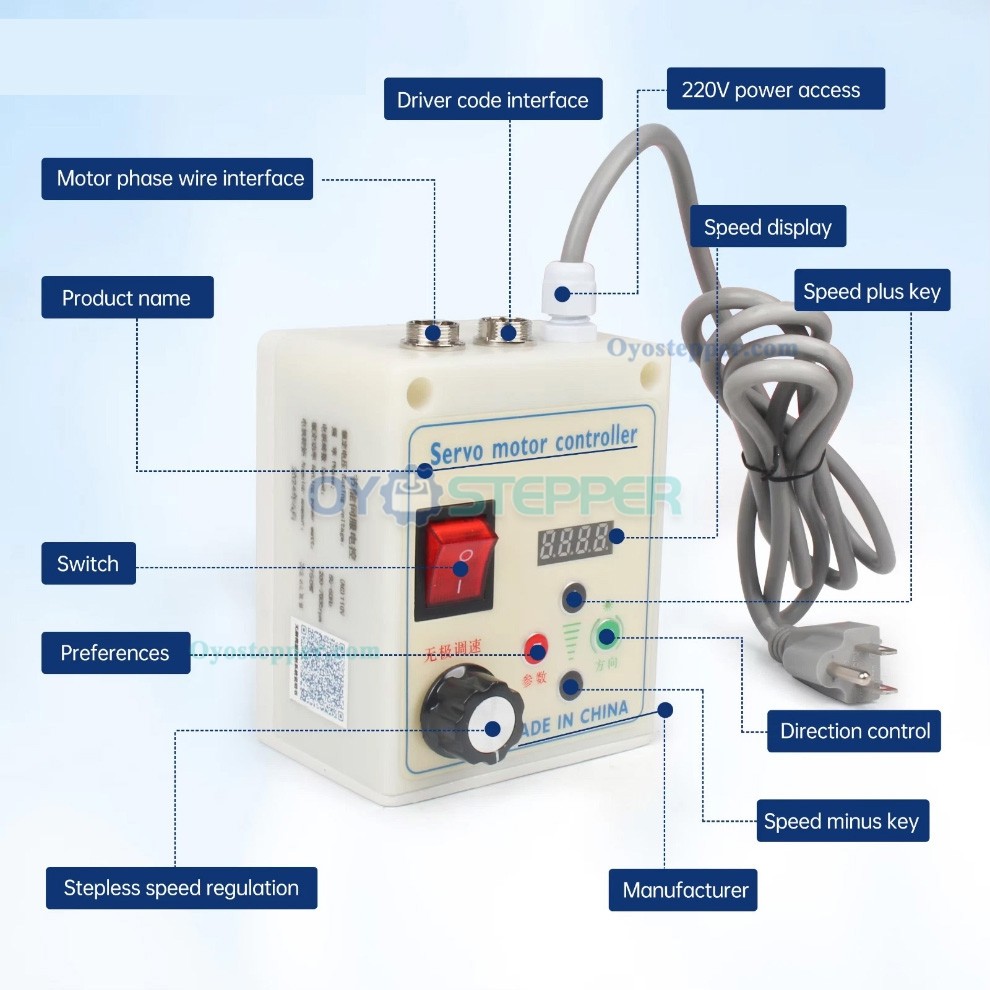

Supports one-touch forward and reverse rotation, with soft start and soft stop functions.

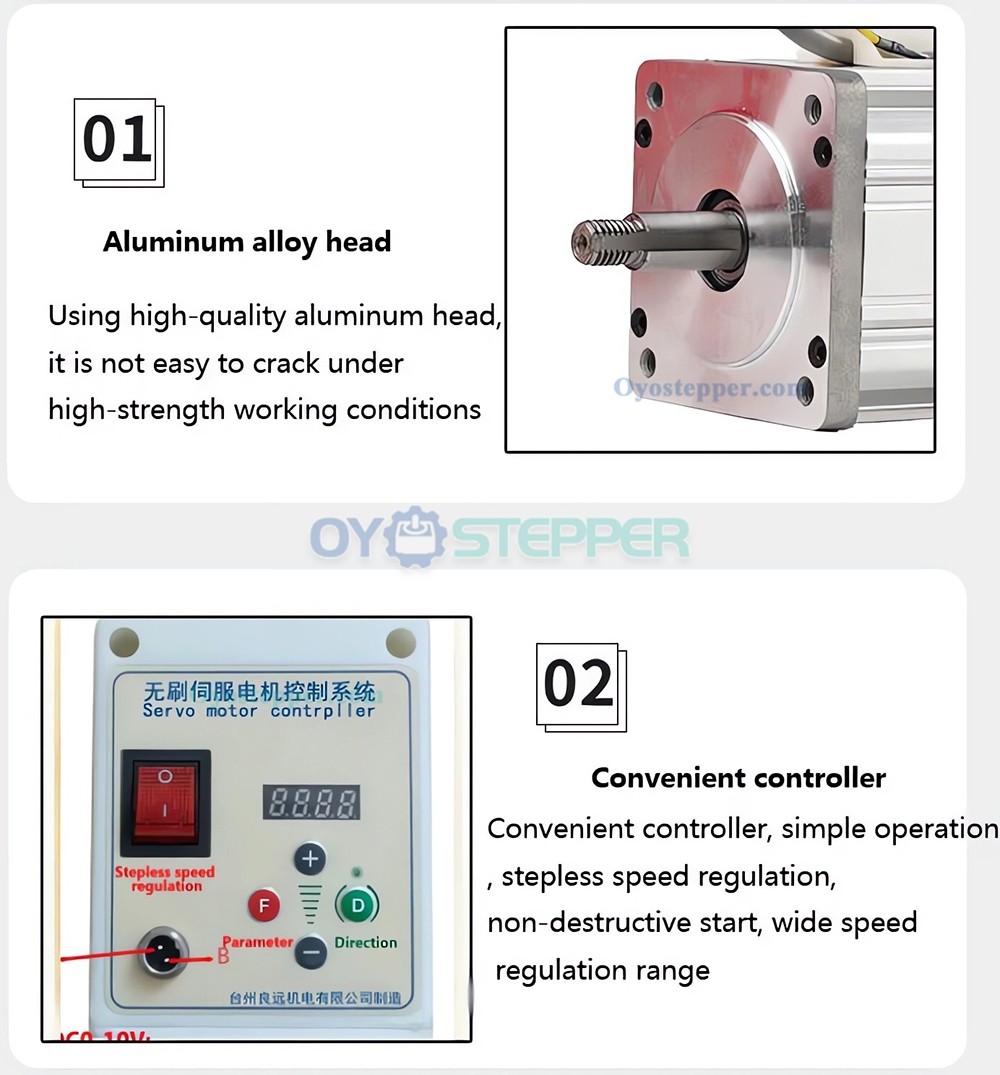

The motor output shaft features an M15 thread for compatibility with timing pulleys and ER collet chucks.

Features anti-interference performance, low operating noise, and integrated protection against over-current, overload, and over-voltage conditions.

Used for belt sanders, polishing machines, small lathes, milling machines, and similar equipment.

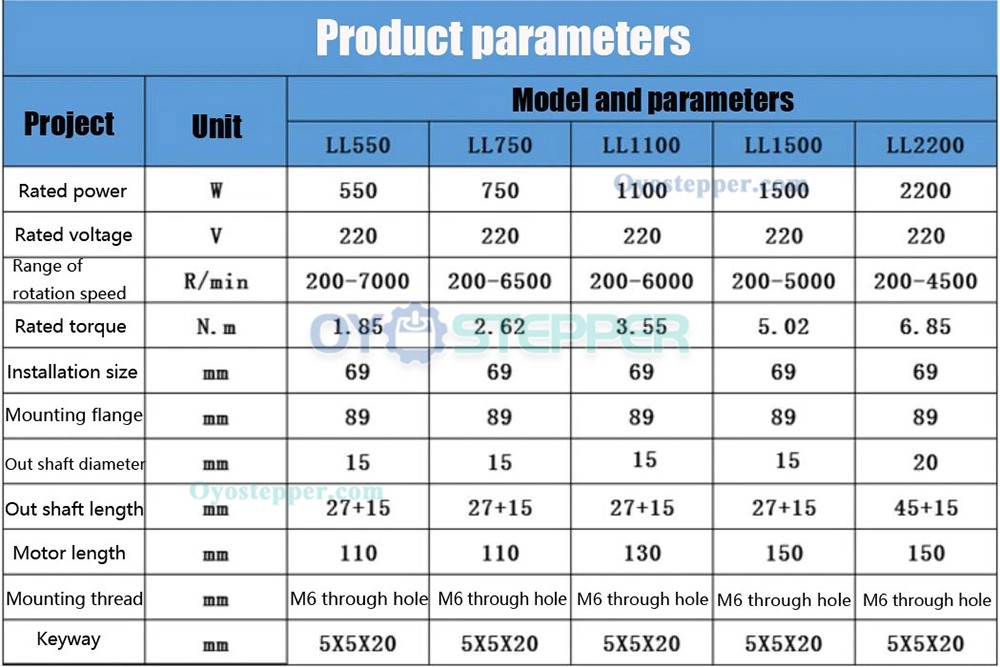

Specifications:

Rated Power: 550W / 750W / 1100W / 1500W / 2200W

Rated Voltage: AC 220V or AC 110V, 50-60Hz


Speed Range:

550W: 200-7000 RPM

750W: 200-6500 RPM

1100W: 200-6000 RPM

1500W: 200-5000 RPM

2200W: 200-4500 RPM


Rated Torque:

550W: 1.85 Nm

750W: 2.62 Nm

1100W: 3.55 Nm

1500W: 5.02 Nm

2200W: 6.85 Nm

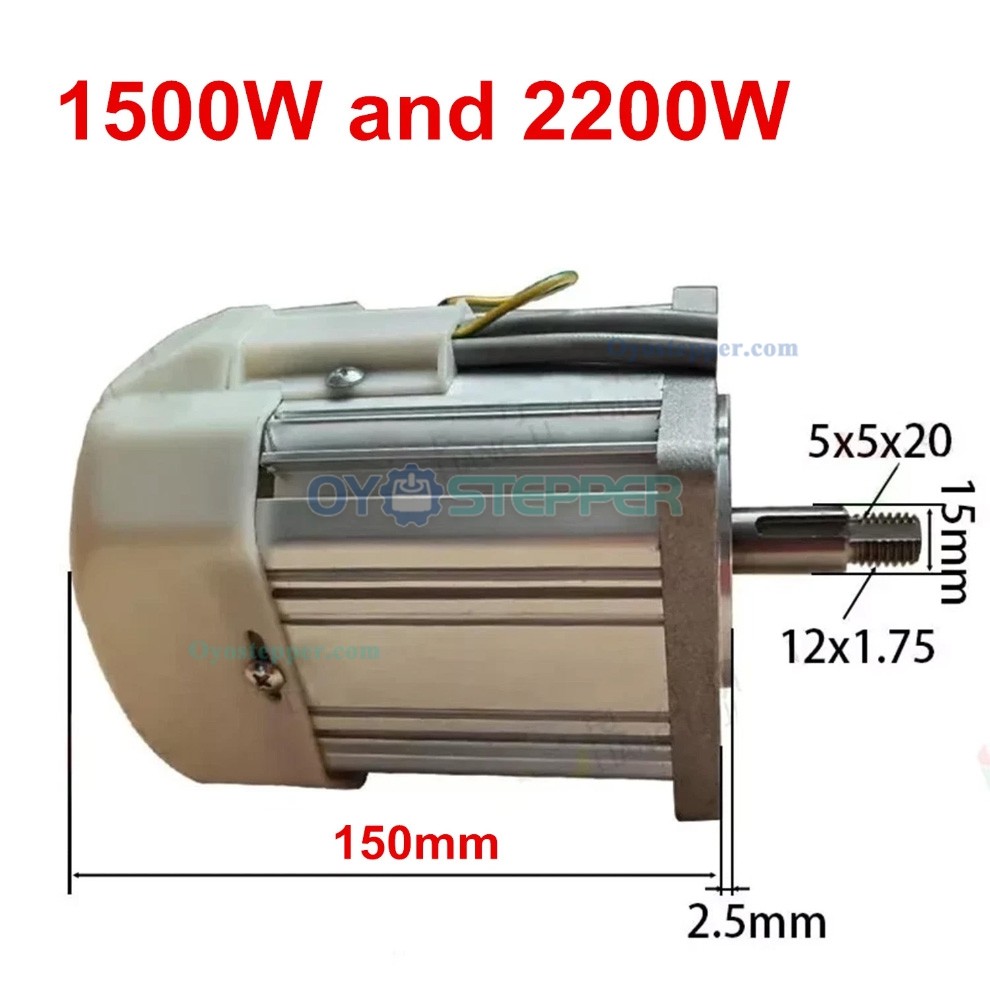

Mounting Flange Size: 69 mm

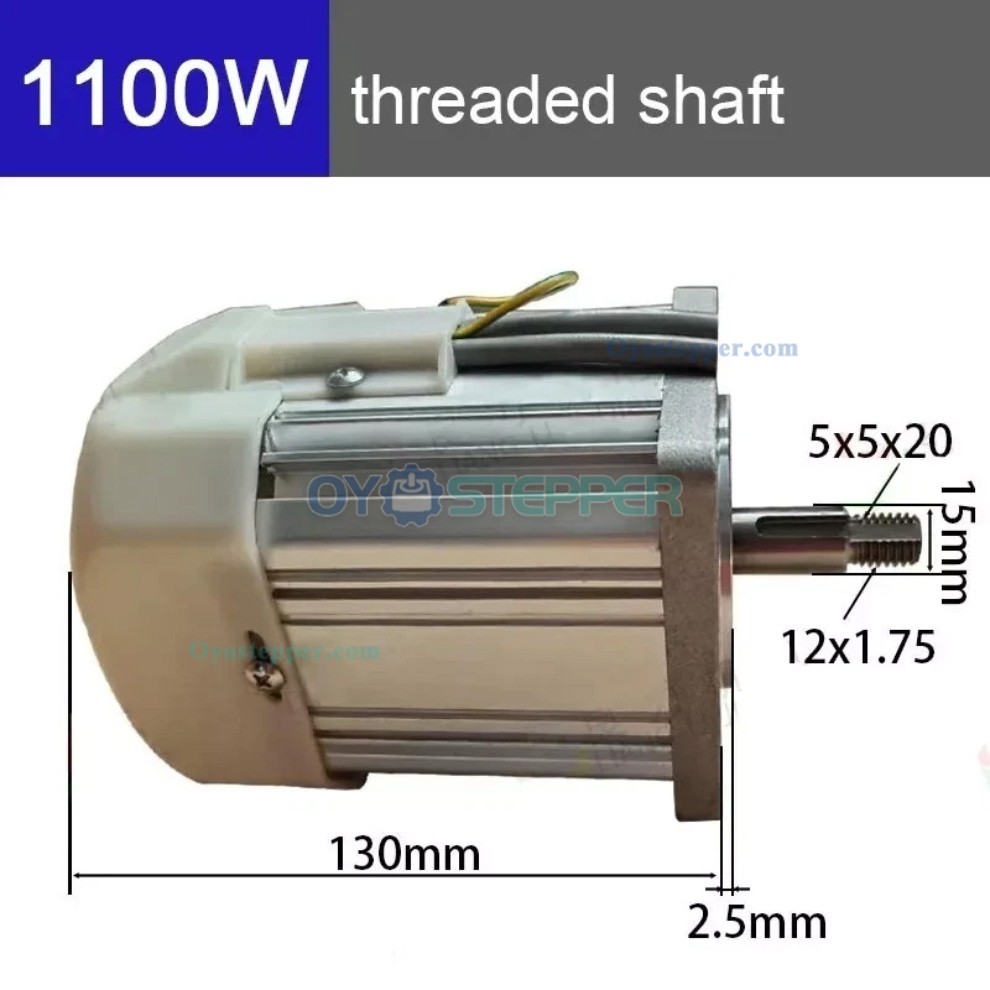

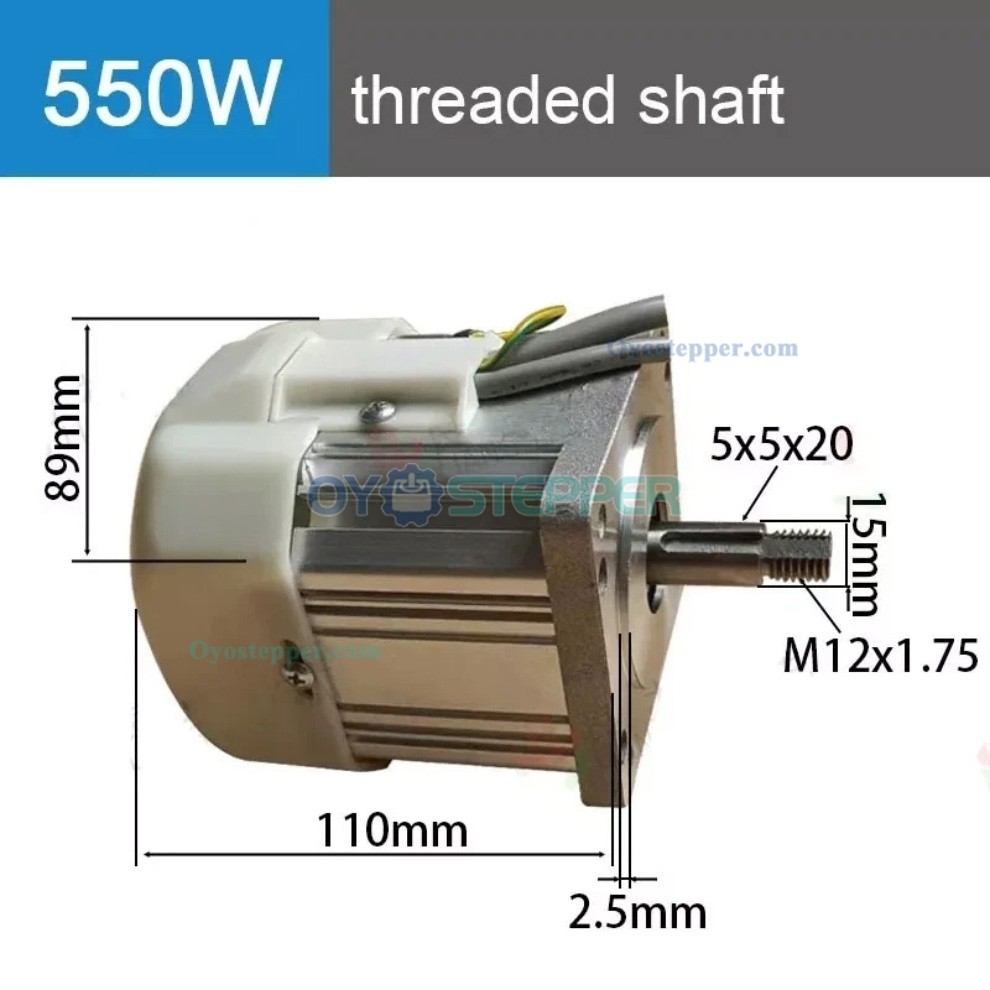

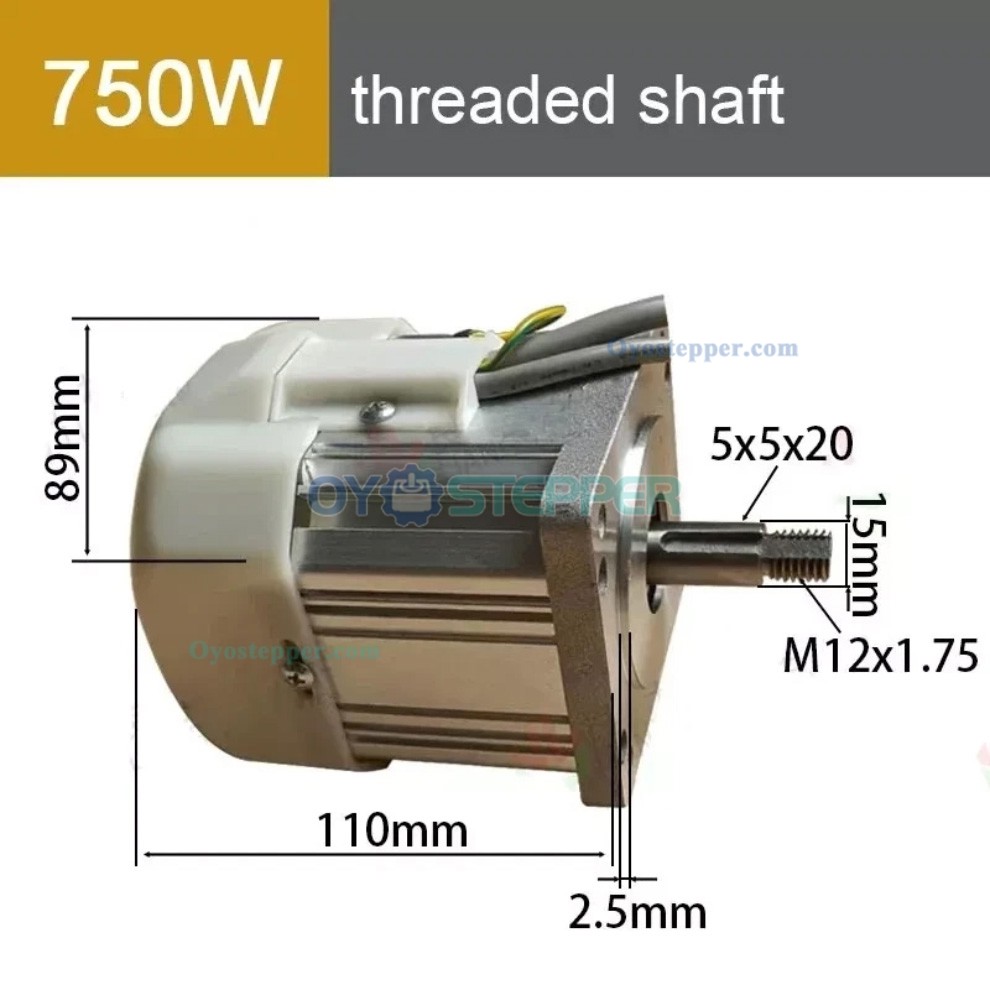

Shaft Diameter: 15 mm

Shaft Length: 27 mm + 15 mm

Mounting Thread: M6 Through-hole

Keyway: 5 mm × 5 mm × 20 mm




Please note:

The motor shaft defaults to sending a "threaded shaft"

We also have "key shaft"/"thread+key shaft"/"saw blade shaft".

If necessary, you can contact customer service before purchasing.
