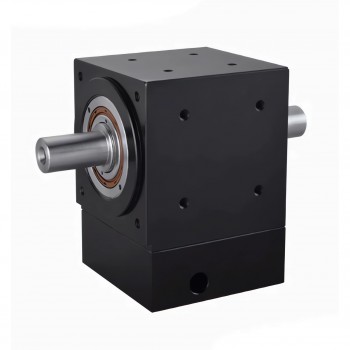

NEMA23 Right Angle Commutator Bevel Gearbox Ratio 90 Degree 2:1/3:1/5:1 Gear Reducer Planetary Commutator
NEMA23 Right Angle Commutator Bevel Gearbox Ratio 90 Degree 2:1/3:1/5:1 Gear Reducer Planetary Commutator

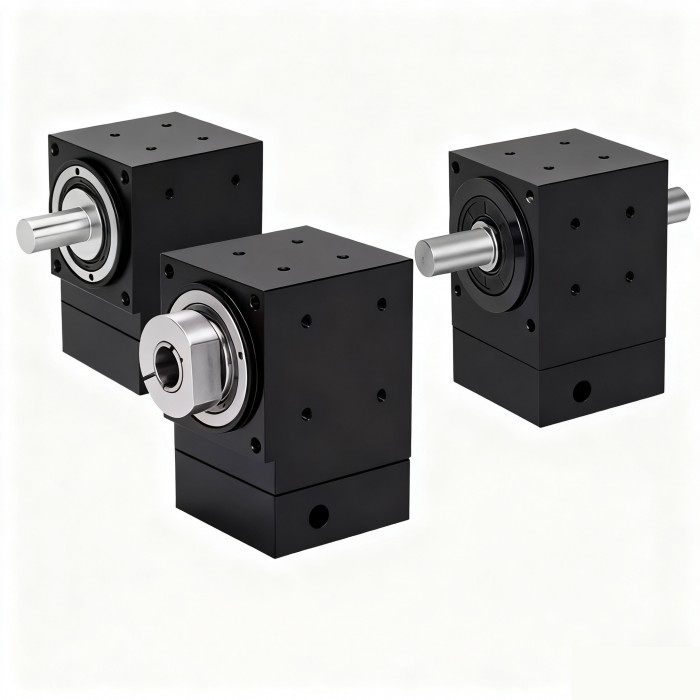

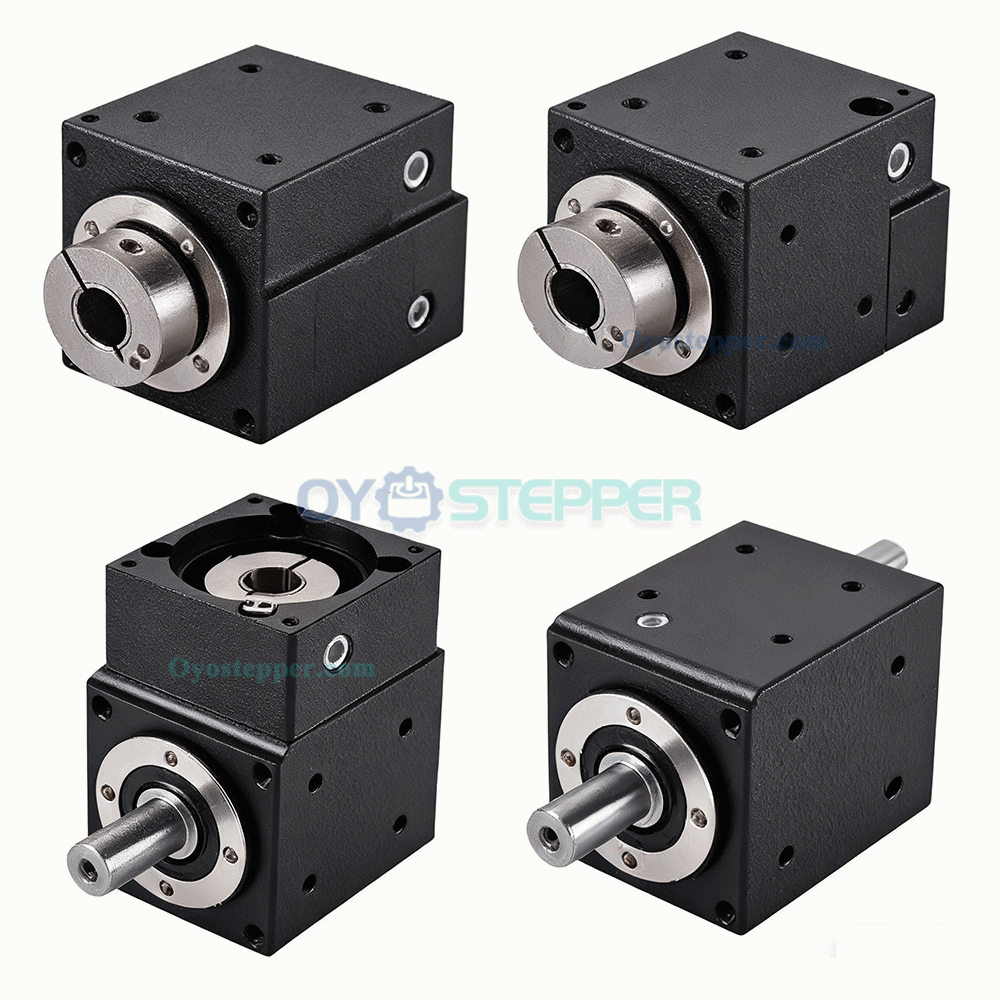

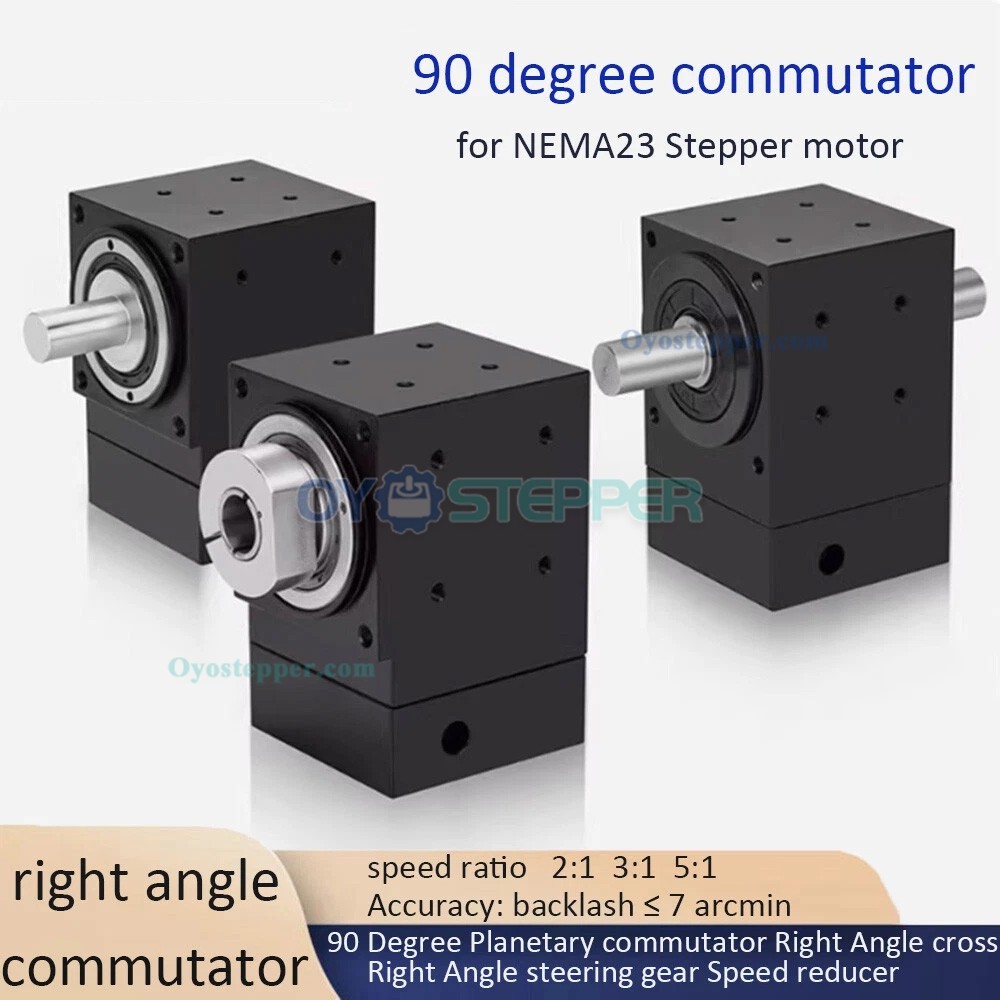

90° spiral bevel gearbox. Backlash ≤3 arcmin. Compatible with NEMA23 (57mm) stepper motors. Output options: single shaft, single hole, double shafts, double holes. IP65 protection. Maximum speed: 3000rpm. Maximum output torque: 25Nm.

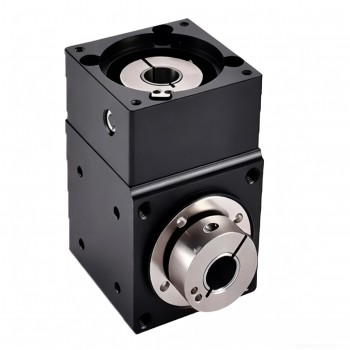

NEMA23 Hole Output Specifications:
Ratio: 5:1
Rated speed: 1500rpm
Moment of inertia: 0.08kg·cm²
Allowable axial force: 230N
Applications:
Industrial robotics, conveyors, pick-and-place, CNC rotary tables, spindle drives, milling, lab automation, packaging, printing, labeling, cutting, winding.
Parameters:
Rated output torque (Nm): 25
Maximum output torque (Nm): 50
Rated speed (rpm): 1500
Maximum speed (rpm): 3000
backlash(arcmin): 3
Allowable radial force (N): 560
Allowable axial force (N): 230
Moment of inertia (Kg. cm ²): 0.08
Work efficiency: 97
Service life h ≥ 20000
Operating environment temperature: ° C -20~+90
Lubrication method (Lup): Long term lubrication
Protection level (PC): IP65
Weight (kg): 1.5
Noise Db ≤ 62

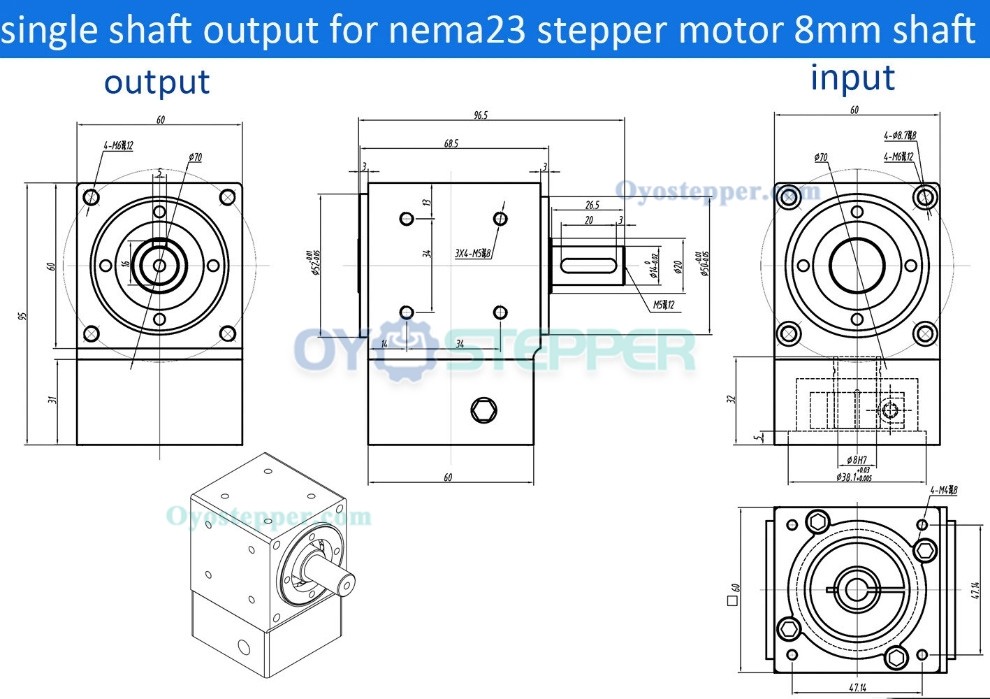

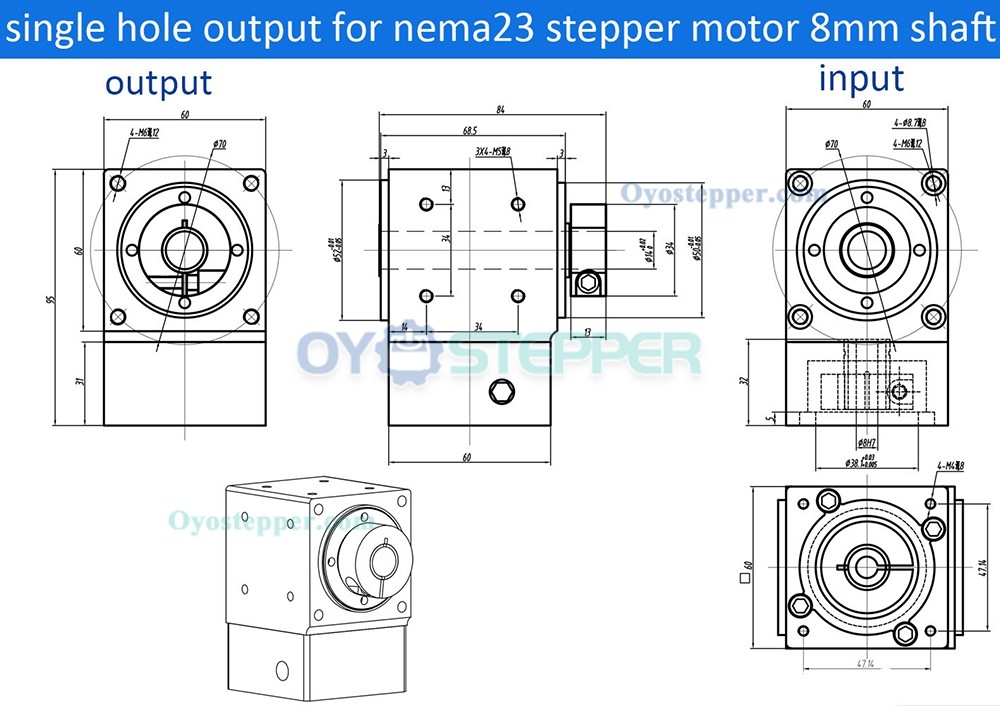

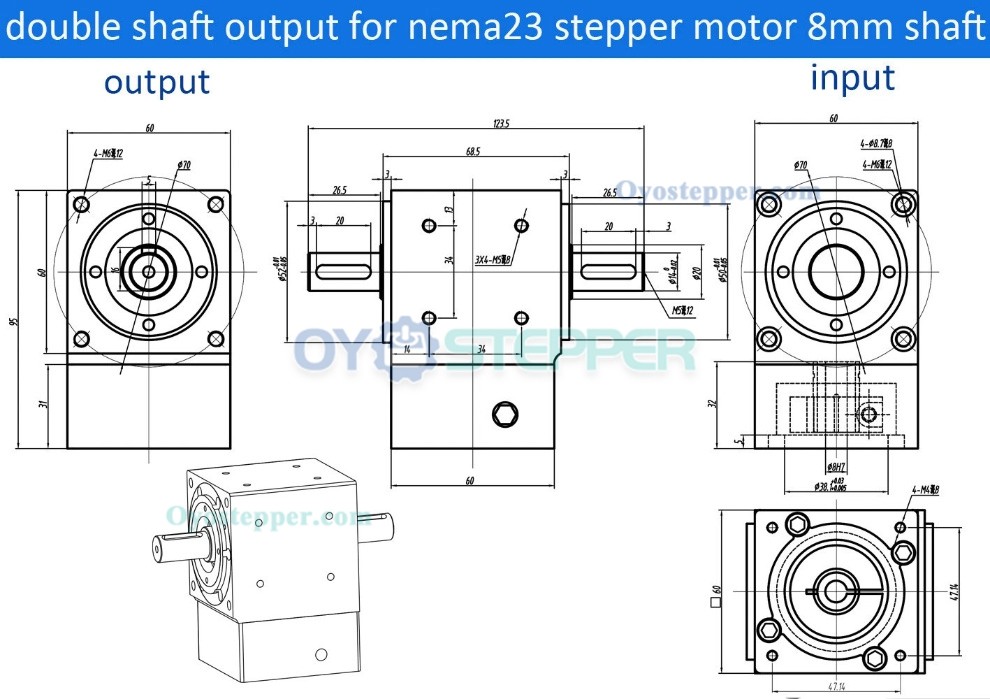

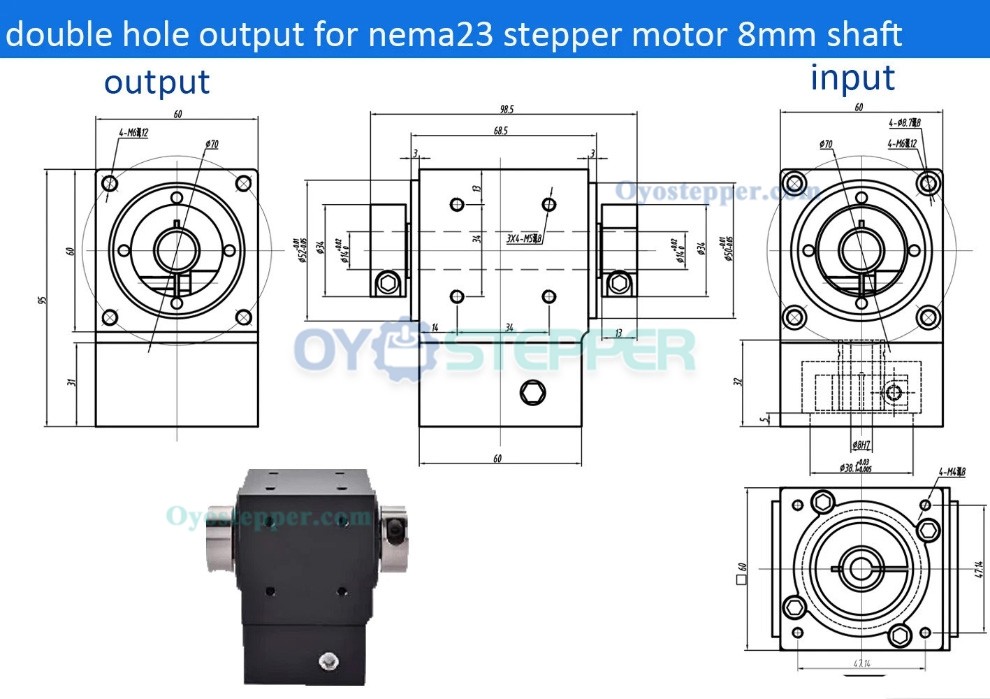

Drawing
| Gearbox Specification | |
|---|---|
| Output Shaft Diameter(mm) | 14mm |
| Matching Motor Size | Nema 23 Stepper Motor |
| Input Shaft Diameter(mm) | 8mm |

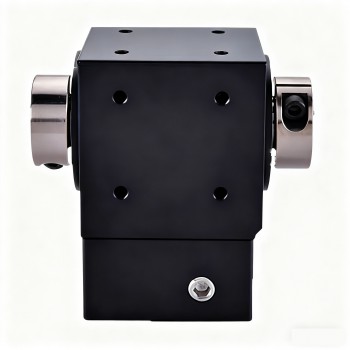

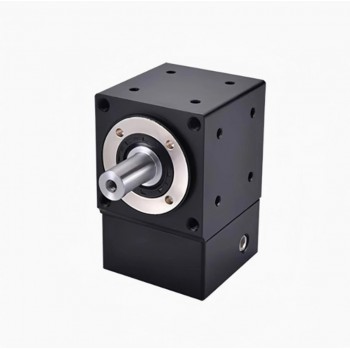

| Output Shaft Type | Single Hole Output / Single Shaft Output / Dual Hole Output / Dual Shaft Output |
| Gear Ratio | 2:1 / 3:1 / 5:1 |
| Gearbox Type | Right Angle Commutator |
| Backlash at No-load(Max.°) | ≤7arcmin |
