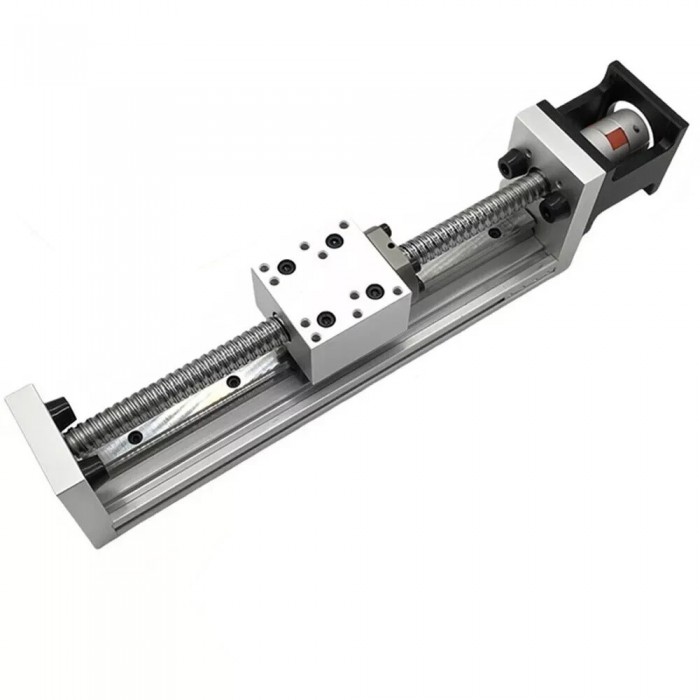

Linear Guide Rail Ballscrew Linear Module Table CNC Slide Motion Stage Stroke 100mm-300mm

Linear Guide Rail Ballscrew Linear Module Table CNC Slide Motion Stage Stroke 100mm-300mm

Features:

The table has a stated load capacity of 60 kg in horizontal orientation and 30 kg in vertical orientation.

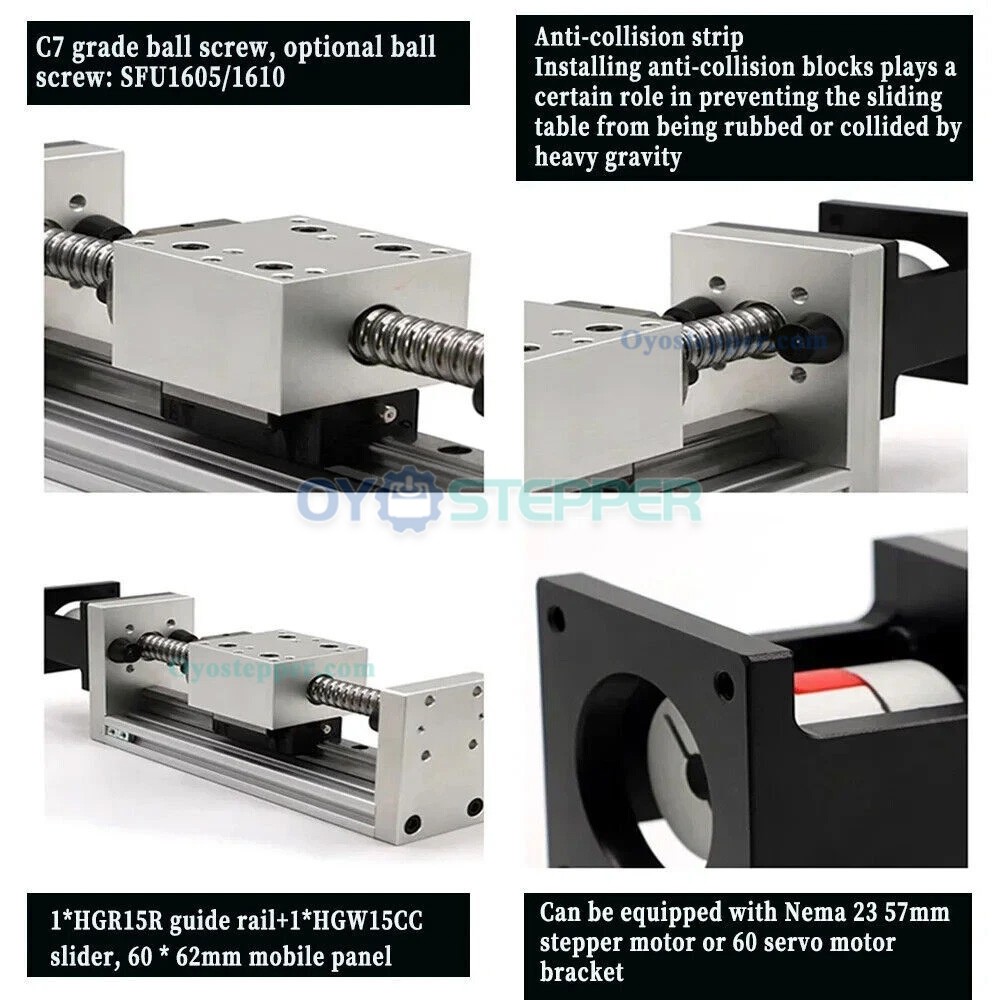

Features a C7 grade SFU1605 ballscrew with a 5mm pitch. Repeat positioning accuracy is stated as ±0.03mm. The assembly includes HGR15R linear guides and HGW15CC sliders.

Motor Integration: The base has pre-drilled mounts for Nema 23 stepper motors. The design has a 60mm width.

The base plate is made from aluminum alloy. A plum coupling is included.


Parameters:

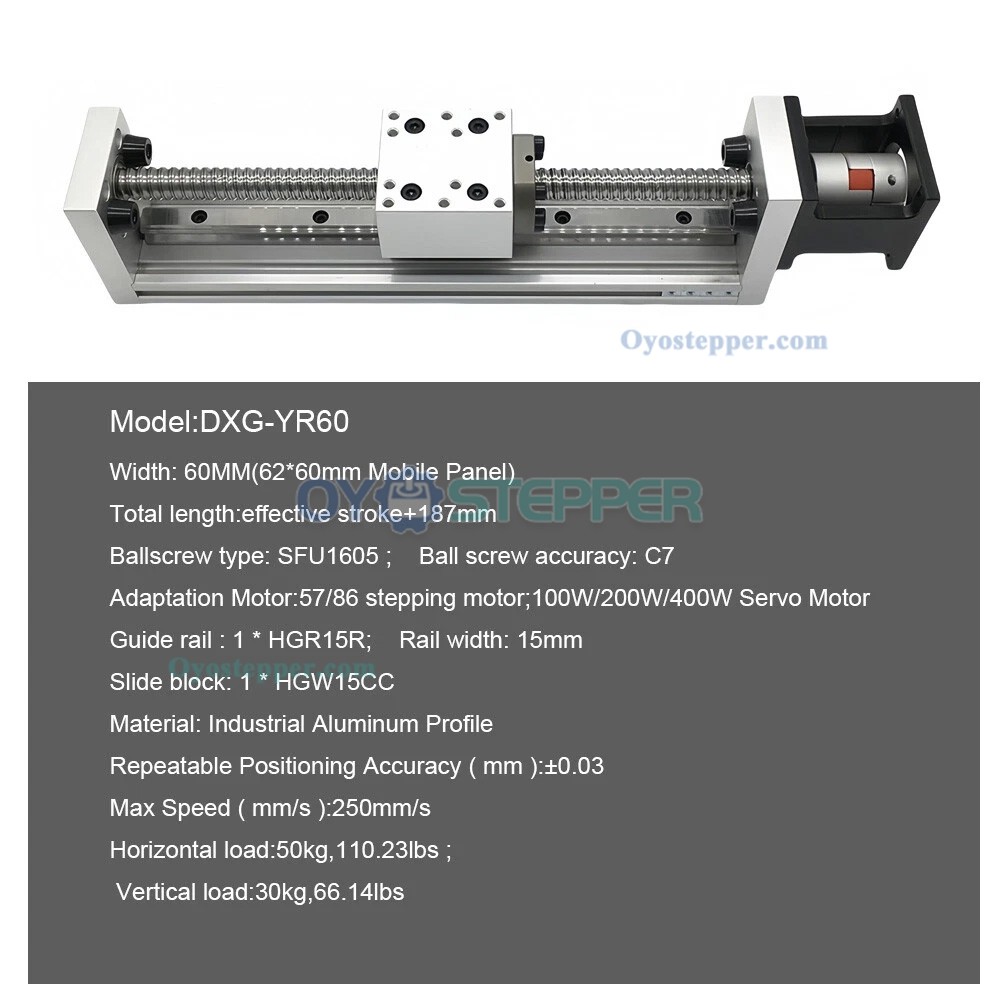

Model: DXG-YR60

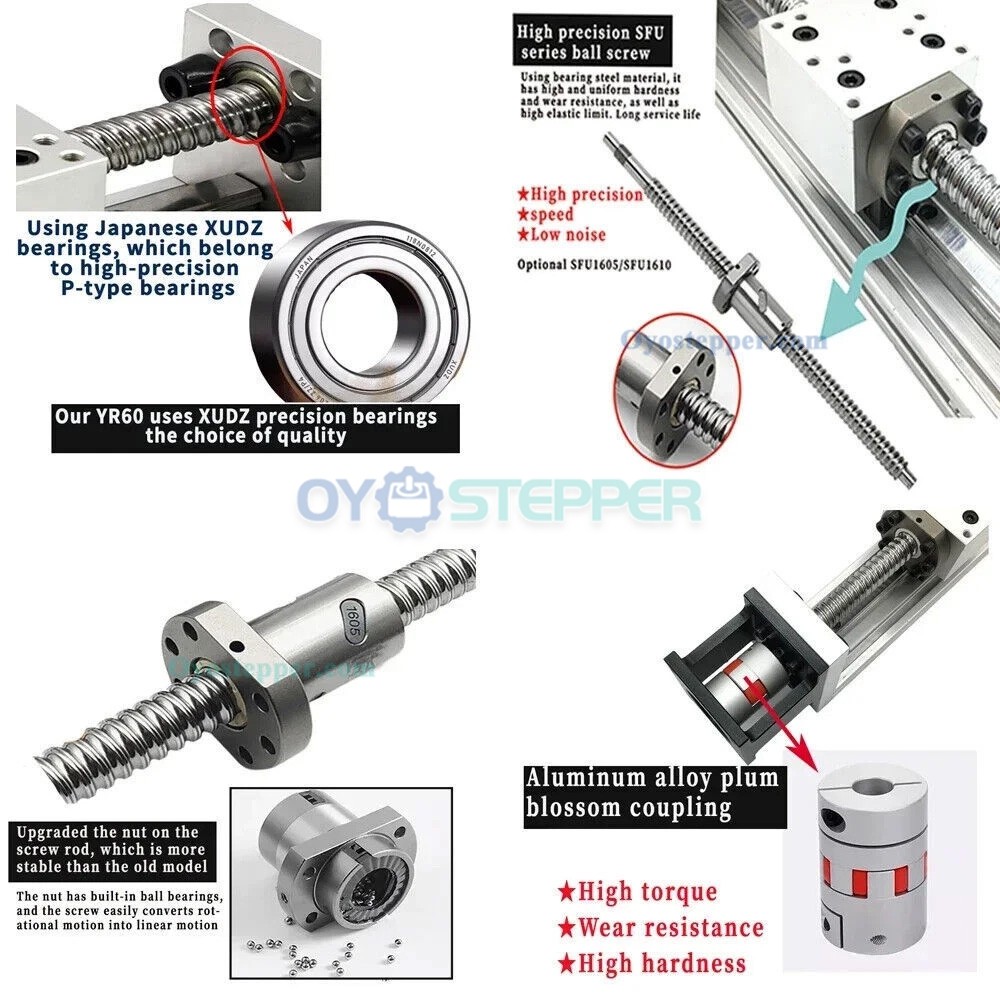

Ballscrew Type: SFU1605 (Diameter: 16mm, Pitch: 5mm)

Ballscrew Accuracy: C7 grade

Effective Stroke: 100mm - 300mm (Optional)

Total Length: Effective Stroke + 187mm

Mobile Panel Size: 60mm x 62mm

Slide Width: 60mm

Guide Diameter: 15mm

Guide Type: HGR15R

Slider Type: HGW15CC

Horizontal Load: 60 kg

Vertical Load: 30 kg

Repeat Positioning Accuracy: 0.02-0.03mm;

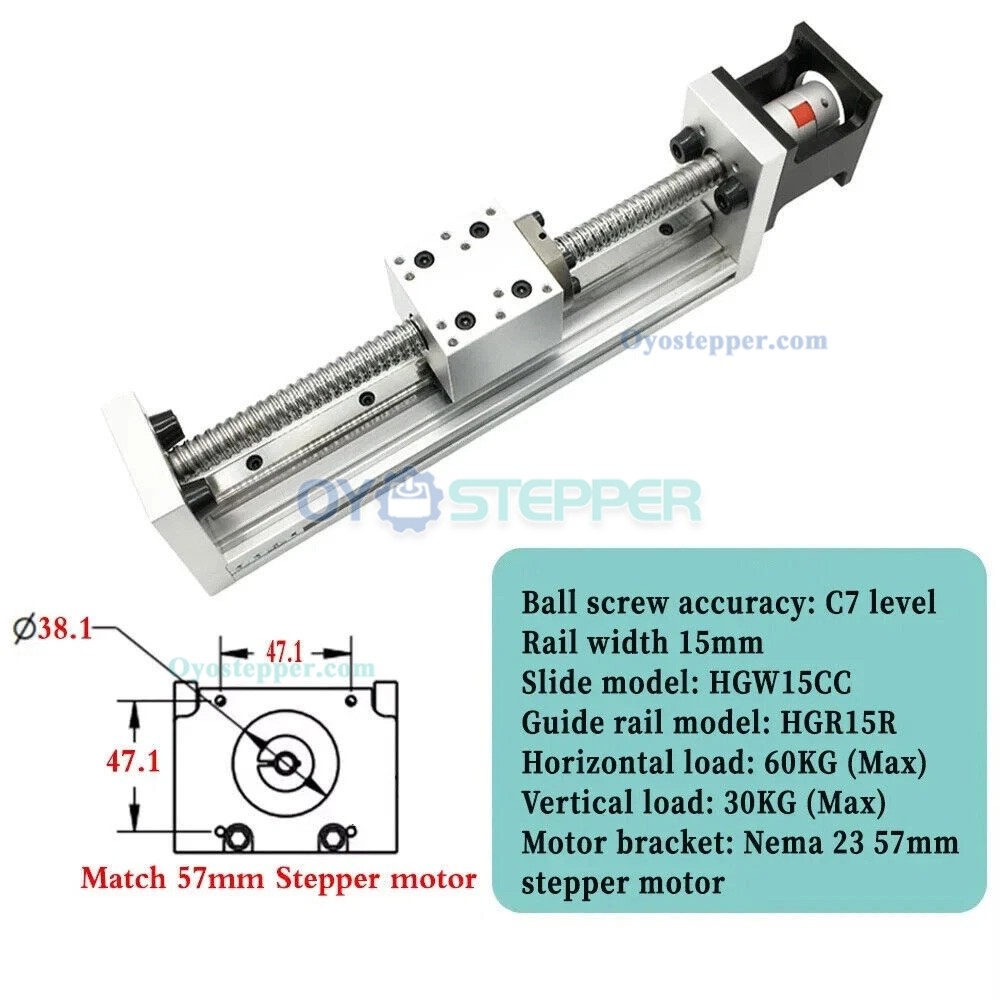

Supported Motor Bracket: Nema 23 stepper motor; 60-series servo motor;

Ballscrew and Linear Rail Material: Carbon steel, Bearing steel;

Base Plate Material: Aluminum alloy;


Applications:

This sliding table may be used in areas such as CNC machinery, industrial automation systems, 3D printers, packaging equipment, welding rigs, and DIY projects.

Package list:

1x SFU1605 CNC Sliding Table

1x 8mm to 8mm Coupling for Nema 23 Motor
