NEMA 17 Right Angle Steering Bevel Gearbox 2:1/3:1/5:1 Right Angle Commutator 90 Degree 5mm / 8mm Input

NEMA 17 Right Angle Steering Bevel Gearbox 2:1/3:1/5:1 Right Angle Commutator 90 Degree 5mm / 8mm Input

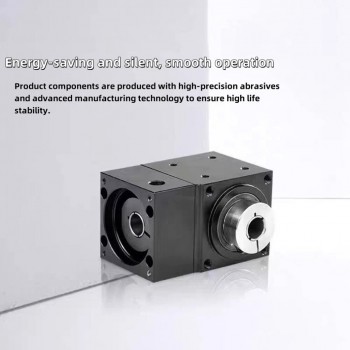

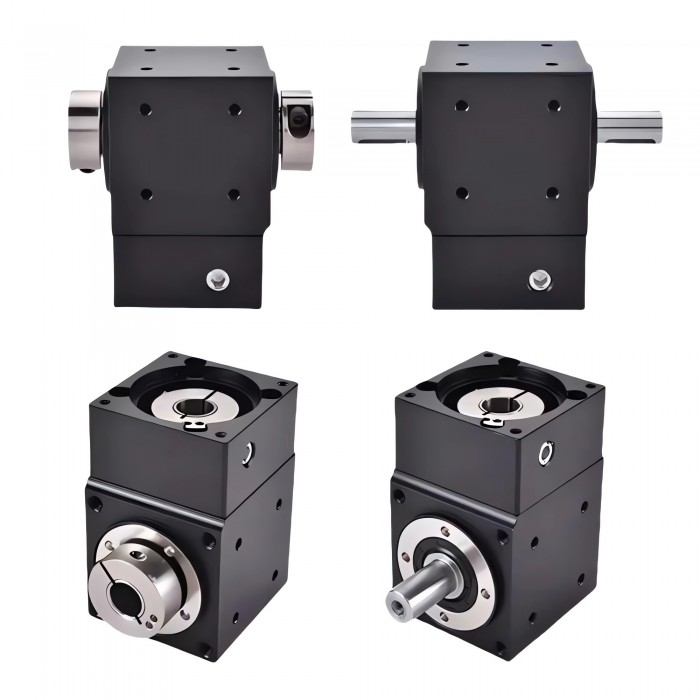

Models:

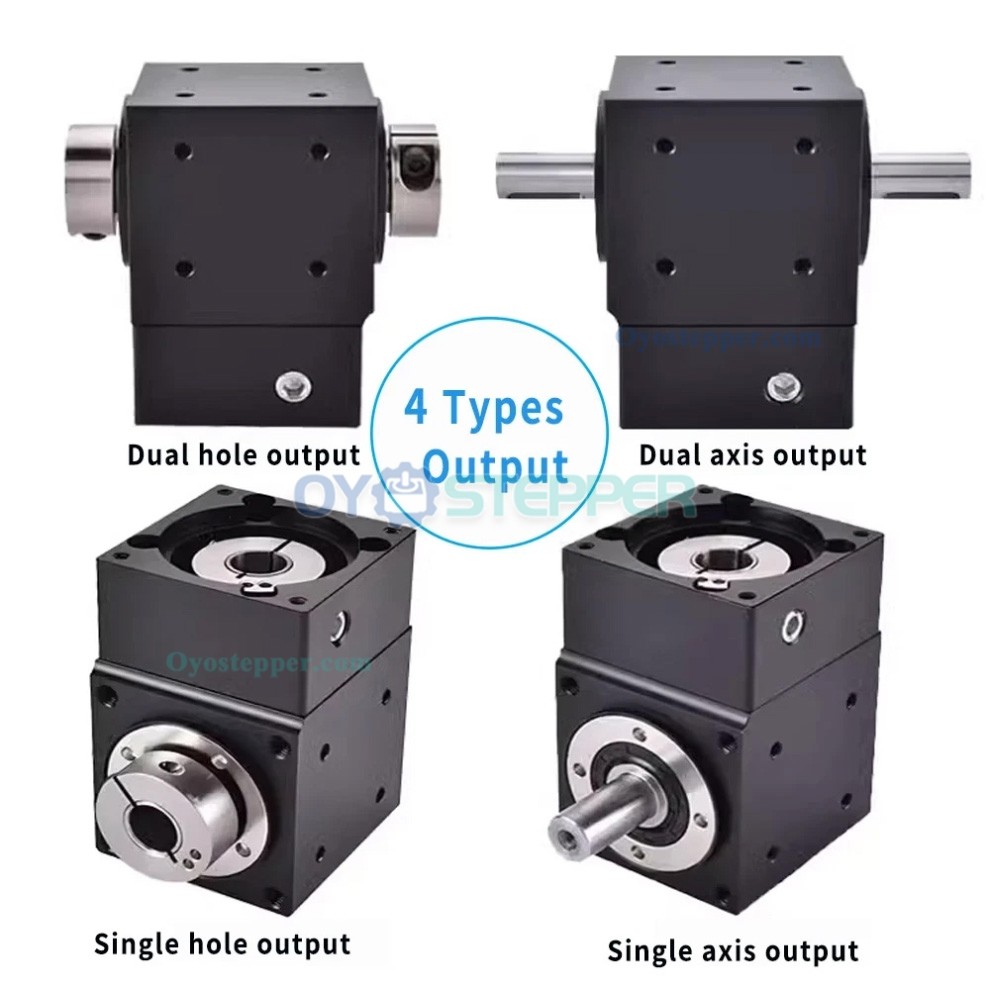

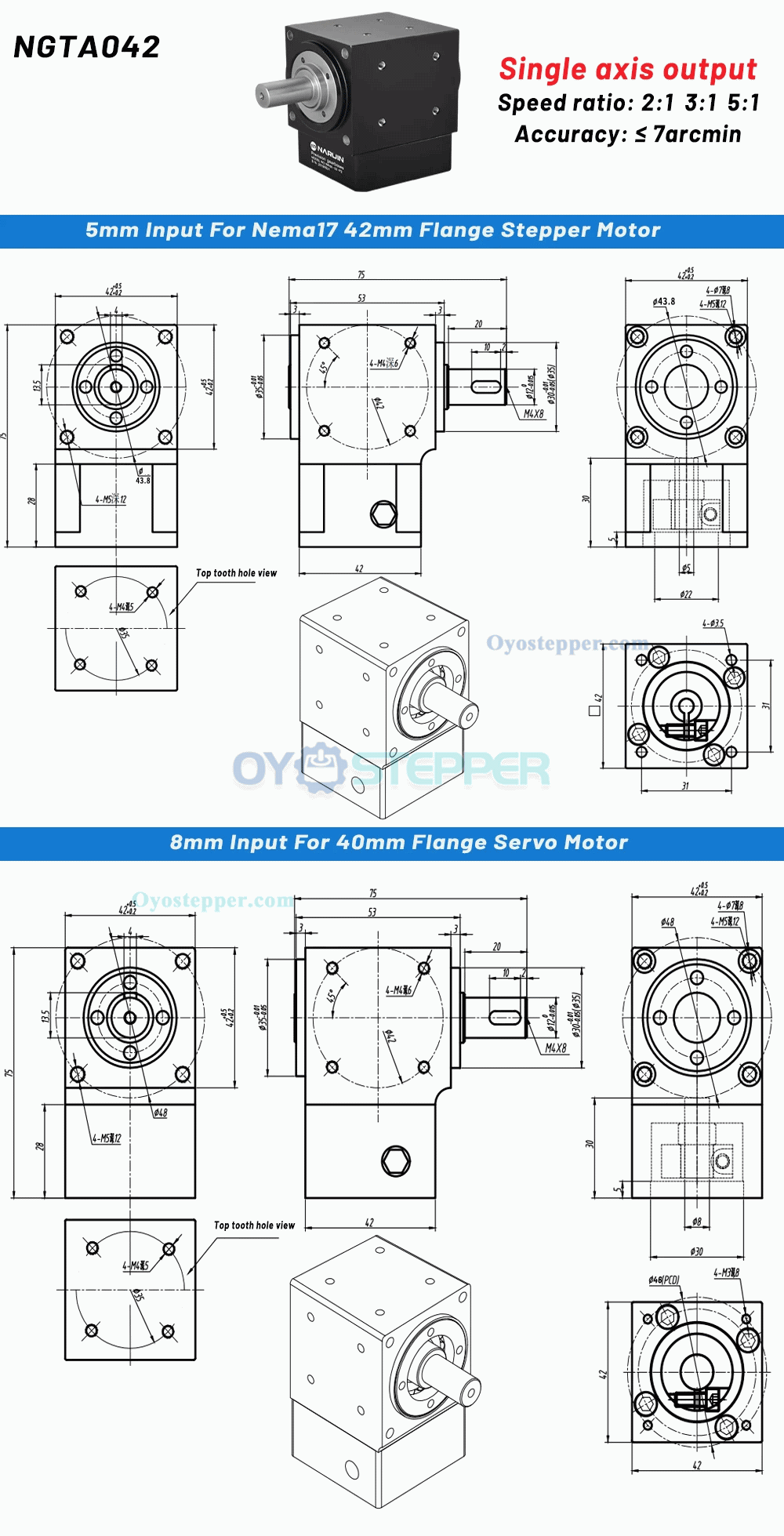

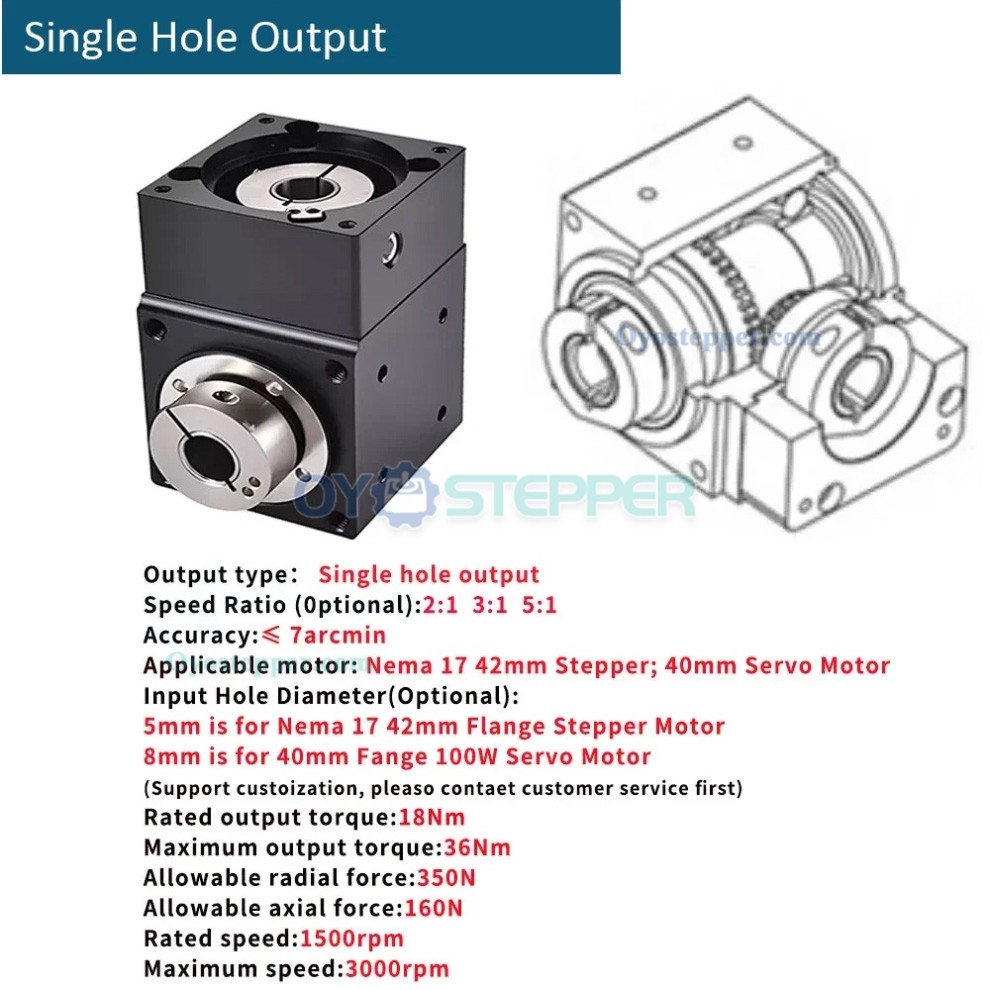

Single Shaft Output

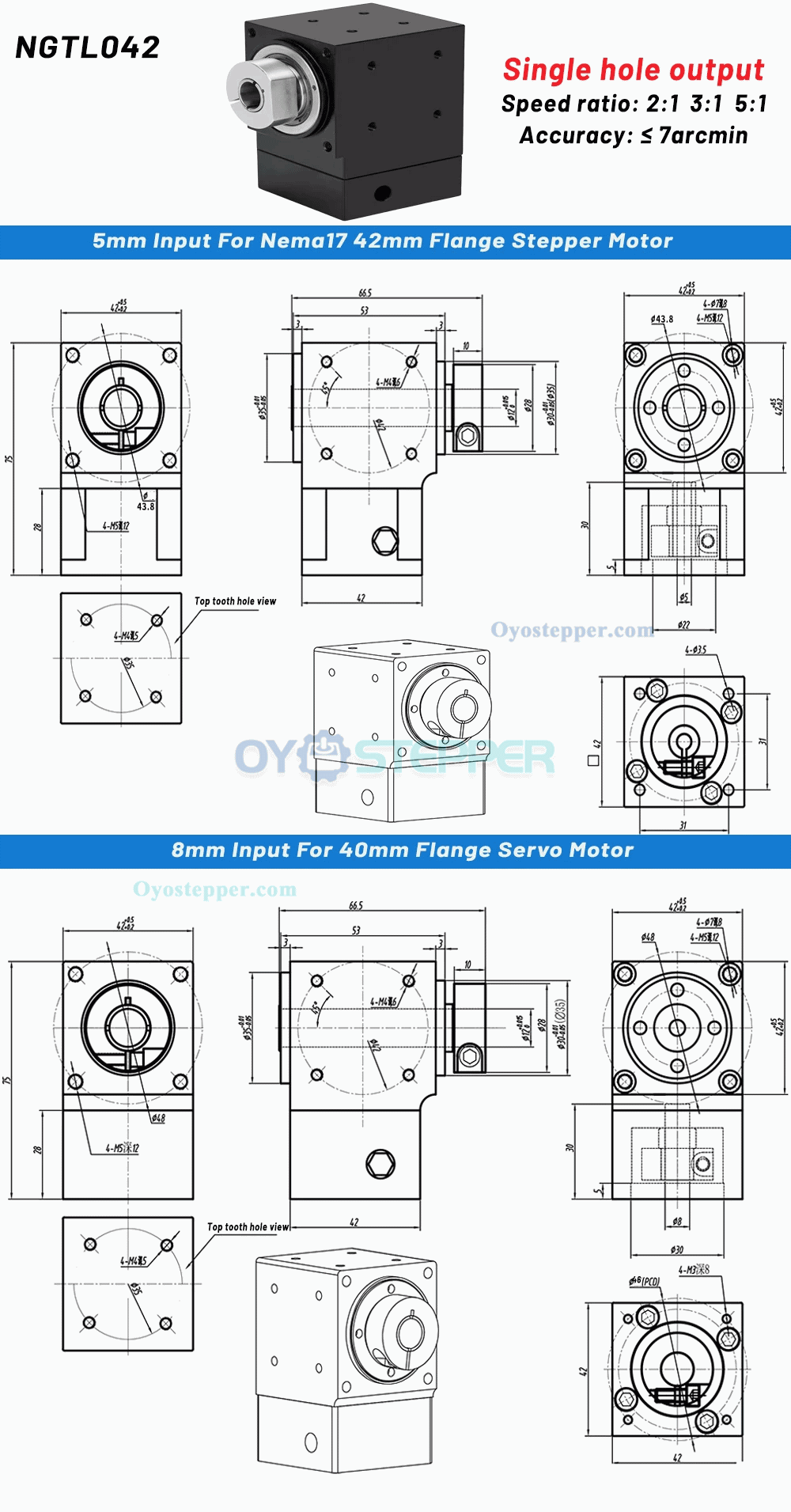

Single Hole Output

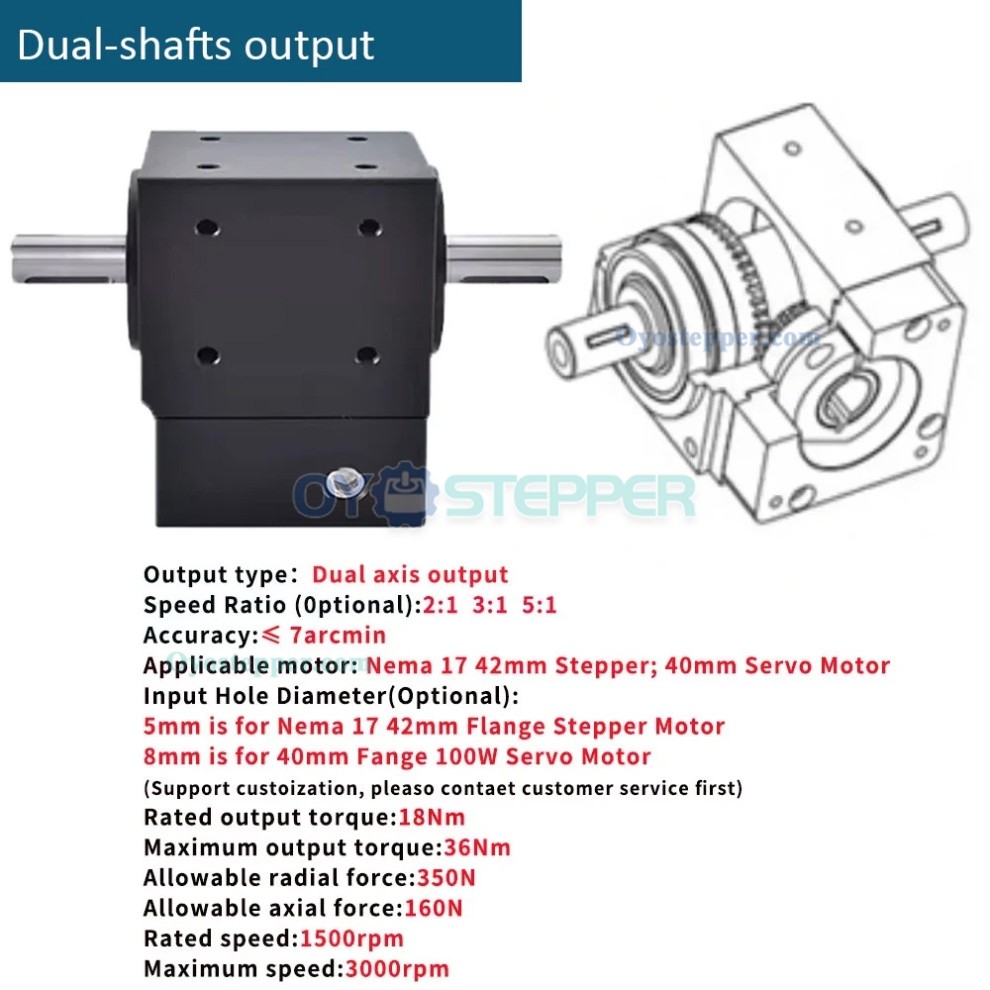

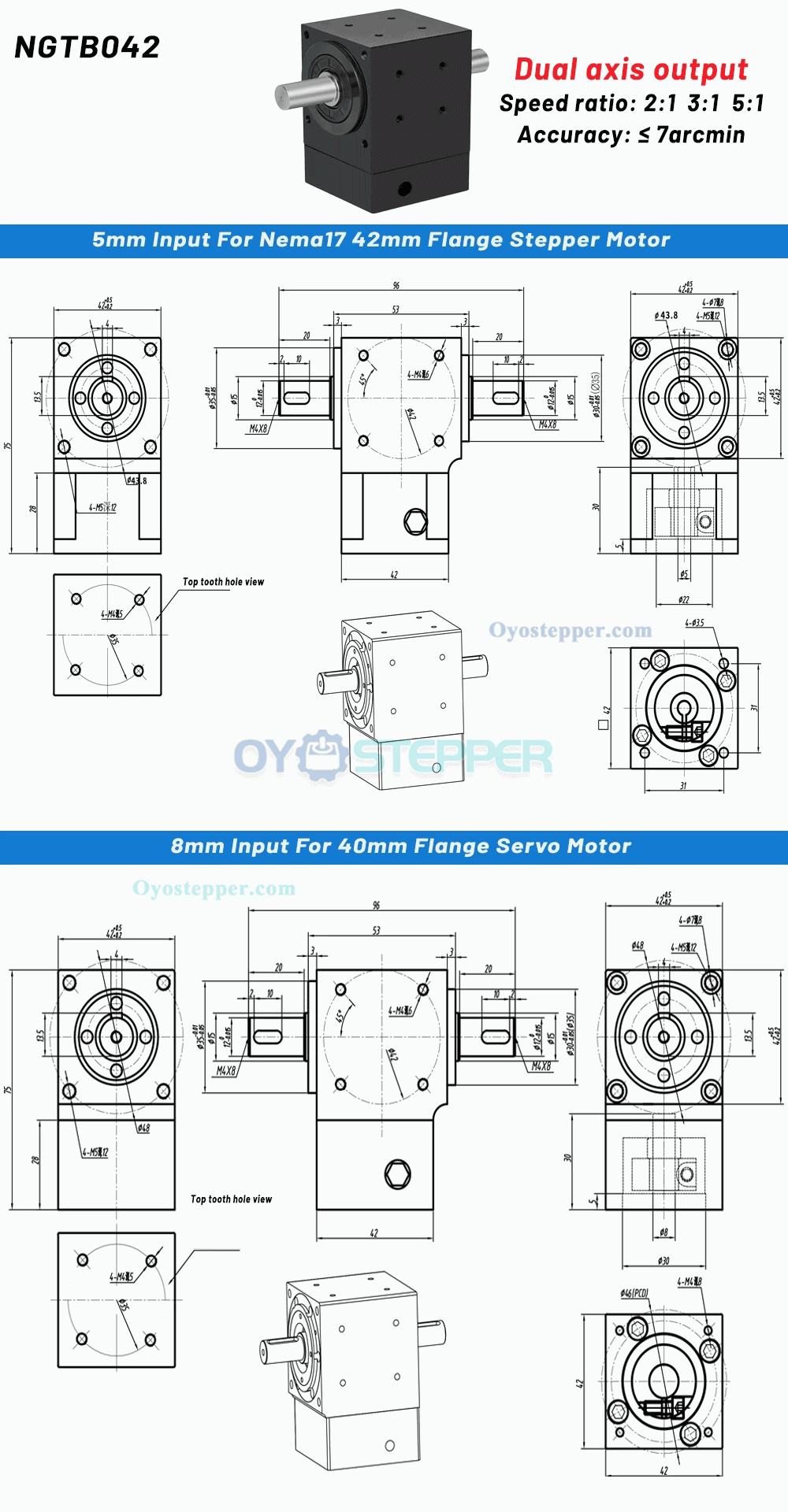

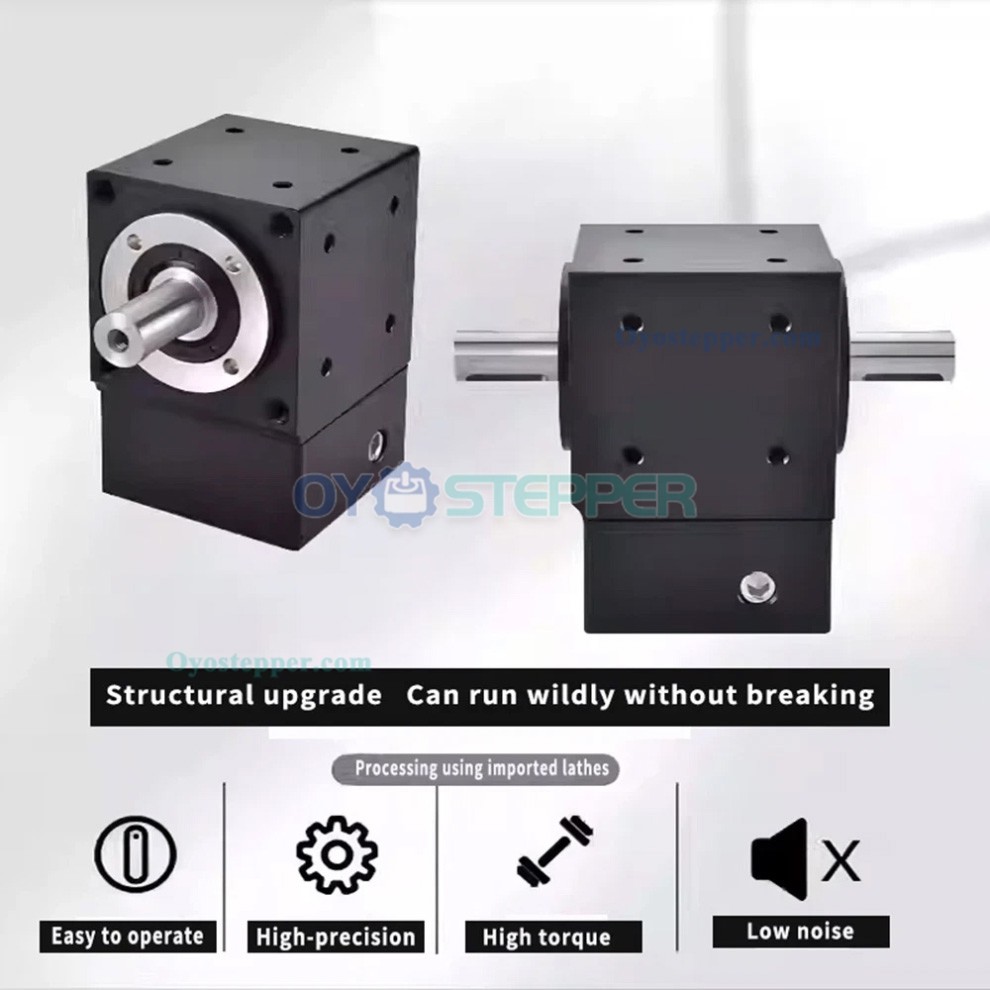

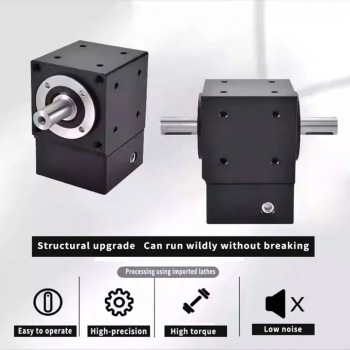

Double Shaft Output

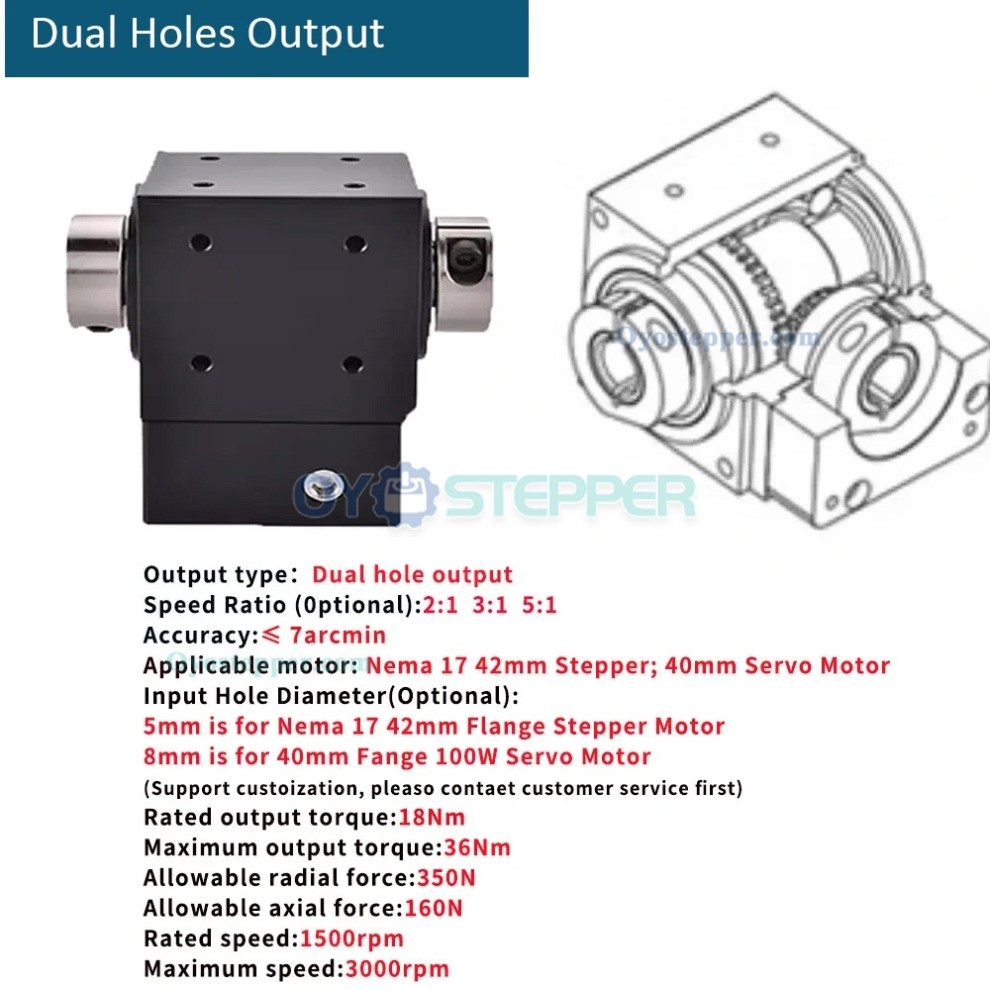

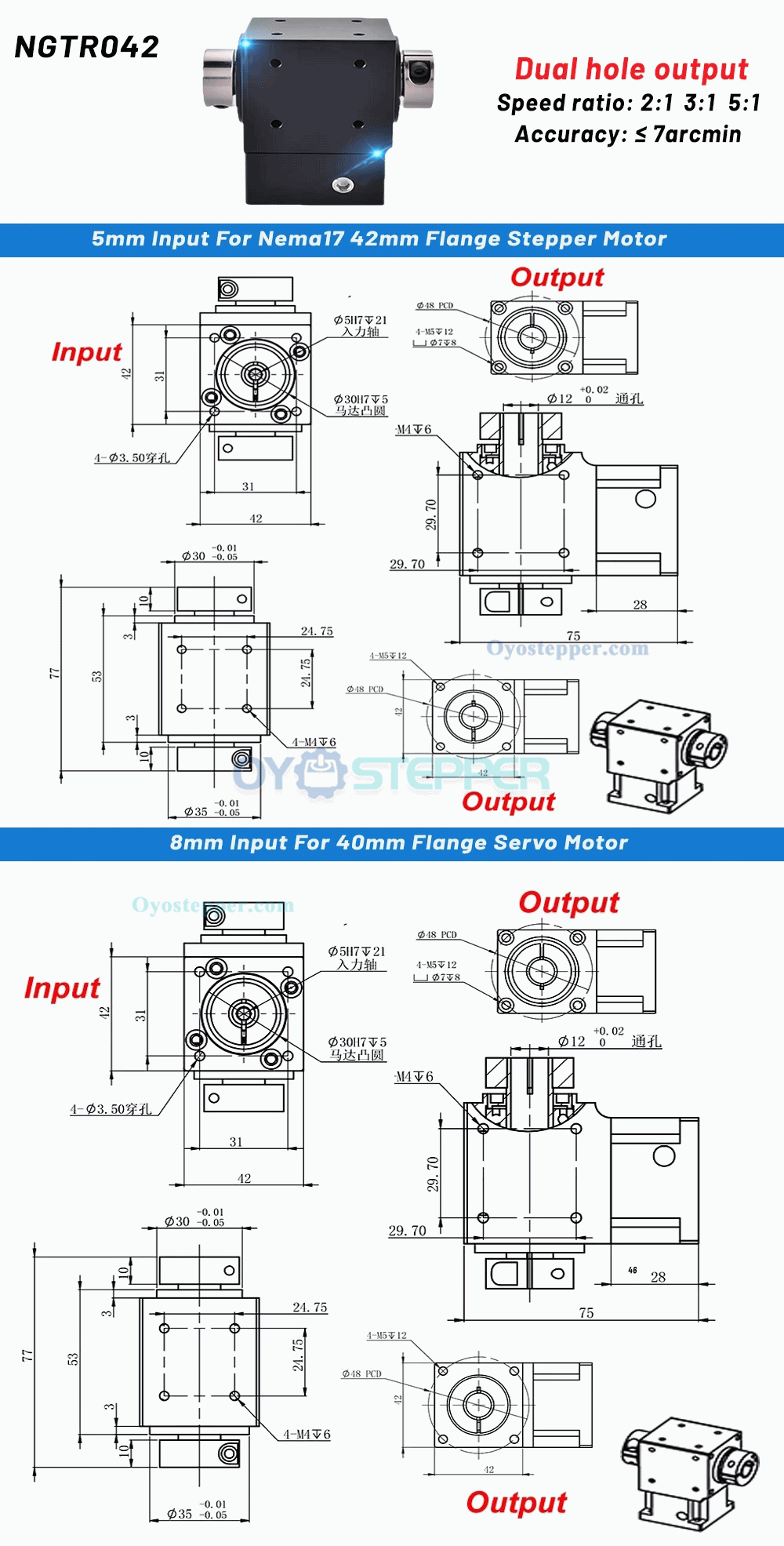

Double Hole Output



Description:

Right-angle gearbox, ≤7 arc-min backlash

Output options: single shaft, single hole, double shafts, double holes

Fits NEMA 17 (42mm) stepper motors

Max speed: 3000 rpm

Max torque: 18 Nm

IP65 protection

NEMA 17 hole output, 5:1 ratio, 1500 rpm rated speed

Moment of inertia: 0.08 kg·cm²

Axial load capacity: 160 N

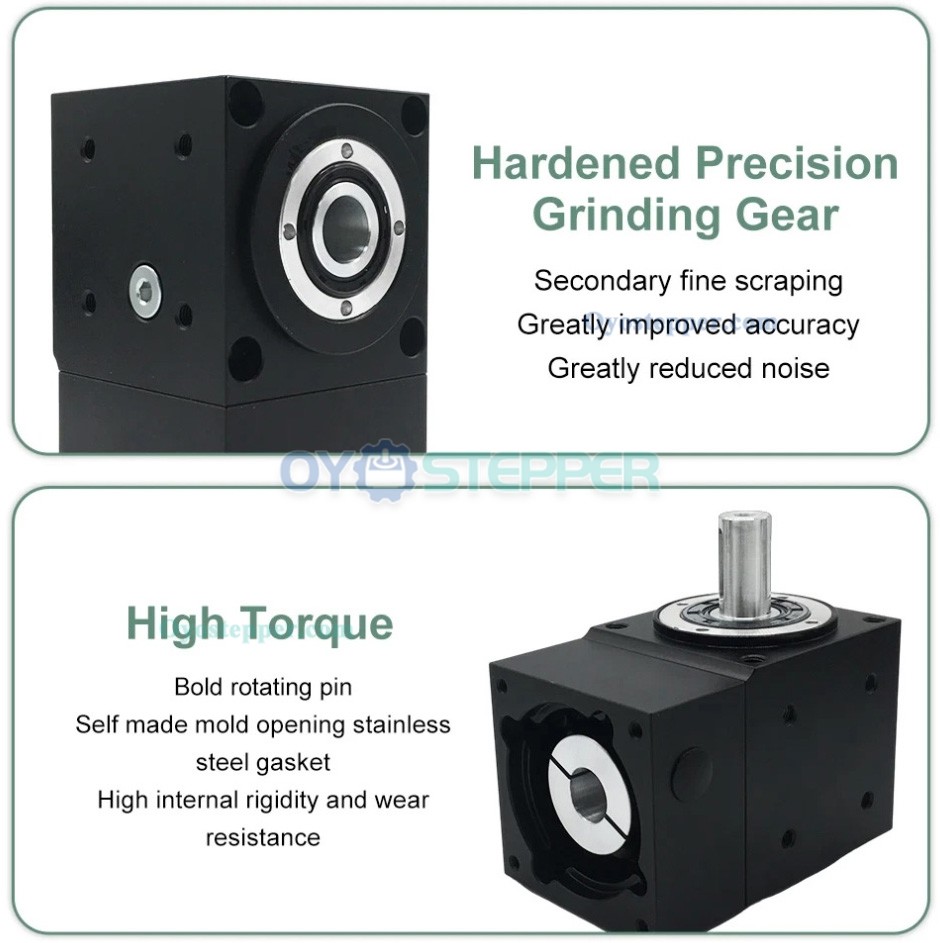

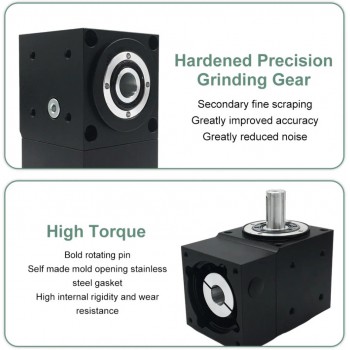

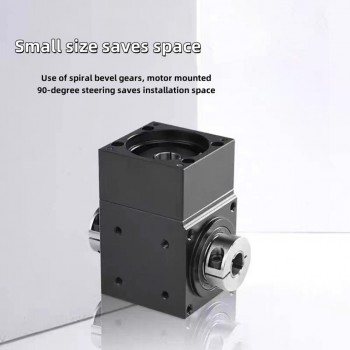

Spiral bevel gears, 90° transmission, saves space;

Applications:

Industrial Automation: Robotic arms, conveyor systems, pick-and-place machines.

CNC & Machinery: Rotary tables, spindle drives, milling equipment.

Packaging & Printing: High-speed labeling, cutting, and winding mechanisms.

Parameters:

Rated output torque (Nm): 18

Maximum output torque (Nm): 36

Rated speed (rpm): 1500

Maximum speed (rpm): 3000

backlash(arcmin): 7

Allowable radial force (N): 350

Allowable axial force (N):160

Moment of inertia (Kg. cm ²): 0.08

Work efficiency: 97

Service life h ≥ 20000

Operating environment temperature: ° C -20~+90

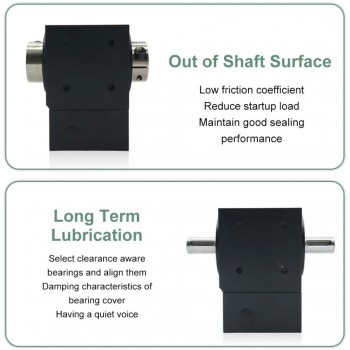

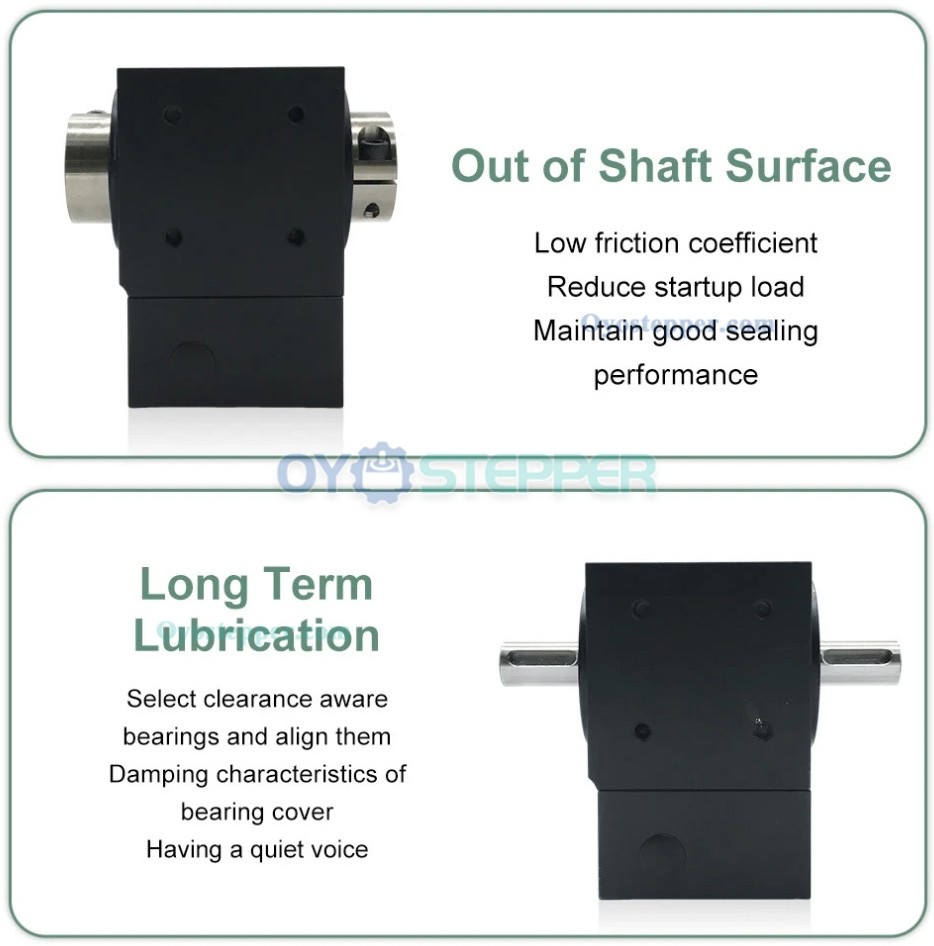

Lubrication method (Lup): Long term lubrication

Protection level (PC): IP65

Noise Db ≤ 62;
