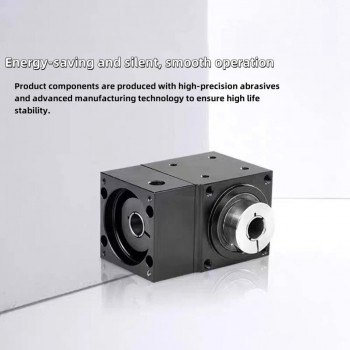

Right Angle Bevel Gearbox Gear Speed Reducer Commutator for NEMA 34 Stepper/ 80mmServo Motor

Right Angle Bevel Gearbox Gear Speed Reducer Commutator for NEMA 34 Stepper/ 80mmServo Motor

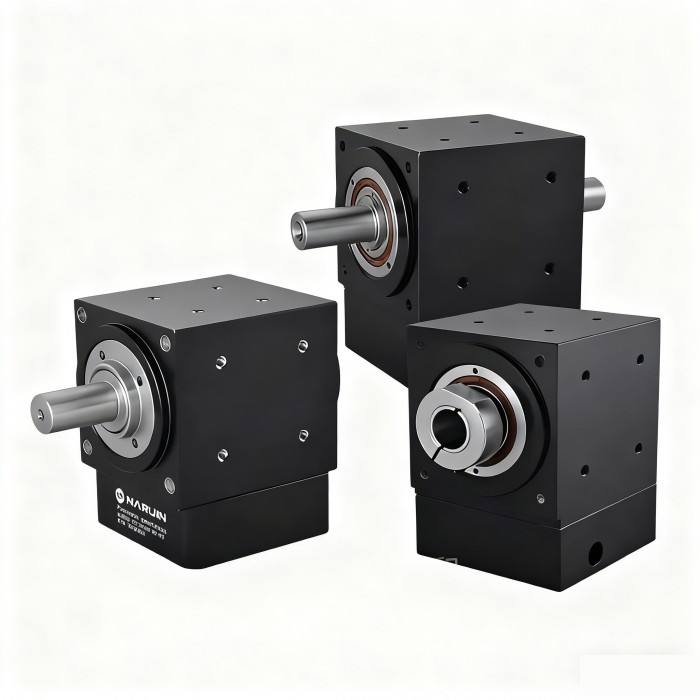

Models:

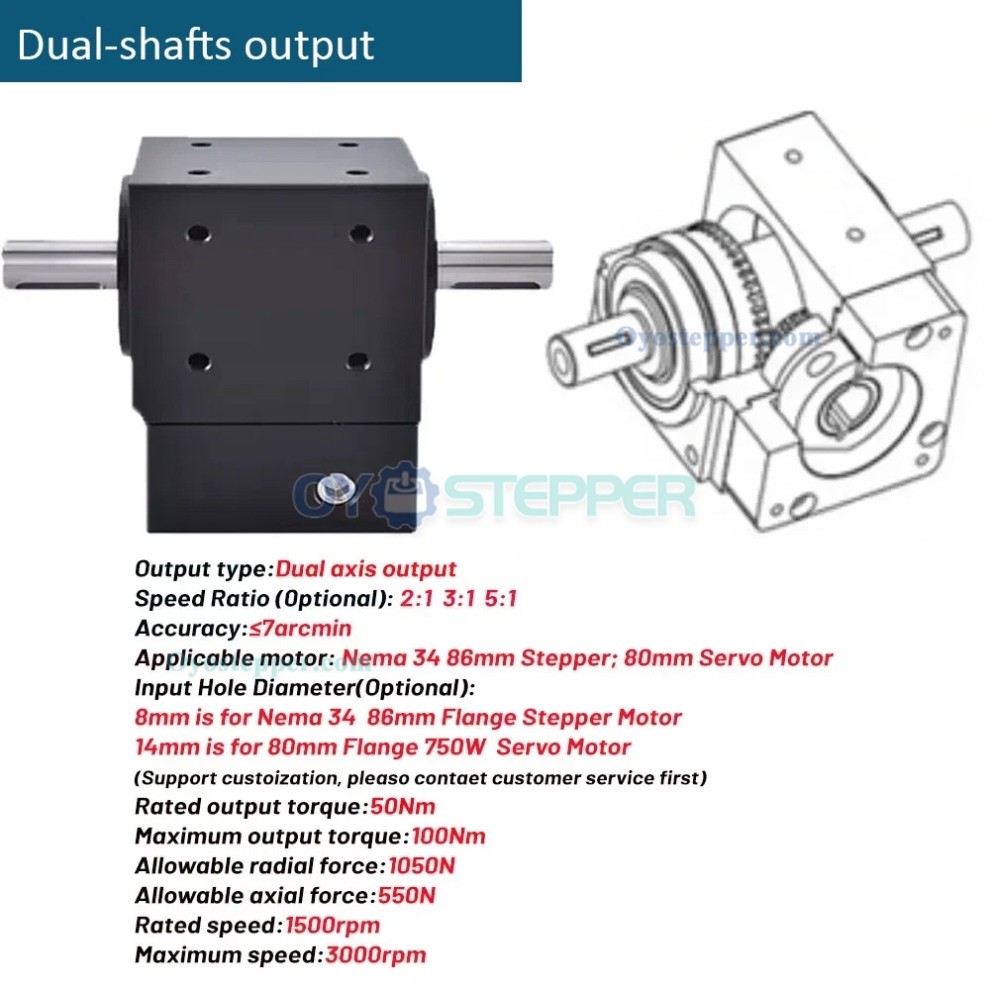

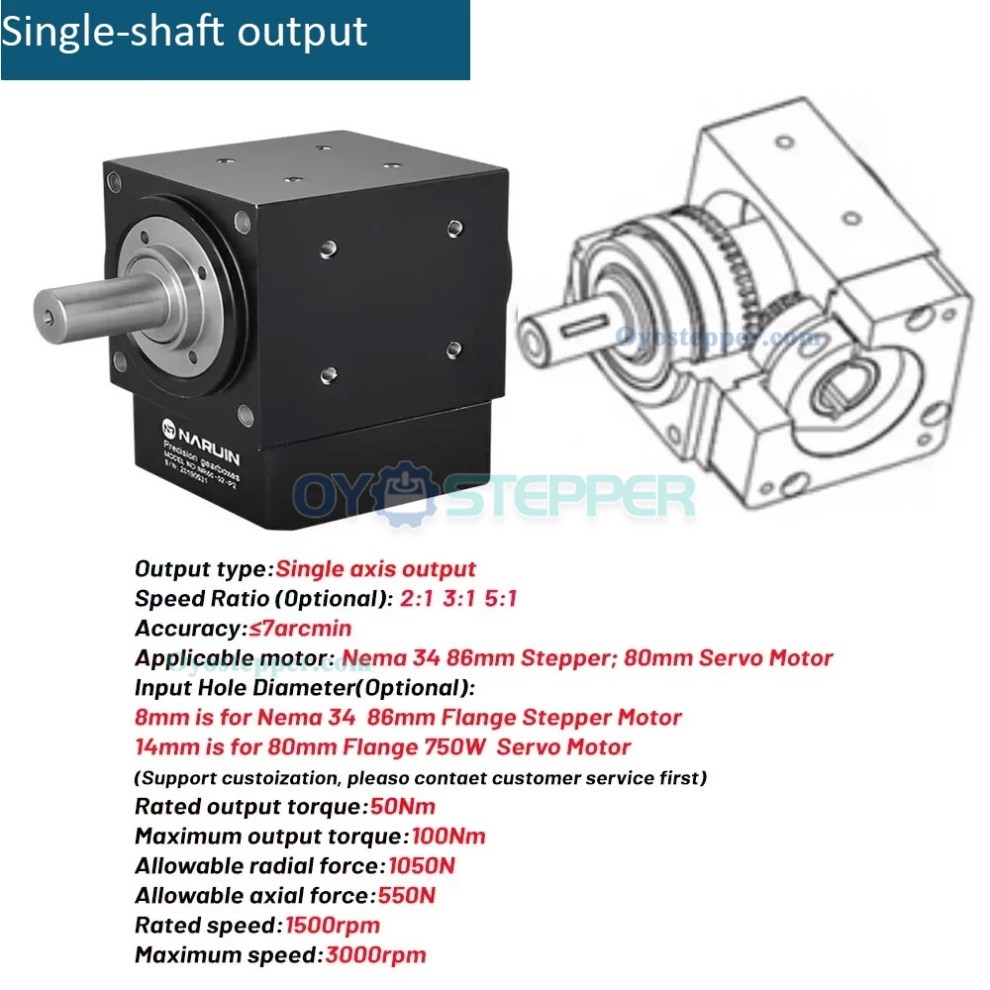

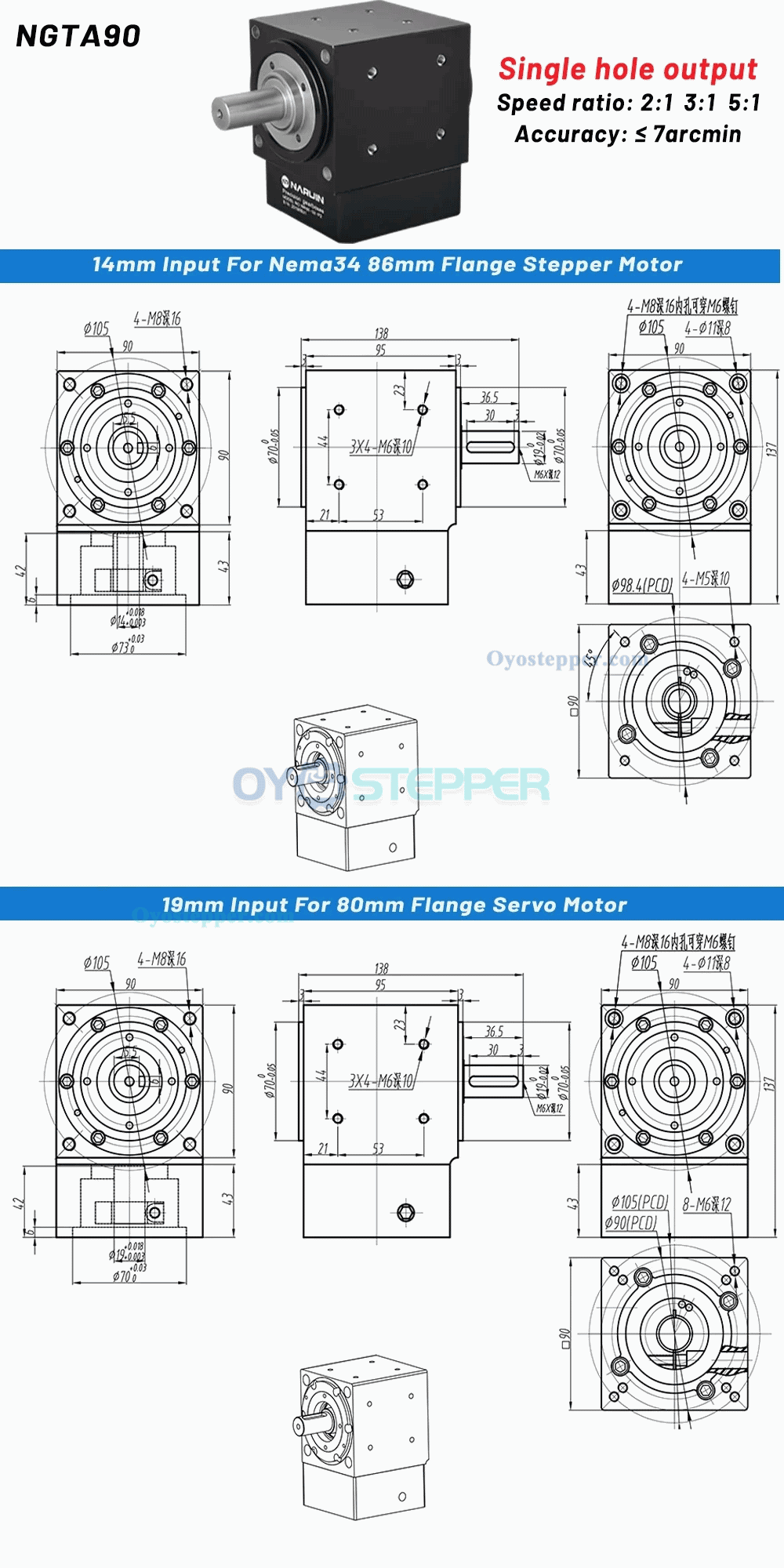

Single Shaft Output

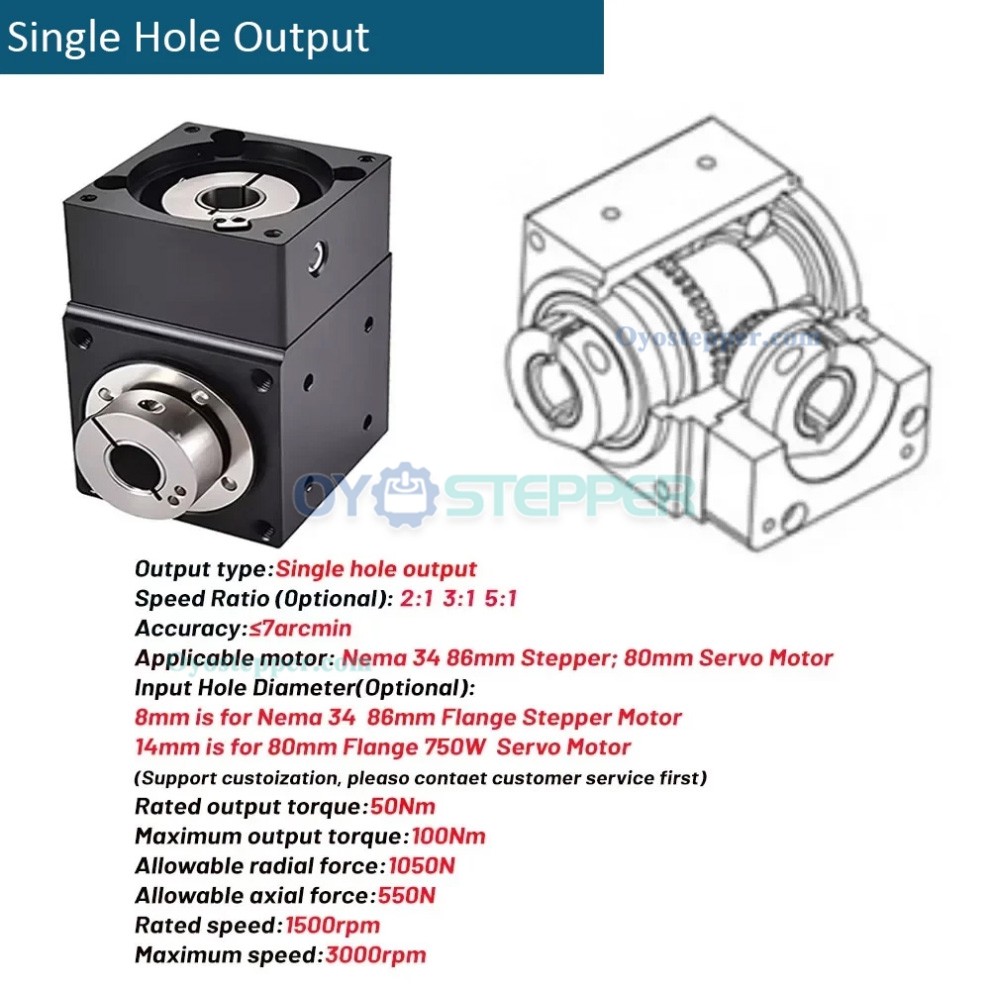

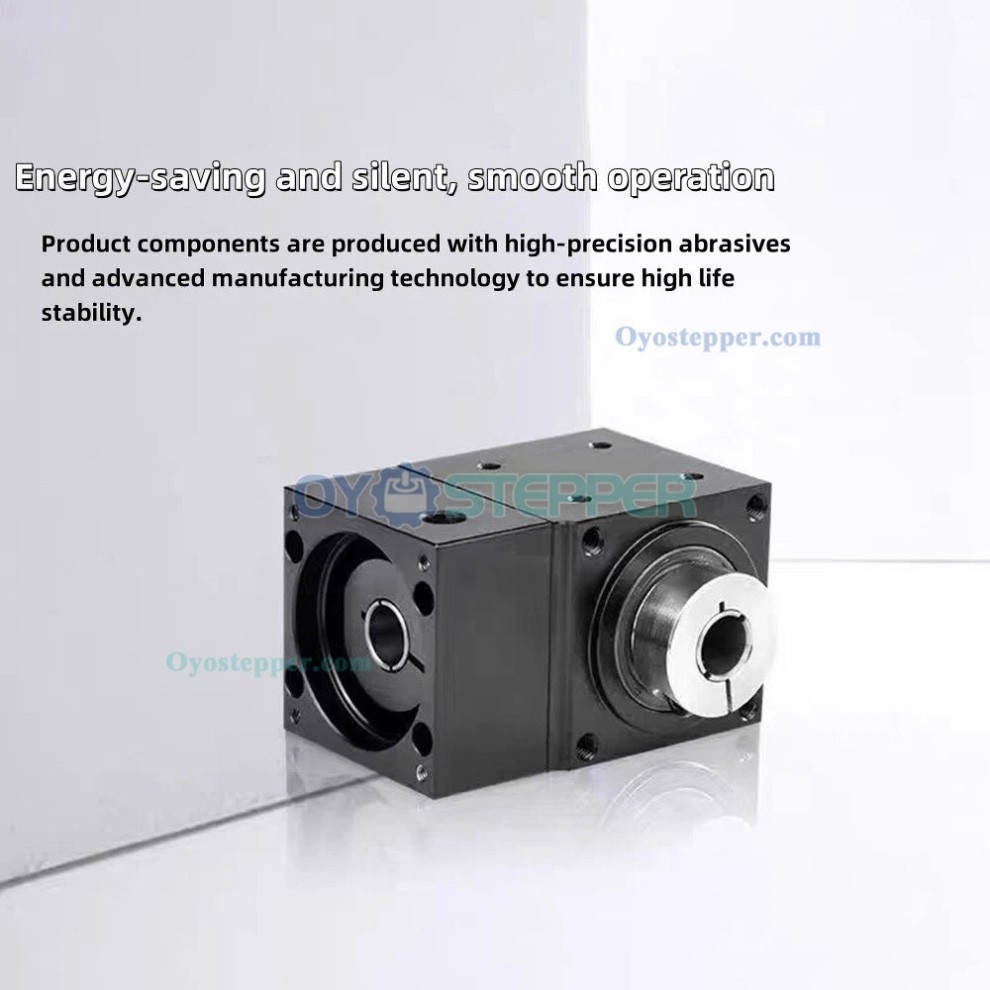

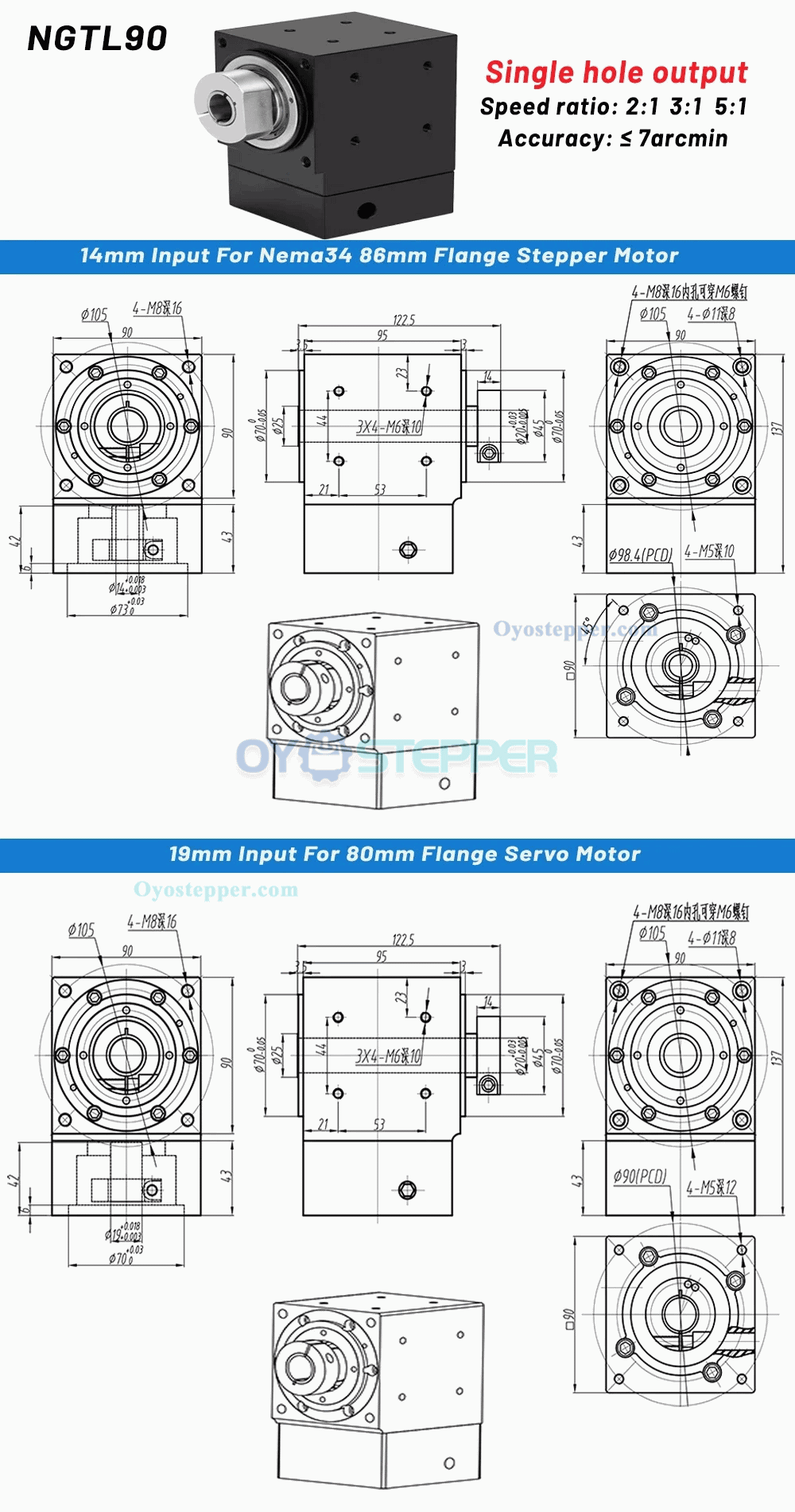

Single Hole Output

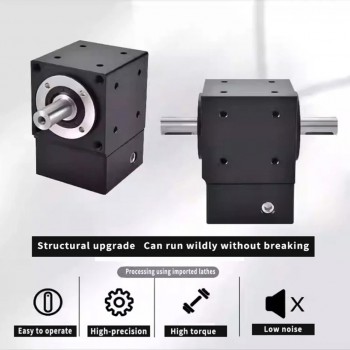

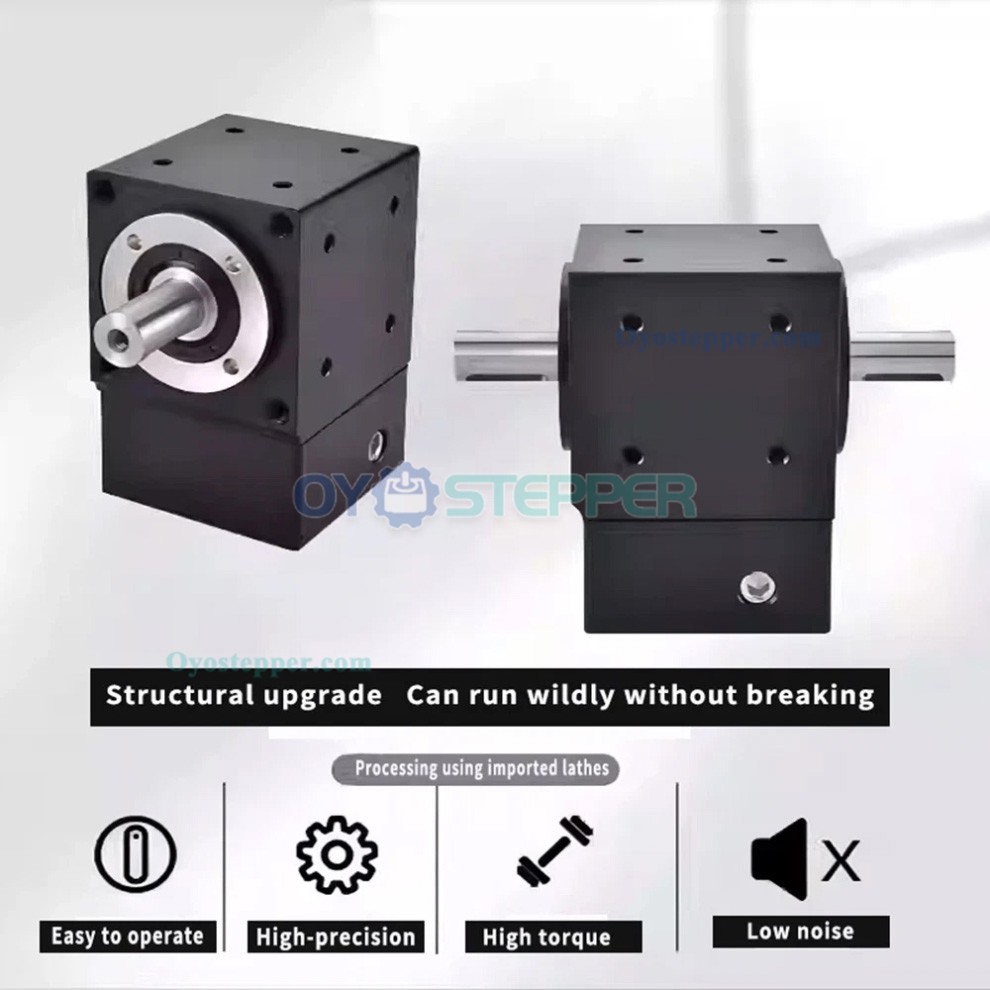

Double Shaft Output

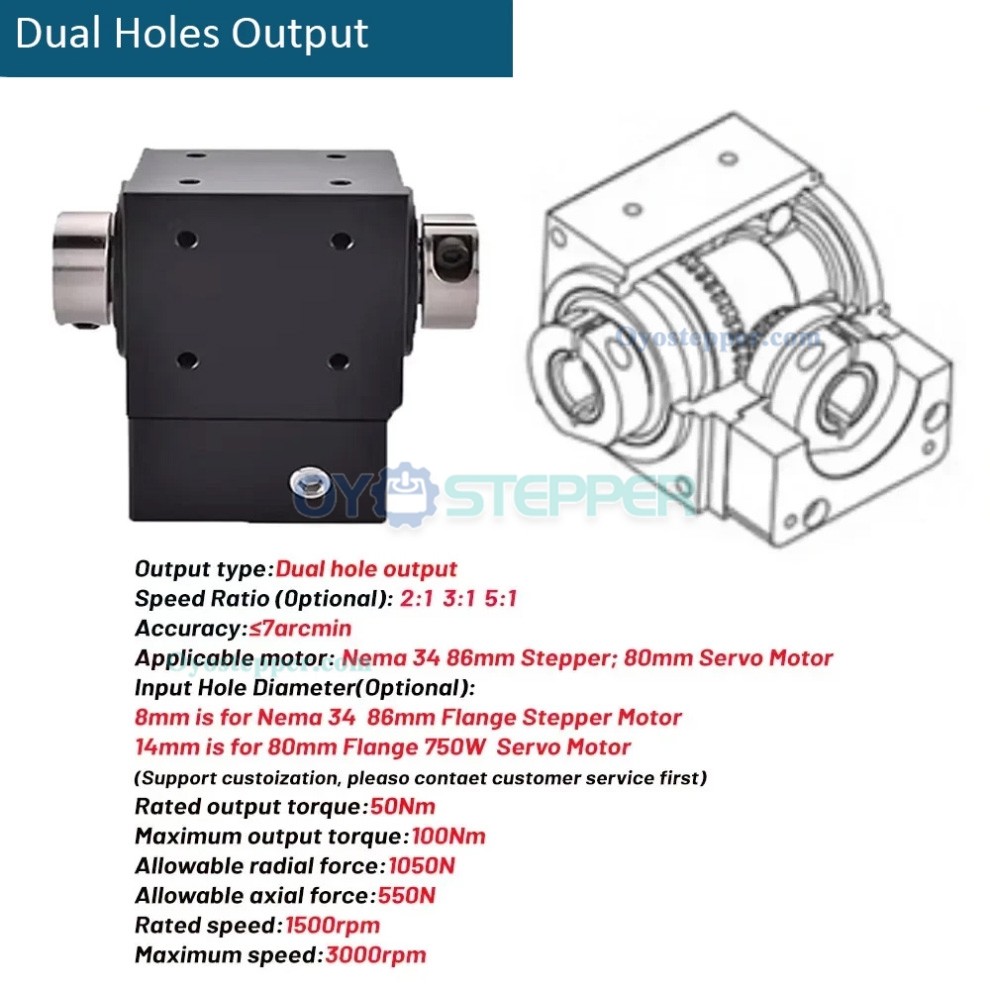

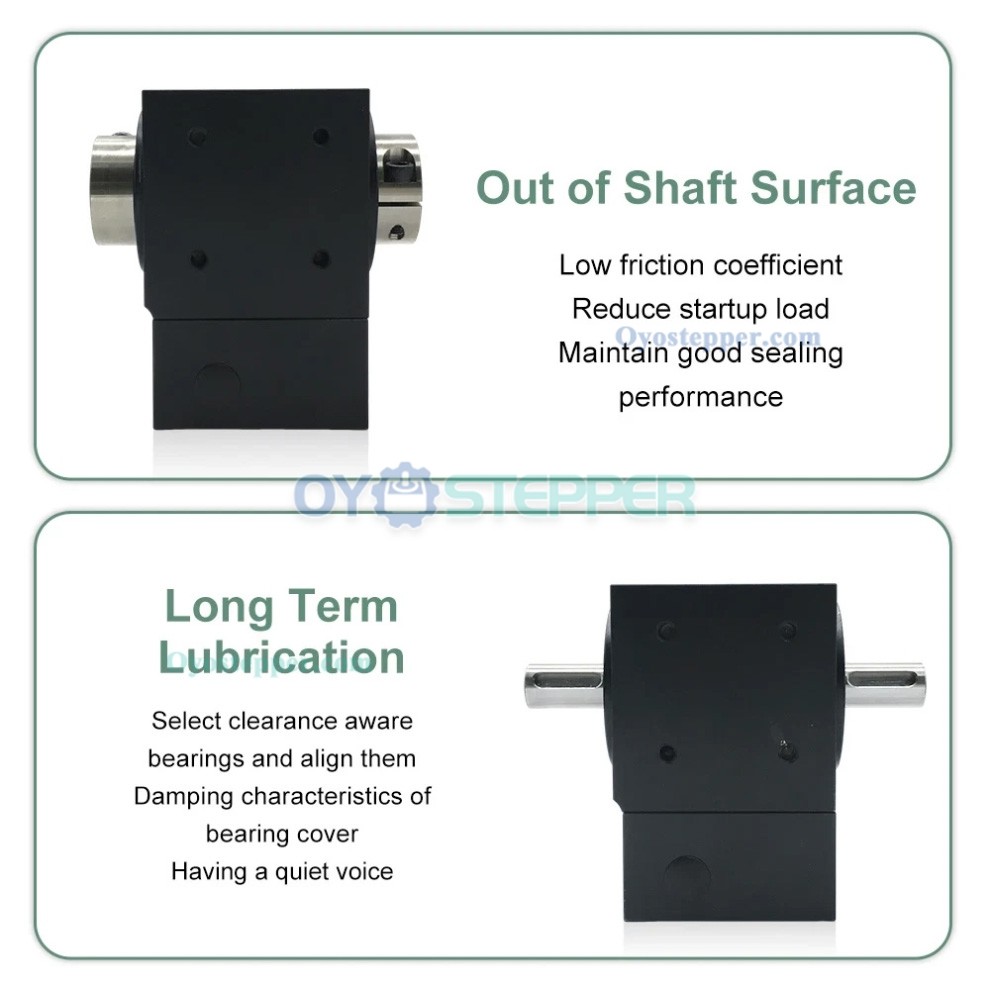

Double Hole Output

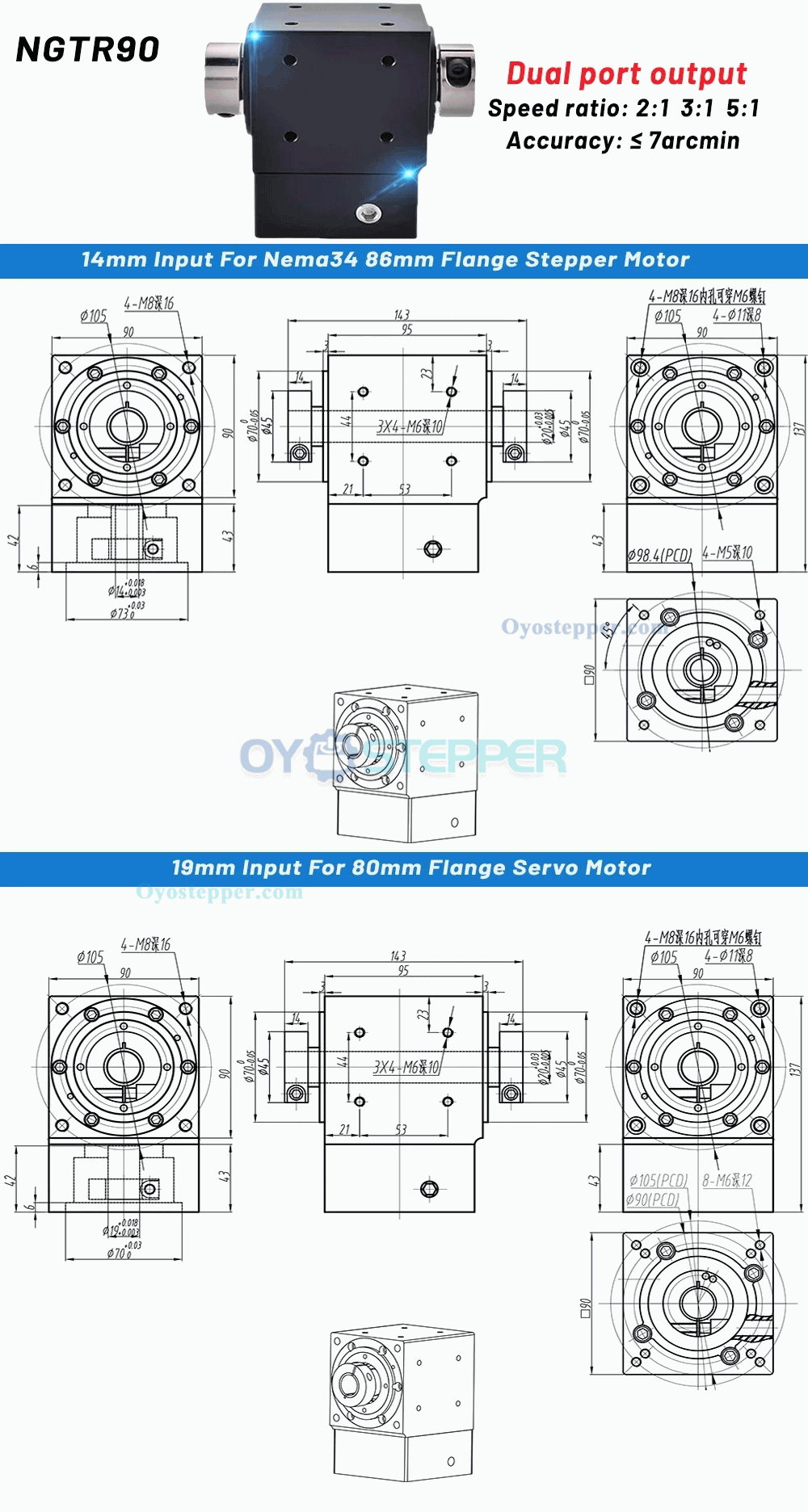

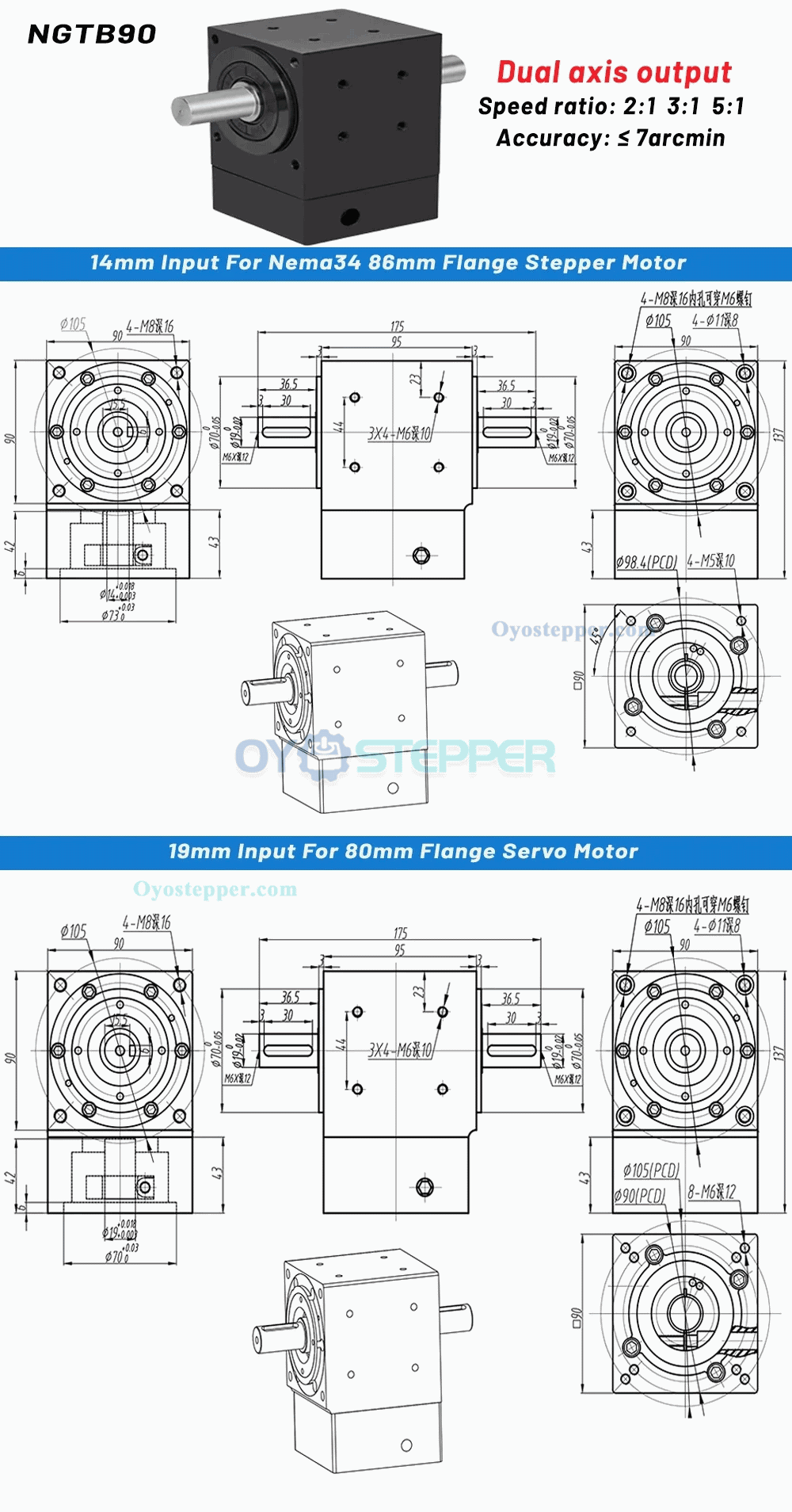

For Nema 34 Stepper Motor 14mm Shaft

For 80mm AC Servo Motor 19mm Shaft

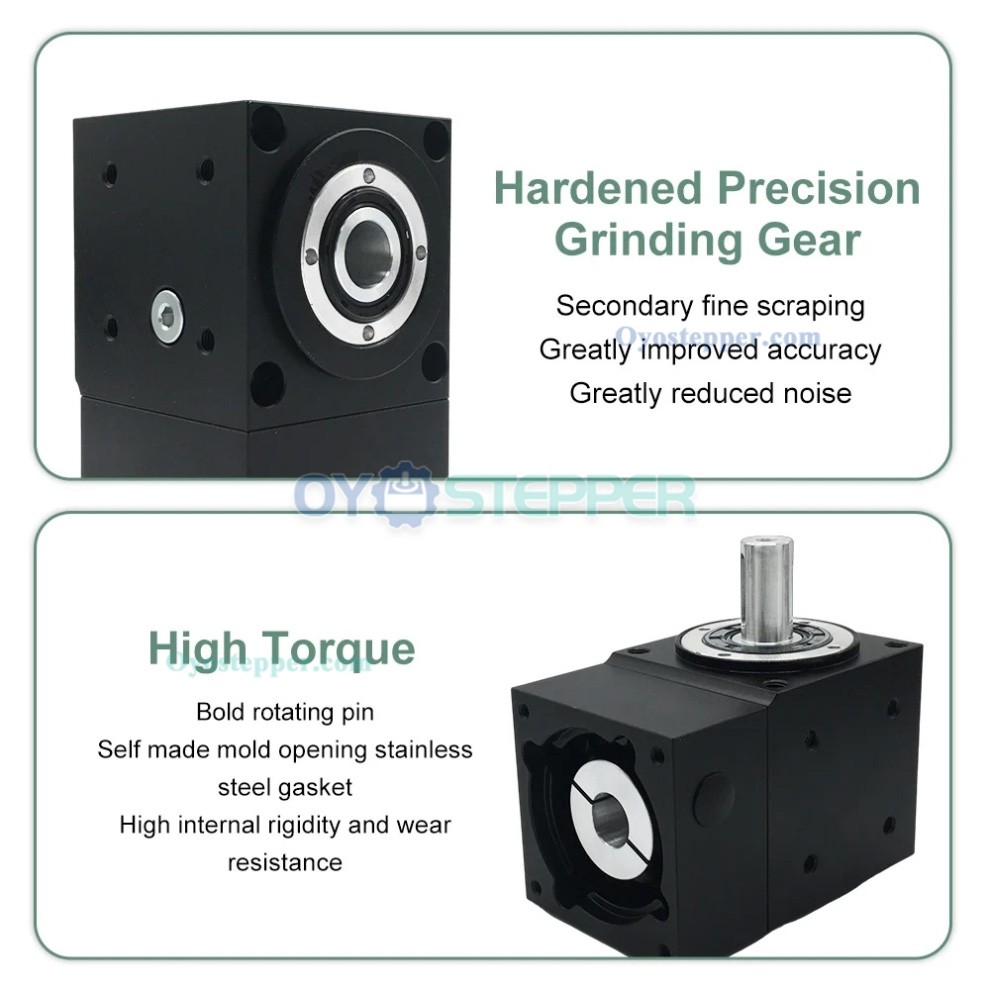

Features:

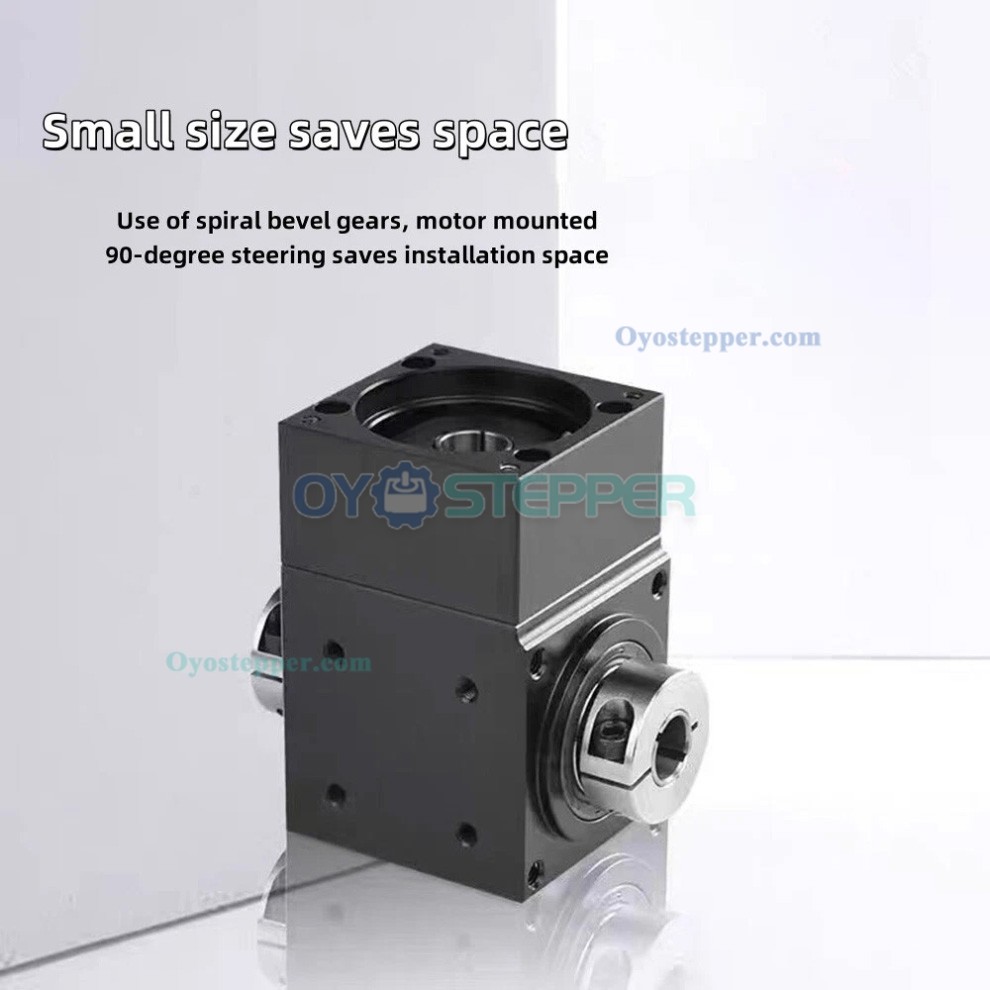

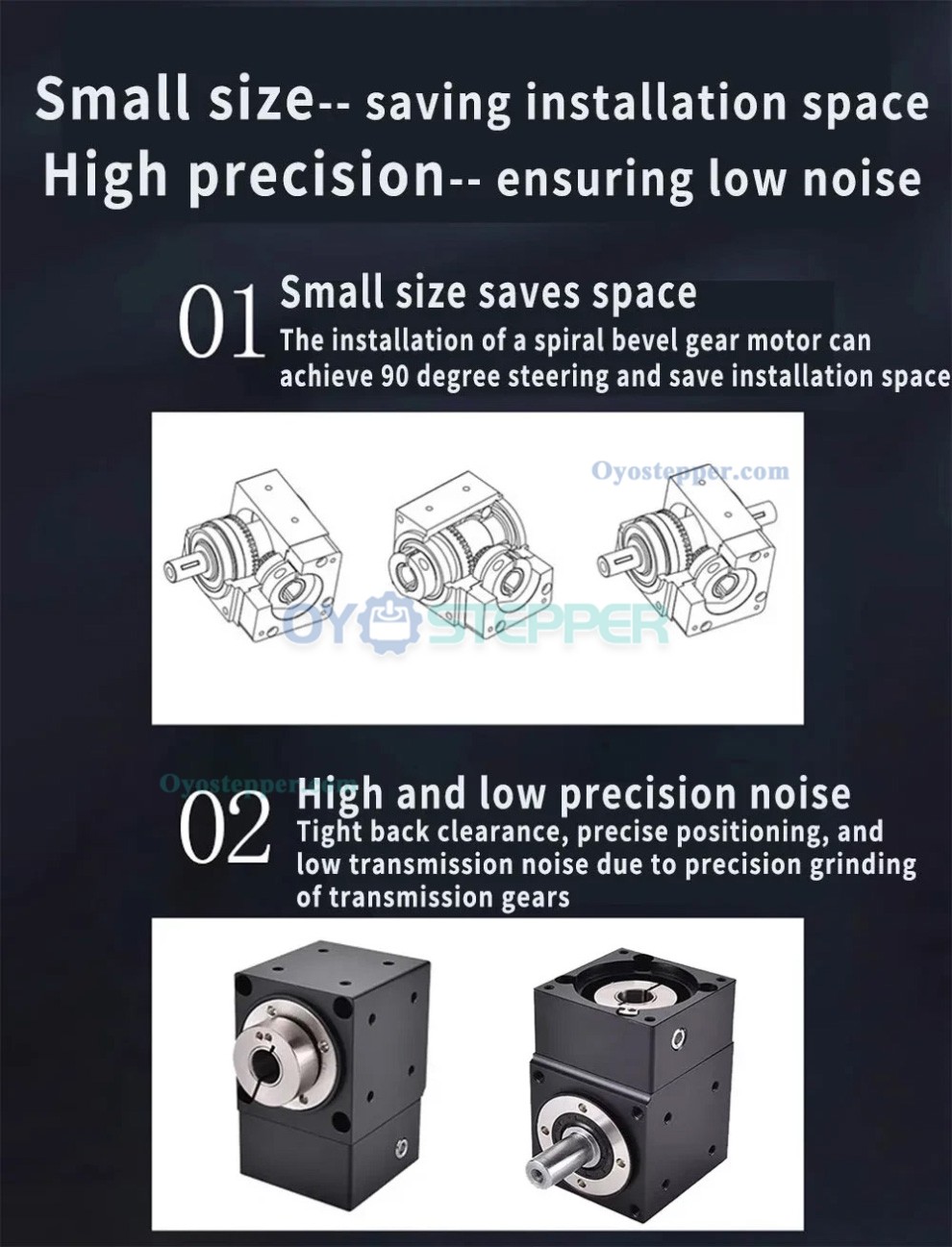

90° spiral bevel gear transmission

Backlash: ≤7 arcmin

IP65 protection rating

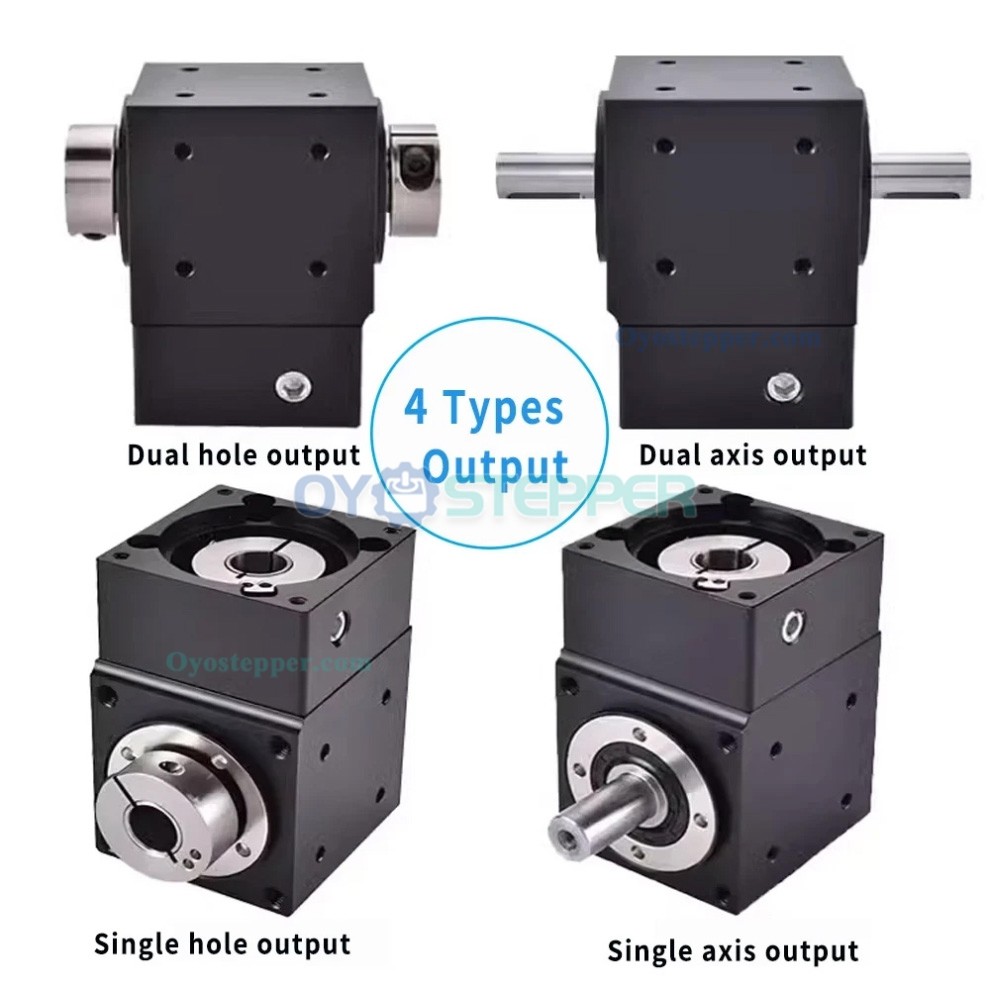

Output options: single shaft, single hole, double shafts, double holes;

Compatible with NEMA34 (86mm) stepper motors and 80mm servo motors

Available ratios: 2:1, 3:1, 5:1

Maximum speed: 3000rpm

Maximum output torque: 25Nm

NEMA34 Hole Output (5:1 Ratio):

Rated speed: 1500rpm

Moment of inertia: 0.08kg·cm²

Allowable axial force: 160N

Applications:

Industrial robotics, conveyors, pick-and-place

CNC rotary tables, spindle drives, milling

Packaging, printing, labeling, cutting, winding.

Parameters:

Rated output torque (Nm): 50;

Maximum output torque (Nm): 100;

Rated speed (rpm): 1500;

Maximum speed (rpm): 3000;

Backlash(arcmin): 7;

Allowable radial force (N):1050;

Allowable axial force (N):550;

Moment of inertia (Kg. cm ²): 0.08;

Work efficiency: 97;

Service life h ≥ 20000;

Operating environment temperature: ° C -20~+90;

Lubrication method (Lup): Long term lubrication;

Protection level (PC): IP65;

Noise Db ≤ 62;
