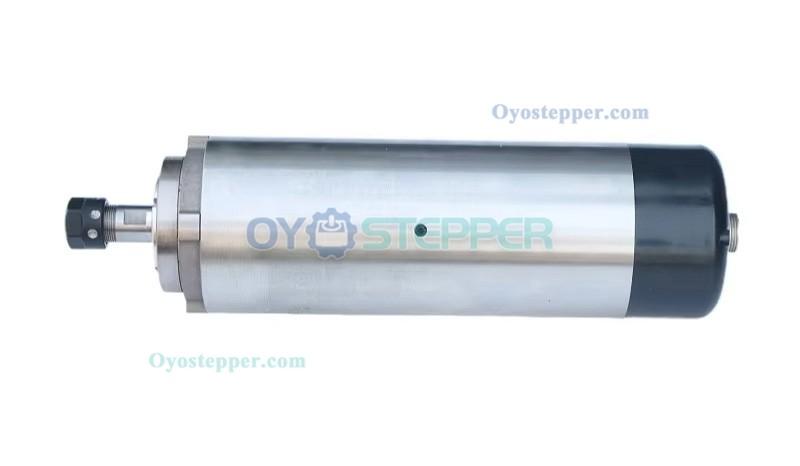

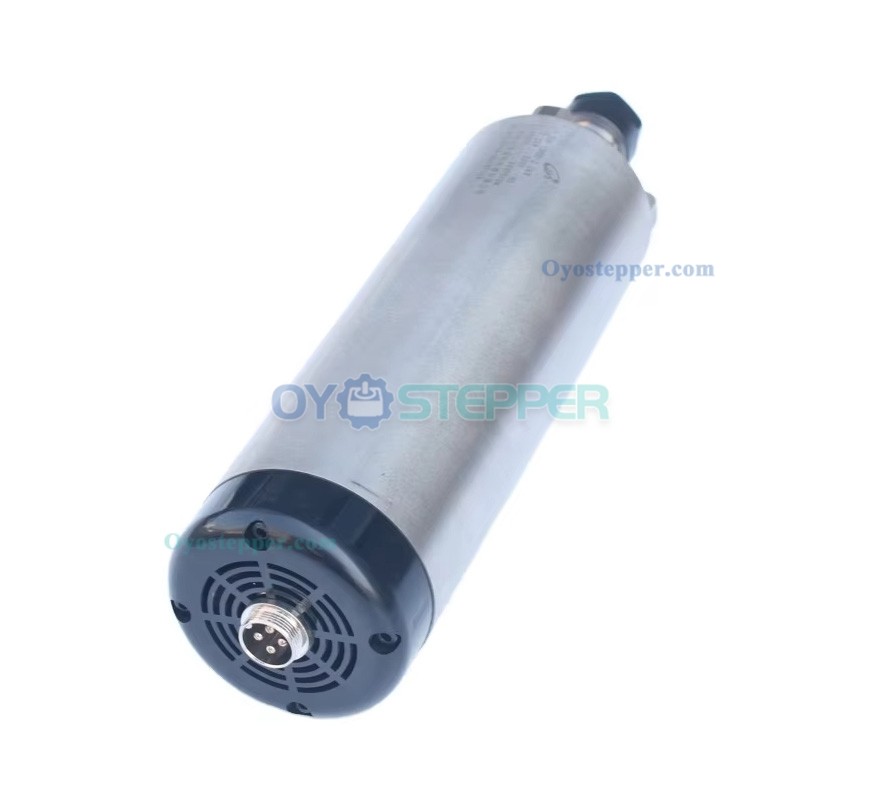

Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router
Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router
Specifications:
Model: JGF-F80E-2.2KW
Rated Power: 2.2KW
Rated Speed: 24000 RPM
Rated Voltage: 110V/220V/380V
Rated Current: 7.6A/4.4A
Frequency: 400 Hz
Collet Type: ER11
Cooling Method: Air Cooling
Lubrication: Grease
Weight:5.6KG
.jpg "Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router")
.jpg "Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router")
(1).jpg "Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router")
 (2).jpg "Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router")
 (1).jpg "Handi 80mm 2.2KW ER20 24000RPM Air Cooled CNC Spindle Motor for Wood Engraving Cnc Router")

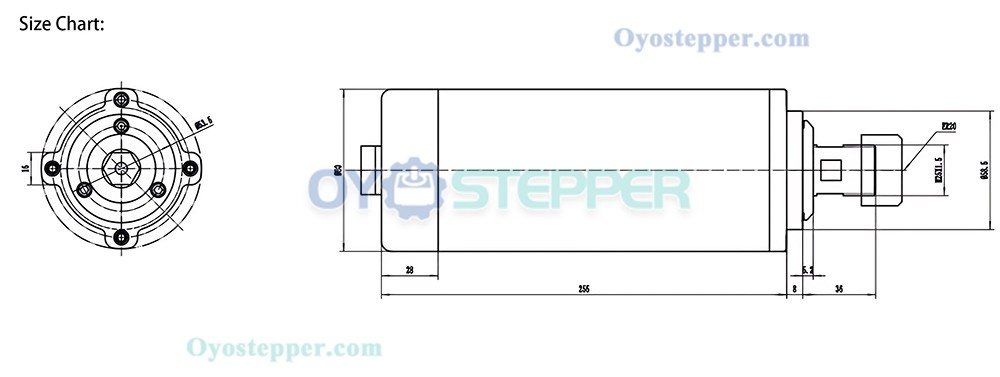

| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Body Length(mm) | 256 |
| Collet Size | ER11 |
| Cooling | Air Cooled |
| Current(A) | 7.6 / 4.4 |
| Diameter(mm) | 80 |
| Frequency(Hz) | 400 |
| Shape | Round |
| Speed(RPM) | 24000 |
| Voltage(VAC) | 110 / 220 / 380 |
| Weight(Kg) | 5.6 |
| Power(Kw) | 2.2 |
