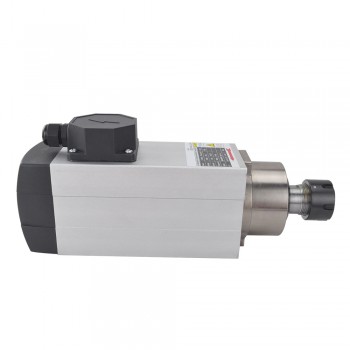

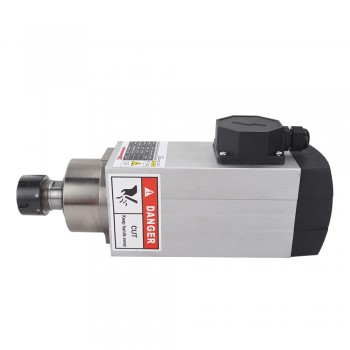

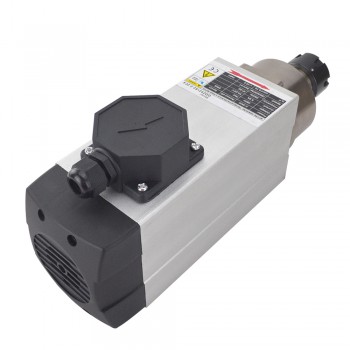

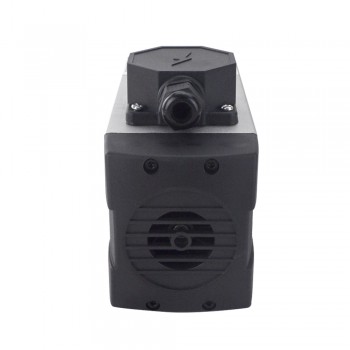

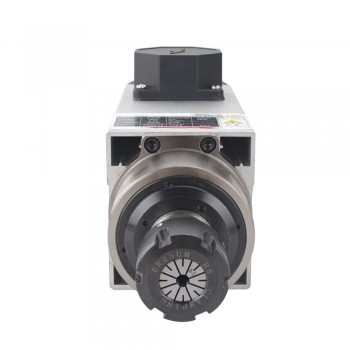

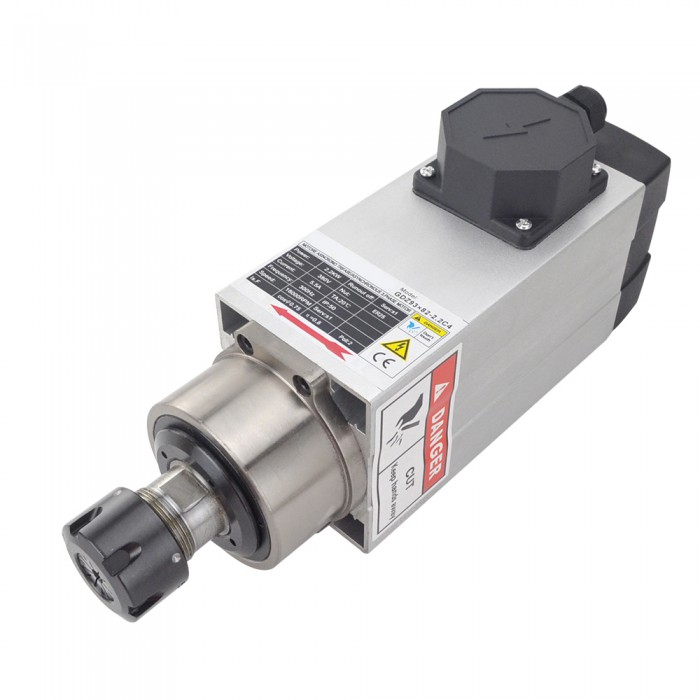

2.2KW Square Air Cooled Spindle Motor 380V 18000RPM 300Hz ER25 Collet CNC Engraving Router Milling Grinding Machine
Specification
Manufacturer Part Number: GDZ93×82-2.2C4
Material: Stainless steel
Size: 174x82(Length: 174 mm, Width: 82 mm)
Power: 2.2 KW
Voltage: 380 VAC
Current: 5.5 A
Frequency: 0 ~ 300 Hz
Speed: 0 ~ 18000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease

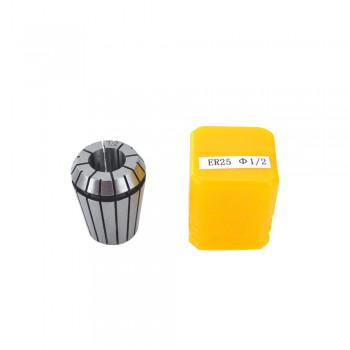

Collet size: ER25 Collet(6 mm, 12.7 mm)
Bearings: 2x7007(P4), 2x7002C(P4)
Weight: 7.5 kg
Resources
Manual: GDZ93×82-2.2C4.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Bearings | 2x7007(P4), 2x7002C(P4) |
| Body Length(mm) | 174 |
| Collet Size | ER25 |
| Cooling | Air cooled |
| Frequency(Hz) | 0 - 300 |
| Material | Stainless steel |
| Shape | Square |
| Speed(RPM) | 0 - 18000 |
| Voltage(VAC) | 380 |
| Weight(Kg) | 7.5 |
| Power(Kw) | 2.2 |
| Body Height(mm) | 93 |
| Body Width(mm) | 82 |
