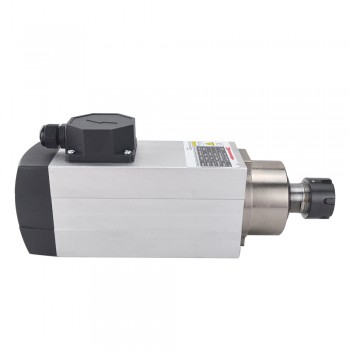

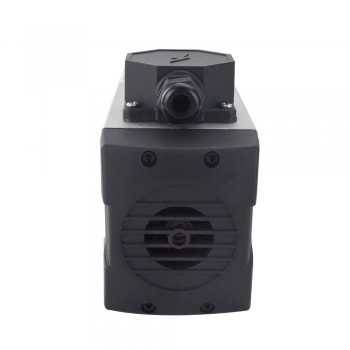

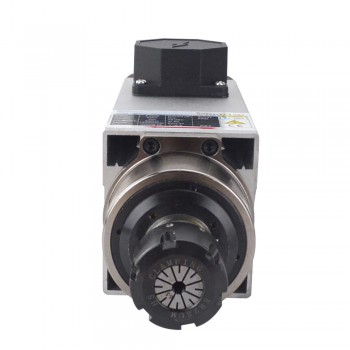

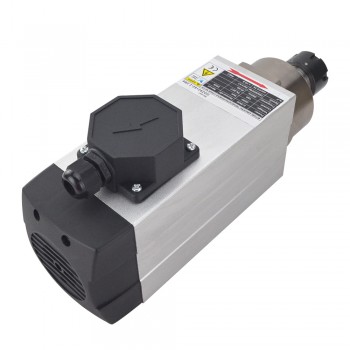

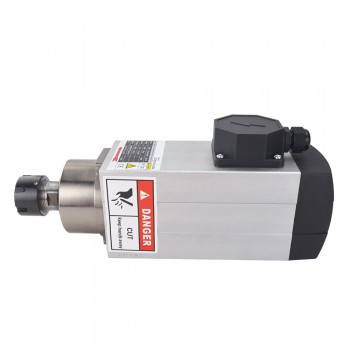

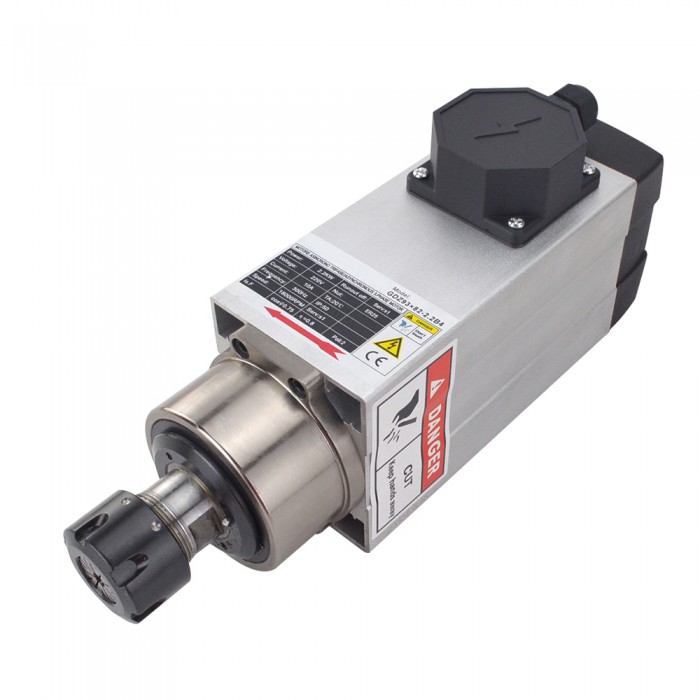

2.2KW Air Cooled Square Spindle Motor220V 10A 18000RPM 300Hz ER25 Collet CNC VFD AC Spindle Motor
- Manuals and Documentation: Manual:
Special Offer in June 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$379.89
This 2.2 kW air‑cooled spindle runs at 18,000 rpm on 220 VAC, features ER‑25 collet, and <0.005 mm runout.
Specification
Manufacturer Part Number: GDZ93×82-2.2B4
Material: Stainless steel
Size: 174x82(Length: 174 mm, Width: 82 mm)
Power: 2.2 KW
Voltage: 220 VAC
Current: 10 A
Frequency: 0 ~ 300 Hz
Speed: 0 ~ 18000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease

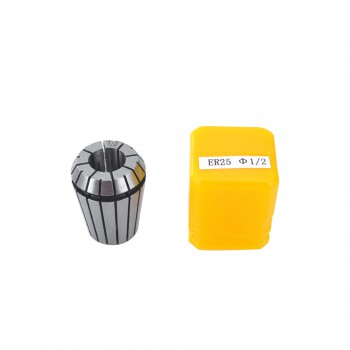

Collet size: ER25 Collet(6 mm, 12.7 mm)
Bearings: 2x7007(P4), 2x7002C(P4)
Weight: 7.5 kg
| Spindle Motor Specification | |
|---|---|
| Frequency(Hz) | 300 |
| Speed(RPM) | 18000 |
| Bearing Lubrication | Grease |
| Body Length(mm) | 174 |
| Collet Size | ER25 |
| Cooling | Air cooled |
| Current(A) | 10 |
| Material | Stainless steel |
| Shape | Square |
| Voltage(VAC) | 220 |
| Weight(Kg) | 7.5 |
| Body Height(mm) | 93 |
| Body Width(mm) | 82 |
