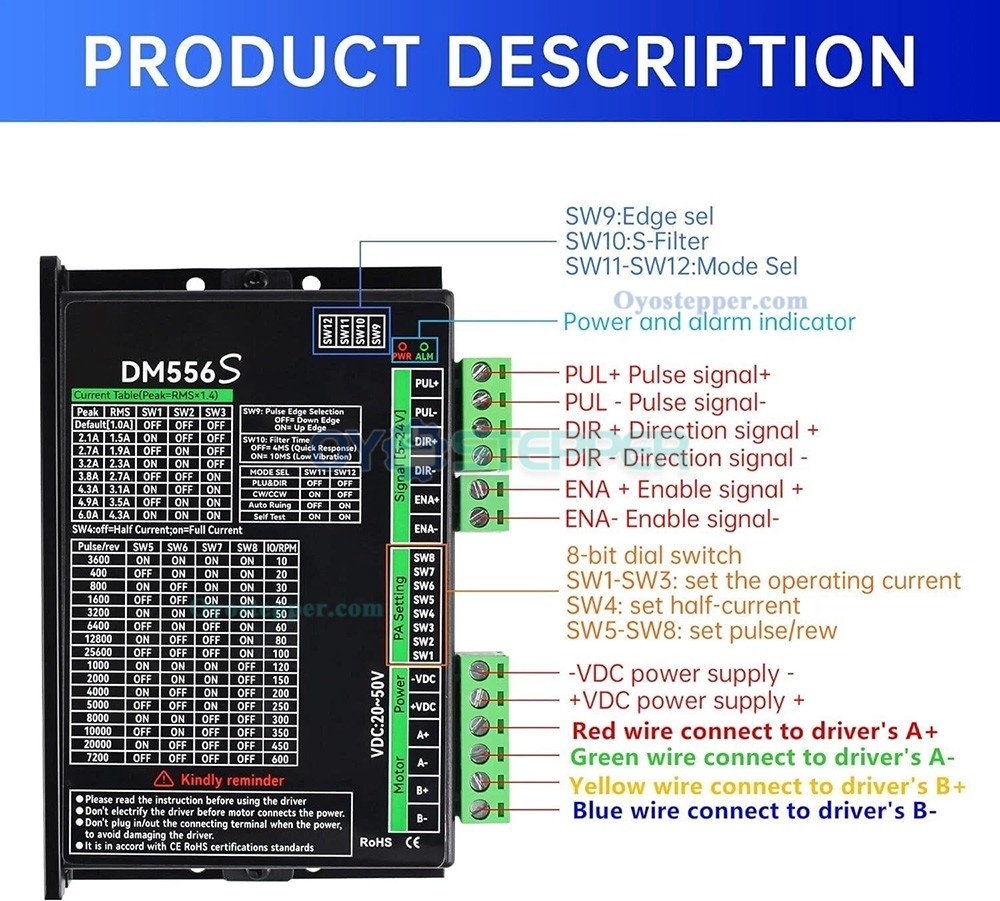

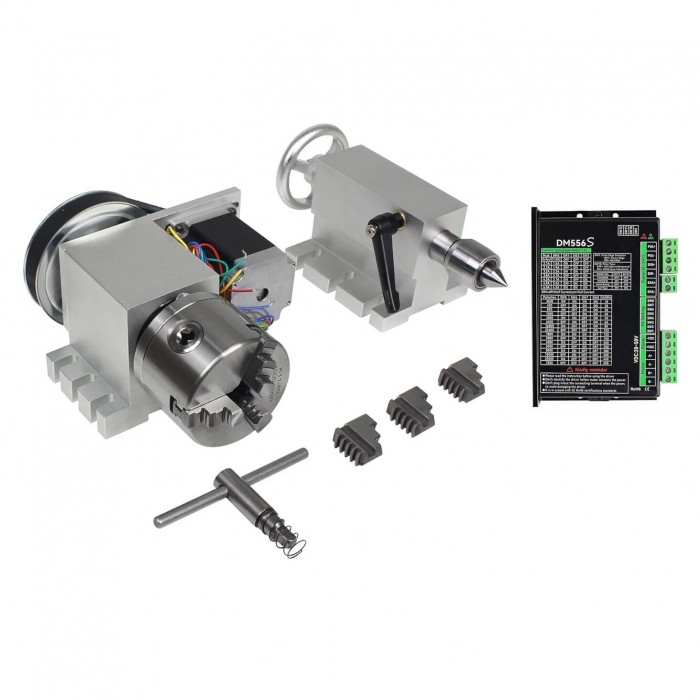

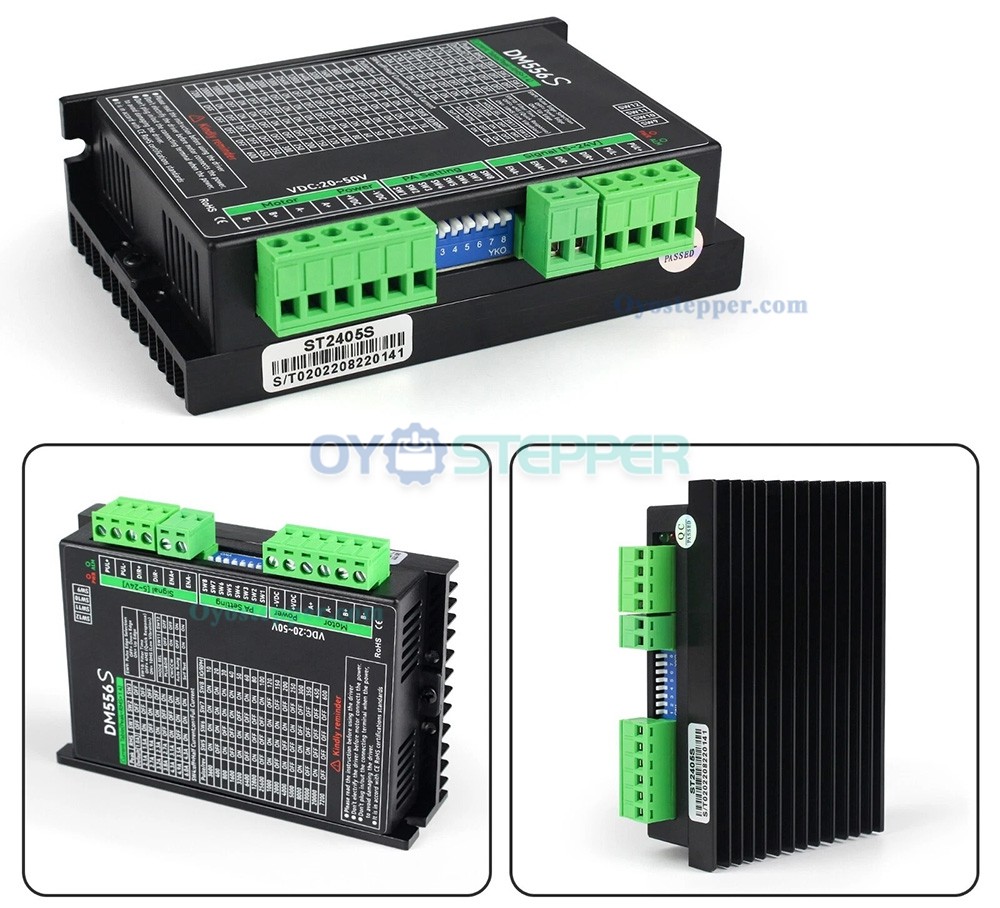

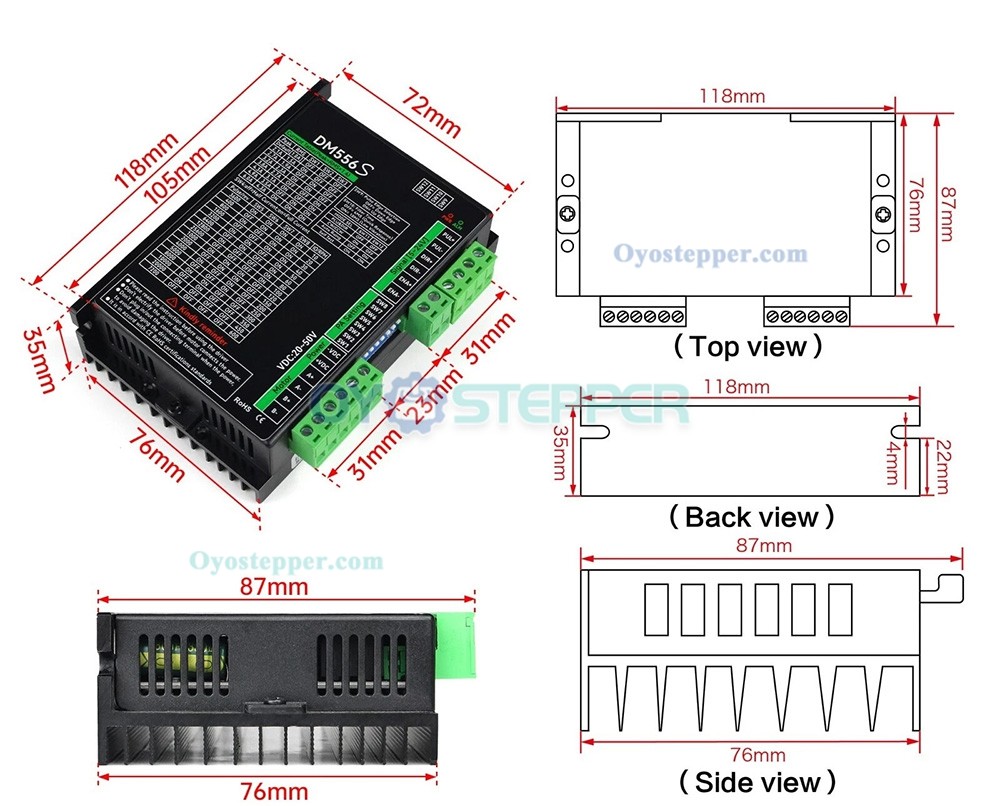

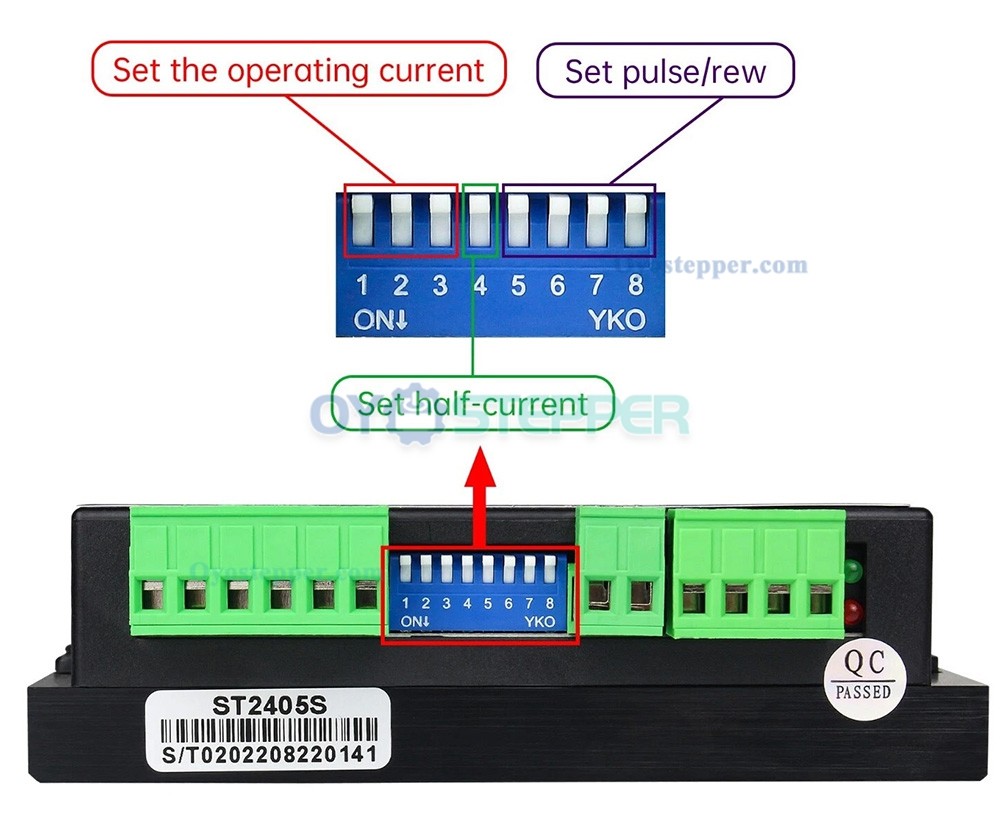

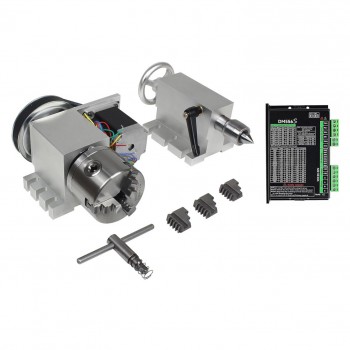

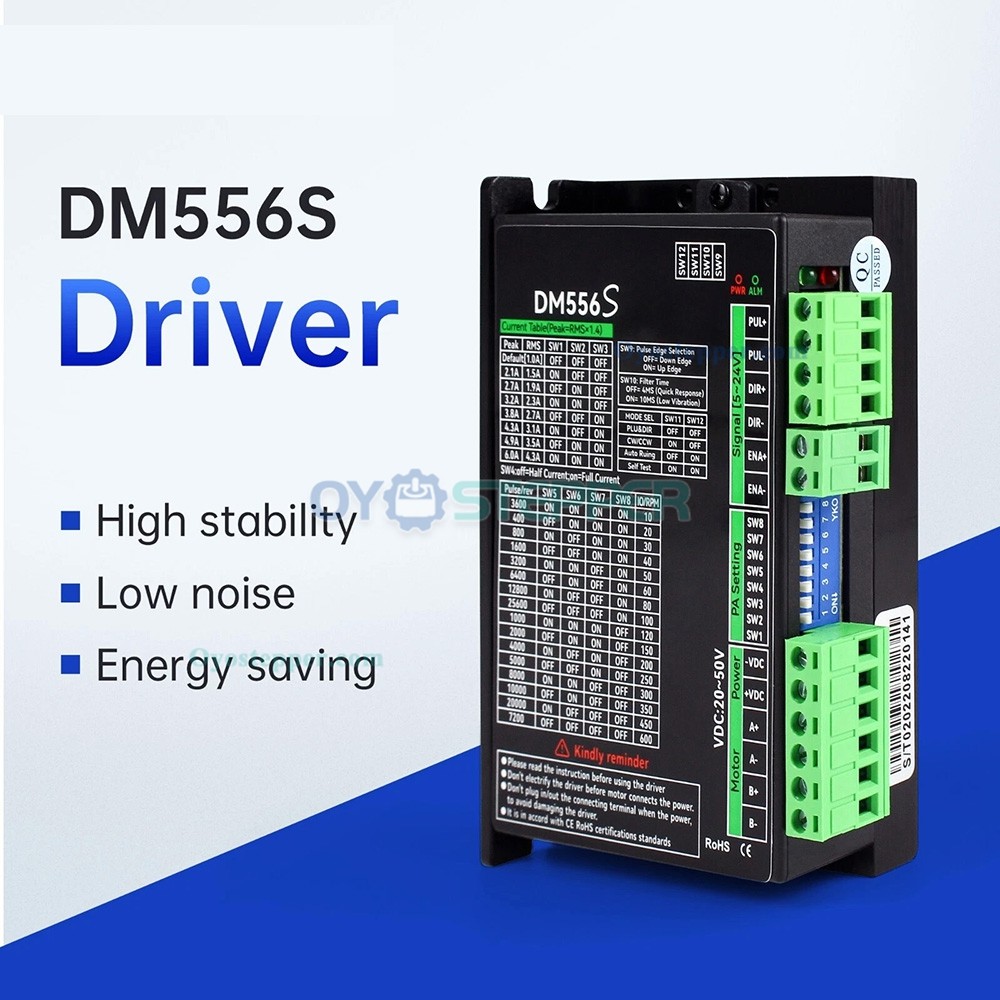

CNC Rotary Axis 80mm/100mm Chuck K11-100mm CNC 4th Axis Dividing head with DM556S Driver

CNC Rotary Axis 80mm/100mm Chuck K11-100mm CNC 4th Axis Dividing head with DM556S Driver

Model:
K11-80mm + Tailstock
K11-100mm + Tailstock

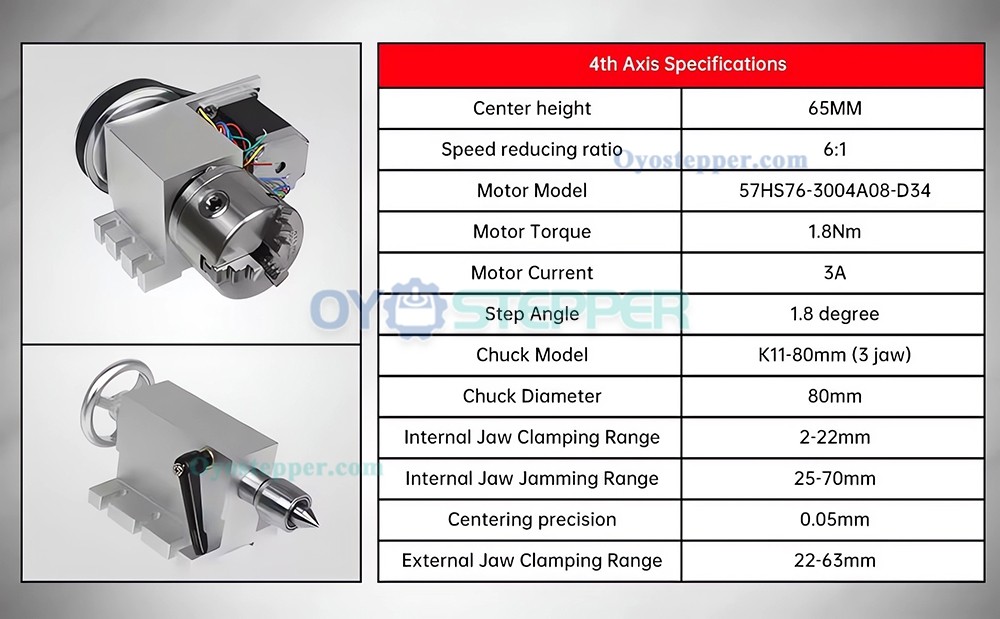

K11-80mm/100mm Specification:
Chuck type:  3 jaw centering chuck
Center height: 65mm
Total height: 115mm
Angle: 0.3°/ step

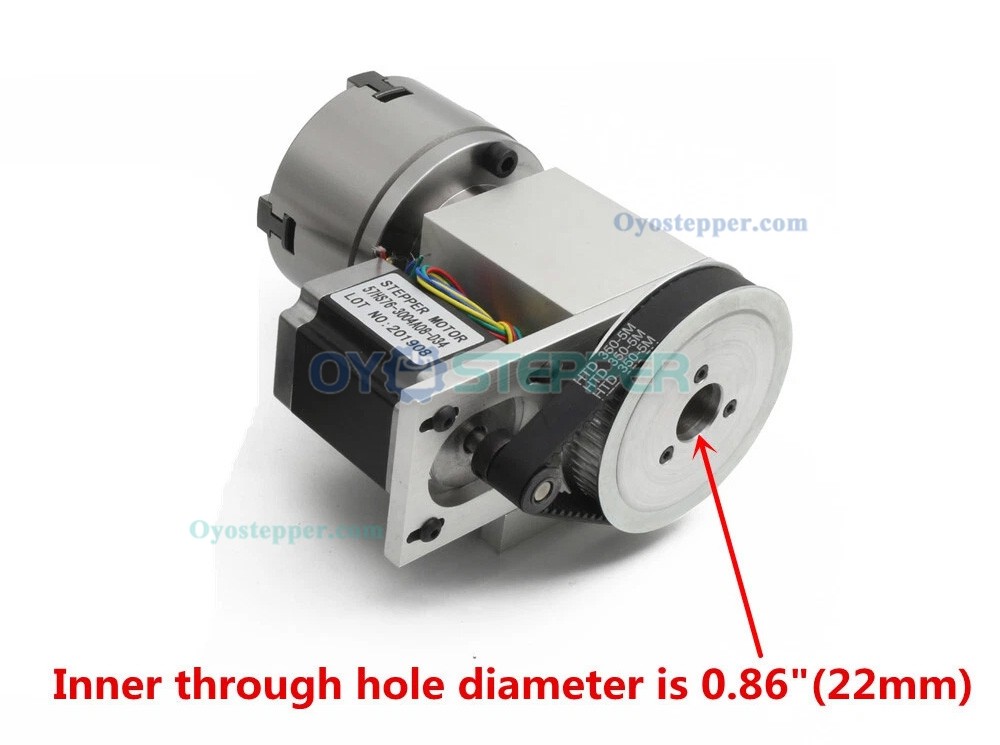

Gear box output shaft diameter: 25mm
Reducing ratio: 6:1 (belt deceleration mode)

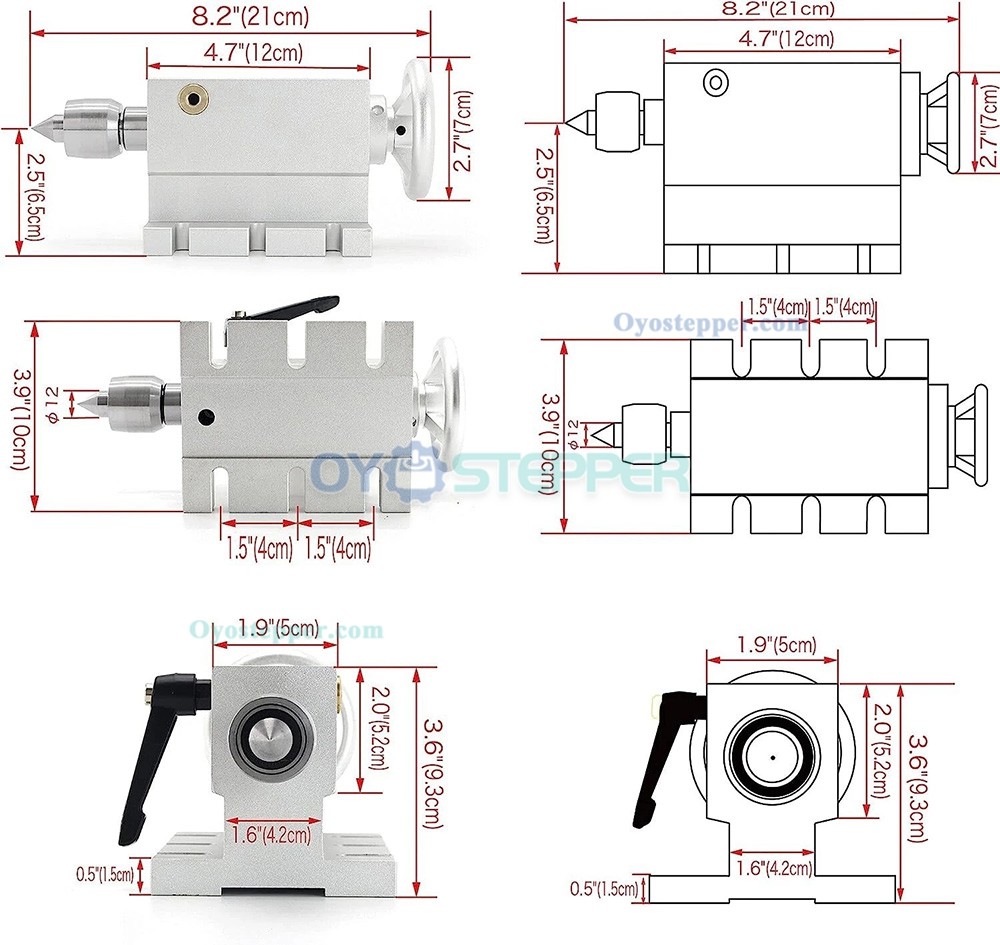

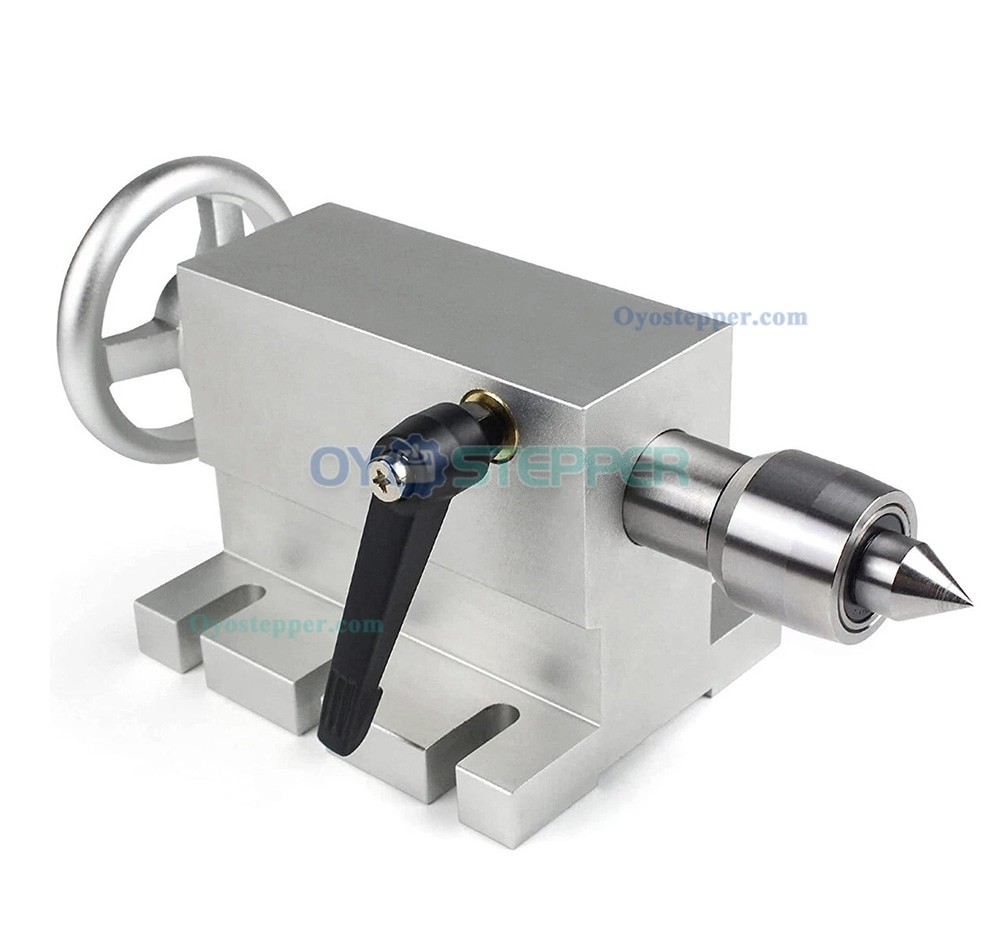

MT2 Tailstock Specification:
Center Height: 65mm
Stretch distance: 50mm
Axial locking wrench for tailstock;

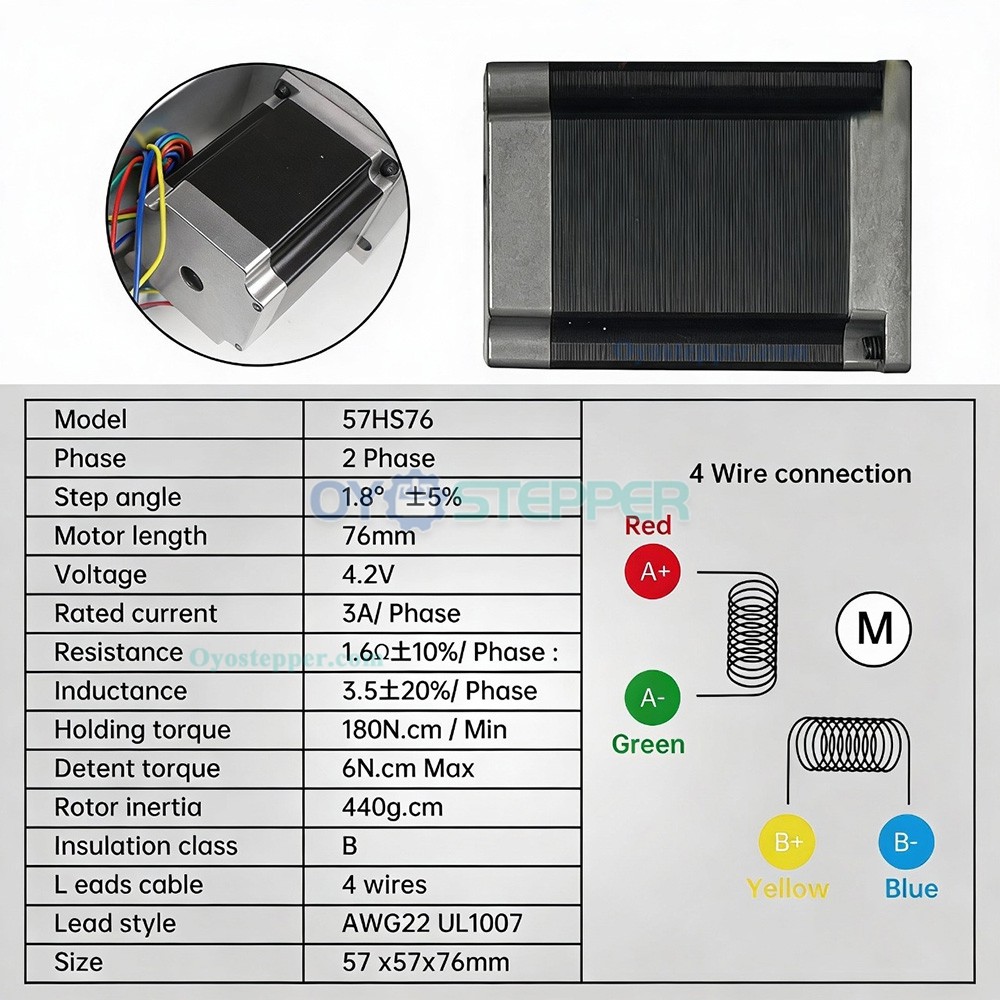

Nema 23 motor Specification:
Step Angle:1.8
Current: 3A
Voltage: 4.2V
Temperature Rise: 80 c max
Shaft Diameter: 8 mm
Shaft length: 25.5mm
Size: 57x57x76mm
Insulation Resistance: 100MOhm(500V DC)
Holding Torque: 18kg.cm

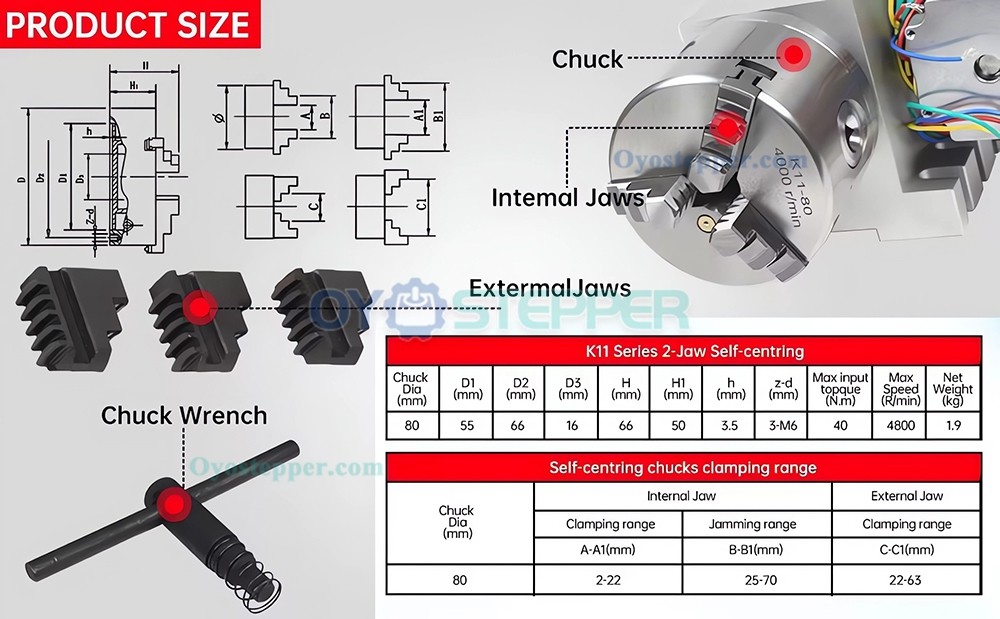

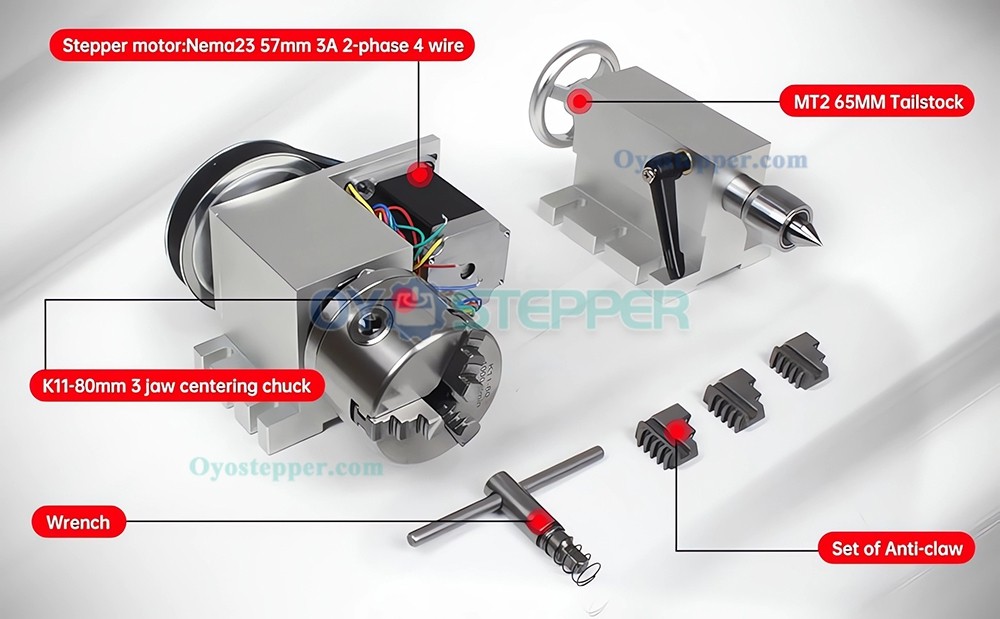

K11-80mm Details:

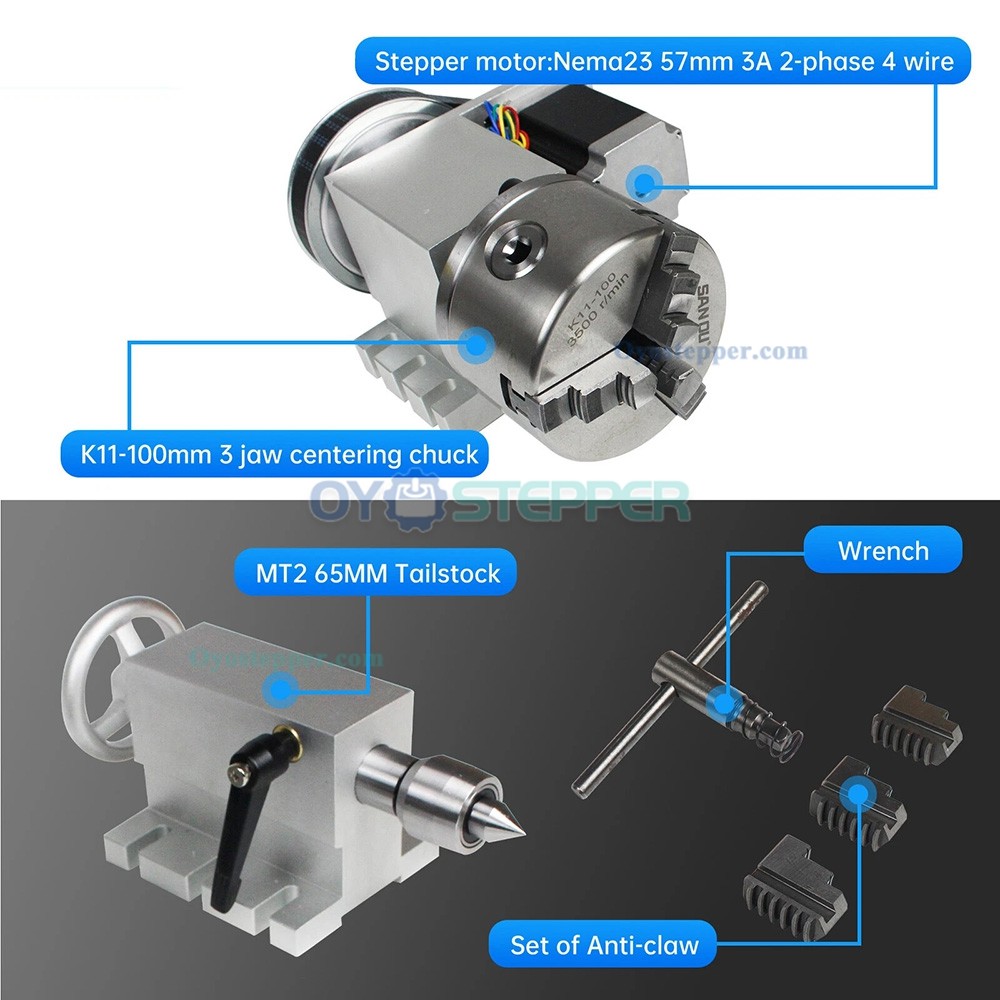

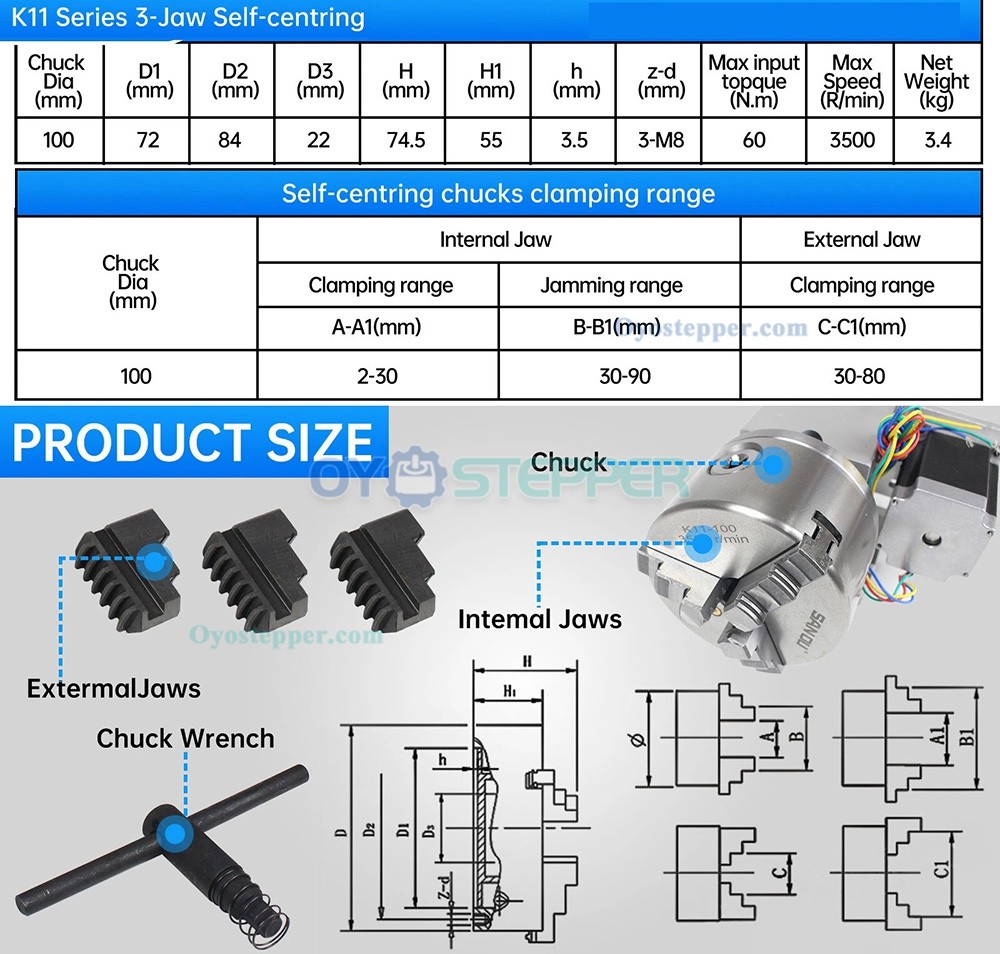

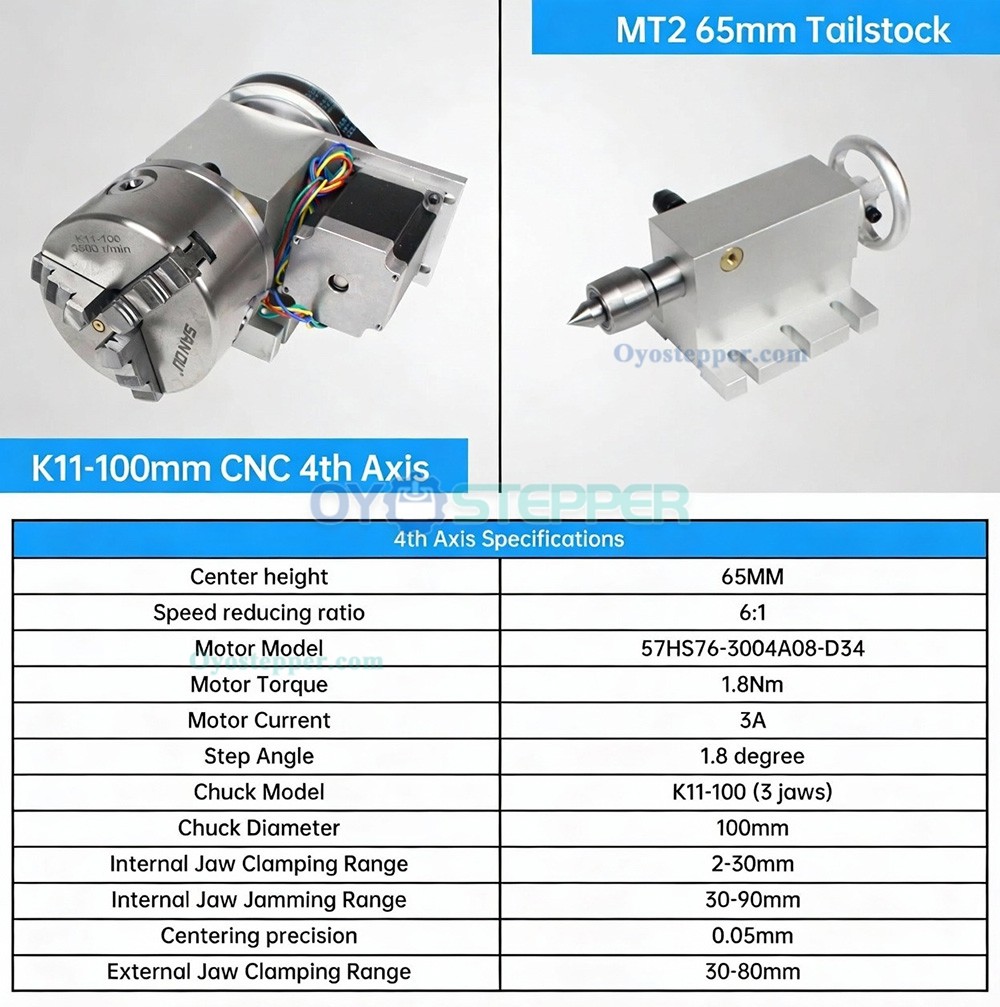

K11-100mm Details:
