CNC Engraving Machine Rotary 4th Axis 100mm 4jaw lathe chuck 6:1 Tailstock with Stepper Motor Kit

CNC Engraving Machine Rotary 4th Axis 100mm 4jaw lathe chuck 6:1 Tailstock with Stepper Motor Kit

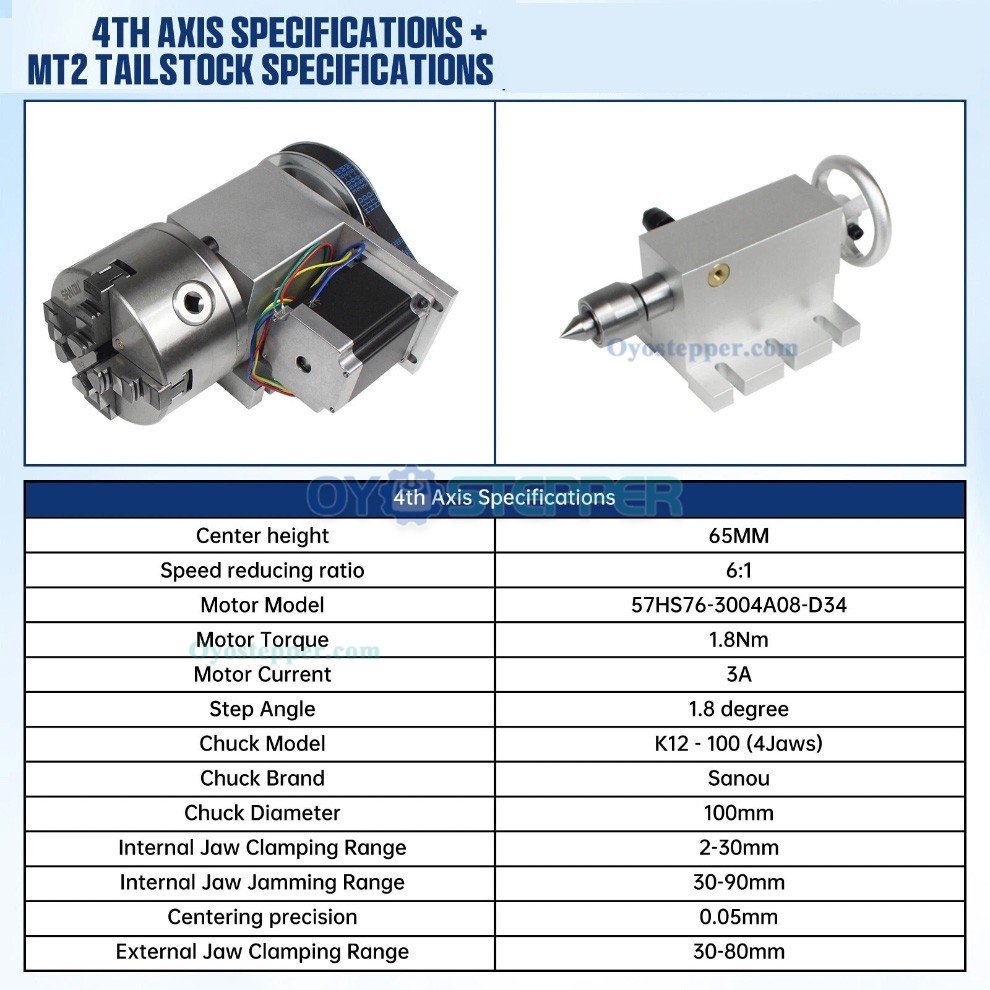

Specifications

Engraving Machine 4th Axis A Axis:

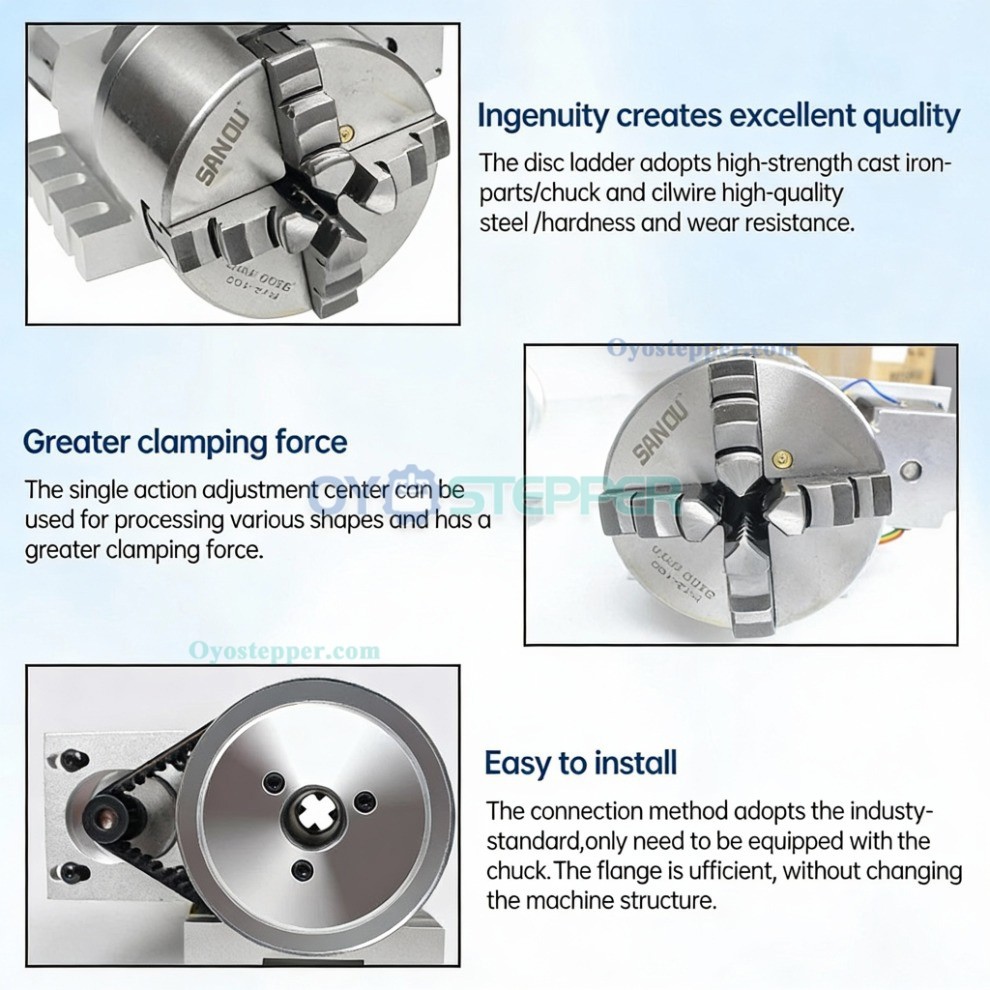

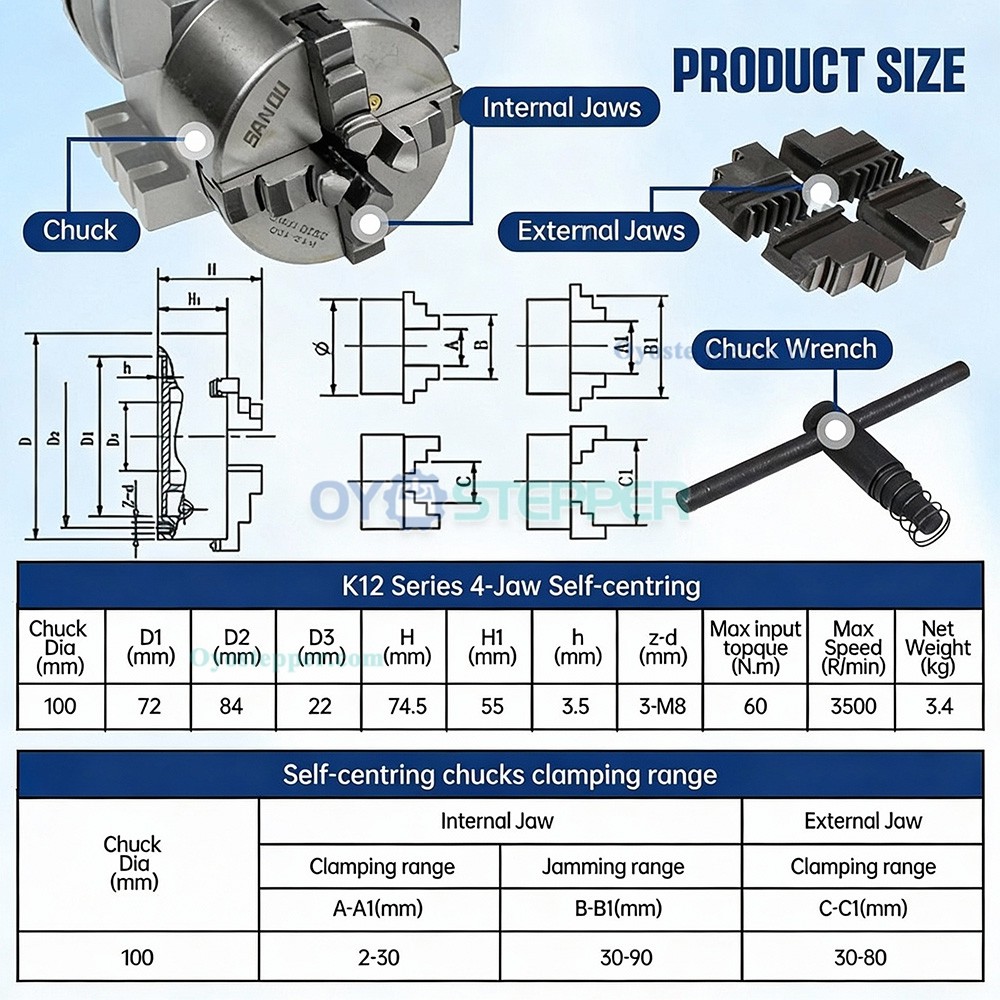

Chuck Type: K12-100mm 4-jaw self-centering chuck (includes reverse jaws)

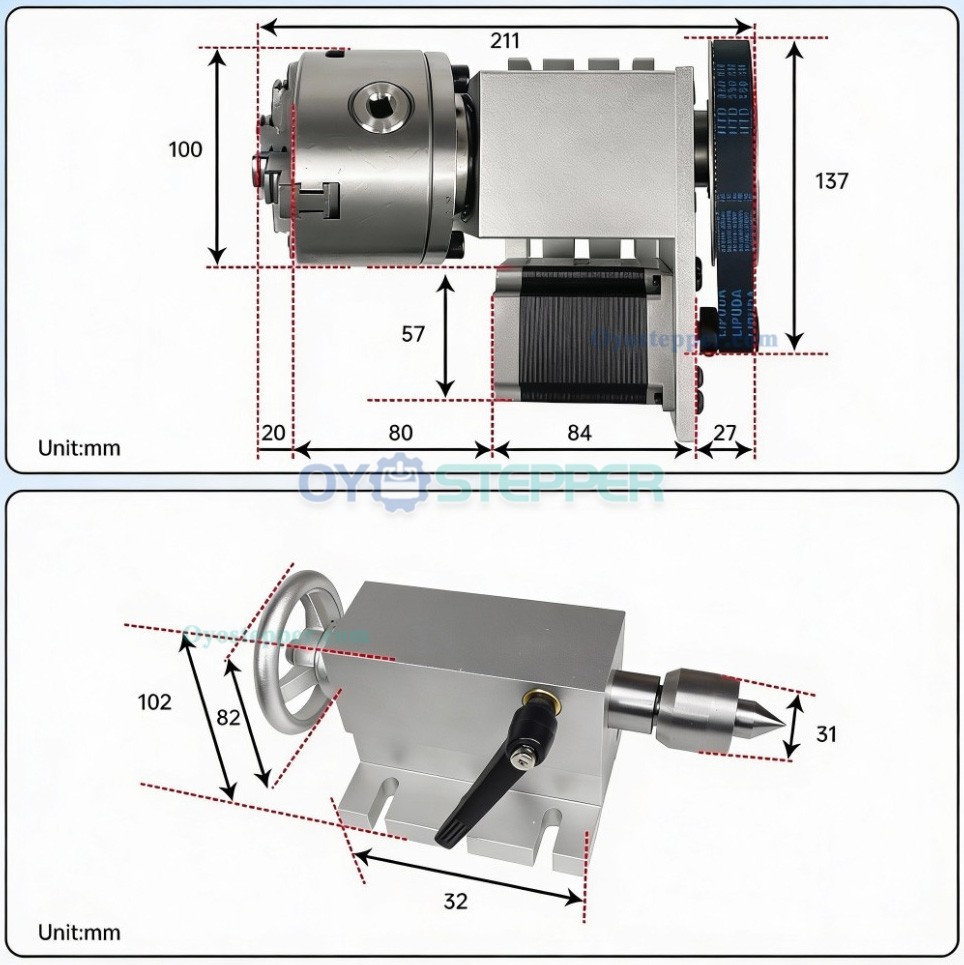

Center Height: 65mm

Total Height: 115mm

Step Angle: 0.3° per step (with connected motor and driver)

Gearbox Output Shaft Diameter: 25mm

Reduction Ratio: 6:1 (belt reduction)

Hollow Shaft Inner Diameter: 22mm

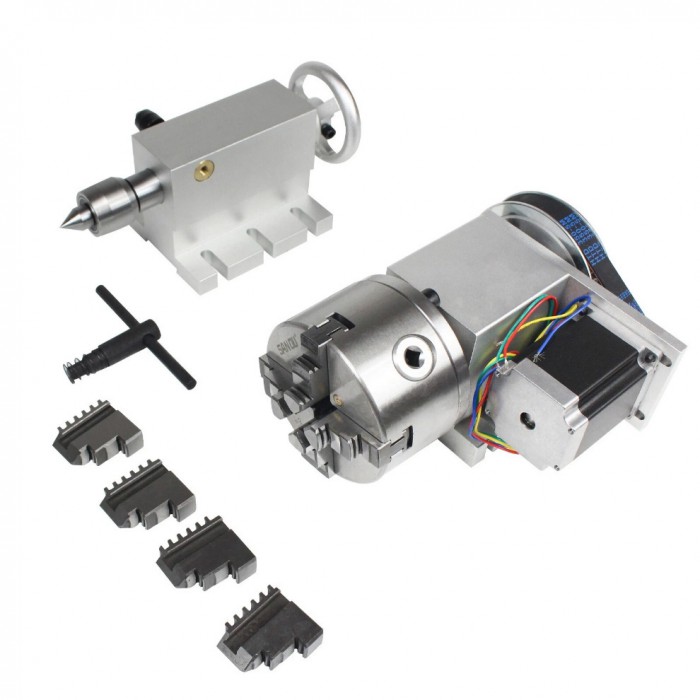

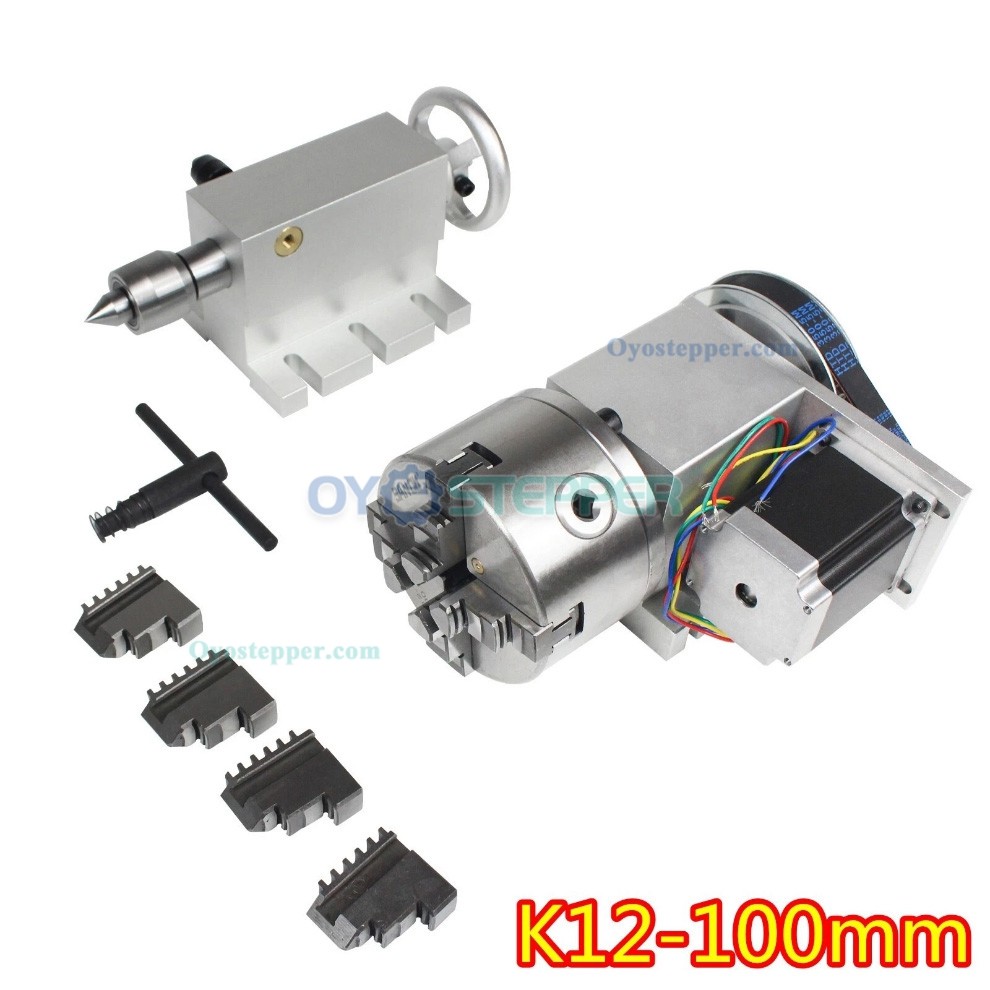

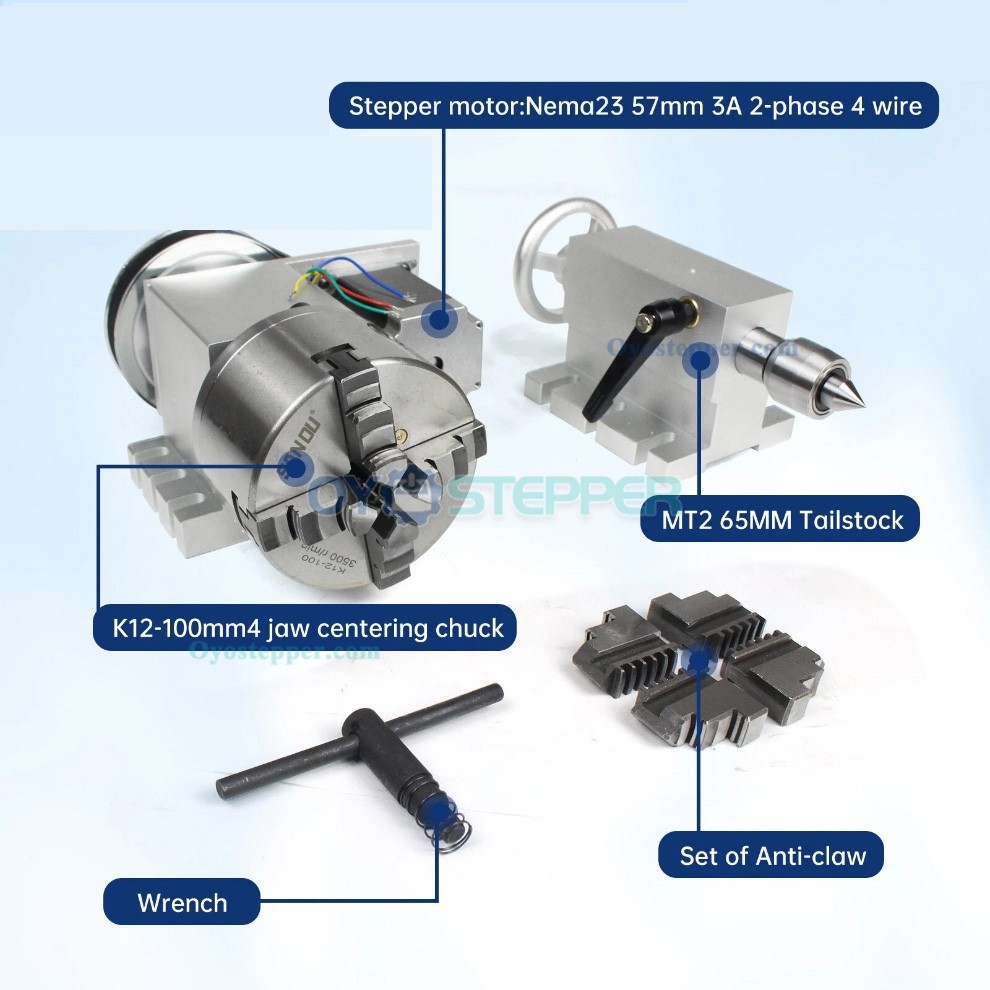

Included Components & Accessories

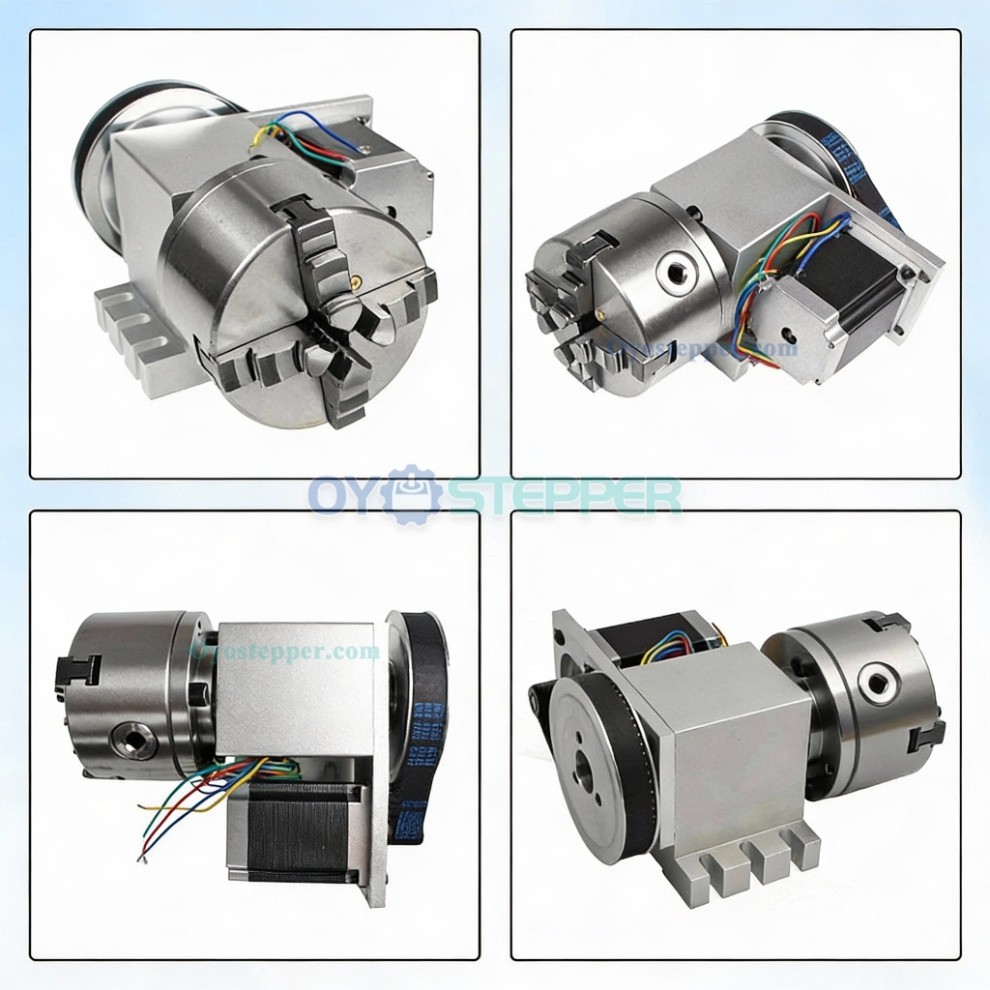

1x 4th Axis Rotary Table Assembly

1x Nema23 Stepper Motor (see specifications below)

1x MT2 Live Center Tailstock (see specifications below)

1x Set of anti-claw and wrenches

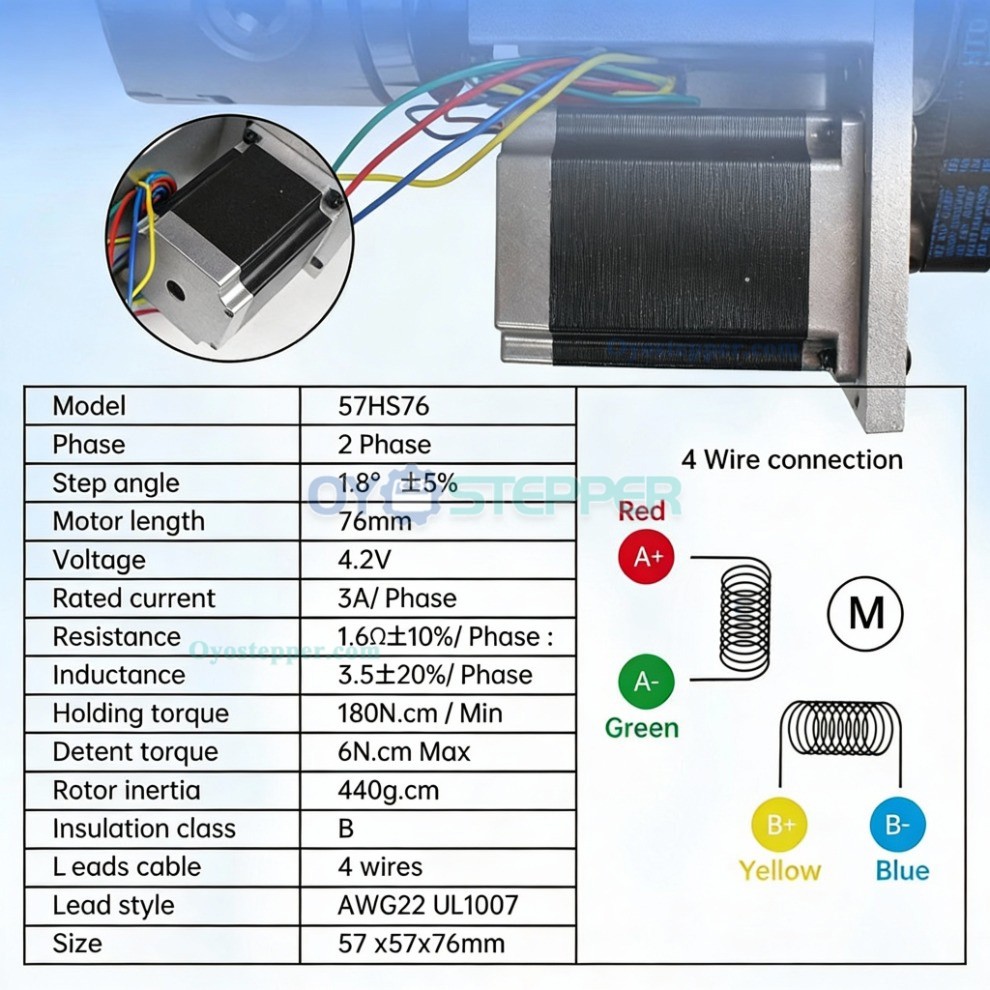

Stepper Motor Specifications

Model: Nema23

Shaft Diameter: 8mm

Shaft Length: 25.5mm

Step Angle: 1.8°

Rated Current: 3.0A

Rated Voltage: 4.2V

Max. Temperature Rise: 80°C

Insulation Resistance: 100 MΩ min. (at 500V DC)

Holding Torque: 18 kg·cm



MT2 Live Center Tailstock Specifications

Taper Type: Morse Taper 2 (MT2)

Center Height: 65mm

Quill Travel: 50mm

Center Type: Rotating (Live)

Features: Includes wrench for axial locking

System Parameter Configuration (Reference Examples)



For Mach3/4:

Pulses per degree = (Motor steps per rev × Driver microstepping × Reduction ratio) ÷ 360

Example (57mm motor, 16x microstepping, 100:1 ratio): (200 × 16 × 100) / 360 ≈ 888.889 pulses/degree

For Weihong (Syntec) Controls:

Degrees per pulse = 360° / (Motor steps per rev × Driver microstepping × Reduction ratio)

Example (same parameters): 360 / (200 × 16 × 100) = 0.001125°/pulse

Note: User must input parameters based on their actual motor and driver specifications.
